ACCESSORIES-FOR-LED-PANELS Accessories for LED Panels
Technical Specs
- :: Accessory Types: Surface Mounting Kit, Aircraft Cable Suspension Kit, Recessed Mounting Flange Kit
- :: Panel Sizes Supported: 1-inch x 4-inch, 2-inch x 2-inch, 2-inch x 4-inch (nominal 1x4, 2x2, 2x4 panels)

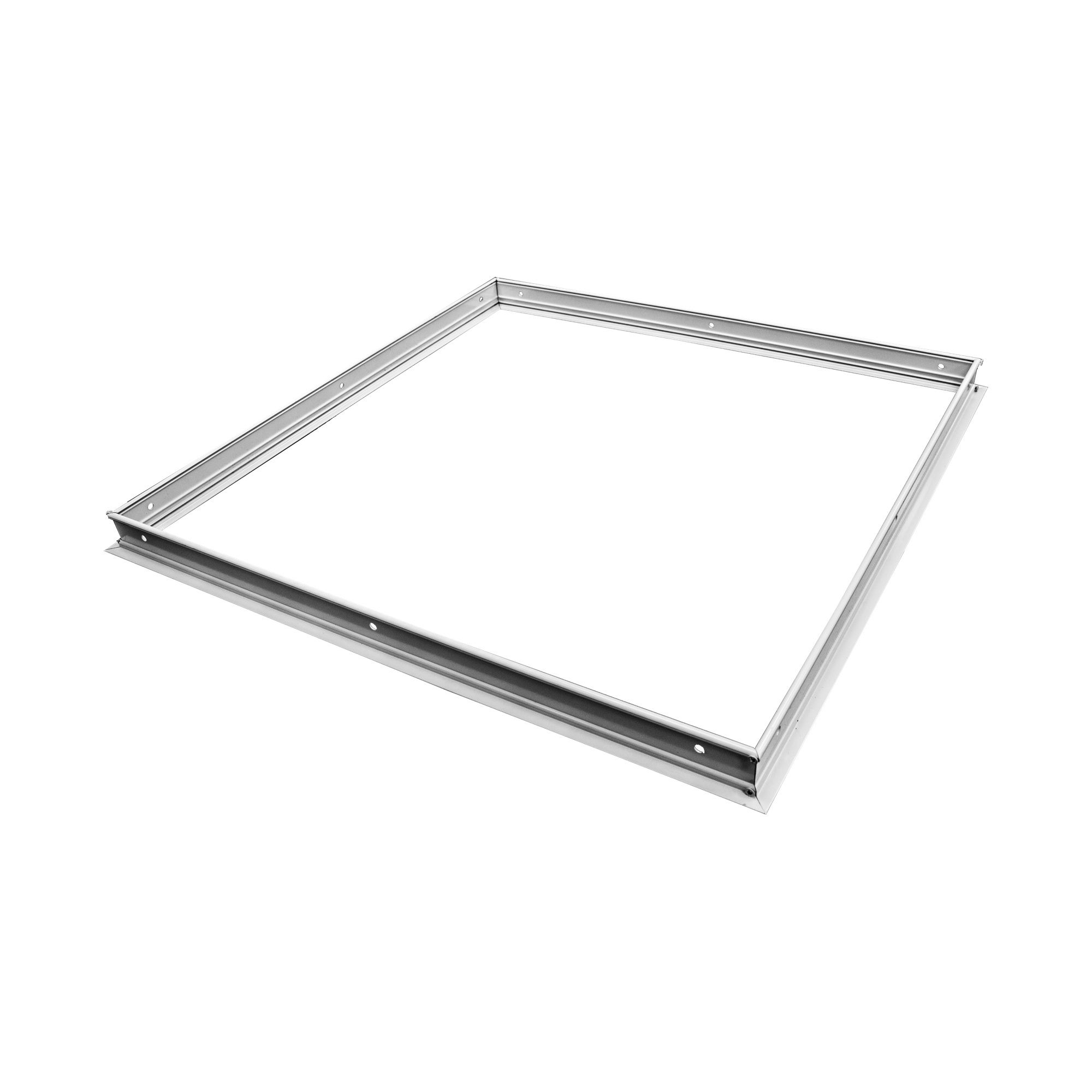

- :: Surface Kit Material: White aluminum frame
- :: Recessed Kit Material: White cast aluminum
- :: Surface Kit Depth: 2.5-inch
- :: Suspension Kit: Adjustable 1/16-inch galvanized aircraft cable, 4-foot drops with adjustable Y adapter and locking hook ends
- :: Mounting: Ceiling or wall (surface), suspended (cable), recessed drywall (flange)
Applications
- :: These accessories adapt Westgate LED flat panels to virtually any ceiling or wall condition, making them ideal for offices, schools, healthcare, retail, and commercial spaces where panels must mount to surfaces without a grid, hang from open or high ceilings, or recess cleanly into drywall. Surface-mount kits frame the panel for direct ceiling or wall installation, aircraft-cable suspension kits allow adjustable pendant-style hanging, and recessed flange kits let panels drop into drywall openings for a finished, built-in look.
- Variations
- Q & A (0)
| Product Name | Description | ||
|---|---|---|---|

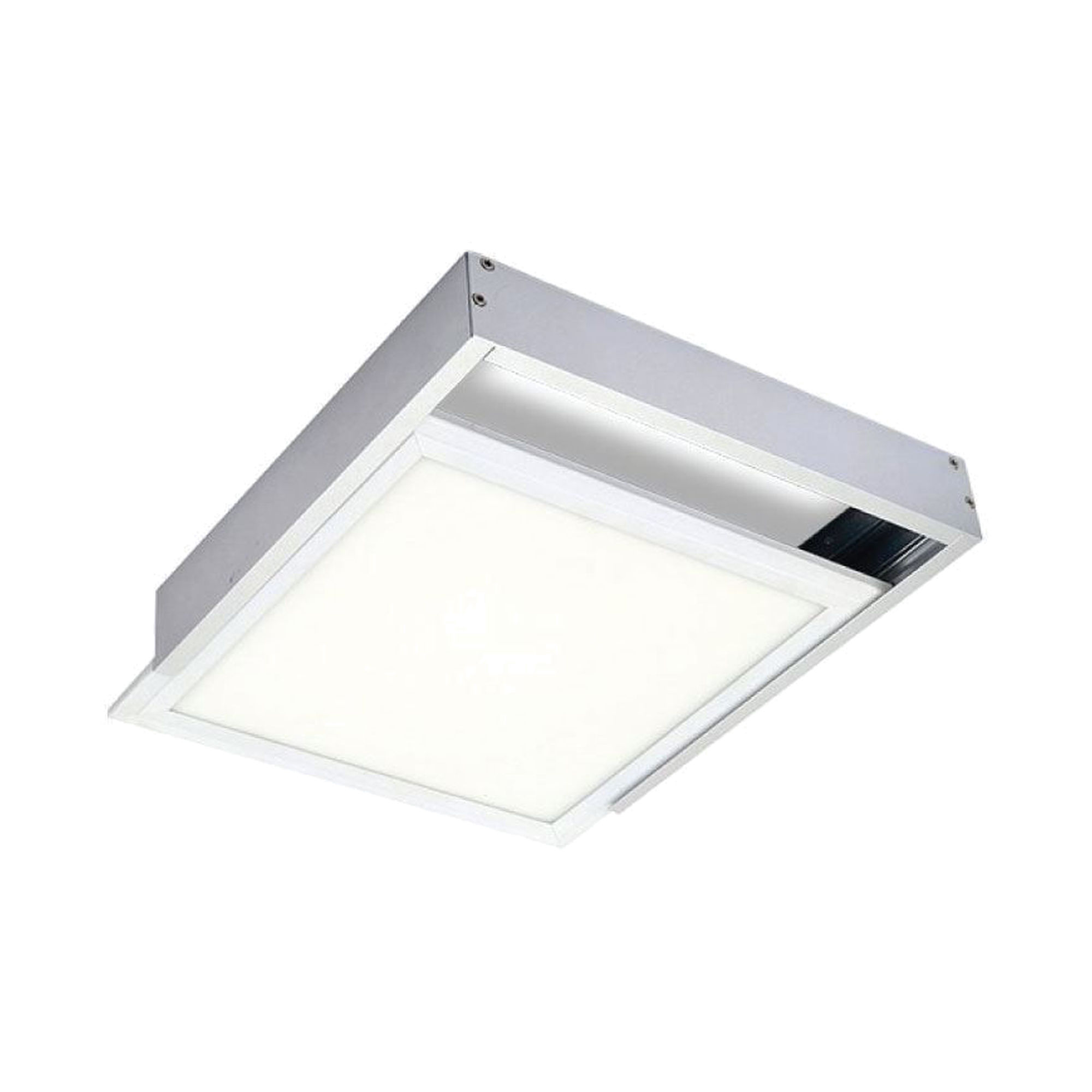

 LP-SRFC-1X4  BRCH SPEC | White Aluminum Surface Mounting Kit for 1x4 LED Panel | ||
LP-SRFC-2X2 BRCH SPEC | White Aluminum Surface Mounting Kit for 2x2 LED Panel | ||
LP-SRFC-2X4 BRCH SPEC | White Aluminum Surface Mounting Kit for 2x4 LED Panel | ||
 LP-SSPC-2X2 BRCH | Adjustable Aircraft Cable Suspension Kit for 2x2 LED Panel | ||
LP-SSPC-2X4 BRCH | Adjustable Aircraft Cable Suspension Kit for 2x4 LED Panel | ||

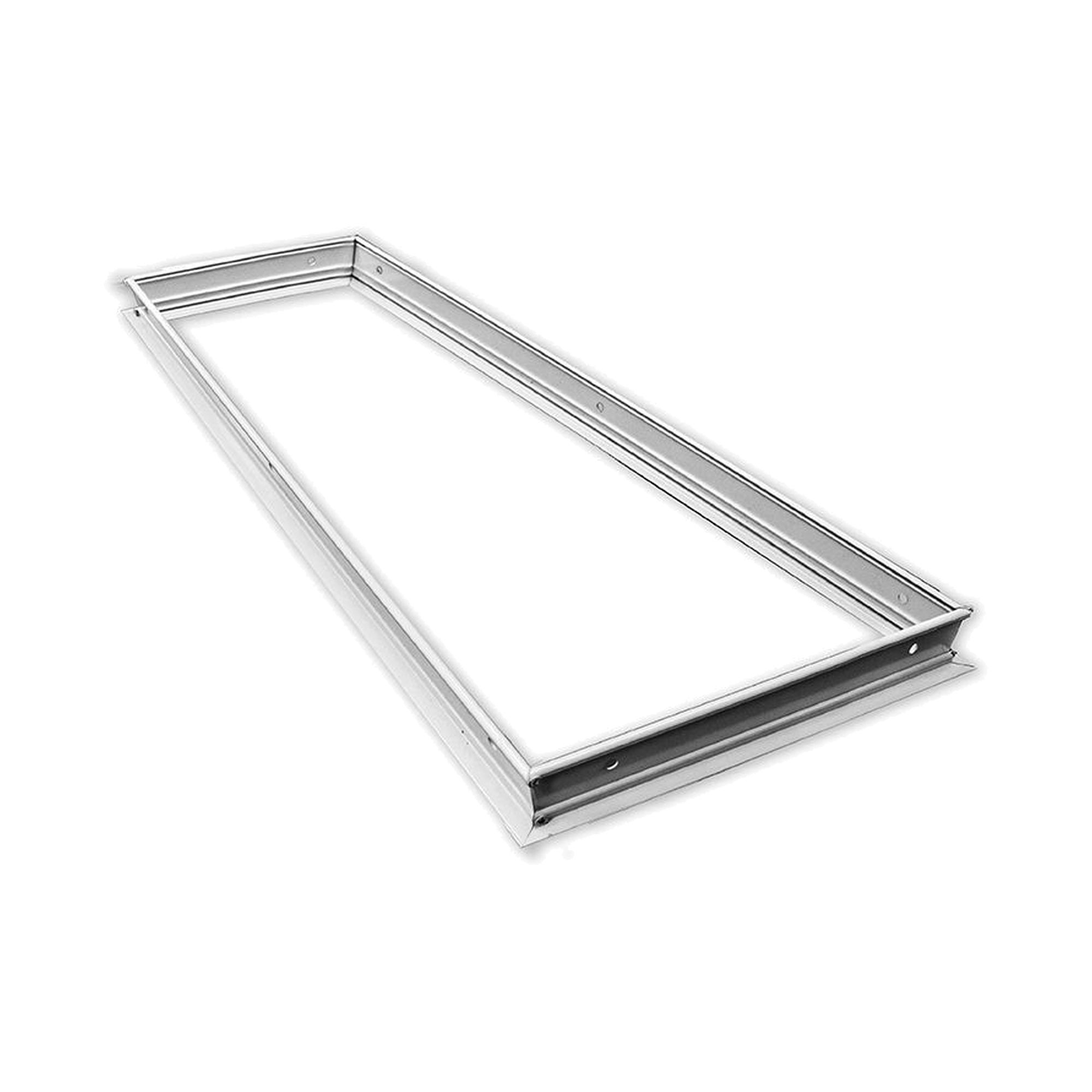

 LP-RMK-1X4 BRCH | White Cast Aluminum Recessed Mounting Flange Kit for 1x4 LED Panel | ||
 LP-RMK-2X2 BRCH | White Cast Aluminum Recessed Mounting Flange Kit for 2x2 LED Panel | ||

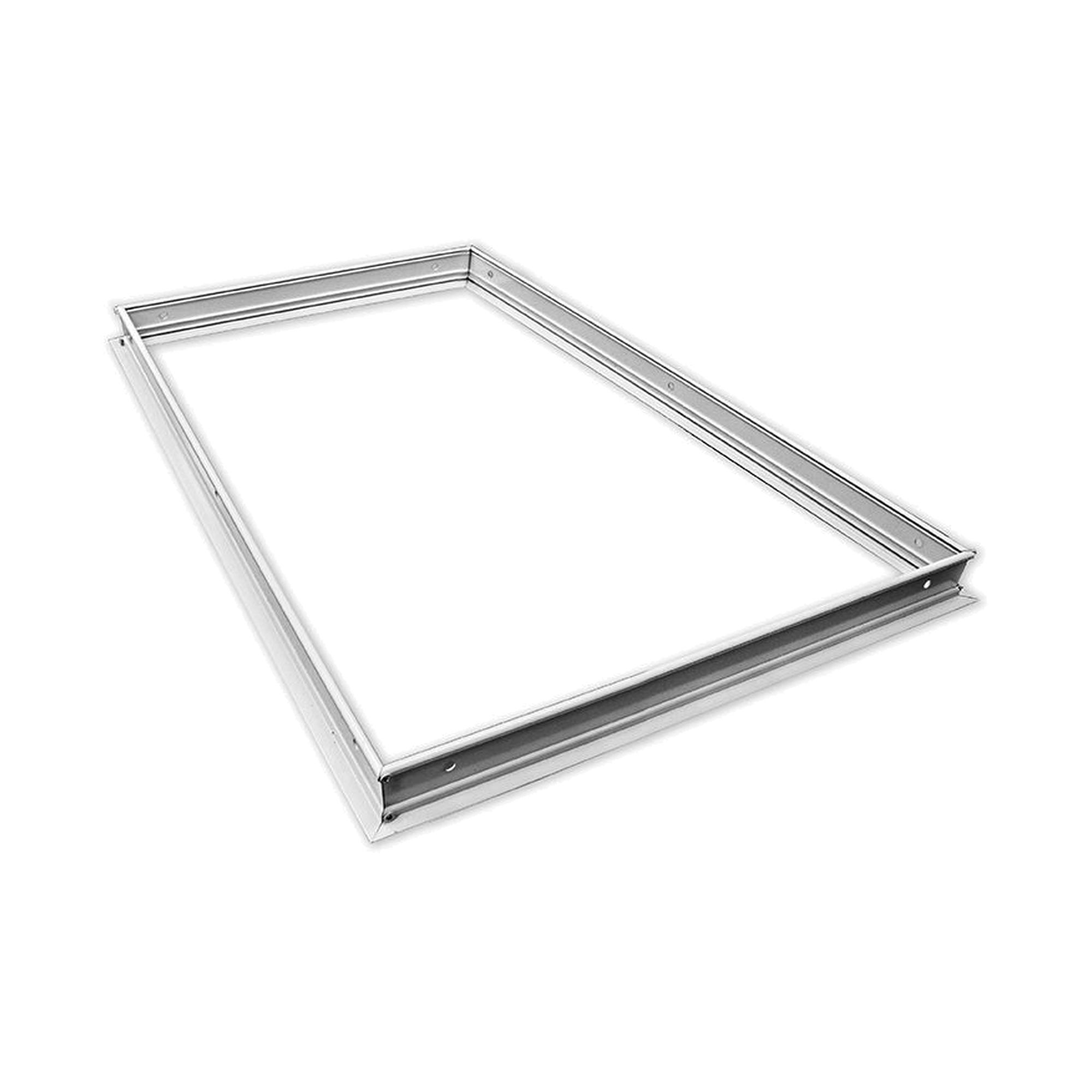

 LP-RMK-2X4 BRCH | White Cast Aluminum Recessed Mounting Flange Kit for 2x4 LED Panel |
