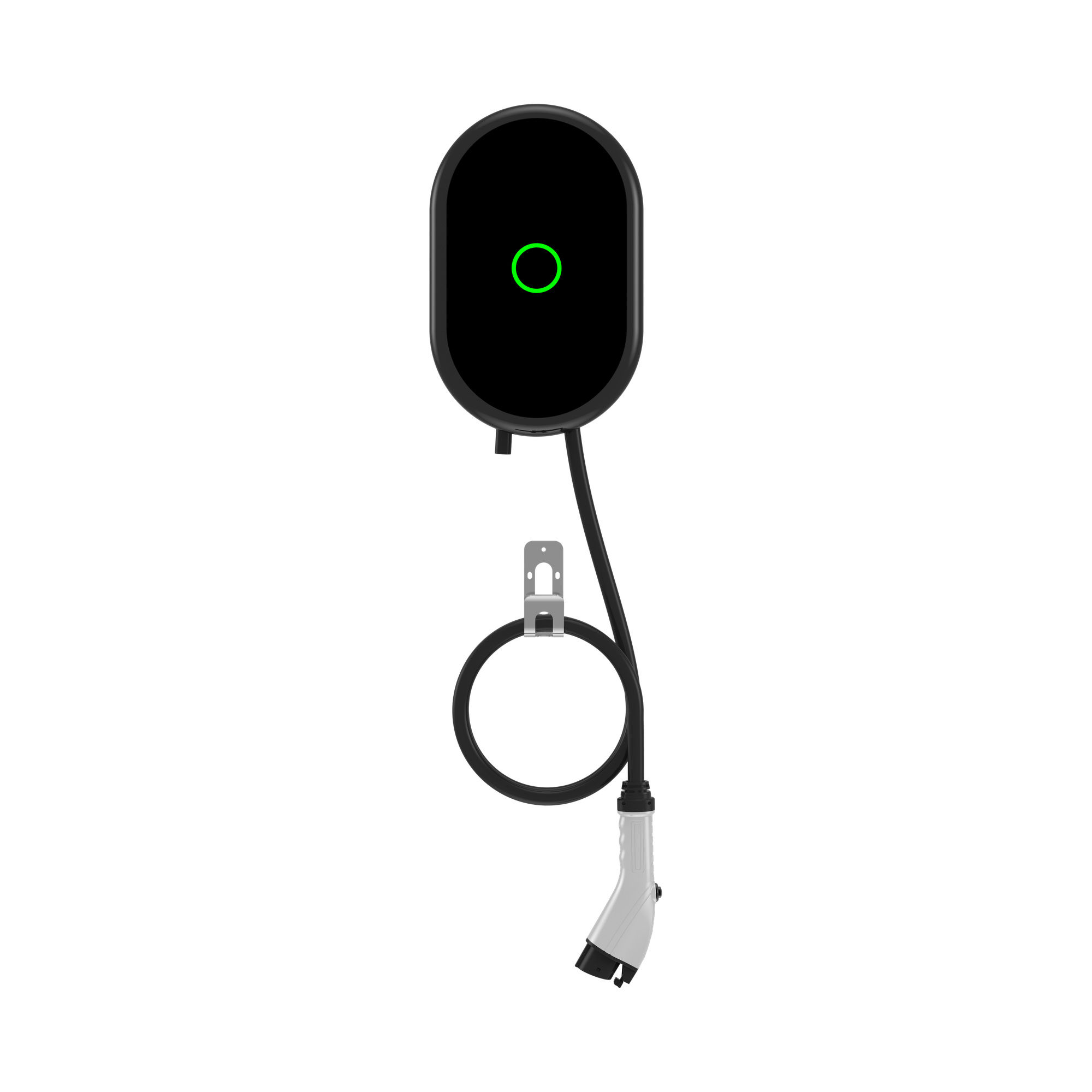

EVC-C-40A-SERIES EVC-C 40A Series Wall-Mounted Level 2 AC EV Charger
Technical Specs
- :: Charging mode: Level 2 AC
- :: Connector: SAE J1772 (Type 1)
- :: Product power: 9.6kW
- :: Maximum output current: 40A
- :: Input voltage: 120-250VAC
- :: Input frequency: 50-60Hz
- :: Input line: Three lines, L1, L2, PE
- :: Startup: Plug and charge standard; optional RFID card, QR scan, Bluetooth app
- :: Connectivity: LAN, WiFi, Bluetooth, 4G, OCPP 1.6J (optional)
- :: Indicator: Two-color LED (standby green steady, charging green flashing, fault red steady)
- :: Cable: 5m standard, customizable to 7.5m
- :: Protection: Leakage (CCID20), ground, over-voltage, under-voltage, under-current, charging-connection abnormal protection
- :: Enclosure: Type 4
- :: Housing: PC and ABS mixed material
- :: Dimensions: 15.90-inch H x 10.27-inch W x 3.96-inch D
- :: Weight: 7kg
- :: Operating temperature: -22°F to 122°F (-30°C to 50°C)
- :: Storage temperature: -22°F to 158°F (-30°C to 70°C)
- :: Humidity: ≤95%
- :: Altitude: ≤2000m
- :: Installation: Wall-mounted (floor-standing optional)
- :: Certifications: ETL, FCC, ENERGY STAR
Applications
- :: The Westgate EVC-C 40A Series delivers Level 2 AC charging for electric vehicles at home and at work, integrating charging control, communication, billing, and metering in one wall-mounted unit.
- :: Suited to residential and commercial charging, indoors or outdoors, with a Type 4 dust- and water-resistant enclosure.
- :: Plug-and-charge is standard, with optional RFID card, QR scan, and Bluetooth app start for networked management.
- Variations
- Q & A (0)
| Product Name | Housing Finish | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|---|
 EVC-C-40A-AC-9.6KW-J1772  INST SPEC | Black (PC/ABS) | 9.6kW | SAE J1772 (Type 1) | 120-250VAC |     |
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
| 4.5FT Floor Mount Pedestal for EV Chargers |
