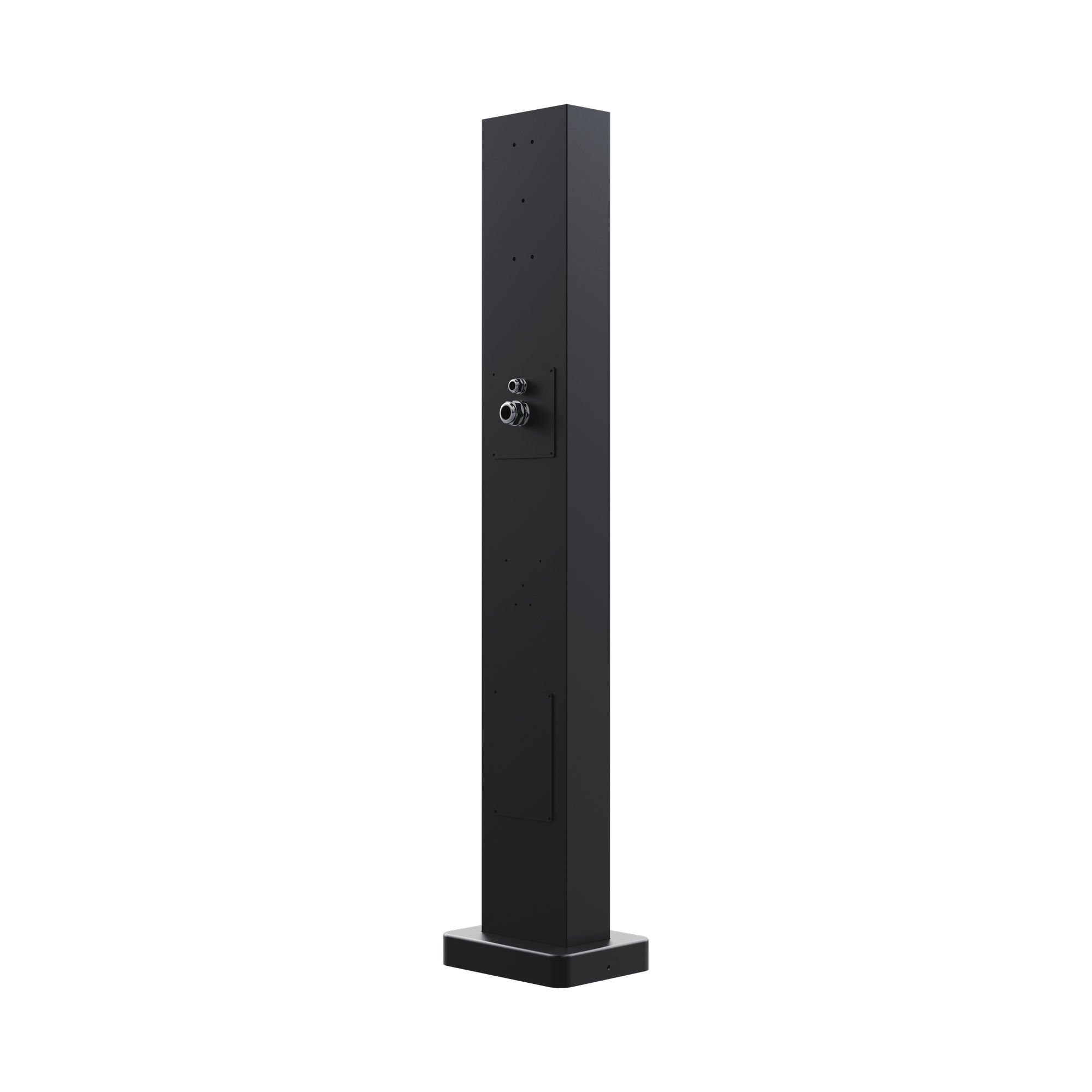

EVC-PEDESTAL-SERIES EVC-PEDESTAL Series Floor Mount Pedestals for EV Chargers
Technical Specs
- :: Freestanding floor-mount pedestal for Westgate EVC Series AC chargers
- :: Nominal height 4.5FT (overall height 53.15-inch / 1350mm)
- :: Concrete pad mount, minimum compressive strength 3000psi
- :: Secures with 4 field-supplied L-shape anchor bolts, M10 x 150mm
- :: Anchor bolt embedment depth minimum 4.8-inch (121.9mm); protrusion minimum 1-inch (25.4mm)
- :: Recommended cable conduit 3/4-inch for 40A charging current
- :: Includes pedestal, mounting screws, and user manual
Applications
- :: The Westgate EVC-PEDESTAL Series makes EV charging possible anywhere a wall is not, giving Westgate EVC chargers a sturdy, freestanding home in open parking lots, driveways, carports, commercial fleet yards, and multi-family parking areas. Anchored to a concrete pad, it positions the charger at a convenient, accessible height for daily use.
- Variations
- Q & A (0)
| Product Name | Description | Features | |
|---|---|---|---|
| 4.5FT Floor Mount Pedestal for EV Chargers |    |
