LIH-SERIES LIH Series Natatorium Indirect LED High Bay
Technical Specs
- :: Voltage: 120-277VAC, 50/60 Hz
- :: Wattage: Field-selectable 150W / 225W / 300W (single-head) or 300W / 450W / 600W (dual-head)
- :: Field-selectable output: 100% / 75% / 50%
- :: Lumen output: Up to 46,070 lumens (single-head) or 88,320 lumens (dual-head)
- :: Efficacy: Up to 165 LM/W (single-head); up to 166 LM/W (dual-head)
- :: Color temperature: 5000K
- :: CRI: 80
- :: Beam distribution: 43° symmetrical
- :: Optic: Etched frosted glass for soft, uniform indirect illumination
- :: Head adjustment: Rotates up to 180° for field-adjustable distribution
- :: Dimming: 0-10V dimming
- :: Driver: Constant-current LED driver
- :: Power factor: >0.90
- :: THD: <20% at 277VAC
- :: Surge protection: 6kV line-to-neutral and line/neutral-to-ground
- :: Flicker factor: <1%
- :: Construction: Aluminum-alloy housing and heatsink, modular
- :: Finish: White RAL 9016 powder-coated
- :: Optical components: Polycarbonate
- :: Ingress protection: IP65
- :: Impact rating: IK08
Applications
- :: The Westgate LIH Series is engineered for natatoriums and other demanding indoor high-bay spaces, using an indirect optical design to soften glare in high-ceiling environments.
- :: Its C4 corrosion resistance and 1,000-hour salt-spray-tested construction suit humid, chemically aggressive settings such as indoor pools.
- :: Adjustable light heads rotate to aim illumination precisely where each space needs it.
- Variations
- Q & A (0)
| Product Name | Housing Finish | Lumens | Color Temp | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|---|---|---|

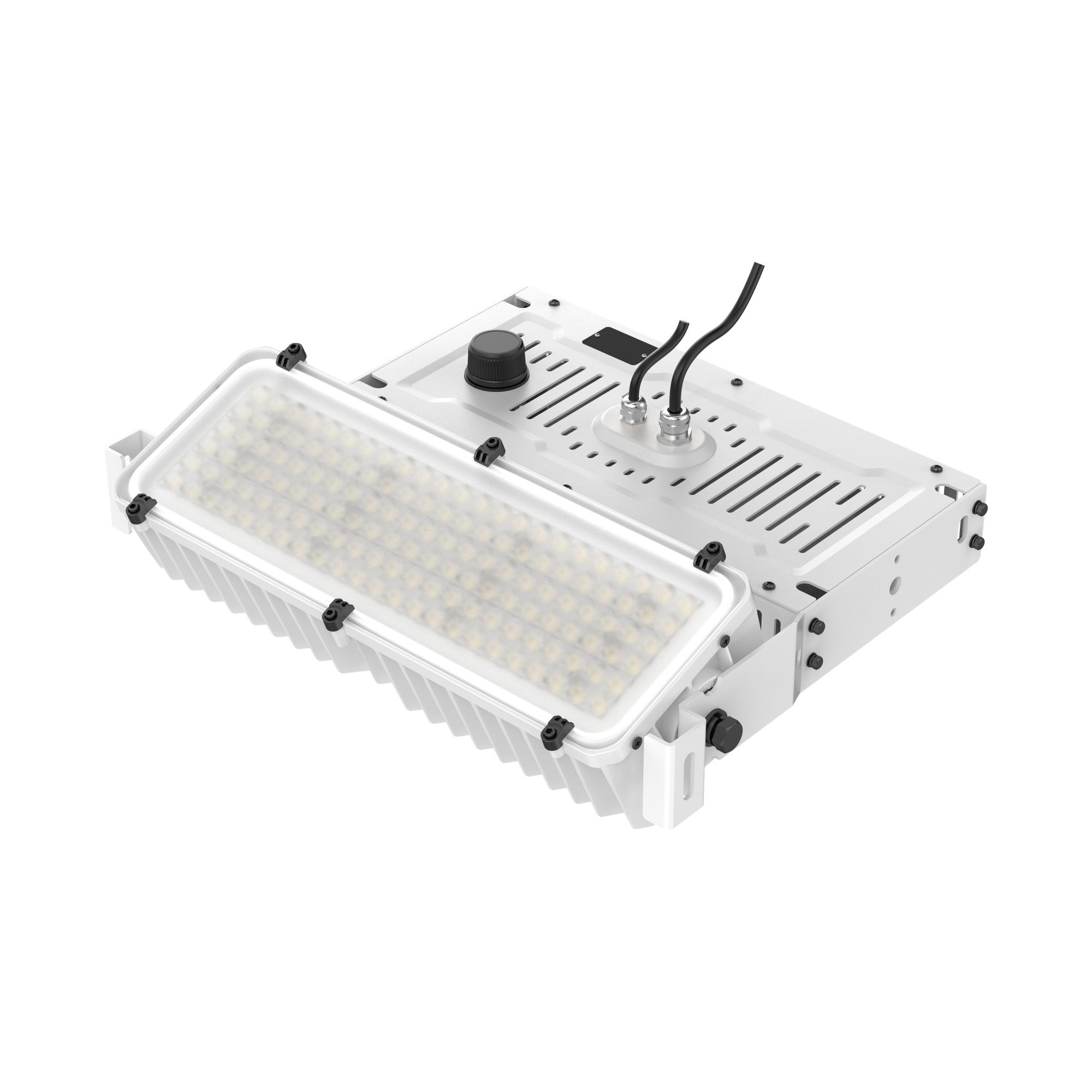

 LIH-1S-300W-50K-43D  SPEC INST | White | 46,070 / 34,875 / 24,820 | 5000K | 300W / 225W / 150W (field-selectable) | 120-277VAC |     | ||

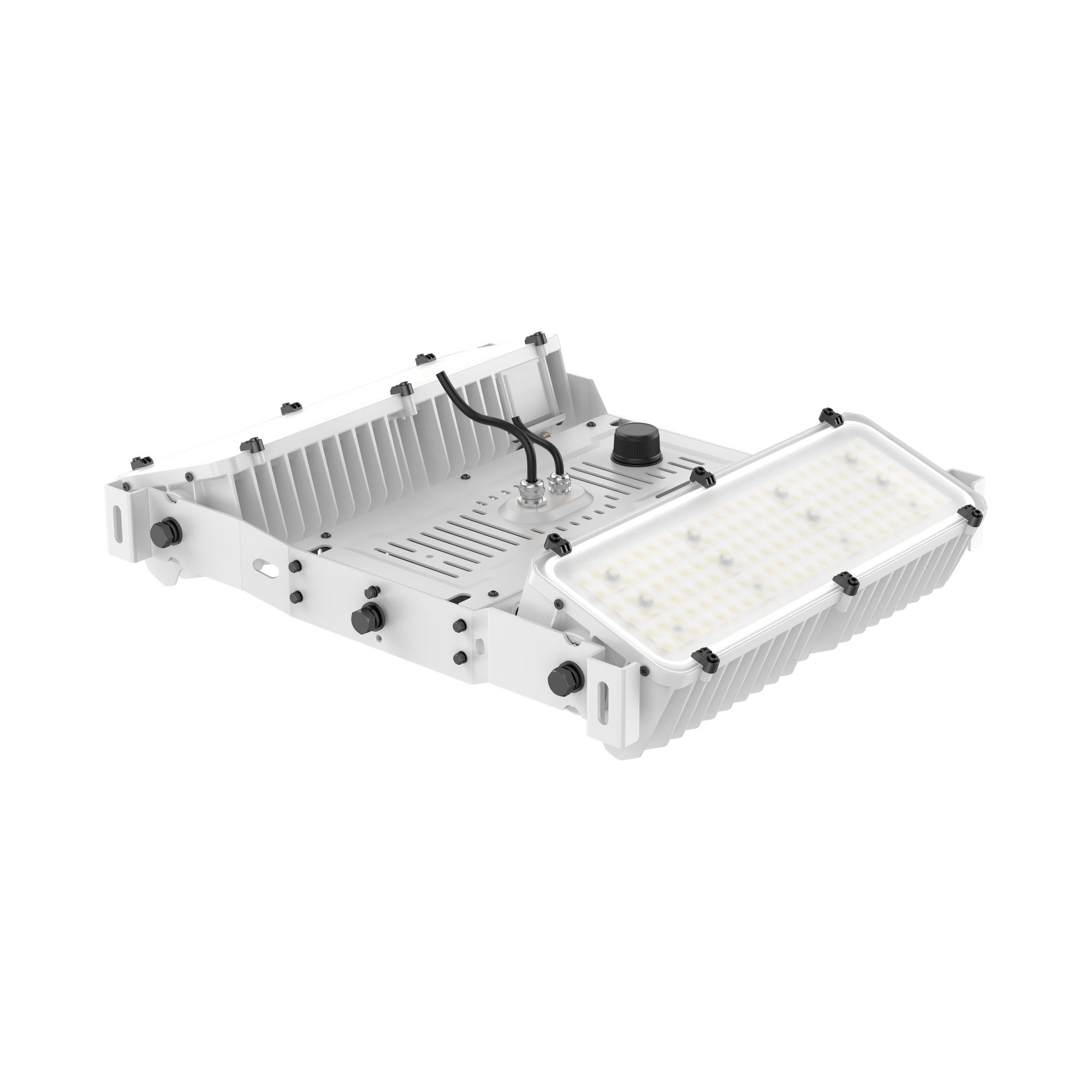

 LIH-2S-600W-50K-43D SPEC INST | White | 88,320 / 69,750 / 49,700 | 5000K | 600W / 450W / 300W (field-selectable) | 120-277VAC | | ||
 LIH-SUSKIT SPEC INST | Suspension Chain Kit for LIH Natatorium High Bay | |||||||
 LIH-YK SPEC INST | Yoke-Mounting Kit for LIH Natatorium High Bay | |||||||
 LIH-SMA SPEC INST | 3/4-inch Stem-Mounting Adapter for LIH Natatorium High Bay | |||||||
 LIH-SH1 SPEC INST | Short Glare Shield for LIH Natatorium High Bay |
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
LIH-SUSKIT SPEC INST | Suspension Chain Kit for LIH Natatorium High Bay | ||
LIH-YK SPEC INST | Yoke-Mounting Kit for LIH Natatorium High Bay | ||
LIH-SMA SPEC INST | 3/4-inch Stem-Mounting Adapter for LIH Natatorium High Bay | ||
LIH-SH1 SPEC INST | Short Glare Shield for LIH Natatorium High Bay |
