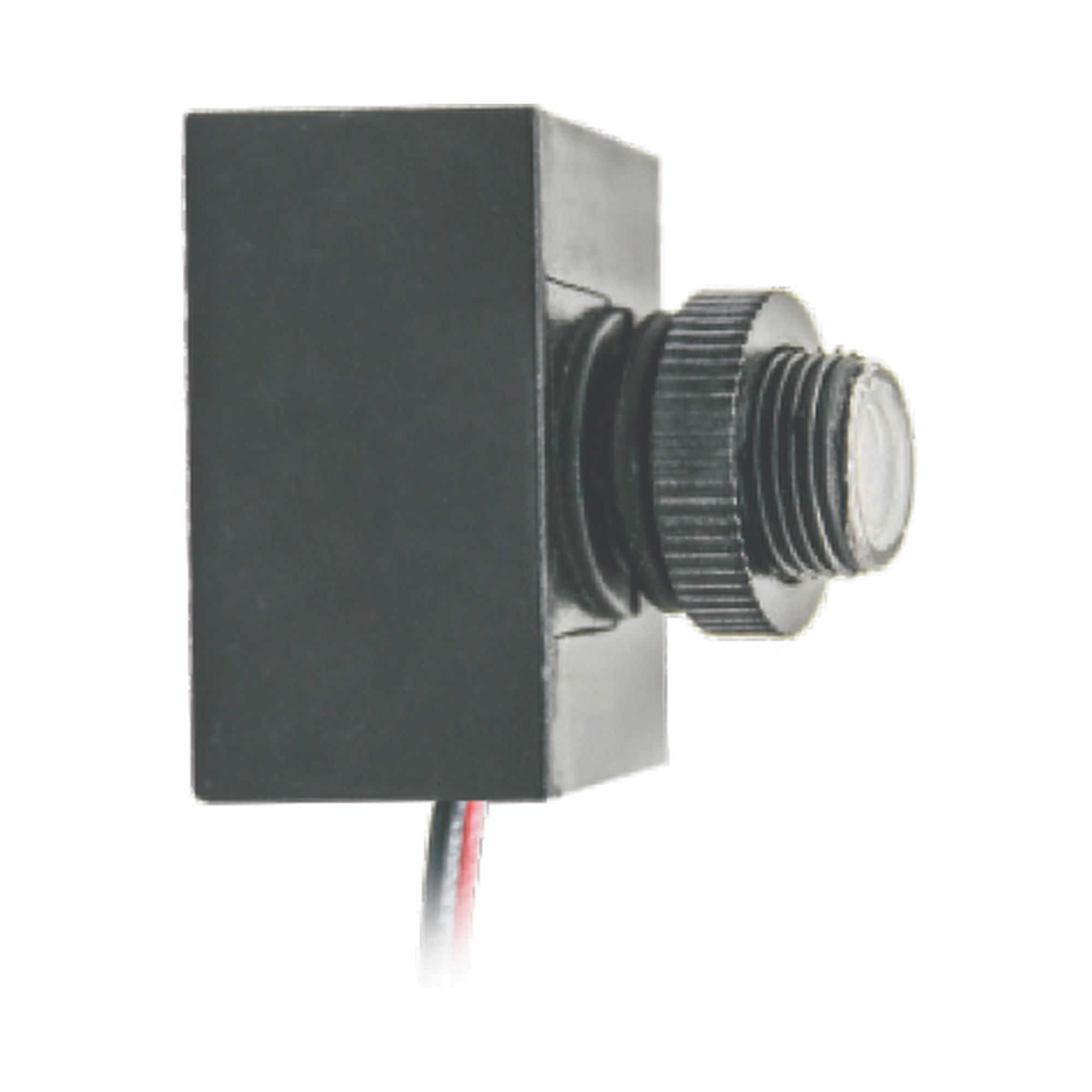

PC-BM-SERIES PC-BM Series Mini Dusk-to-Dawn Photocell Light Switches
Technical Specs
- :: Mini dusk-to-dawn photocell light switch
- :: Input voltage 120V AC (120VAC), 50/60Hz
- :: Rated load 600W tungsten / 950VA ballast
- :: Power consumption 1.5W max
- :: On/Off levels 10~20 Lx On (dusk) / 30~60 Lx Off (dawn)
- :: Reaction time 30 seconds
- :: Detection angle 180°
- :: Wire length 7-inch, AWG #18
- :: Operating temperature -40°F to 158°F
- :: IP54 rated
- :: UL Listed (E495588); conforms to UL 773A
Applications
- :: The Westgate PC-BM Series automatically turns lighting on at dusk and off at dawn, packing dependable dusk-to-dawn control into an especially compact mini housing. Weatherproof and built for the elements, it is a reliable choice for all outdoor lights, from wall lanterns and building exteriors to walkways, signage, and security lighting.
- Variations
- Q & A (0)
| Product Name | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|
 PC-BM  SPEC | 1.5W max power consumption; switches up to 600W tungsten / 950VA ballast | 120V Mini Dusk-to-Dawn Photocell Light Switch | 120V AC |  |
