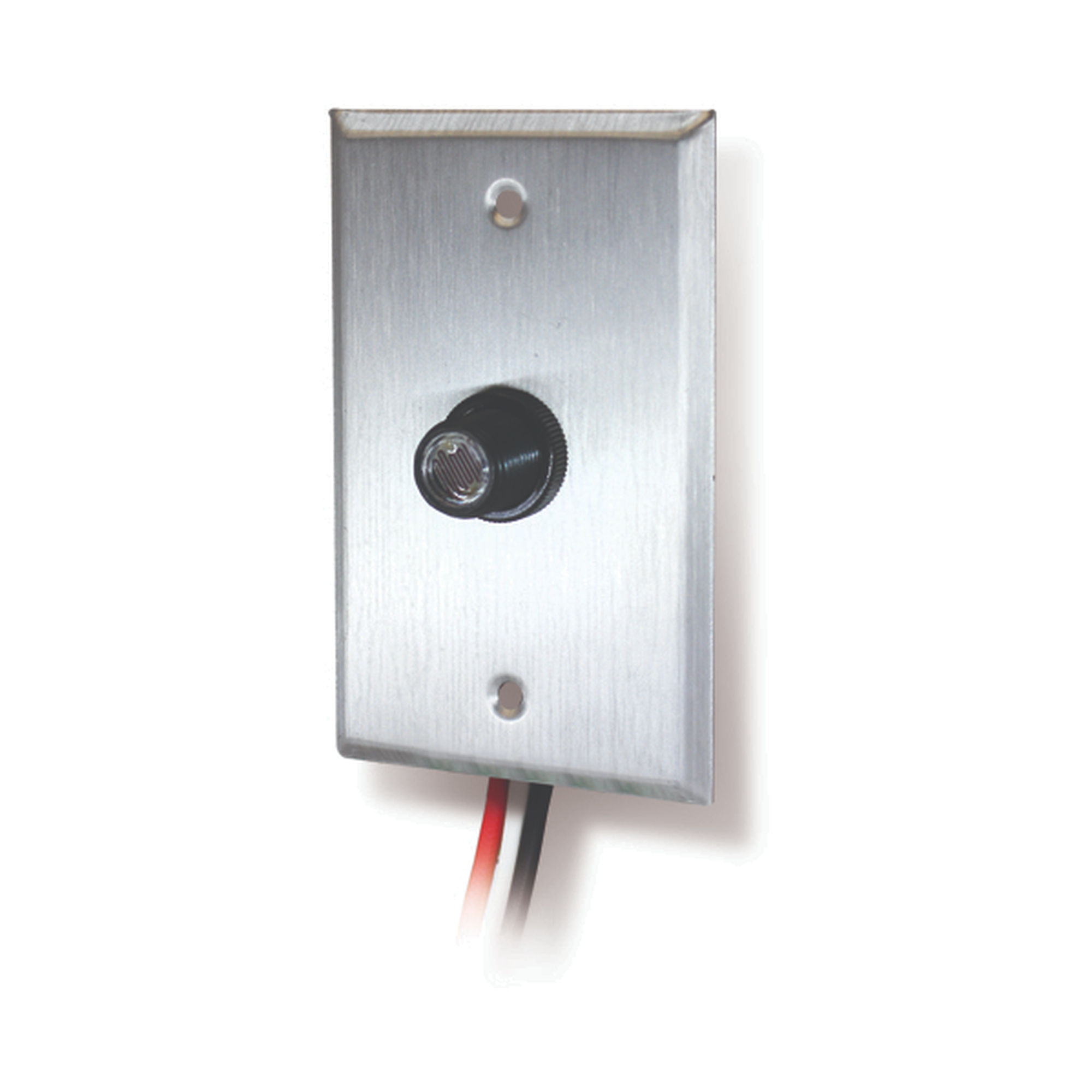

PC-BP-SERIES PC-BP Series Plated Dusk-to-Dawn Photocell Light Switches
Technical Specs
- :: Dusk-to-dawn photocell light switch
- :: Ships with 1-gang brushed aluminum cover plate and gasket
- :: Input voltage 120V AC (120VAC), 50/60Hz
- :: Rated load 500W tungsten / 850VA ballast
- :: Power consumption 1.2W max
- :: On/Off levels 10~20 Lx On (dusk) / 30~60 Lx Off (dawn)
- :: Reaction time 30 seconds
- :: Detection angle 180°
- :: Wire length 7-inch, AWG #18
- :: Operating temperature -40°F to 158°F
- :: IP54 rated
- :: UL Listed (E495588); conforms to UL 773A
Applications
- :: The Westgate PC-BP Series automatically turns lighting on at dusk and off at dawn, and arrives ready to install on standard 1-gang boxes with its brushed aluminum cover plate and weather gasket. It is a clean, finished solution for outdoor lighting control, mounting neatly on 1-gang weatherproof boxes and 1-gang in-wall switch boxes.
- Variations
- Q & A (0)
| Product Name | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|
 PC-BP  SPEC | 1.2W max power consumption; switches up to 500W tungsten / 850VA ballast | 120V 1-Gang Plated Dusk-to-Dawn Photocell Light Switch | 120V AC |  |
