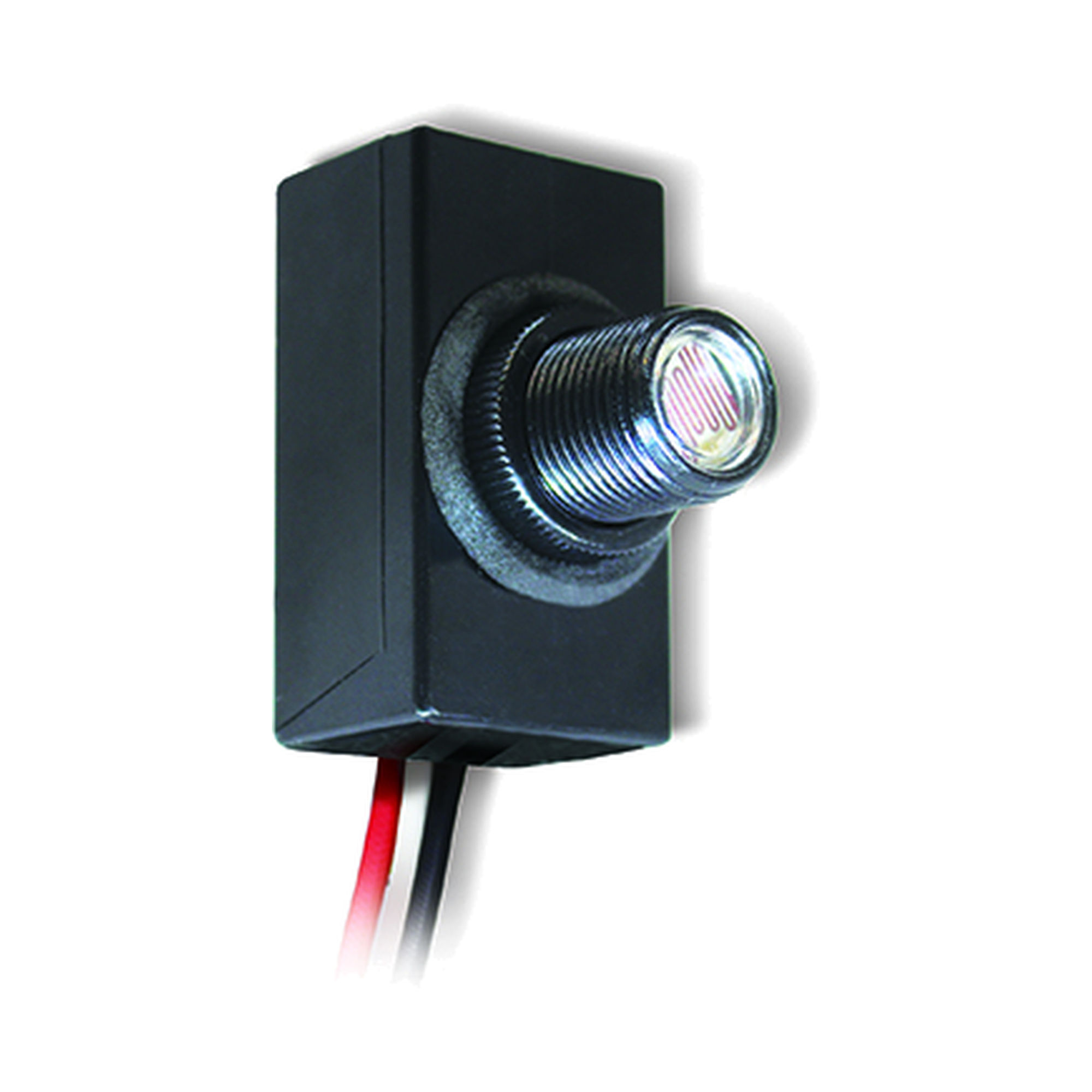

PC-BU-SERIES PC-BU Series Universal Voltage Dusk-to-Dawn Photocell Light Switches
Technical Specs
- :: Dusk-to-dawn photocell light switch
- :: Universal input voltage 120-277V AC, 50/60Hz
- :: Rated load 500W tungsten / 850VA ballast
- :: Power consumption 1.2W max
- :: On/Off levels 10~20 Lx On (dusk) / 30~60 Lx Off (dawn)
- :: Reaction time 30 seconds
- :: Detection angle 180°
- :: Wire length 7-inch, AWG #18
- :: Operating temperature -40°F to 158°F
- :: IP54 rated
- :: UL Listed (E495588); conforms to UL 773A
Applications
- :: The Westgate PC-BU Series automatically turns lighting on at dusk and off at dawn, with a universal voltage range that lets a single model work across 120V, 208V, 240V, and 277V circuits. Weatherproof and built for the elements in a compact package, it is a reliable choice for all outdoor lights, from wall packs and building exteriors to walkways, signage, and security lighting.
- Variations
- Q & A (0)
| Product Name | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|
| 1.2W max power consumption; switches up to 500W tungsten / 850VA ballast | 120-277V Universal Compact Dusk-to-Dawn Photocell Light Switch | 120-277V AC |  |
