RDLT-SERIES RDLT Series Round Hotel Spec Canless Thin-Trim Recessed Light

Technical Specs

  • :: Input Voltage: 120V AC, 50/60Hz
  • :: Wattage: 7W (1-inch), 12W (2-inch), 12W/15W/18W (3-inch and 4-inch)
  • :: Dimming: Triac (5%-100%)
  • :: Power Factor: >0.9
  • :: Lumens: 550LM to 1476LM depending on model
  • :: Efficacy: up to 82 LM/W
  • :: Color Temperature: 2700K/3000K/3500K/4000K/5000K selectable
  • :: CRI: >90
  • :: Beam Angle: 36°
  • :: Trim: Ultra-thin trim (hotel-style appearance)
  • :: Shape: Round
  • :: Mounting: Spring clips for recessed installation

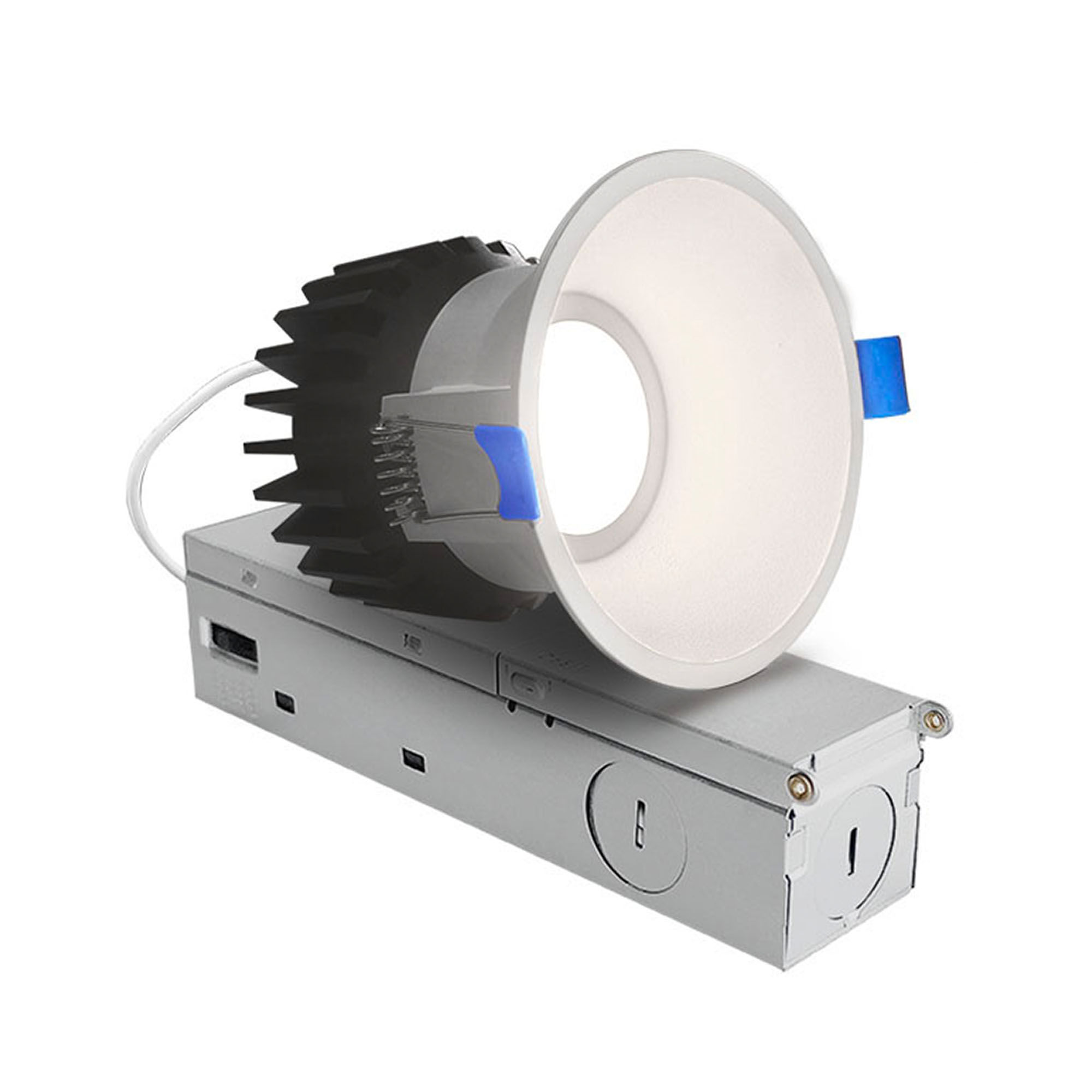

  • :: Driver: Remote driver in junction box with quick connector
  • :: Rating: IC Rated, Airtight
  • :: Location Rating: Damp Location Rated
  • :: Certifications: cETLus Listed

Applications

  • :: The RDLT Series brings a sleek, ultra-thin round trim to upscale hospitality environments, hotels, modern interiors, and high-end residential spaces. Its canless design drops directly into the ceiling without a housing can, delivering a clean, minimalist finish with smooth, low-glare illumination and the flexibility of selectable color temperature across every aperture size, plus selectable output on the larger models.
  • Variations
  • Q & A (0)

Product NameHousing FinishLumensColor TempWattsDescriptionVoltageFeatures

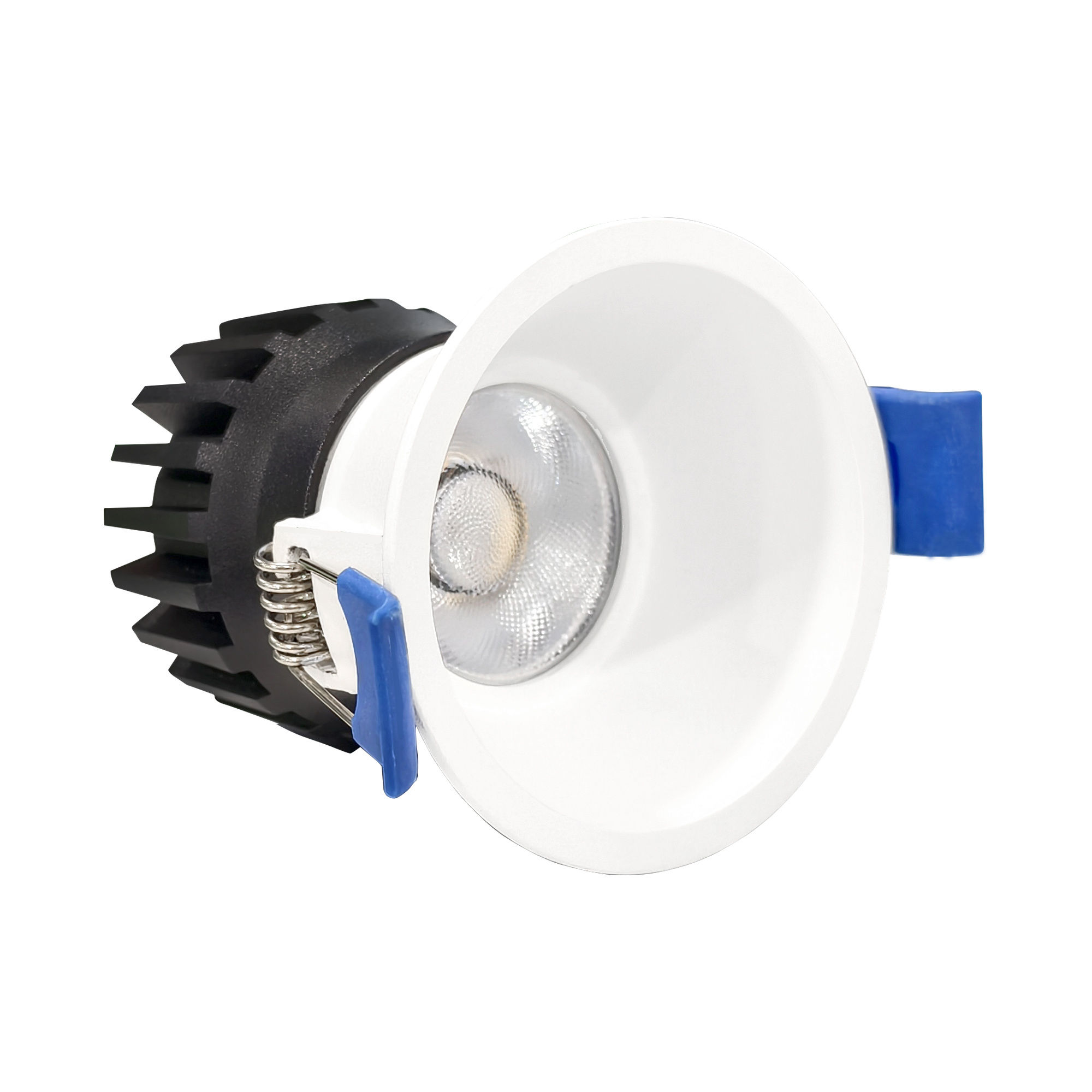

White 1-inch 7W Round Hotel Spec Canless Thin-Trim Recessed Light
White550LM2700K/3000K/3500K/4000K/5000K120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCT5
Where to Buy

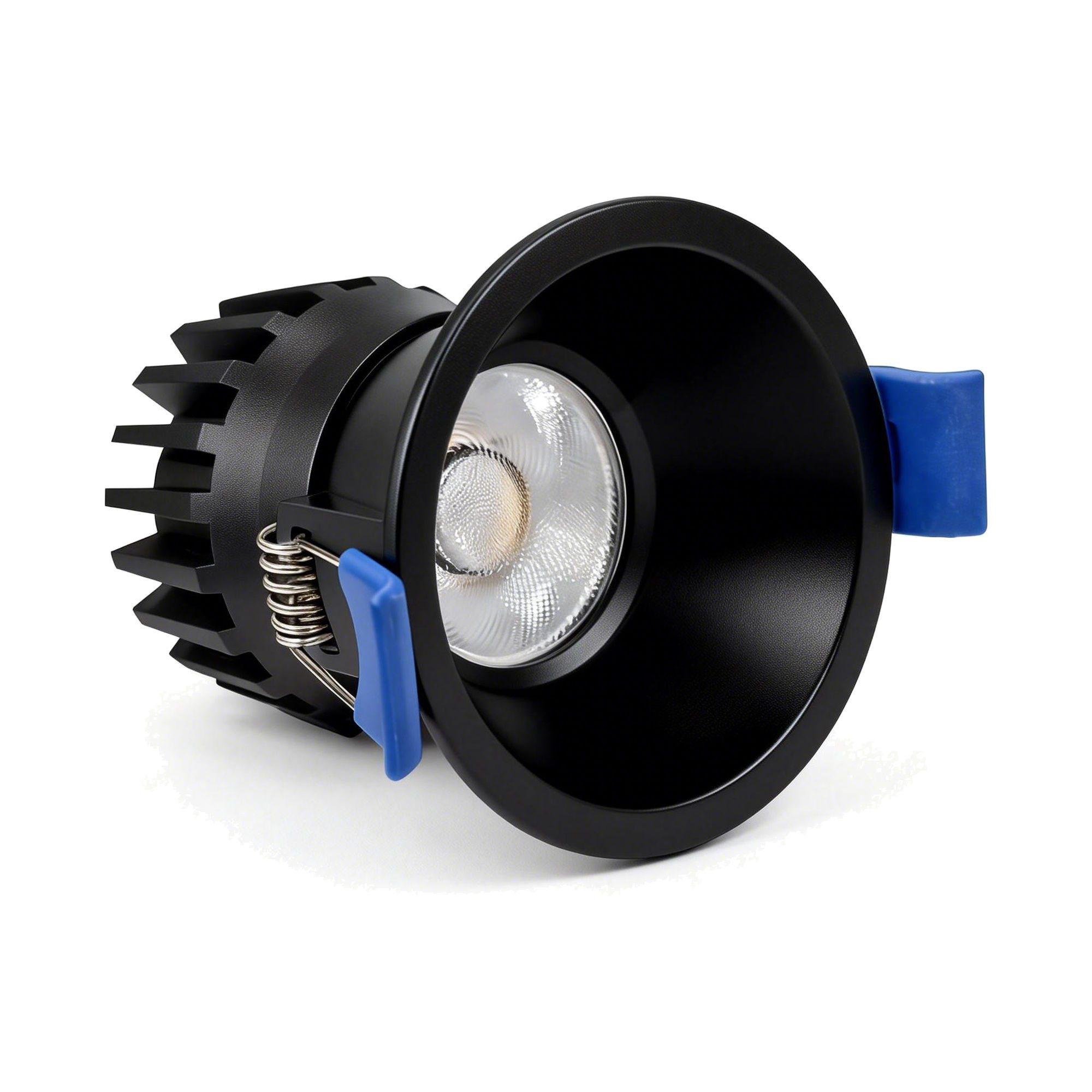

Black 1-inch 7W Round Hotel Spec Canless Thin-Trim Recessed Light
Black550LM2700K/3000K/3500K/4000K/5000K7W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCT5
Where to Buy
White 2-inch 12W Round Hotel Spec Canless Thin-Trim Recessed Light
White900LM2700K/3000K/3500K/4000K/5000K12W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
Where to Buy
Black 2-inch 12W Round Hotel Spec Canless Thin-Trim Recessed Light
Black900LM2700K/3000K/3500K/4000K/5000K12W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCT5
Where to Buy

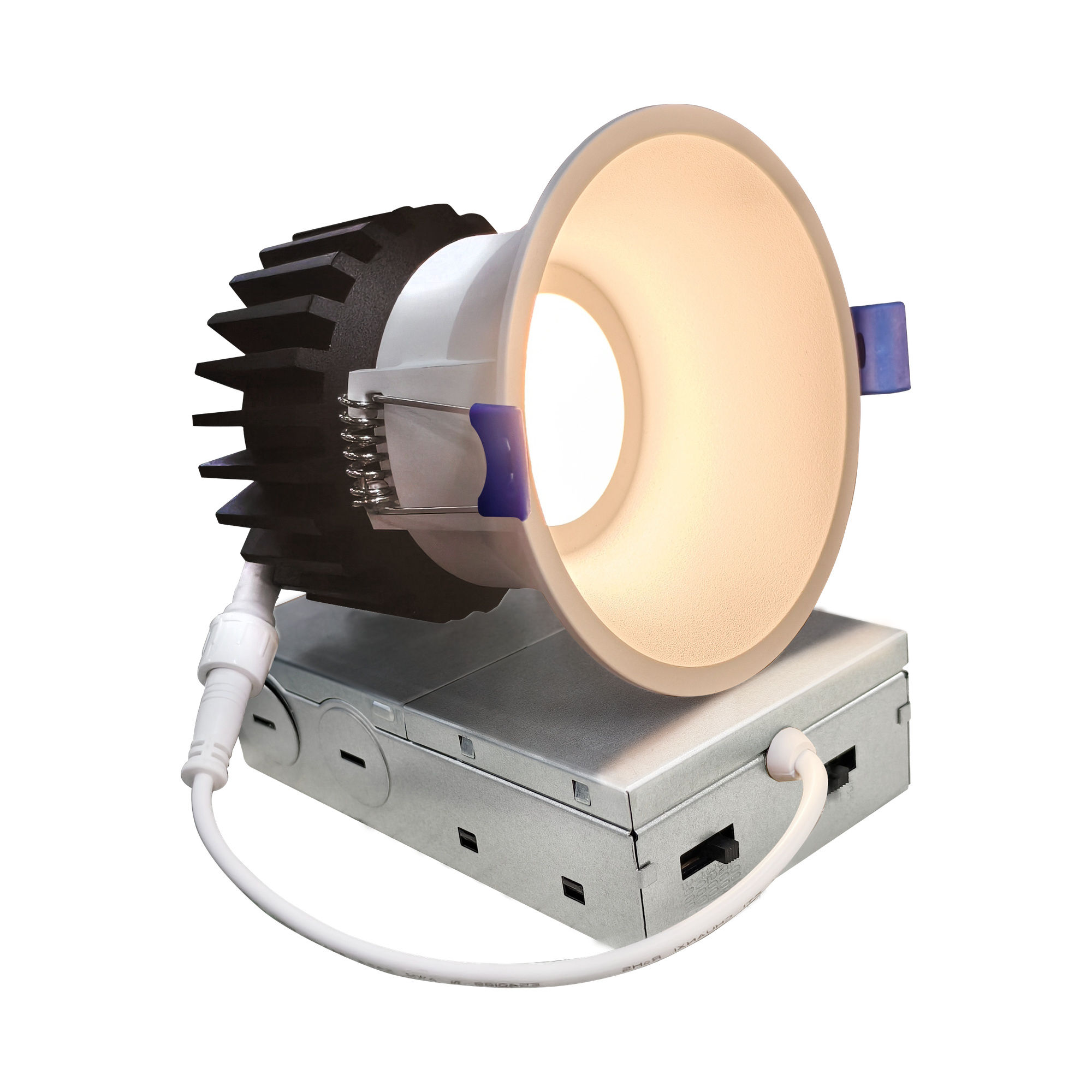

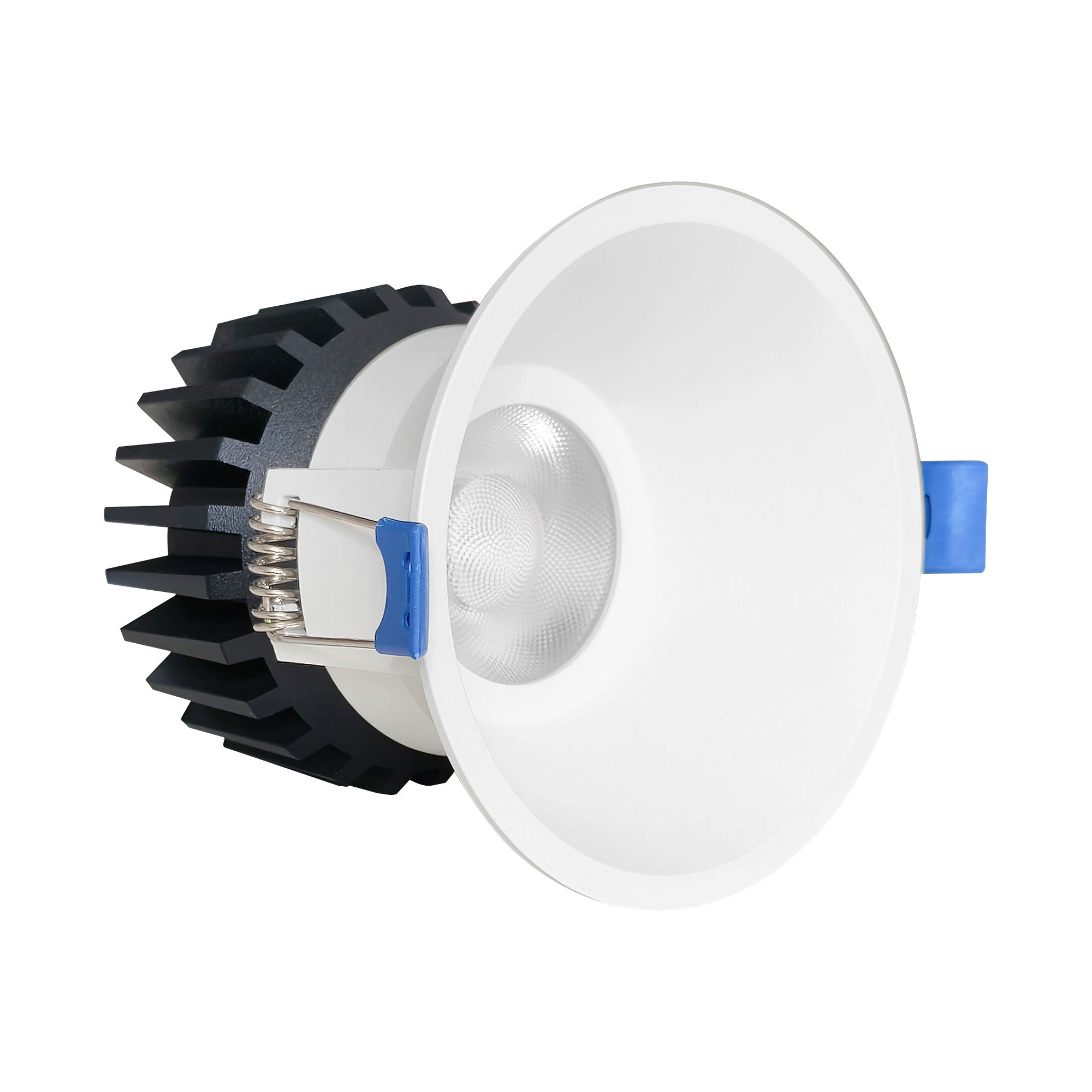

White 3-inch 12W/15W/18W Round Hotel Spec Canless Thin-Trim Recessed Light
White984LM/1230LM/1476LM2700K/3000K/3500K/4000K/5000K12W/15W/18W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCTP
Where to Buy

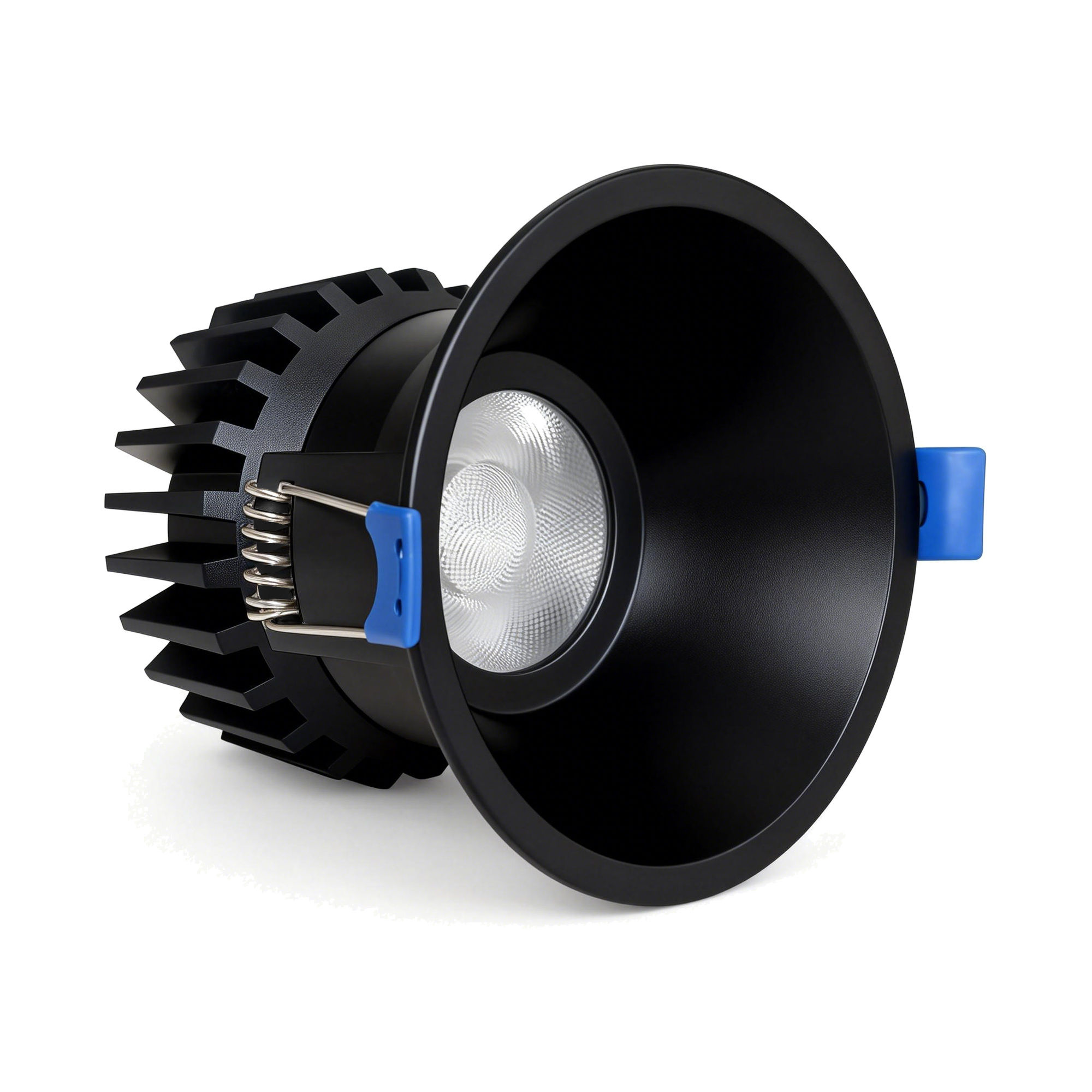

Black 3-inch 12W/15W/18W Round Hotel Spec Canless Thin-Trim Recessed Light
Black984LM/1230LM/1476LM2700K/3000K/3500K/4000K/5000K12W/15W/18W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCTP
Where to Buy
White 4-inch 12W/15W/18W Round Hotel Spec Canless Thin-Trim Recessed Light
White984LM/1230LM/1476LM2700K/3000K/3500K/4000K/5000K12W/15W/18W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCTP
Where to Buy

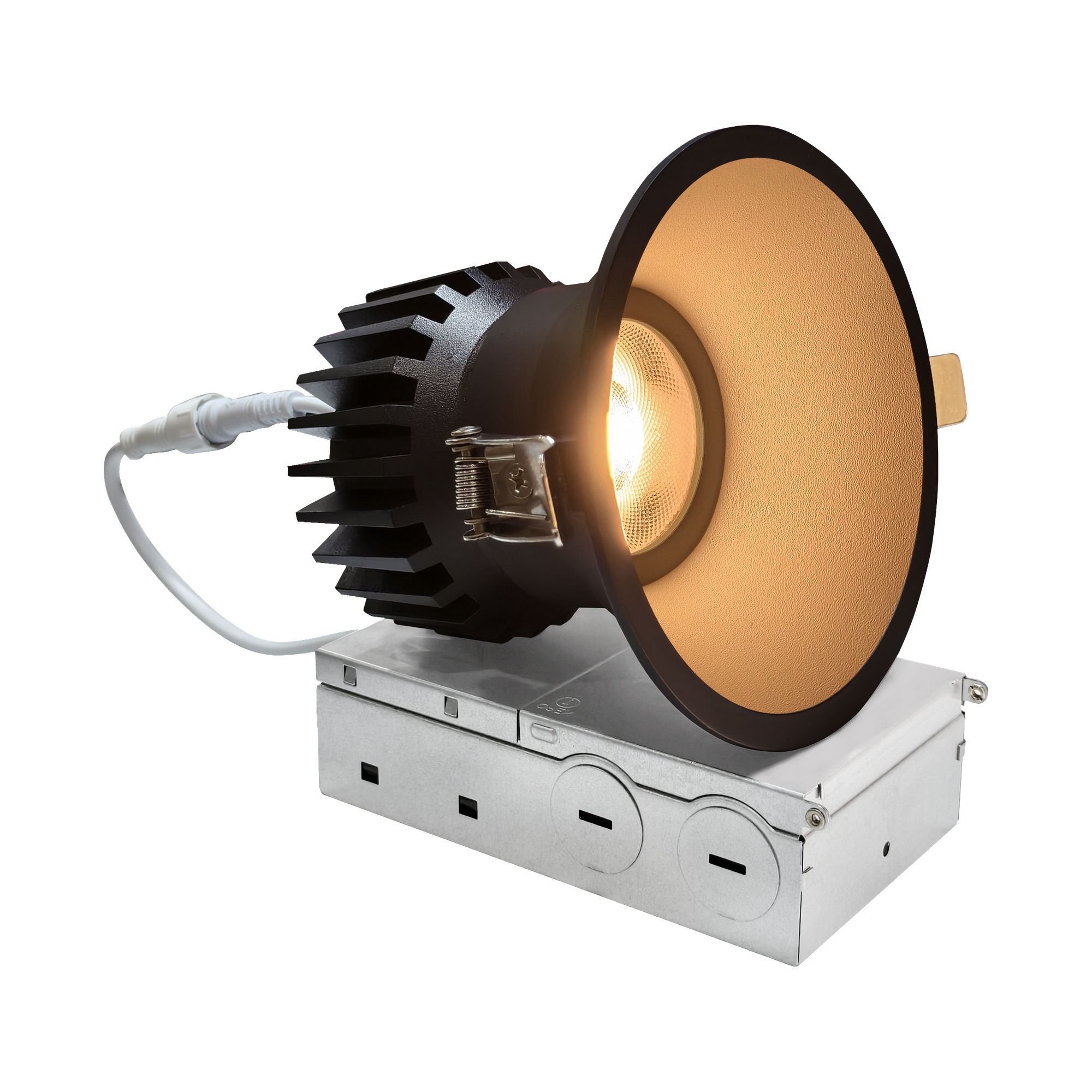

Black 4-inch 12W/15W/18W Round Hotel Spec Canless Thin-Trim Recessed Light
Black984LM/1230LM/1476LM2700K/3000K/3500K/4000K/5000K12W/15W/18W120V
Healthy Glow
ETL Listed
Dimmable
DAMP
MCTP
Where to Buy
26-inch Round Rough-in Plate for 2-inch Recessed Trims
26-inch Round Rough-in Plate for 2-inch Recessed Trims
Where to Buy
New Construction Recessed Mounting Plate with Hanger Bars, 3-inch Hole
Where to Buy
26-inch Round Rough-in Plate for 3-inch, 4-inch, and 6-inch Recessed Trims
26-inch Round Rough-in Plate for 3-inch, 4-inch, and 6-inch Recessed Trims
Where to Buy
13-inch Round Rough-in Plate for 3-inch, 4-inch, and 6-inch Recessed Trims
Where to Buy
New Construction Recessed Mounting Plate with Hanger Bars, 4-inch Hole
New Construction Recessed Mounting Plate with Hanger Bars, 4-inch Hole
Where to Buy
13-inch Recessed Mounting Plate with 1/2-inch Lip, 4-inch Hole
Where to Buy
