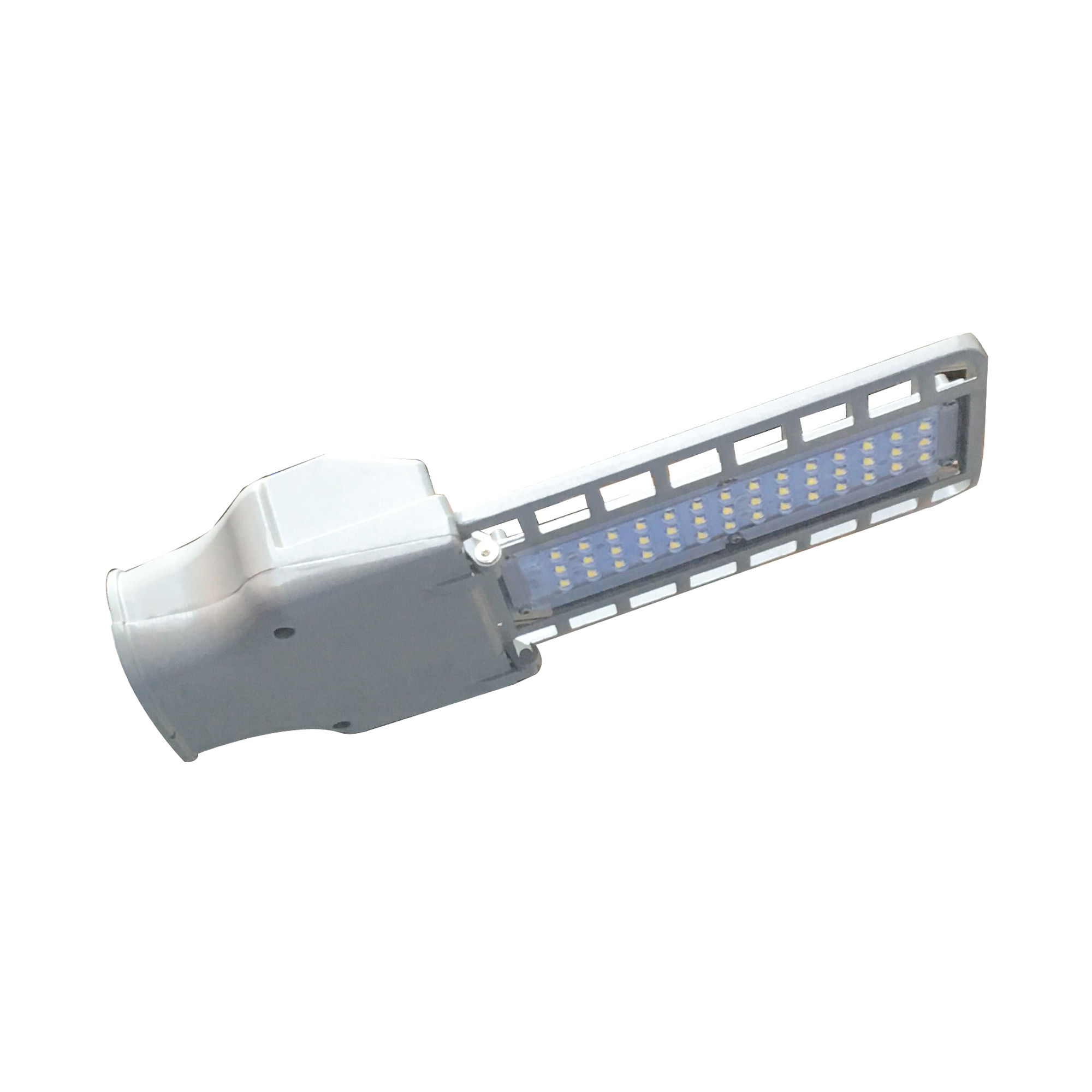

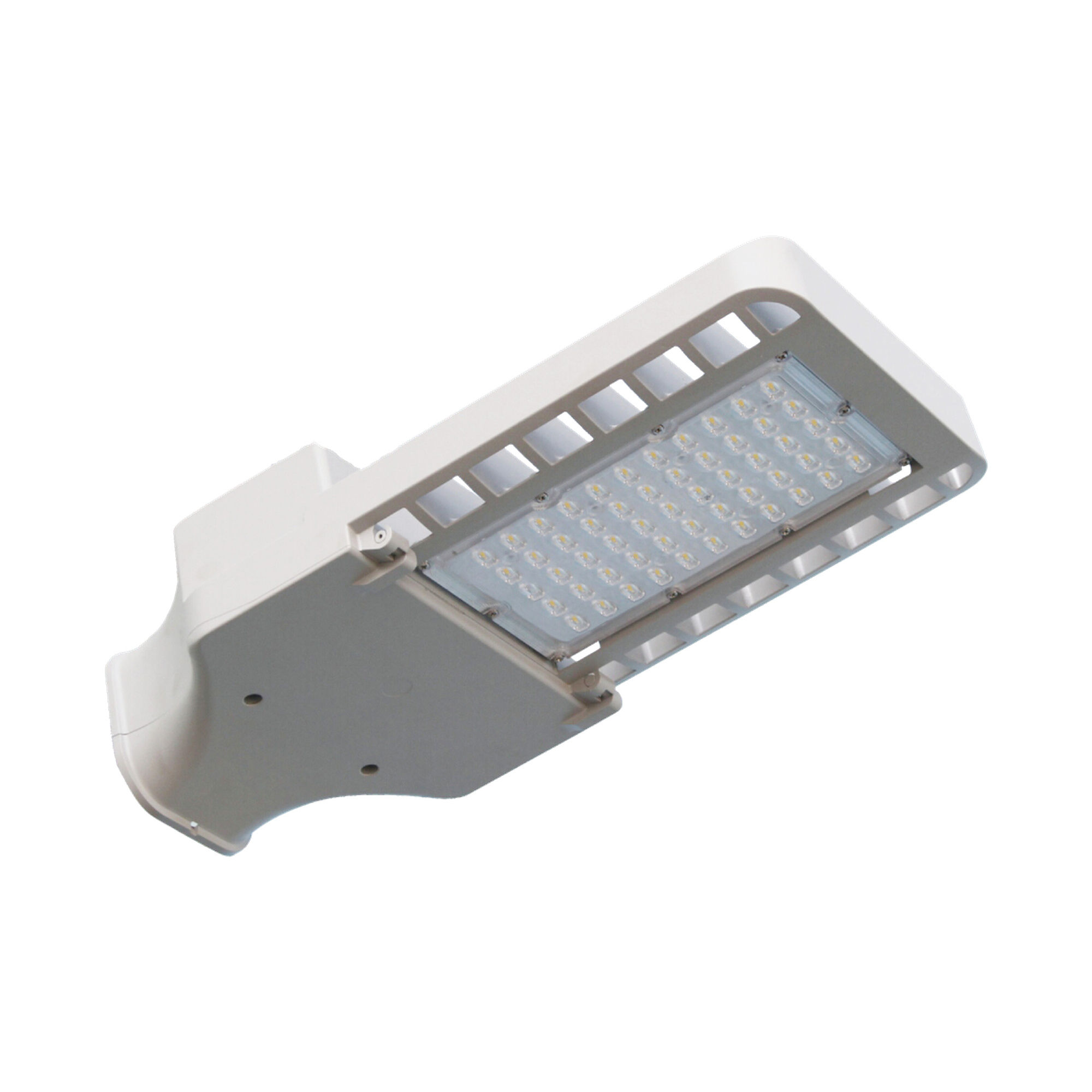

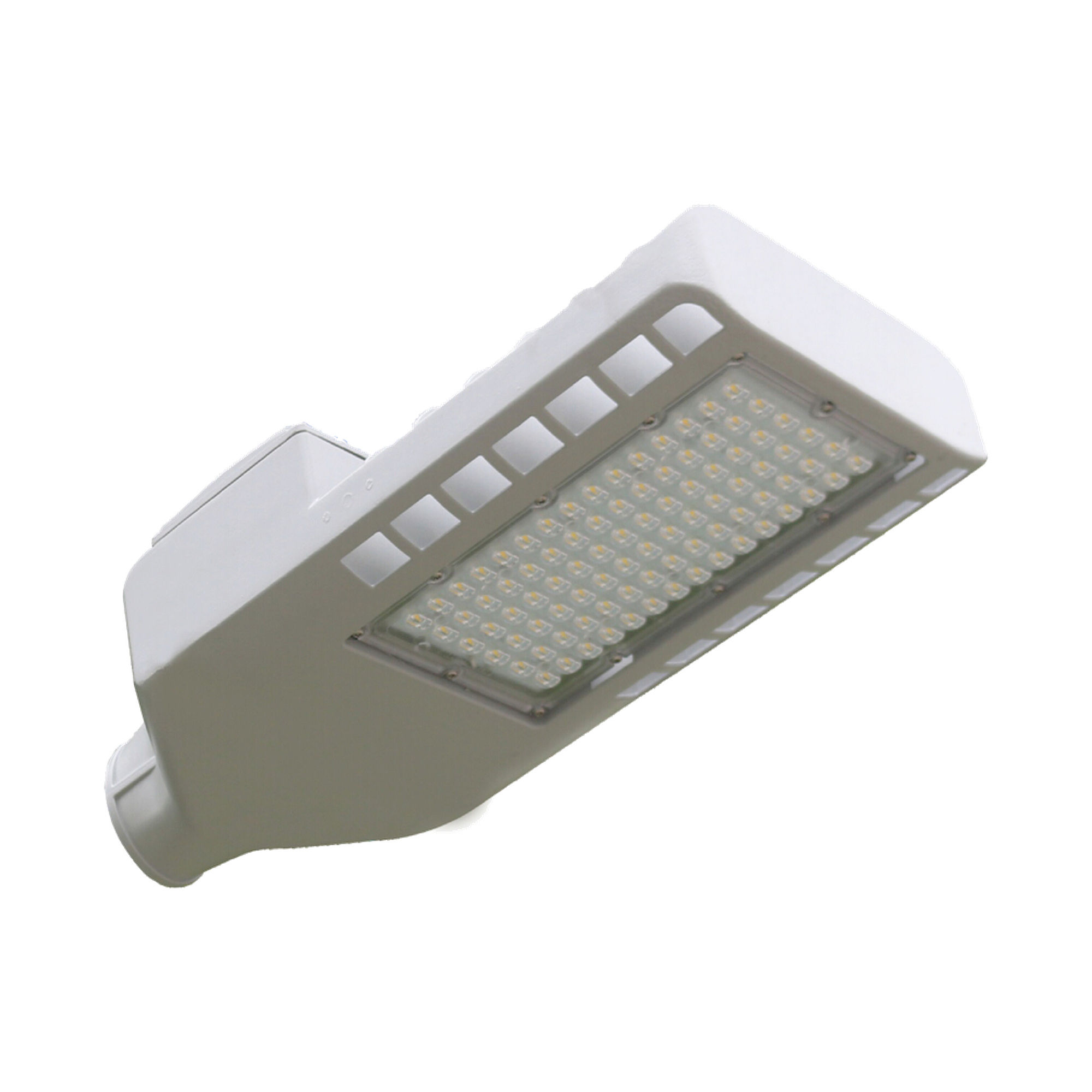

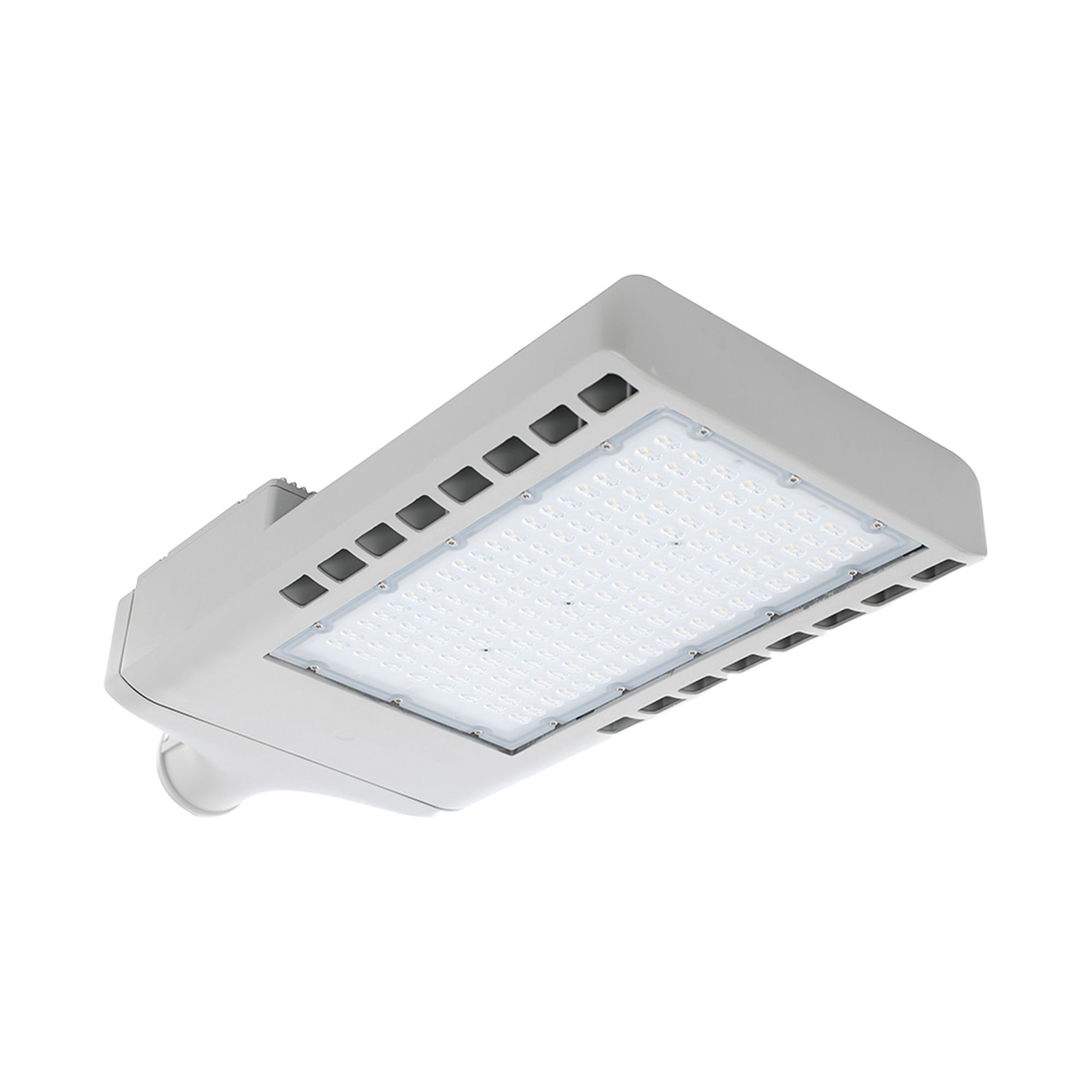

STL-SERIES LED Street/Roadway Lights with Nema Twist-Lock Photocell Option

Technical Specs

:: Type: LED street and roadway luminaire
:: Input Voltage: 100~277V, 60Hz
:: Wattage Range: 30W to 300W (by model)
:: Power Factor: >0.90
:: Efficacy: 115 LM/W (116.66 LM/W on the 90W model)
:: Lumens: 3,450LM to 34,500LM (by model)
:: Color Temperature: 5000K
:: CRI: >80
:: Dimming: 0~10V dimmable (60W and above; see FLAGS on 30W)
:: Lens: Optical Type IV
:: Control Options: Optional NEMA twist-lock photocell (order with -P suffix)
:: Housing: Die-Cast Aluminum
:: Finish: Powder Coat, Light Gray
:: Cord: 40-inch SJTW 18/3 AWG cable
:: Mounting: 2 brackets for 1.5-inch and 2.5-inch O.D. poles
:: Thermal Management: Driver in isolated compartment
:: Operating Temperature: -40°F to 104°F
:: Rated Life: 50,000 hours
:: Warranty: 7 years
:: Certifications: UL Listed, DLC; Wet Location rated

:: The STL Series lights streets, roadways, parking lots, alleys, loading docks, doorways, pathways, and general site areas with bright, energy-efficient 5000K illumination. Westgate designed this die-cast aluminum line for durable outdoor performance, with a Type IV optical lens for wide, controlled area coverage and an optional NEMA twist-lock photocell for automatic dusk-to-dawn operation. The broad 30W to 300W range lets specifiers match the fixture to everything from a small pathway to a major roadway.

Product Name	Housing Finish	Lumens	Color Temp	Watts	Voltage
STL-30W-50K-P SPEC SPD	Light Gray	3,450LM	5000K	30W	100~277V	Where to Buy
STL-60W-50K-P SPEC SPD	Light Gray	6,900LM	5000K	60W	100~277V	Where to Buy
STL-90W-50K-P SPEC SPD	Light Gray	10,500LM	5000K	90W	100~277V	Where to Buy
STL-120W-50K-P SPEC SPD	Light Gray	13,800LM	5000K	120W	100~277V	Where to Buy
STL-150W-50K-P SPEC SPD	Light Gray	17,250LM	5000K	150W	100~277V	Where to Buy
STL-220W-50K-P SPEC SPD	Light Gray	25,300LM	5000K	220W	100~277V	Where to Buy
STL-300W-50K-P SPEC SPD	Light Gray	34,500LM	5000K	300W	100~277V	Where to Buy
