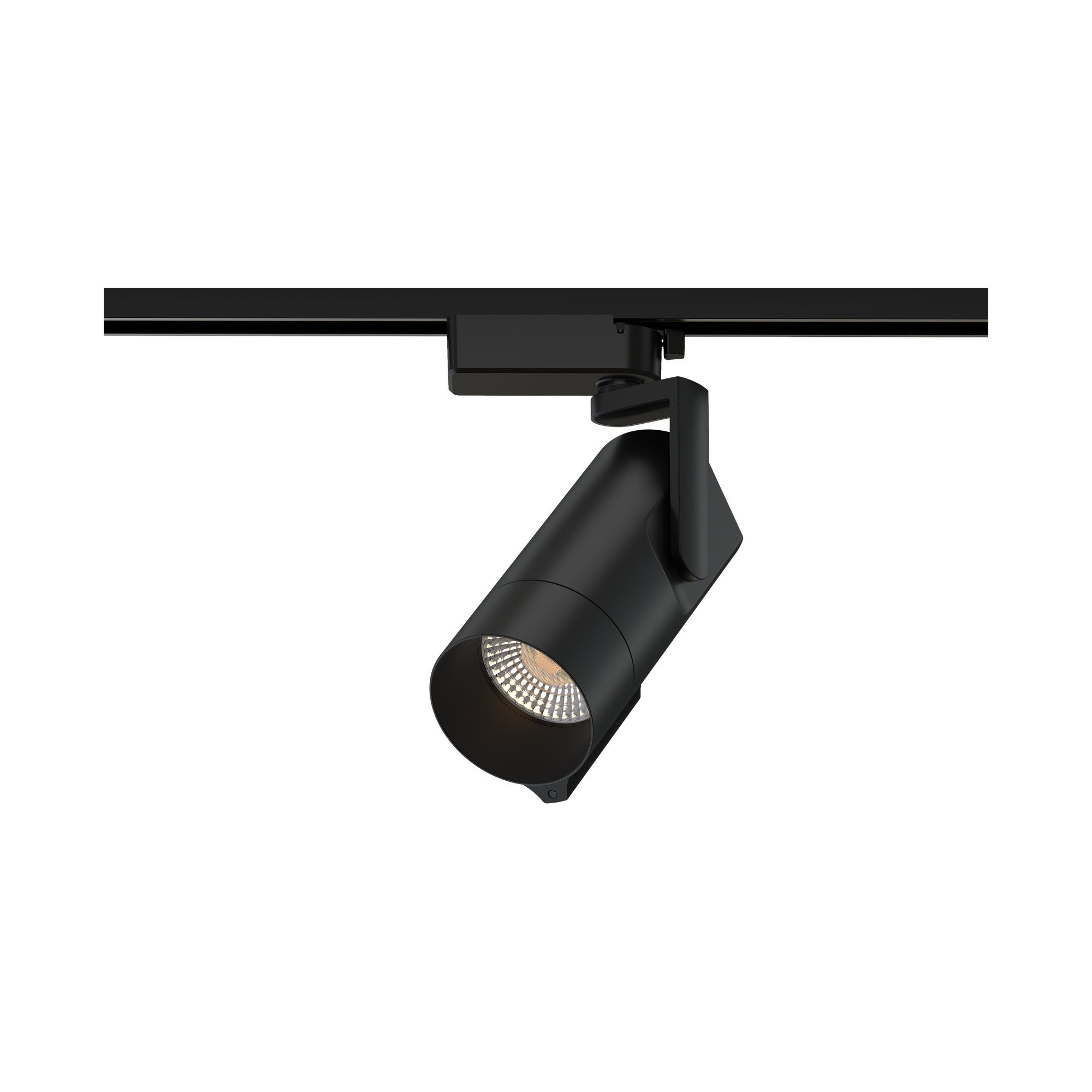

TRAI-MAGIC-SERIES TRAI-MAGIC Series 35W AI Color-Matching LED Track Head, 5CCT, 36°
Technical Specs
- :: Input Voltage: 120VAC, 60Hz
- :: Wattage: 35W
- :: Power Factor / THD: >0.95 / <15%
- :: Flicker: SVM <0.1, Pst LM <0.6
- :: Dimming: Integral rotary knob on fixture
- :: Lumens: 2,700 LM
- :: Efficacy: 77 LPW
- :: CCT: 2700K / 3000K / 4000K / 5000K / 6500K, field selectable
- :: AI Auto Mode: Built-in color sensor tunes RGB + warm white spectrum to detected merchandise color
- :: Modes: 7 merchandise presets plus 3 automatic detection modes; no app or Bluetooth required
- :: CRI: >90, R9 50
- :: Color Consistency: <3 SDCM
- :: Beam Angle: 36°; 30° shielding angle
- :: Adjustment: 90° vertical tilt, adjustable horizontal rotation
- :: Track Compatibility: H-type Halo, 3-wire 1-circuit (track not included)
- :: Housing: White or Black
- :: Dimensions: 6.97-inch L x 3.15-inch Dia. x 7.13-inch H; adapter 3.98-inch L x 1.65-inch H
- :: IP / IK Rating: IP20, IK06
- :: Operating Temp: 14°F to 86°F
- :: Rated Life: 50,000 hours
- :: Certifications: ETL Listed
Applications
- :: The Westgate TRAI-MAGIC Series is an intelligent track head that makes merchandise look its best automatically. A built-in color sensor detects the color of the products being lit and tunes the RGB + warm white light engine for richer, more natural presentation, with no app or Bluetooth setup required. It is ideal for high-end supermarkets, department stores, fashion boutiques, jewelry stores, galleries, museums, brand showrooms, furniture stores, and car showrooms where color and appearance drive sales, and its presets for meat, seafood, produce, and bread make it well suited to fresh food displays. A focused 36° beam, five selectable color temperatures, and an integral dimming knob let each head be fine-tuned right on the track. Designed for H-type Halo track and available in White or Black.
- Variations
- Q & A (0)
| Product Name | Housing Finish | Lumens | Color Temp | Watts | Description | Voltage | Features | |
|---|---|---|---|---|---|---|---|---|
| White | 2,700 LM | 2700K / 3000K / 4000K / 5000K / 6500K | 35W | AI Auto Mode: RGB + warm white spectrum tuning based on detected merchandise color | 120VAC, 60Hz |   | ||
| Black | 2,700 LM | 2700K / 3000K / 4000K / 5000K / 6500K | 35W | AI Auto Mode: RGB + warm white spectrum tuning based on detected merchandise color | 120VAC, 60Hz | |
ACCESSORIES
| Product Name | Housing Finish | Description | ||
|---|---|---|---|---|
 TR-FLEXC-WH  SPEC | White | White Flexible Connector | ||
 TR-EC-BK SPEC | Black | 3-Wire Track End Cap | ||
TR-EC-WH SPEC | White | 3-Wire Track End Cap | ||
 TR-FLEXC-BK SPEC | Black | 3-Wire Track Flex Connector | ||
 TR-LC-BK SPEC | Black | 3-Wire Track L Connector | ||
 TR-LC-WH SPEC | White | 3-Wire Track L Connector | ||
 TR-LE-BK SPEC | Black | 3-Wire Track Live End Connector | ||
 TR-XC-BK SPEC | Black | 3-Wire Track X Connector | ||
 TR-XC-WH SPEC | White | 3-Wire Track X Connector | ||
 TR-MC-BK SPEC | Black | 3-Wire Track Mini Connector | ||
 TR-MC-WH SPEC | White | 3-Wire Track Mini Connector | ||
 TR-MONC-BK SPEC | Black | 3-Wire Track Mini Connector | ||
 TR-MONC-WH SPEC | White | 3-Wire Track Mono Canopy | ||
 TR-SC-BK SPEC | Black | 3-Wire Track Straight Connector | ||
 TR-SC-WH SPEC | White | 3-Wire Track Straight Connector | ||
 TR-TC-BK SPEC | Black | 3-Wire Track T Connector | ||
 TR-TC-WH SPEC | White | 3-Wire Track T Connector | ||
 TR-FC-BK SPEC | Black | 3-Wire Track Floating Canopy | ||
 TR-FC-WH SPEC | White | 3-Wire Track Floating Canopy | ||
 TR-2FT-BK SPEC | Black | 2Ft 3-Wire Track | ||
TR-2FT-WH SPEC | White | 2Ft 3-Wire Track | ||
TR-4FT-BK SPEC | Black | 4Ft 3-Wire Track | ||
TR-4FT-WH SPEC | White | 4Ft 3-Wire Track | ||
TR-6FT-BK SPEC | Black | 6Ft 3-Wire Track | ||
TR-6FT-WH SPEC | White | 6Ft 3-Wire Track | ||
TR-8FT-BK SPEC | Black | 8Ft 3-Wire Track | ||
TR-8FT-WH SPEC | White | 8Ft 3-Wire Track | ||
 TR-JBEF-BK SPEC | Black | 3-Wire Track J-Box End Feed Kit | ||
 TR-JBEF-WH SPEC | White | 3-Wire Track J-Box End Feed Kit | ||
 TR-CCON-BK SPEC | Black | 3-Wire Track Conduit Connector | ||
 TR-CCON-WH SPEC | White | 3-Wire Track Conduit Connector | ||
 TR-EXTCON-BK SPEC | Black | 3-Wire Track To Track Extension Connector | ||
 TR-EXTCON-WH SPEC | White | 3-Wire Track To Track Extension Connector | ||
TR-LE-WH SPEC | White | 3-Wire Track Live End |
