WPMX-MCTPB-SERIES WPMX Series Half-Moon LED Wall Pack, Beam, Power & CCT Adjustable

Technical Specs

:: Input Voltage: 120-277VAC, 60Hz
:: Wattage: 24W/32W/40W or 48W/64W/80W, selectable (switches inside fixture)
:: Power Factor: >0.95
:: Dimming: 0-10V
:: Lumens: 3,960 LM to 13,200 LM
:: Efficacy: 165 LPW
:: CCT: 3000K / 4000K / 5000K, selectable (switches inside fixture)
:: CRI: ≥80
:: Distribution: Beam adjustable; Type III for wide walkways, ramps, entrance roadways, and other long, narrow areas
:: BUG Rating: B0-U0-G1
:: Default Settings: Max power, max CCT, Type II, photocell on
:: Sensor Socket: Twist-lock Zhaga socket pre-installed

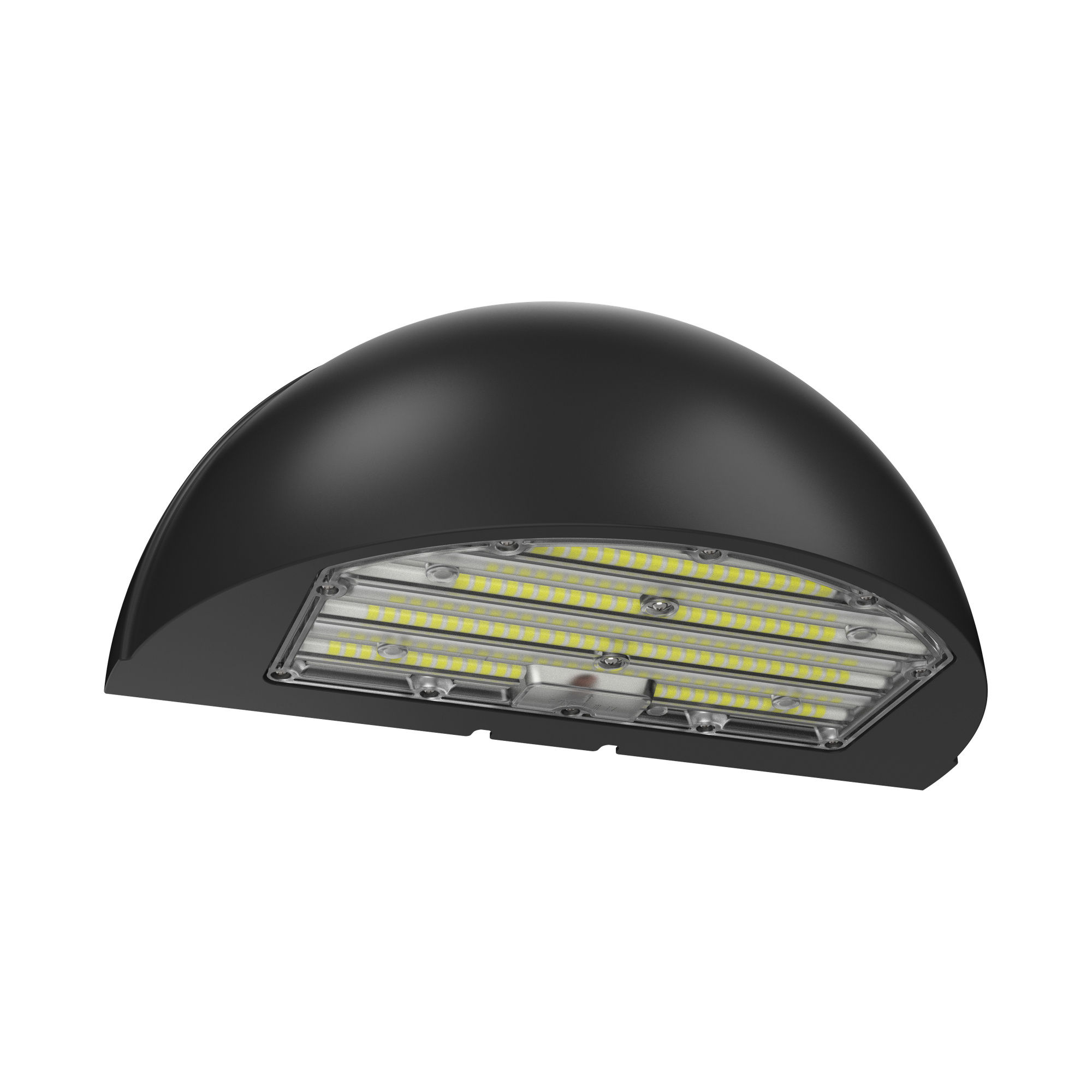

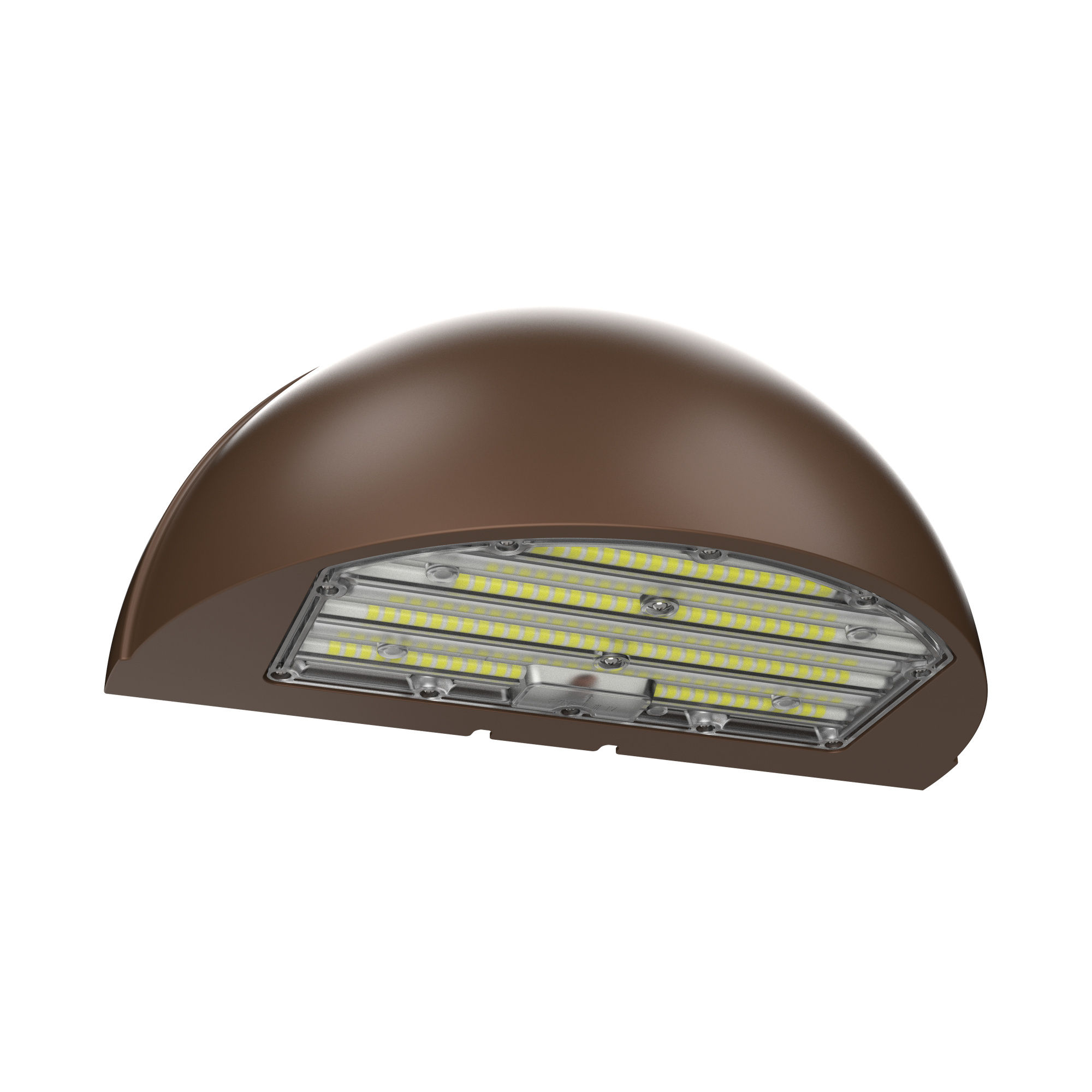

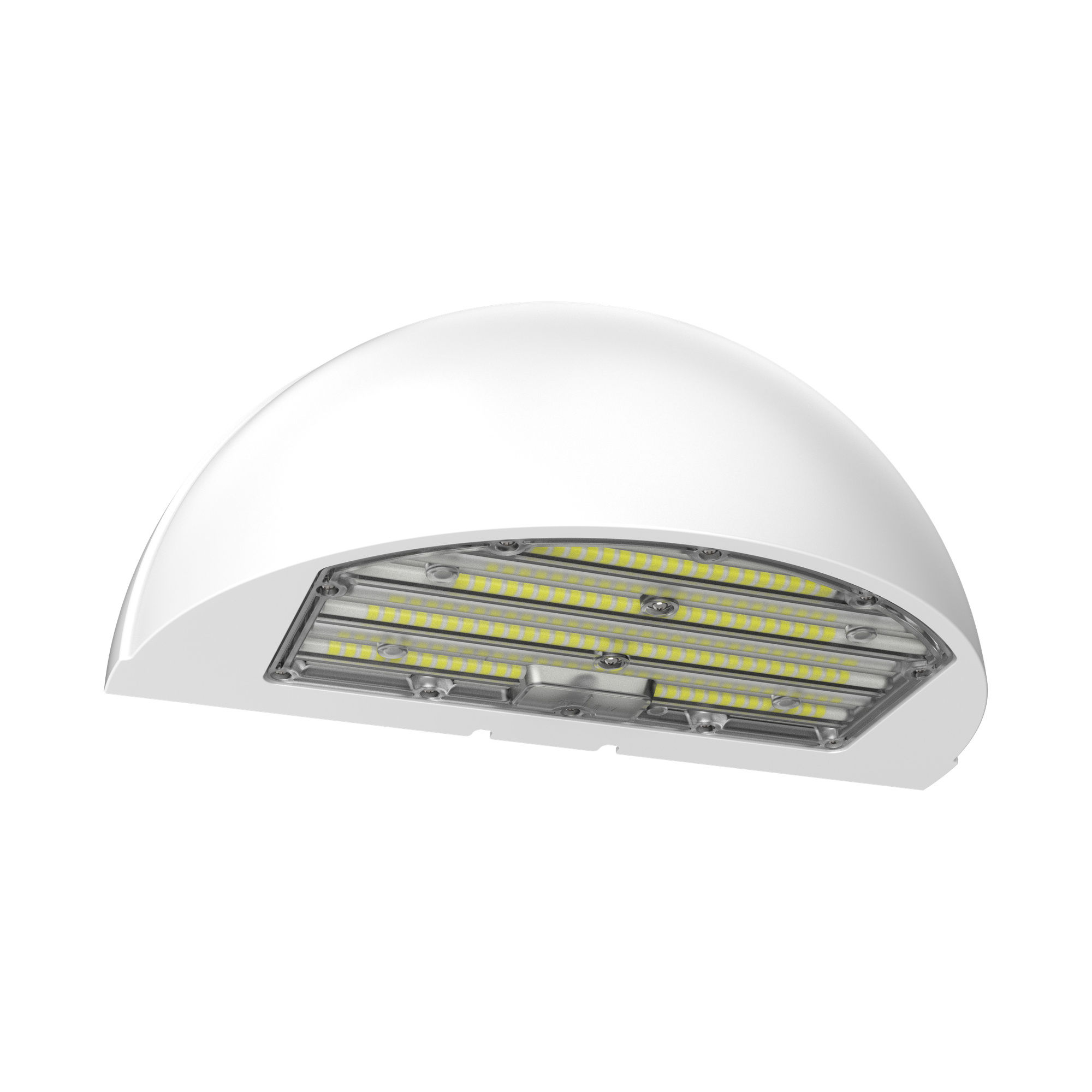

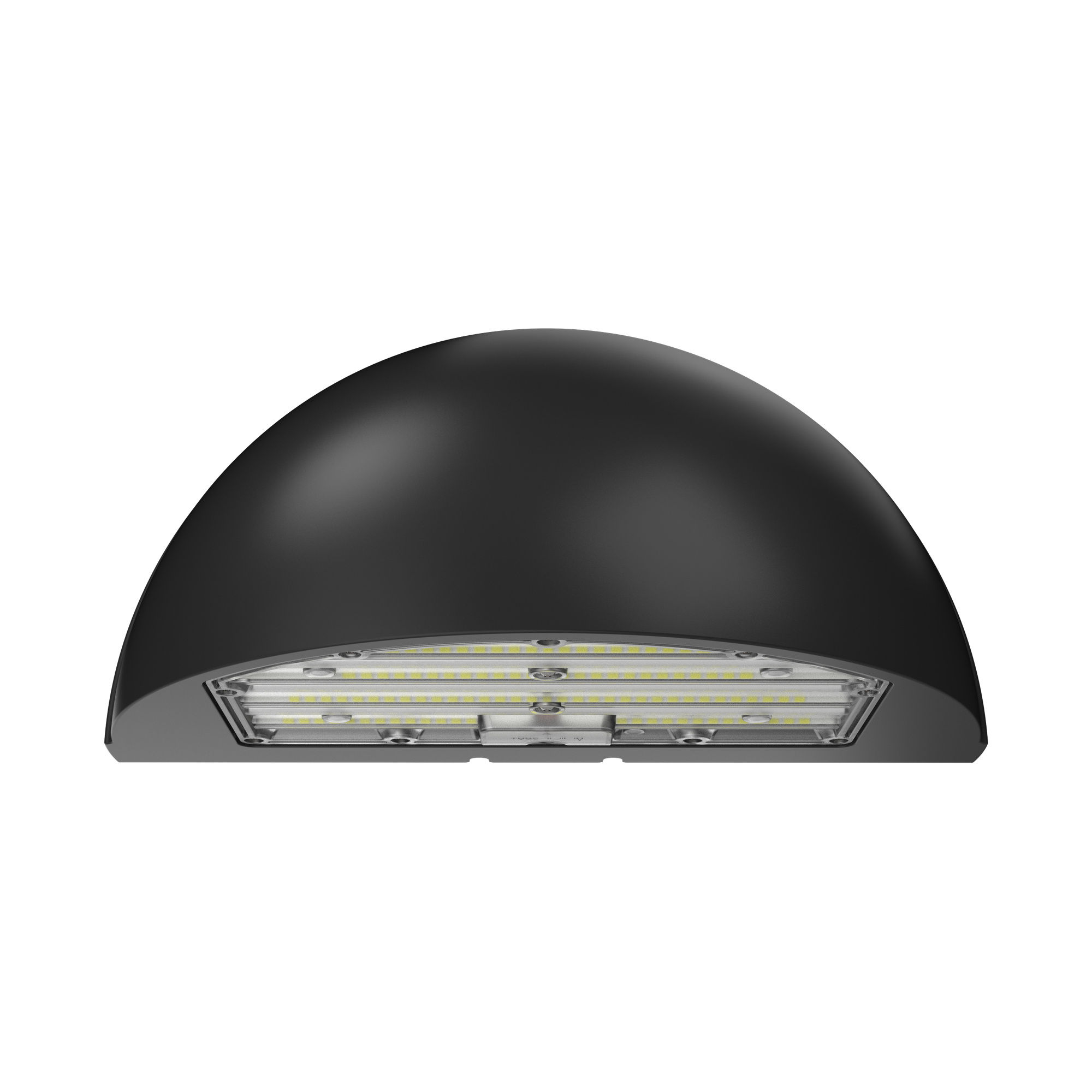

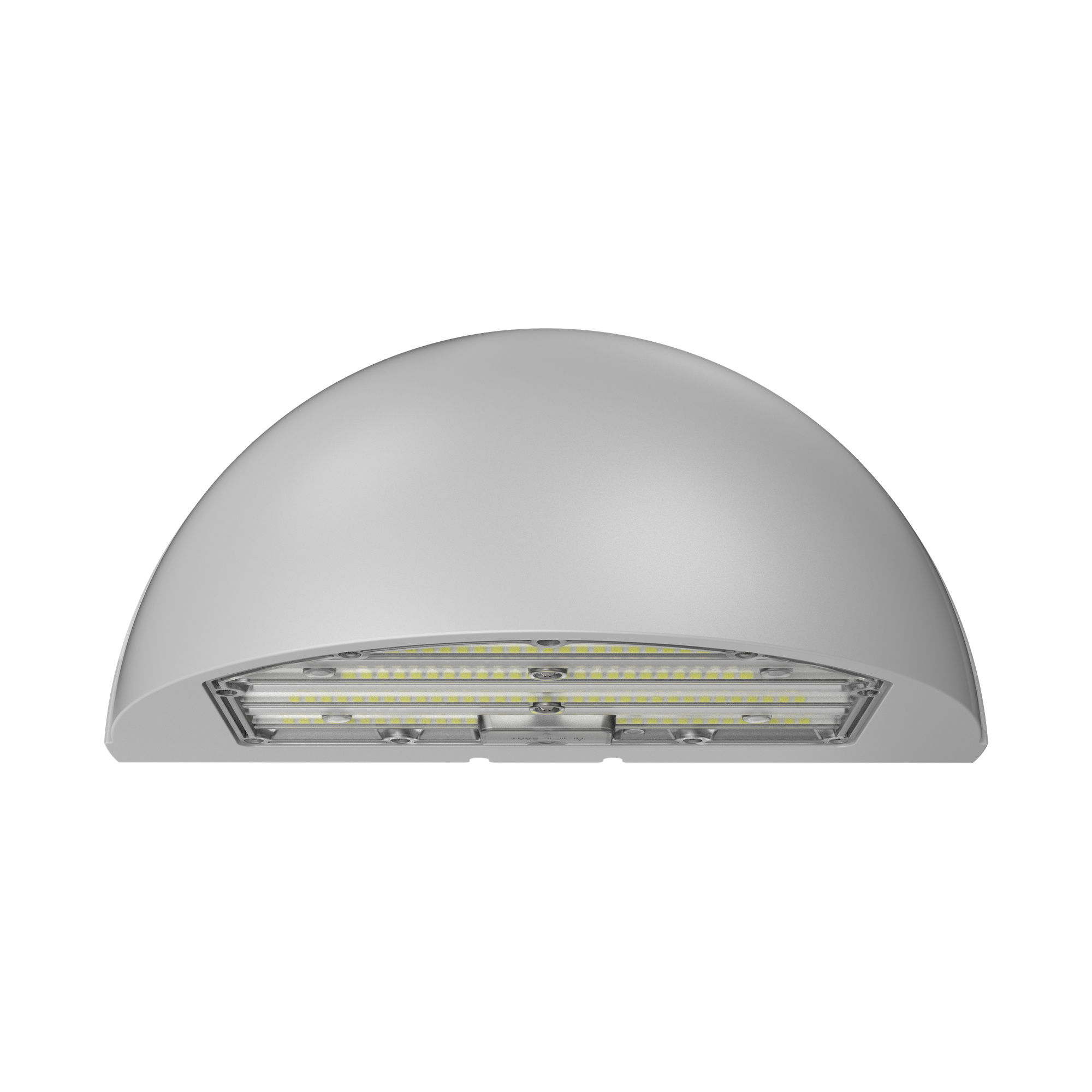

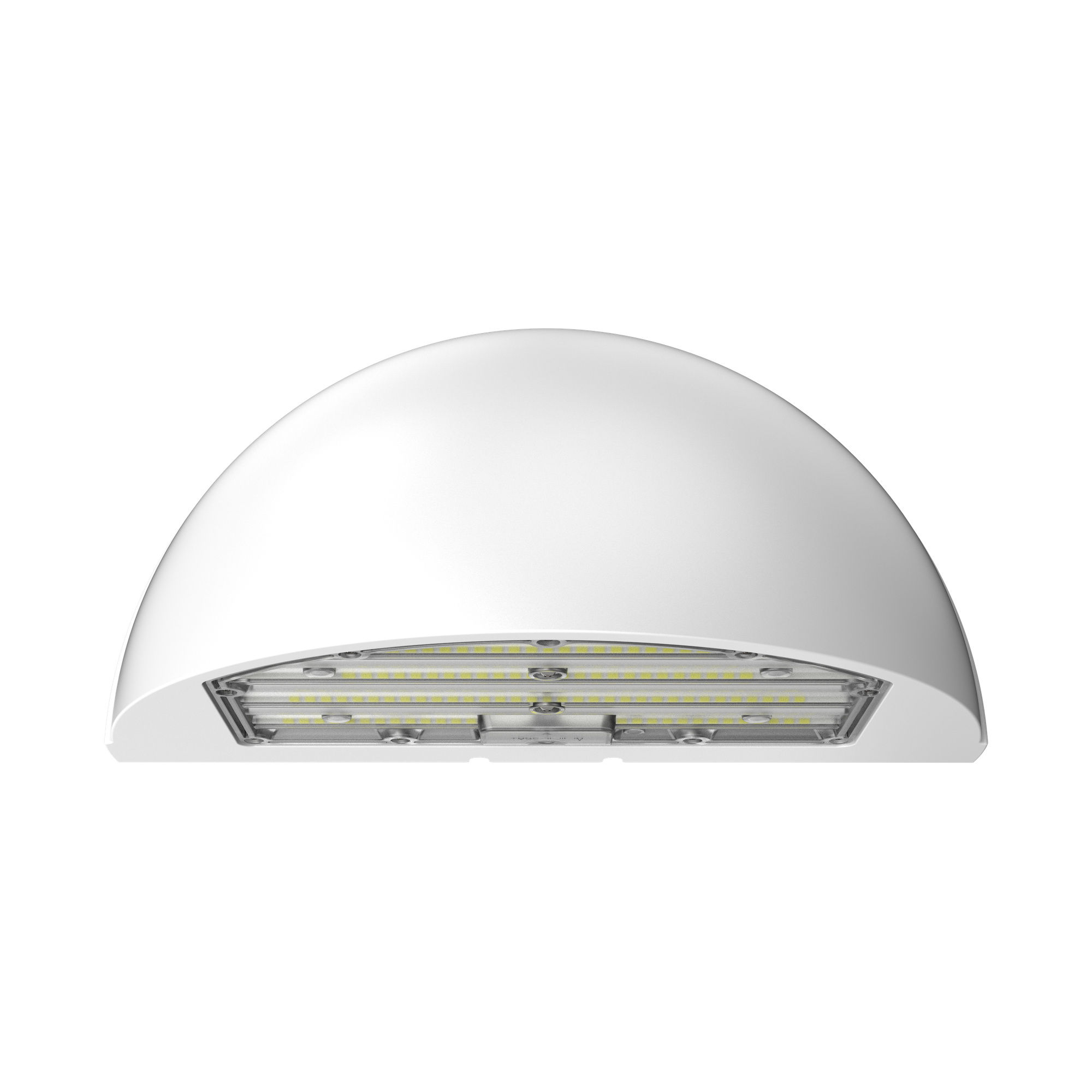

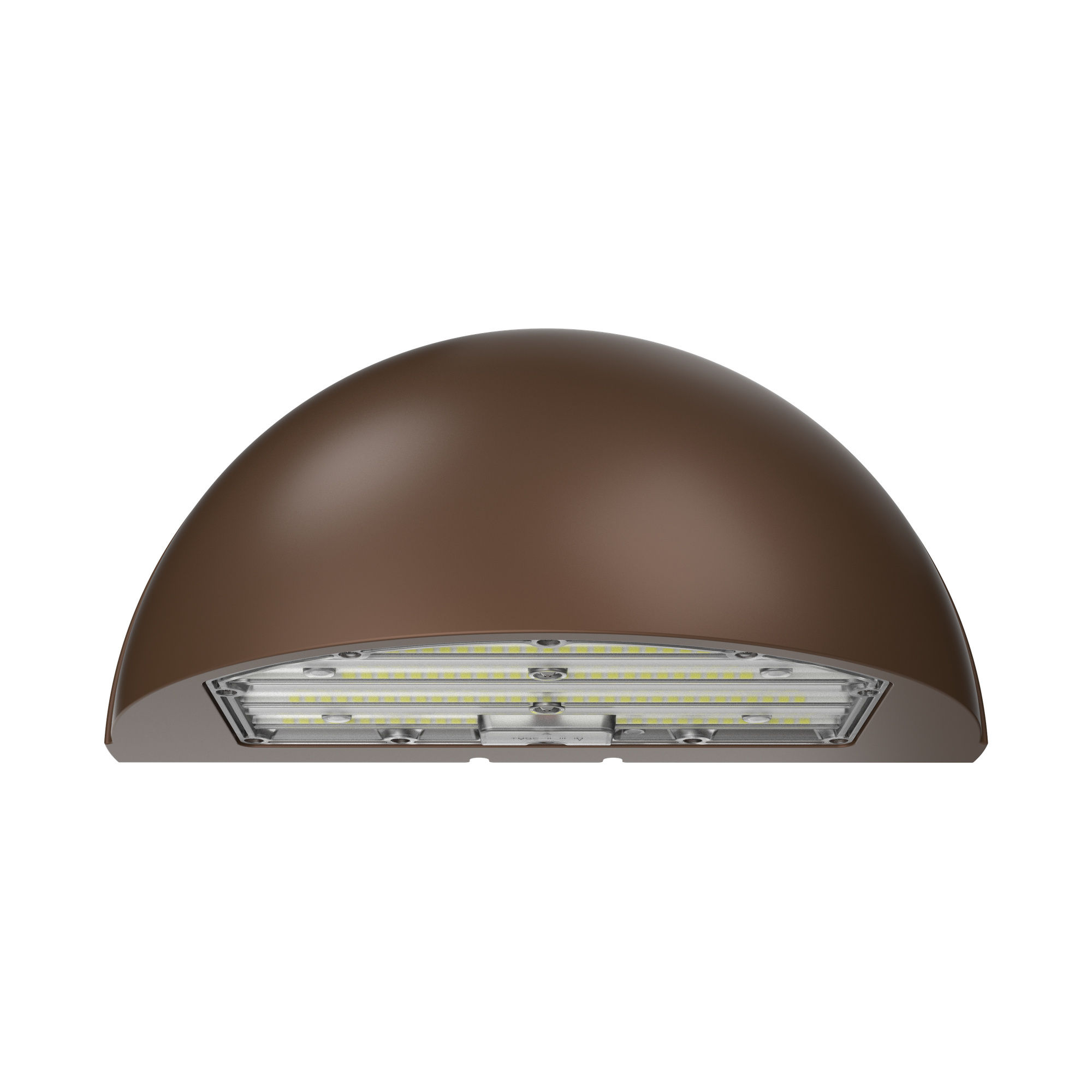

:: Housing: Die-cast aluminum, powder coat finish in Bronze, Black, Silver, or White
:: Lens: High light transmittance, anti-UV, fire-resistant shatterproof PC
:: Full Cutoff, Dark Sky Compliant
:: Dimensions: 13-inch W x 6 8/9-inch H x 6 1/2-inch D
:: IP Rating: IP65, Wet Location
:: Operating Temp: -4°F to 104°F
:: Rated Life: 70,000 hours
:: Warranty: 7 years
:: Certifications: cETLus Listed

Applications

:: The Westgate WPMX Series half-moon wall pack can be widely used as exterior or interior lighting for hotels, garages, commercial buildings, public areas, schools, and hospitals. Selectable power, color temperature, and beam let one fixture adapt to many jobs, and its Type III distribution is well suited to wide walkways, ramps, entrance roadways, and other long, narrow areas. The full cutoff, dark sky compliant design keeps light directed down, and a pre-installed twist-lock Zhaga socket makes it easy to add a compatible motion sensor. Available in two output ranges and Bronze, Black, Silver, or White finishes.

Variations
Q & A (0)

Product Name	Housing Finish	Lumens	Color Temp	Watts	Voltage	Factory-Installed Options
WPMX-24-40W-MCTPB SPEC INST	Bronze	3,960 LM / 5,280 LM / 6,600 LM	3000K / 4000K / 5000K	24W / 32W / 40W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-24 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy

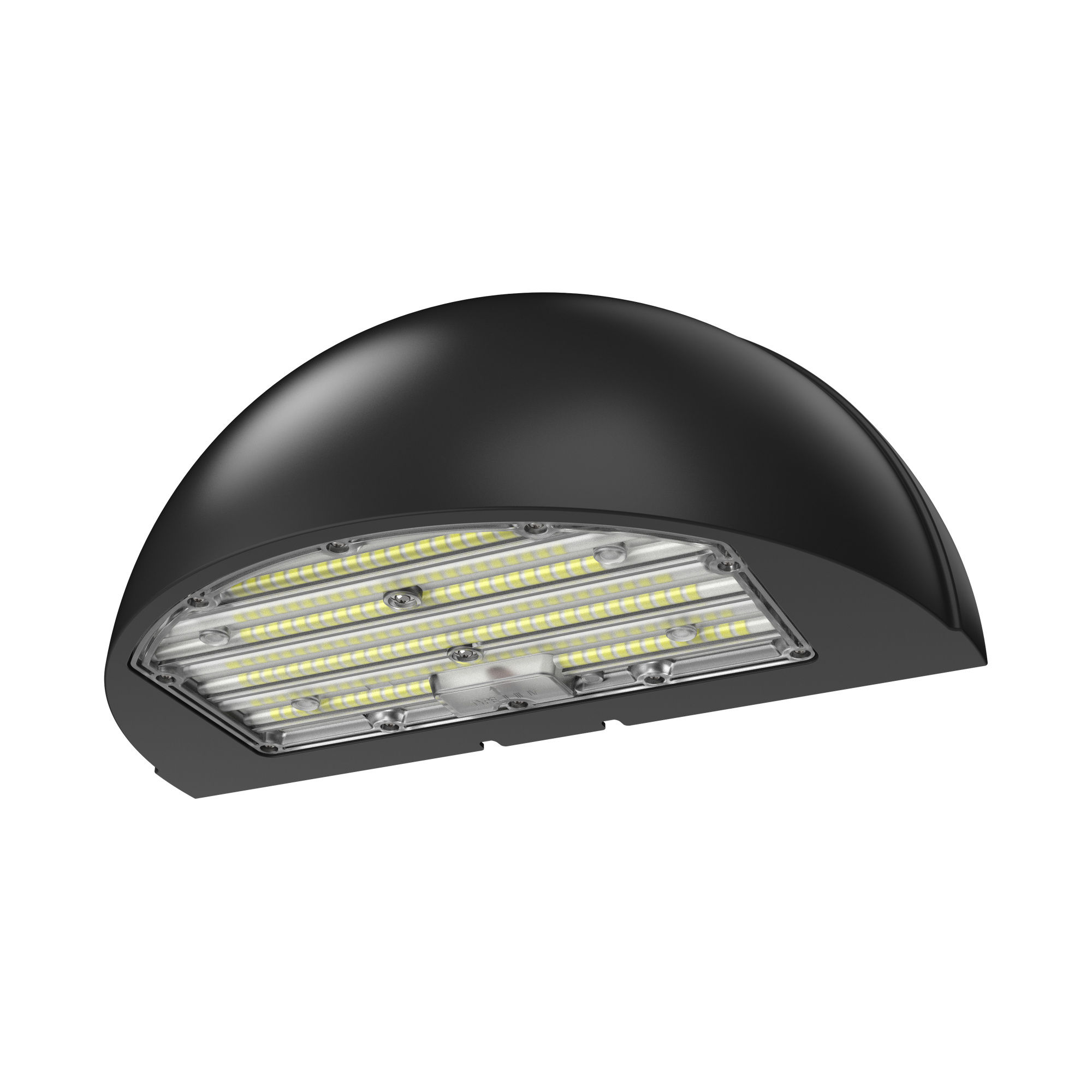

WPMX-24-40W-MCTPB-BK SPEC INST	Black	3,960 LM / 5,280 LM / 6,600 LM	3000K / 4000K / 5000K	24W / 32W / 40W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-24 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy

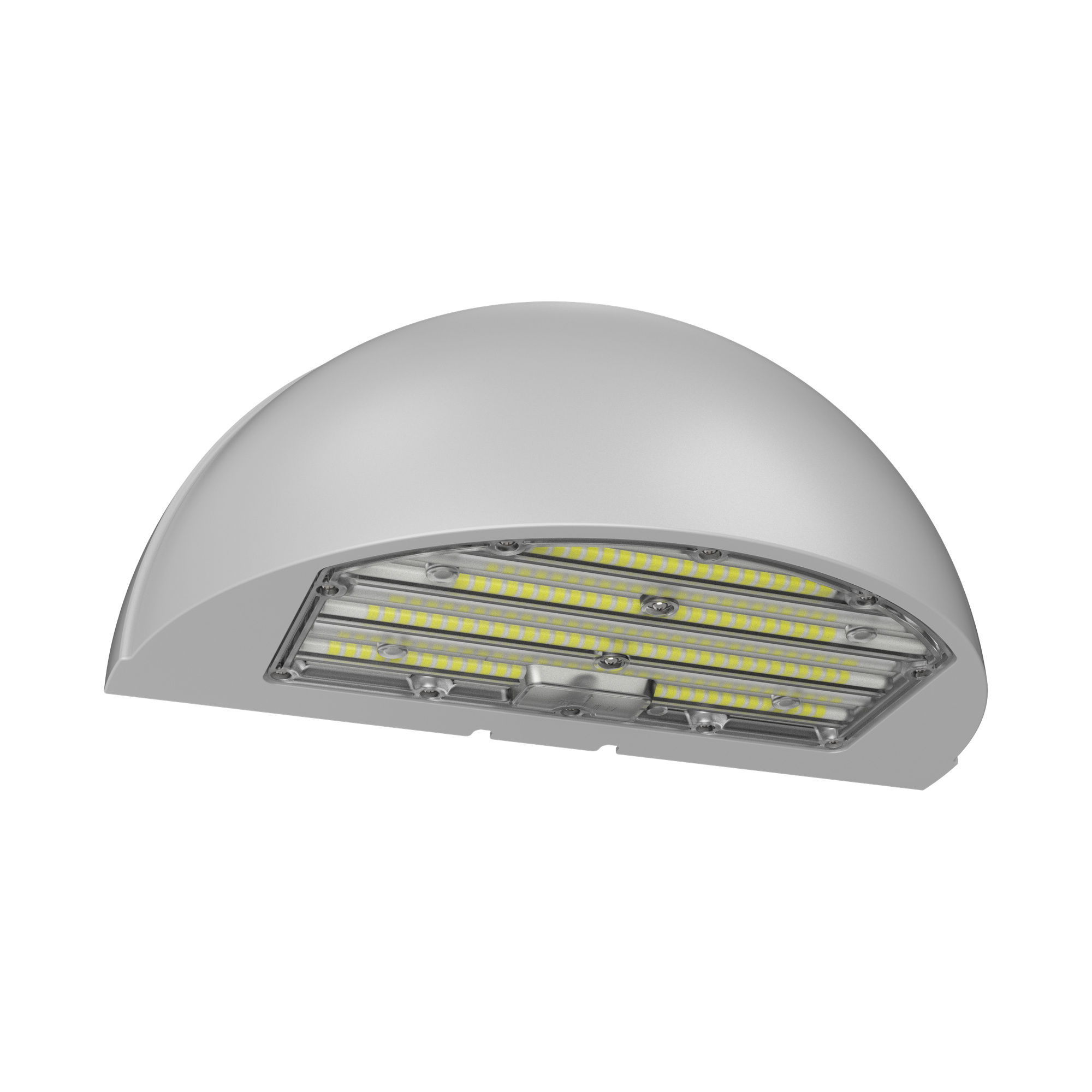

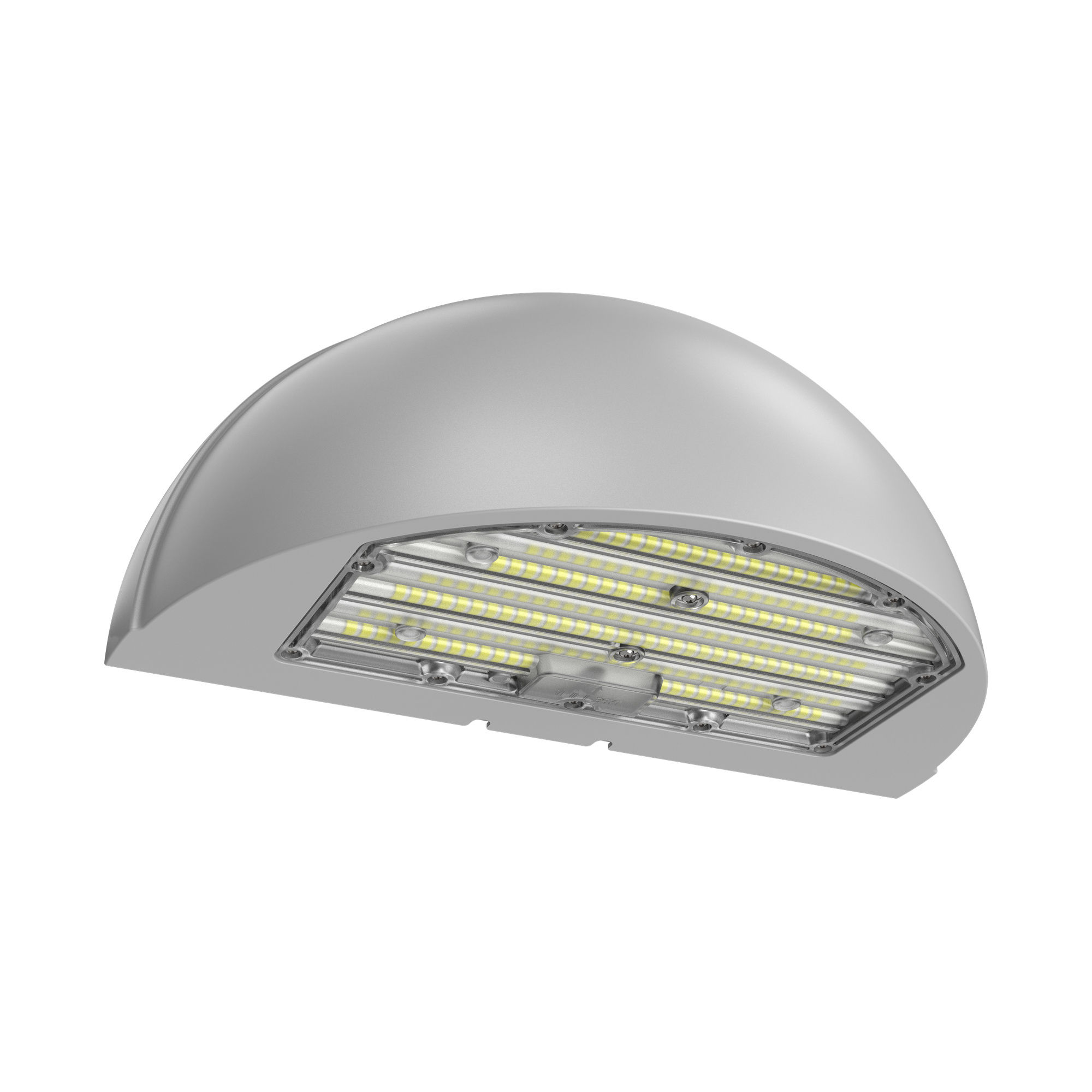

WPMX-24-40W-MCTPB-SIL SPEC INST	Silver	3,960 LM / 5,280 LM / 6,600 LM	3000K / 4000K / 5000K	24W / 32W / 40W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-24 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy
WPMX-24-40W-MCTPB-WH SPEC INST	White	3,960 LM / 5,280 LM / 6,600 LM	3000K / 4000K / 5000K	24W / 32W / 40W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-24 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy
WPMX-48-80W-MCTPB SPEC INST	Bronze	7,920 LM / 10,560 LM / 13,200 LM	3000K / 4000K / 5000K	48W / 64W / 80W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-48 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy
WPMX-48-80W-MCTPB-BK SPEC INST	Black	7,920 LM / 10,560 LM / 13,200 LM	3000K / 4000K / 5000K	48W / 64W / 80W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-48 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy
WPMX-48-80W-MCTPB-SIL SPEC INST	Silver	7,920 LM / 10,560 LM / 13,200 LM	3000K / 4000K / 5000K	48W / 64W / 80W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-48 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy
WPMX-48-80W-MCTPB-WH SPEC INST	White	7,920 LM / 10,560 LM / 13,200 LM	3000K / 4000K / 5000K	48W / 64W / 80W	120-277V	OPT-PC-B OPT-SEN-3MRLV-5 OPT-EM-WPMX-48 OPT-WP-480V OPT-CLR-85(BK/GR/SR/WH) OPT-CLR-MC OPT-TRS-T20	Where to Buy

ACCESSORIES

Product Name	Description
WEC-8RC SPEC	Remote Control For WEC-3MR-4 & WEC-3MR-3		Where to Buy
