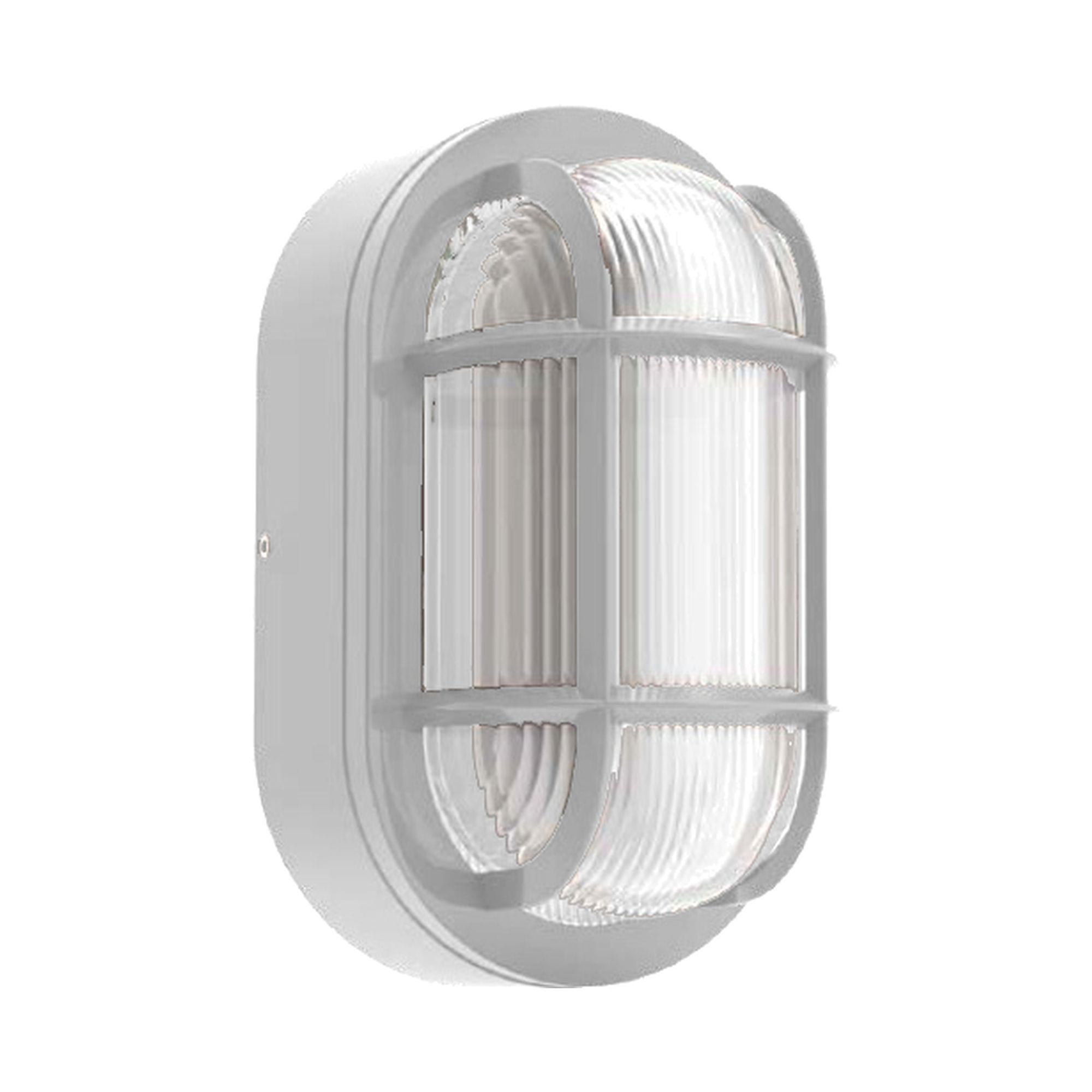

BKH-10W-MCTP-WH-P White 6W-10W Small Non-Cutoff LED Wall Pack with Photocell
Technical Specs
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Wattage: 6W / 8W / 10W, field selectable
- :: Power Factor: >0.90
- :: Dimming: 0-10V
- :: Lumens: 510 / 680 / 850 LM
- :: Efficacy: 85 LPW
- :: CCT: 3000K / 4000K / 5000K, field selectable
- :: CRI: ≥70
- :: Beam Angle: 100°
- :: BUG Rating: B1-U3-G1
- :: Optics: Non-cutoff for maximum light distribution
- :: Photocell: Included
- :: Lens: Waterproof-sealed glass
- :: Housing: Die-cast aluminum back plate, White finish
- :: Dimensions: 8.29-inch W x 4.8-inch H x 4.66-inch D
- :: IP Rating: IP65
- :: Operating Temp: -4°F to 113°F
- :: Rated Life: 70,000 hours
- :: Warranty: 7 years
Applications
- :: The Westgate BKH 10W wall pack is a compact, non-cutoff fixture ideal for doorways, building entrances, pathways, courtyards, and other small outdoor areas. Its non-cutoff optics spread light widely across walls and walkways, and the included photocell provides automatic dusk-to-dawn operation. As the smaller, lower-output model in the series, it is well suited to single doors, entryways, and accent lighting on building walls, while the 20W model is available for larger areas such as loading docks and parking. This model features a clean White finish that blends with light-colored stucco, siding, and painted masonry, and the same fixture is also available in Black and Bronze.
