BOL-G2-135-4Z-MCTP-BK G2 Black Round Modular LED Bollard Head
Technical Specs
- :: Voltage: 120-277VAC
- :: Wattage: Field-selectable 14W / 19W / 24W
- :: Lumen output: 1,400 / 1,900 / 2,400 lumens (up to 2,400 max)
- :: Efficacy: 100 LPW
- :: 3CCT selectable: 3000K / 4000K / 5000K
- :: CRI: ≥70
- :: Beam angle: 360°
- :: BUG rating: B1-U3-G2

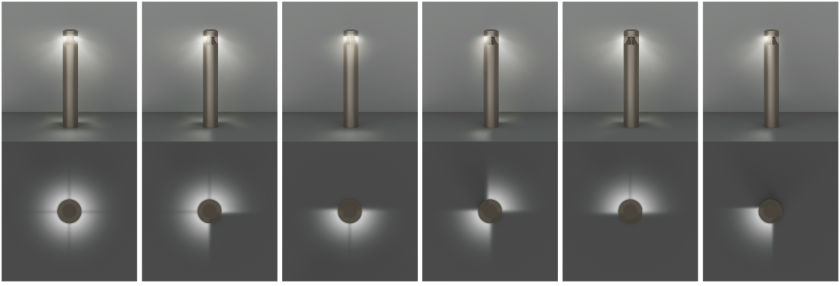

- :: Zone control: Four-zone control switch for independent ON/OFF of each side

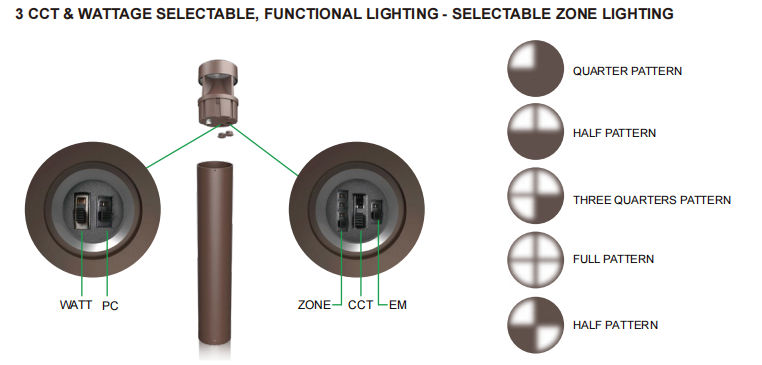

- :: Selectable switches: Wattage and CCT selectable inside fixture
- :: Power factor: >0.9
- :: Construction: Corrosion-resistant aluminum for exterior
- :: Finish: Bronze
- :: Head dimensions: 11-inch H x 6 1/3-inch W x 3 2/3-inch D
- :: Mounting: Mounting accessories and anchor bolts included (7-1/2-inch long); shaft sold separately
- :: Operating temperature: -40°F to 113°F
- :: IP rating: IP65, wet locations
- :: Rated life: 70,000 hours
- :: Warranty: 7-Year
- :: Certifications: UL Listed, Wet Location
Applications
- :: The Westgate BOL-G2-135-4Z-MCTP-BK is a modular round bollard head built for low-mounting-height area lighting, ideal for walkways, entrance ways, drives, and other small-area applications where low mounting heights are desirable.
- :: This is the black-finish head; it pairs with a separately ordered G2 shaft (9, 14, 19, or 31-inch) and anchor kit to build a complete bollard.
- :: Choose the bronze-finish head (BOL-G2-135-4Z-MCTP-BR) for warmer hardscapes; both share identical output and four-zone control.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Finish | ||
|---|---|---|---|---|
| G2 Bollard Shaft 31 Inch, Black | Black | |||
| G2 Bollard Shaft 19 Inch | Black | |||
| G2 Bollard Shaft 14 Inch | Black | |||
| G2 Bollard Shaft 9 Inch | Black | |||
 BOL-G2-ABK-R SPEC | G2 Bollard Round Replacement Anchor Bolts & Mounting Plate |
