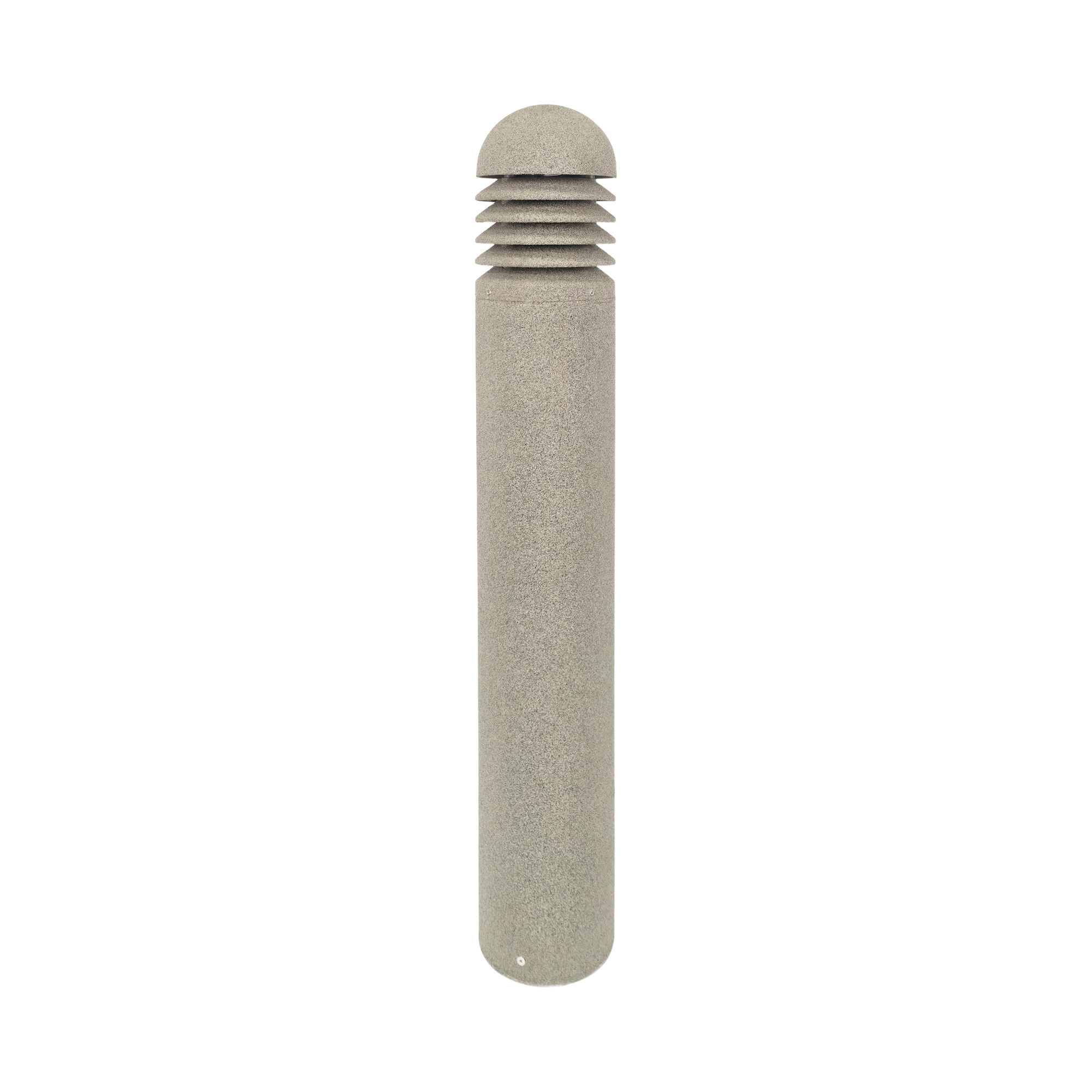

BOL-G7-100D-MCTP-TC Textured Concrete 10W-25W G7 External-Louver Modular LED Bollard Head

Where to Buy

Technical Specs

  • :: Input Voltage: 120-277VAC
  • :: Wattage: 10W / 18W / 25W, selectable (switches inside fixture)
  • :: Power Factor: >0.9
  • :: Lumens: 1,000 / 1,800 / 2,500 LM
  • :: Efficacy: 100 LPW
  • :: CCT: 3000K / 4000K / 5000K, selectable (switches inside fixture)
  • :: CRI: ≥70
  • :: Beam Angle: 360°
  • :: BUG Rating: B1-U3-G2
  • :: Optics: Dome top with external louver for glare control
  • :: Housing: Corrosion-resistant aluminum, Textured Concrete finish
  • :: Overall Height with Shaft: 18.3-inch (9-inch shaft), 23.3-inch (14-inch), 28.35-inch (19-inch), 40.28-inch (31-inch)
  • :: Diameter: 6.3-inch
  • :: Mounting: Modular head mounts on shaft; shafts and BOL-G7-ABK anchor bolt kit sold separately
  • :: IP Rating: IP65, Wet Location
  • :: Operating Temp: -40°F to 113°F
  • :: Rated Life: 70,000 hours
  • :: Warranty: 7 years
  • :: Certifications: UL Listed

Applications

  • :: The Westgate BOL-G7 bollard head is designed for walkways, entranceways, drives, and other small-area lighting where low mounting heights are desirable. Its external louver provides glare control and efficient 360° light distribution, making it ideal for pathways, landscapes, and architectural spaces. This model features a Textured Concrete finish that blends naturally with concrete hardscapes, plazas, planters, and modern architectural surroundings, giving the bollard an understated, built-in look. It pairs with Textured Concrete shafts in 9-inch, 14-inch, 19-inch, 22.5-inch, or 31-inch heights for the widest range of height options in the series, and the same head is also available in Black, Bronze, and Silver.

Features

  • ETL Listed
  • Dimming 0-10V
  • Wet Location
  • MCTP

Q & A

No questions posted yet for this product!

ACCESSORIES

Product NameDescription
G7 Bollard Round Anchor Bolts and Mounting Plate Kit
BOL-G7-ABK
SPEC document

SPEC

INST document

INST

BOL-G7 Anchor Bolt Kit
Where to Buy
Textured Concrete 9-Inch G7 Bollard Shaft
BOL-G7 Shaft 9in, Textured Concrete
Where to Buy
Textured Concrete 14-Inch G7 Bollard Shaft
BOL-G7 Shaft 14in, Textured Concrete
Where to Buy
Textured Concrete 19-Inch G7 Bollard Shaft
BOL-G7 Shaft 19in, Textured Concrete
Where to Buy
Textured Concrete 22.5-Inch G7 Bollard Shaft
BOL-G7 Shaft 22.5in, Textured Concrete
Where to Buy
Textured Concrete 31-Inch G7 Bollard Shaft
BOL-G7 Shaft 31in, Textured Concrete
Where to Buy
