CMC12-SRK-224-5C-BK Black 48-inch Suspension Downrod Kit with 5 Wires for CMC12 Cylinder
Technical Specs
- :: Product type: universal suspension downrod kit for CMC12 ceiling cylinder
- :: Rod configuration: 2 x 24-inch rods
- :: Total suspension height: 48-inch
- :: Rod diameter: 1/2-inch
- :: Wiring: 5 wires (supports multi-CCT / multi-power selection and 0-10V dimming)
- :: Finish: Black
- :: Compatibility: CMC12 commercial ceiling cylinder (surface-to-pendant conversion)
Applications

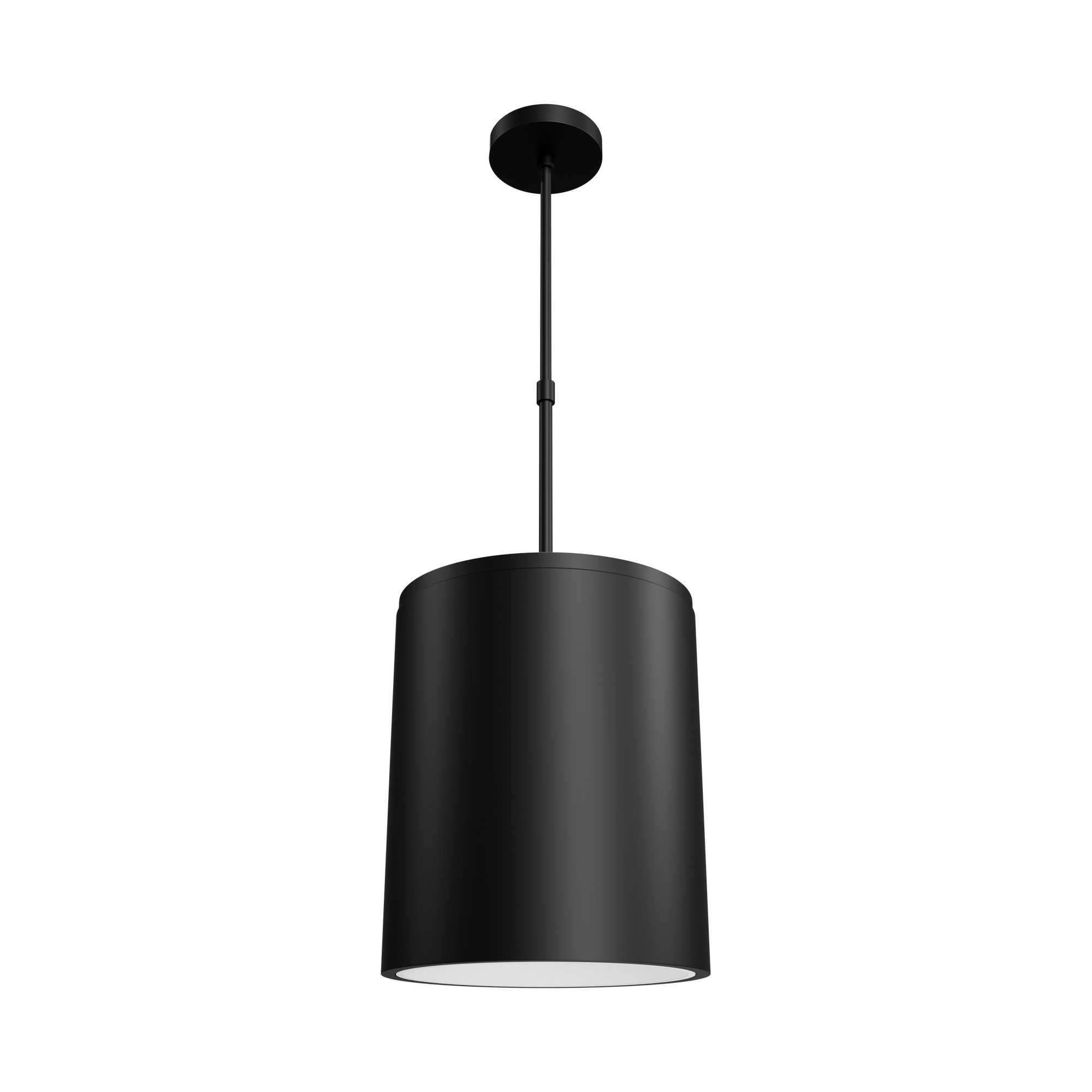

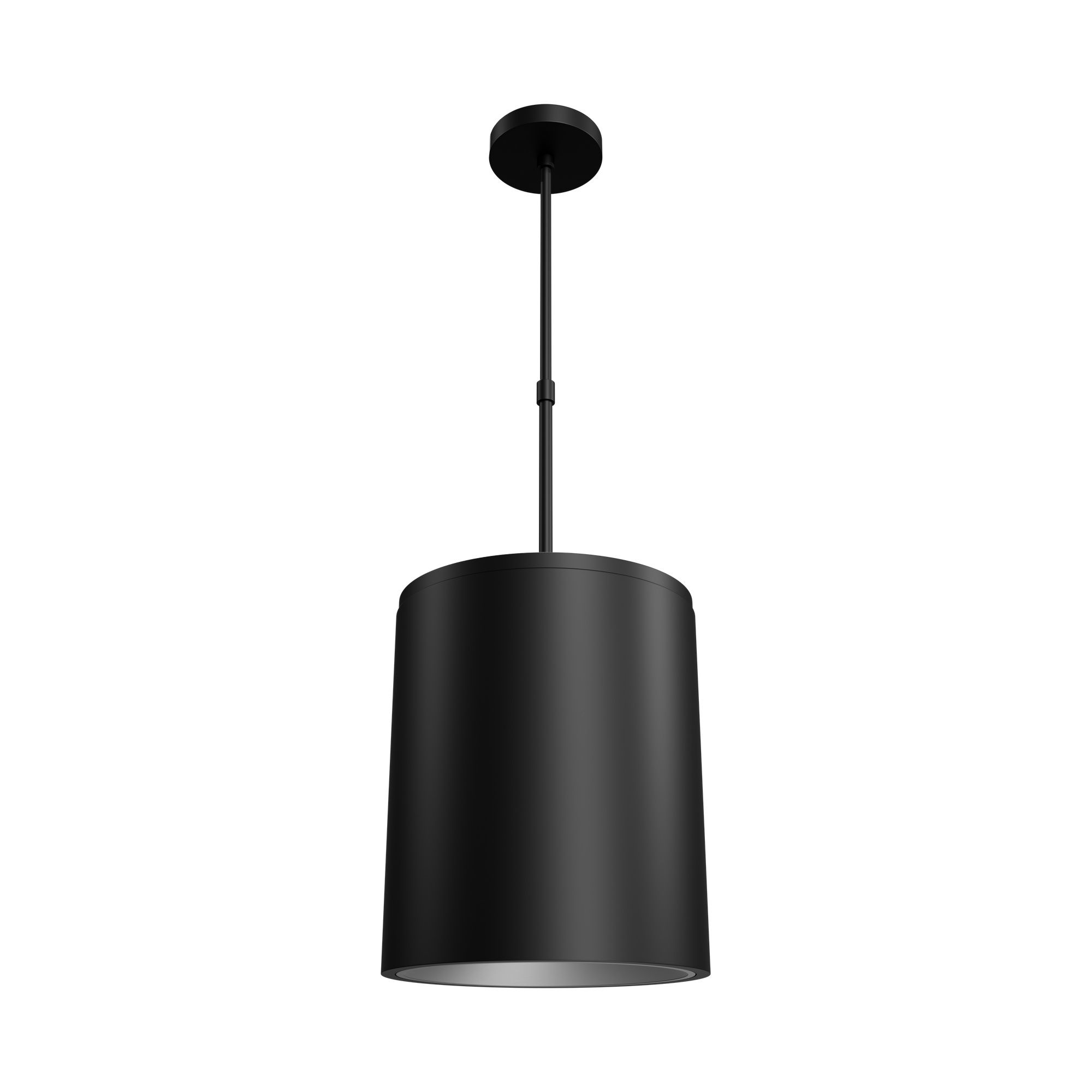

- :: The CMC12-SRK-224-5C-BK from Westgate is the mid-length suspension downrod kit for the CMC12 commercial ceiling cylinder, suspending the fixture as a pendant for open architectural spaces. Its two 24-inch rods give a 48-inch total drop, well suited to higher ceilings in lobbies, corridors, and conference rooms, and the five-wire feed carries the fixture's multi-CCT and multi-power selectable wiring plus 0-10V dimming. The black finish coordinates with the black CMC12 cylinder. Choose the 224 kit for a medium drop; Westgate offers the shorter CMC12-SRK-218 (36-inch) and the longer CMC12-SRK-340 (120-inch) kits for other ceiling heights.
