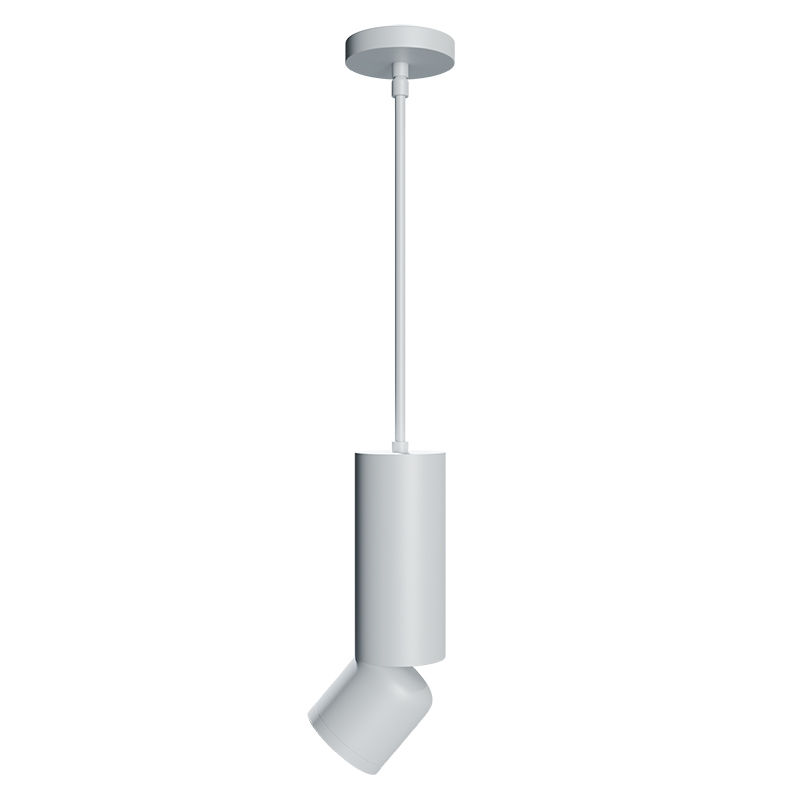

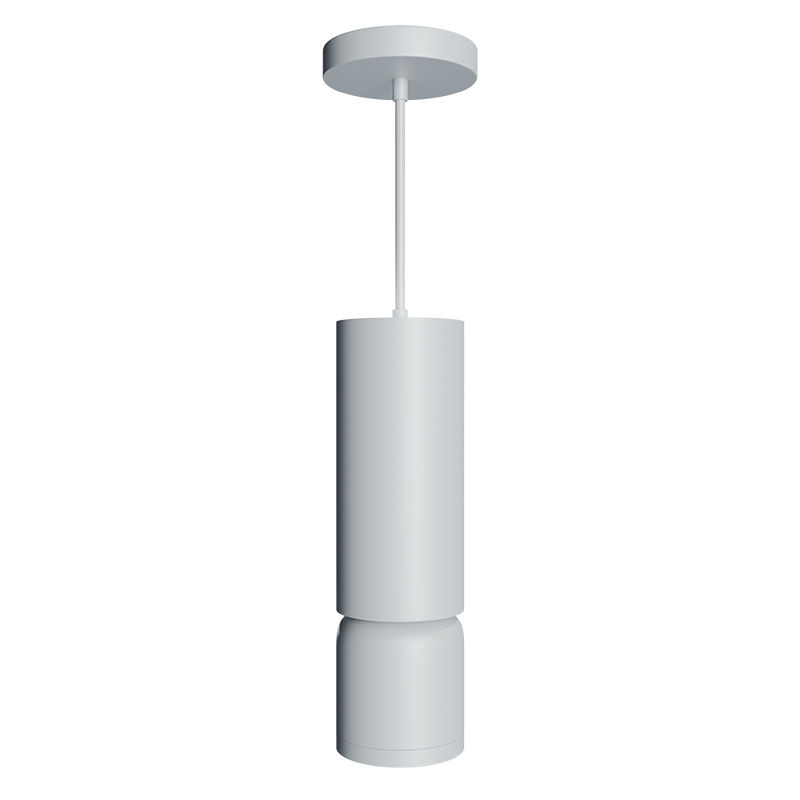

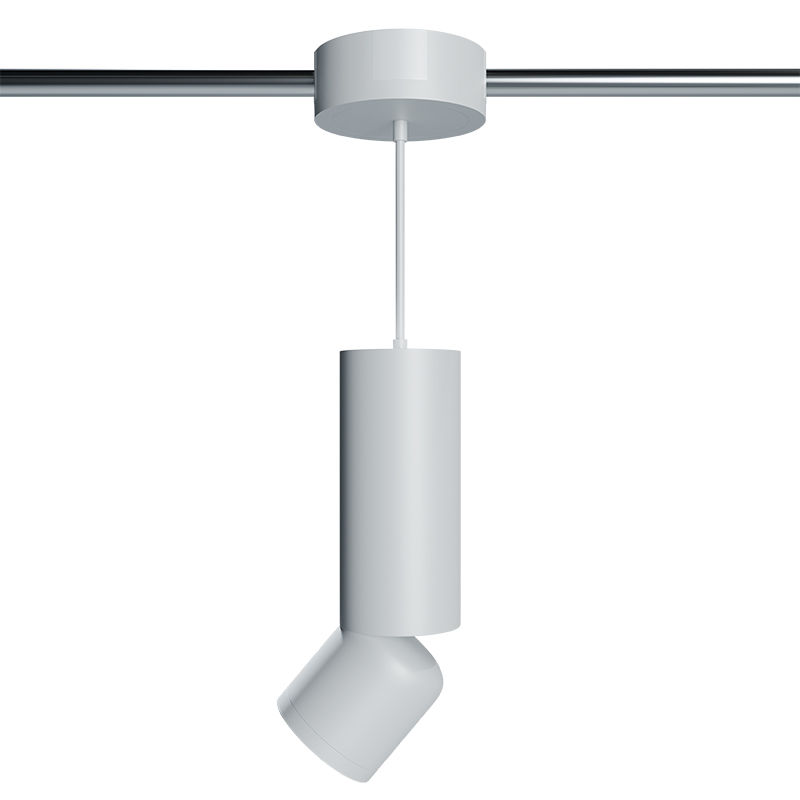

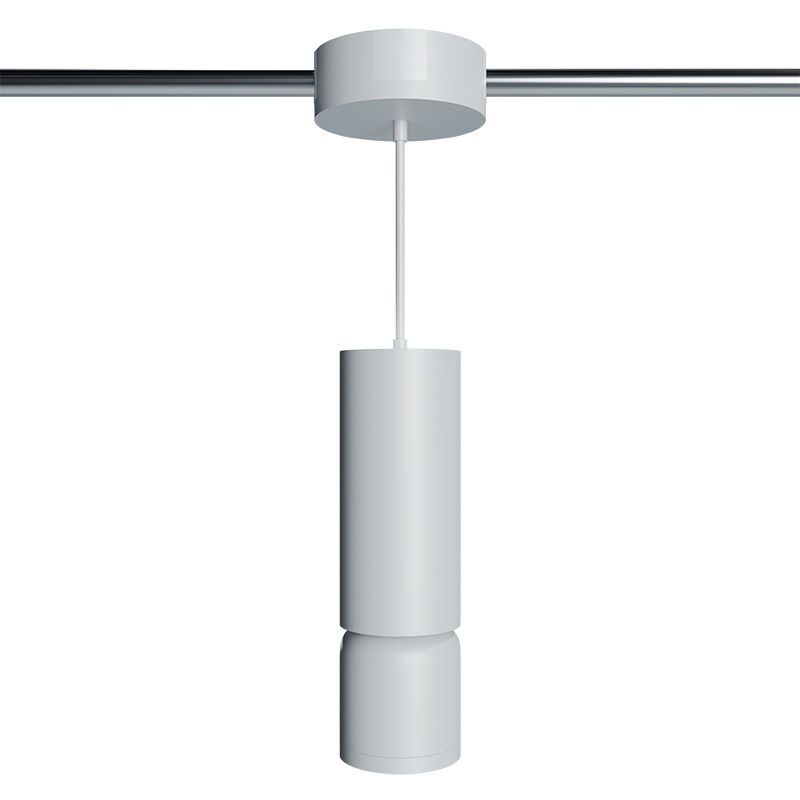

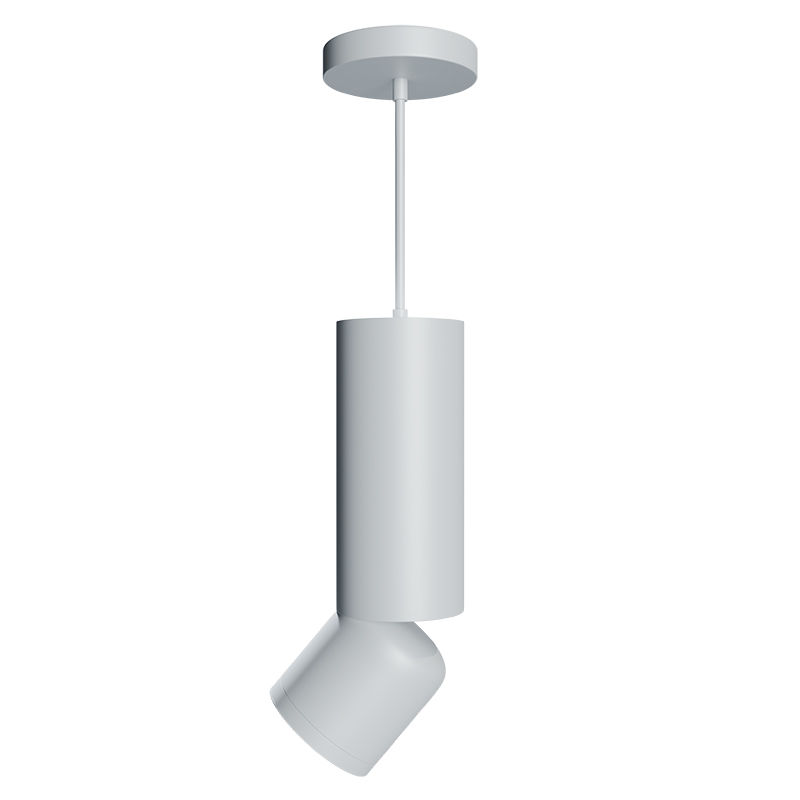

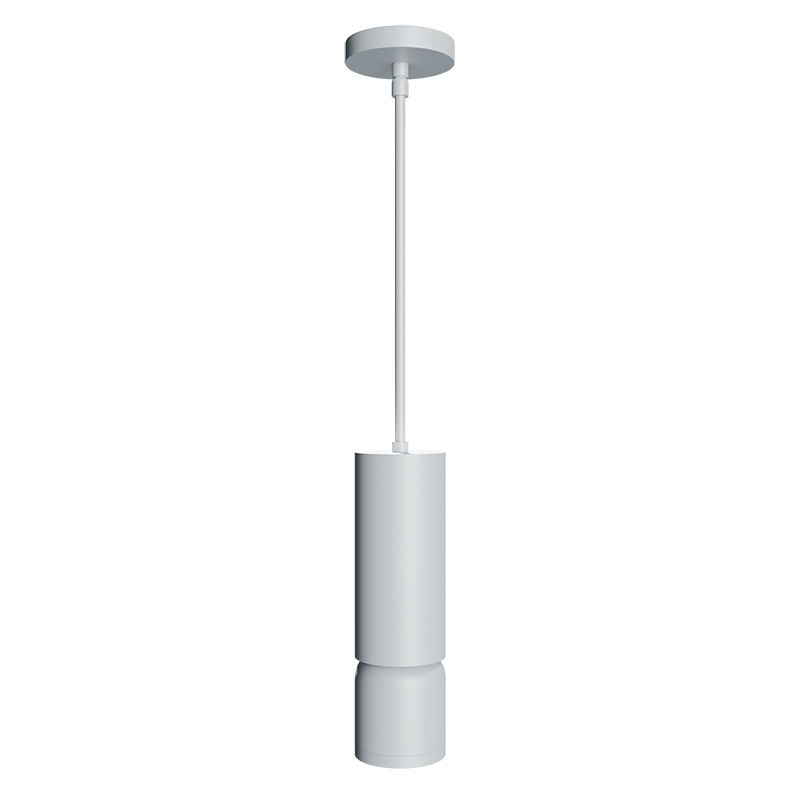

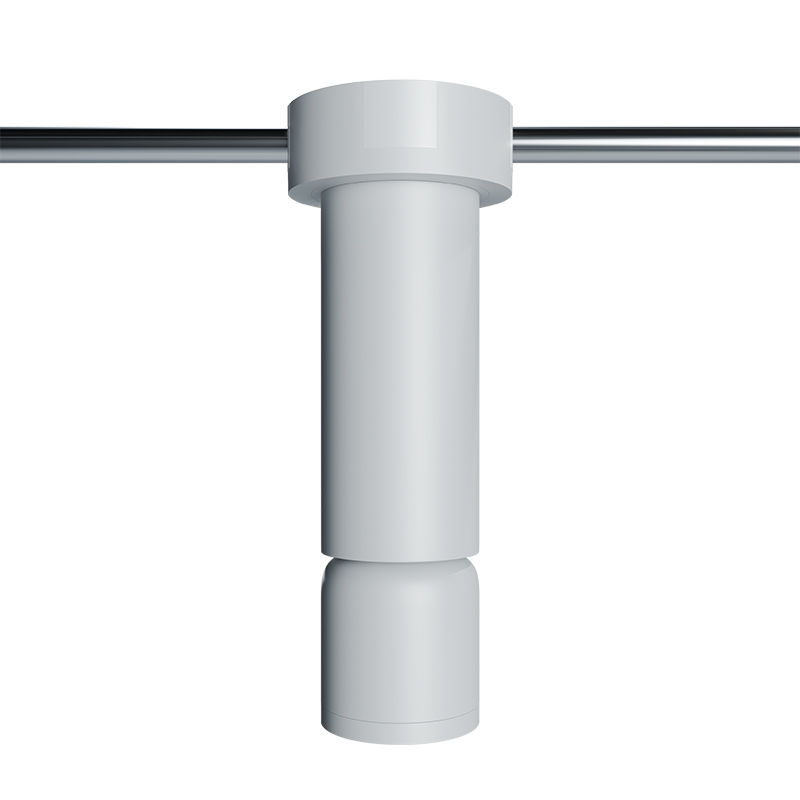

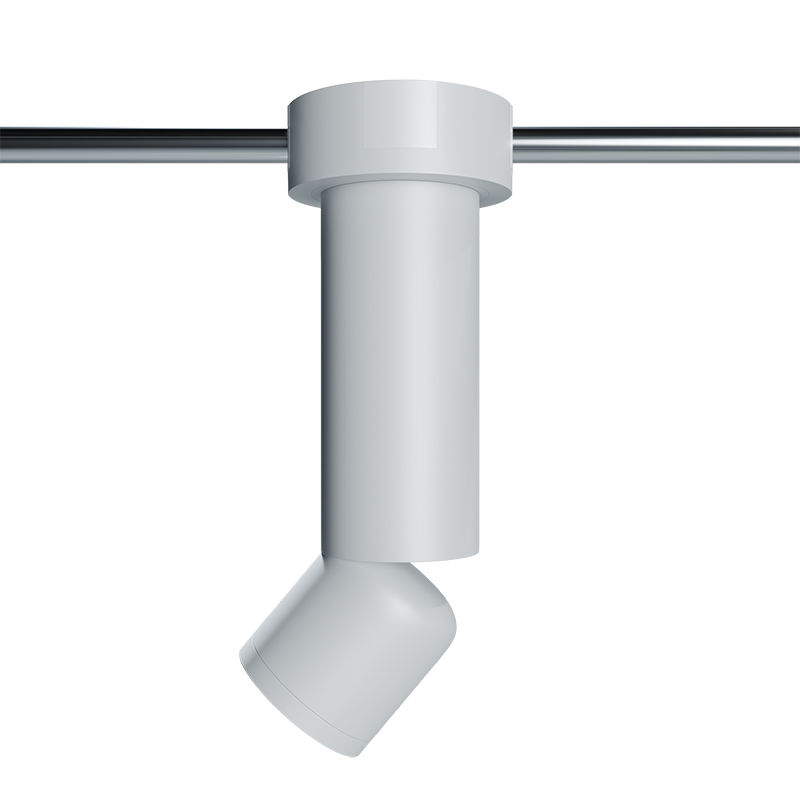

CMC4-GIM-MCTP-DD-WH 4-Inch Power & CCT Adjustable Indoor Cylinder Lights, 12W/16W/20W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.90
- :: THD: <20%
- :: Wattage: 12W/16W/20W
- :: Efficacy: 80 LPW
- :: Aluminum Housing & Glass Lens
- :: The lens tilts 90° and rotates 360°
- :: Suspension Cable & Canopy Set Accessories Avail.
- :: Universal Swivel W/ Rod Kit Accessories Avail. Ambient Operating Temperature: -13ºF to 113ºF
- :: Rated life: 70,000 hrs
- :: IP Rating: IP40 suitable for damp locations
- :: Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
- :: Total Lumens: 1600LM Max.
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 120°
Applications
- :: 4’’ Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Clear Glass Lens
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Housing Finish | ||
|---|---|---|---|---|
 CMC-OWCC-WH SPEC | 5In Old-Work Recessed Ceiling Canopy With Junction Box For CMC Cylinders | White | ||
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White | ||||
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black | ||||
| Universal Swivel W/ Rod Kit, 40 Or 80 Or 120 Inches, 5-Wire, White | ||||
| Universal Swivel W/ Rod Kit, 40 Or 80 Or 120 Inches, 5-Wire, Black | ||||
 CMC4-TRM-AG SPEC | 4-inch ceiling mount cylinder trim, Anodized Gold (AG) | |||
 CMC4-TRM-BN SPEC | 4-inch ceiling mount cylinder trim, Anodized Gold (AG) | |||
 CMC4-HCDK-BK SPEC | 4-inch ceiling mount cylinder honeycomb diffuser kit, Black | |||
 CMC4-HCDK-AG SPEC | 4-inch ceiling mount cylinder honeycomb diffuser kit, Anodized Gold (AG) | |||
| Pendkit accessory for track and pendant lights | Black | |||
| Pendkit accessory for track and pendant lights | White | |||
 CMC-JBCK-BK SPEC | ||||
CMC-JBCK-WH SPEC | ||||
 CMC4-WPCK-WH SPEC | CMC4 Weatherproof Conversion Kit for Cord or Down-Rod, White | |||
 CMC4-WPCK-BK SPEC | CMC4 Weatherproof Conversion Kit for Cord or Down-Rod, Black | |||
%20resized.jpg%3Falt%3Dmedia&w=3840&q=75&dpl=dpl_AmWDCzbGNE65WSr3HYmmaVeQniq4) CMC4-DL32 SPEC | WMC 4in 32mm Acrylic Drop Lens | |||
 CMC4-DS14-WG-KIT SPEC | CMC4 14in Dome Shade, White/Gold |
