CMC8S-MCTP-DD-WH

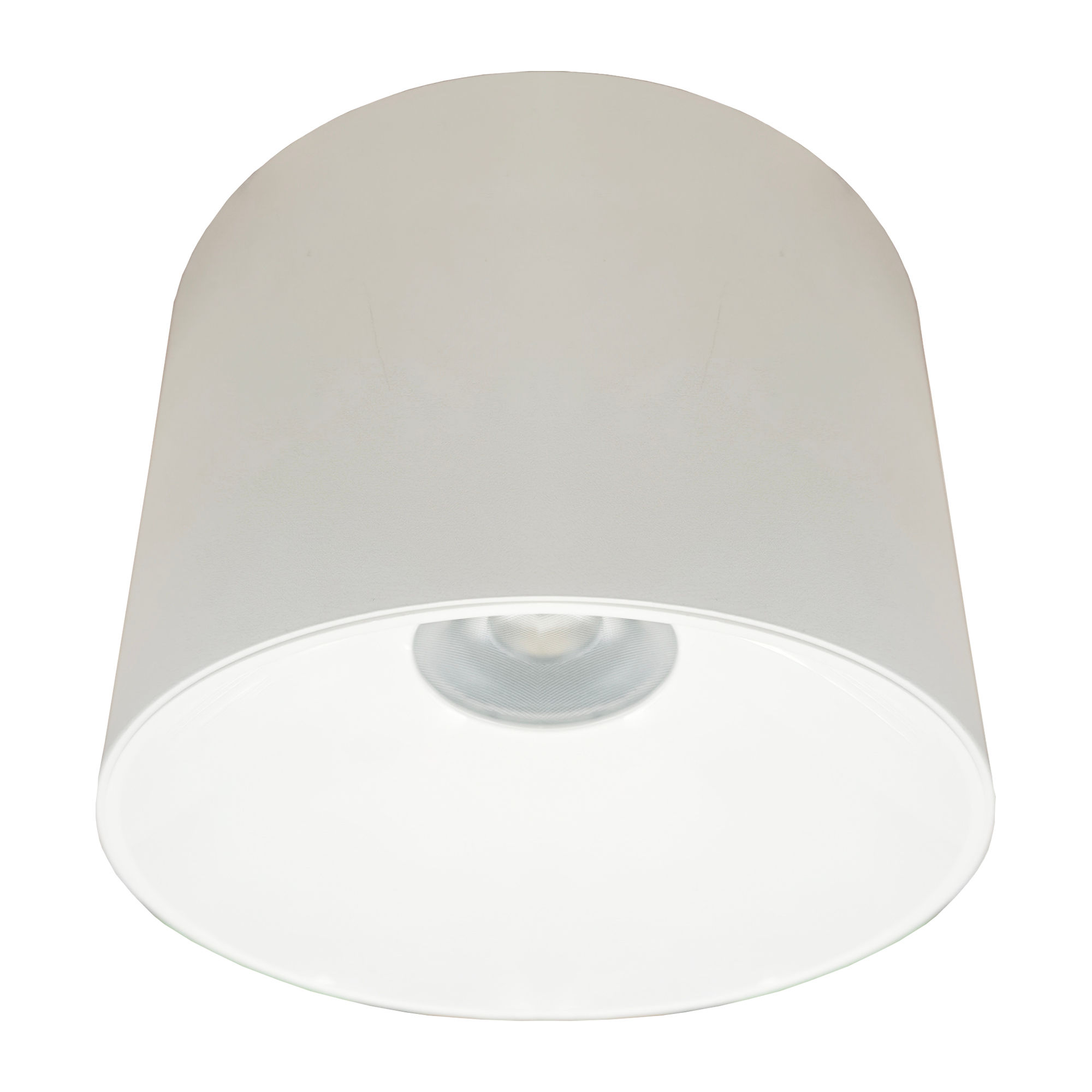

Westgate Lighting 8" White Architectural Cylinder Lights, 30W/40W/50W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.90
- :: THD: <20%
- :: Wattage: 30W/40W/50W
- :: Efficacy: 80 LPW
- :: Aluminum Housing & Glass Lens
- :: Swivel Rod Kit for Suspended Mounting Available
- :: Black, White & Silver Trim Accessories Available
- :: Ambient Operating Temperature: -13ºF to 113ºF
- :: IP Rating: IP40 suitable for damp locations
- :: 5-Year Warranty
- :: Multi CCT: Selectable Multi-CCT & Power Switches on the back of the fixture
- :: Dimming: 0-10V Dimming and TRAIC Dimming
- :: Total Lumens: 4000LM Max.
- :: Color Temperatures: 3000K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 120°
- :: Rated life: 50,000 hrs
Applications
- :: Ideal for commercial, retail, hospitality, and residential interiors requiring versatile architectural lighting. The 8” square indoor cylinder with adjustable CCT is wellsuited for corridors, lobbies, offices, conference rooms, reception areas, and accent or general illumination. Its selectable color temperature makes it adaptable for evolving design needs and varied ambience requirements.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 CMC8-REFL-BK SPEC | CMC8S Replacement Lens Black | ||
 CMC8-REFL-WH SPEC | CMC8S Replacement Lens White | ||
 CMC8-REFL-SIL SPEC | CMC8S Replacement Lens Silver | ||
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White | |||
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black | |||
| Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, White | |||
| Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, Black | |||
| Universal Swivel W/ Rod Kit, 40 Or 80 Or 120 Inches, 5-Wire, White | |||
| Universal Swivel W/ Rod Kit, 40 Or 80 Or 120 Inches, 5-Wire, Black | |||
 CMC-CS-8FT-BK SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | ||
 CMC-CS-8FT-WH SPEC | Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White | ||
 CMC-JBCK-BK SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||
 CMC-JBCK-WH SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy |
