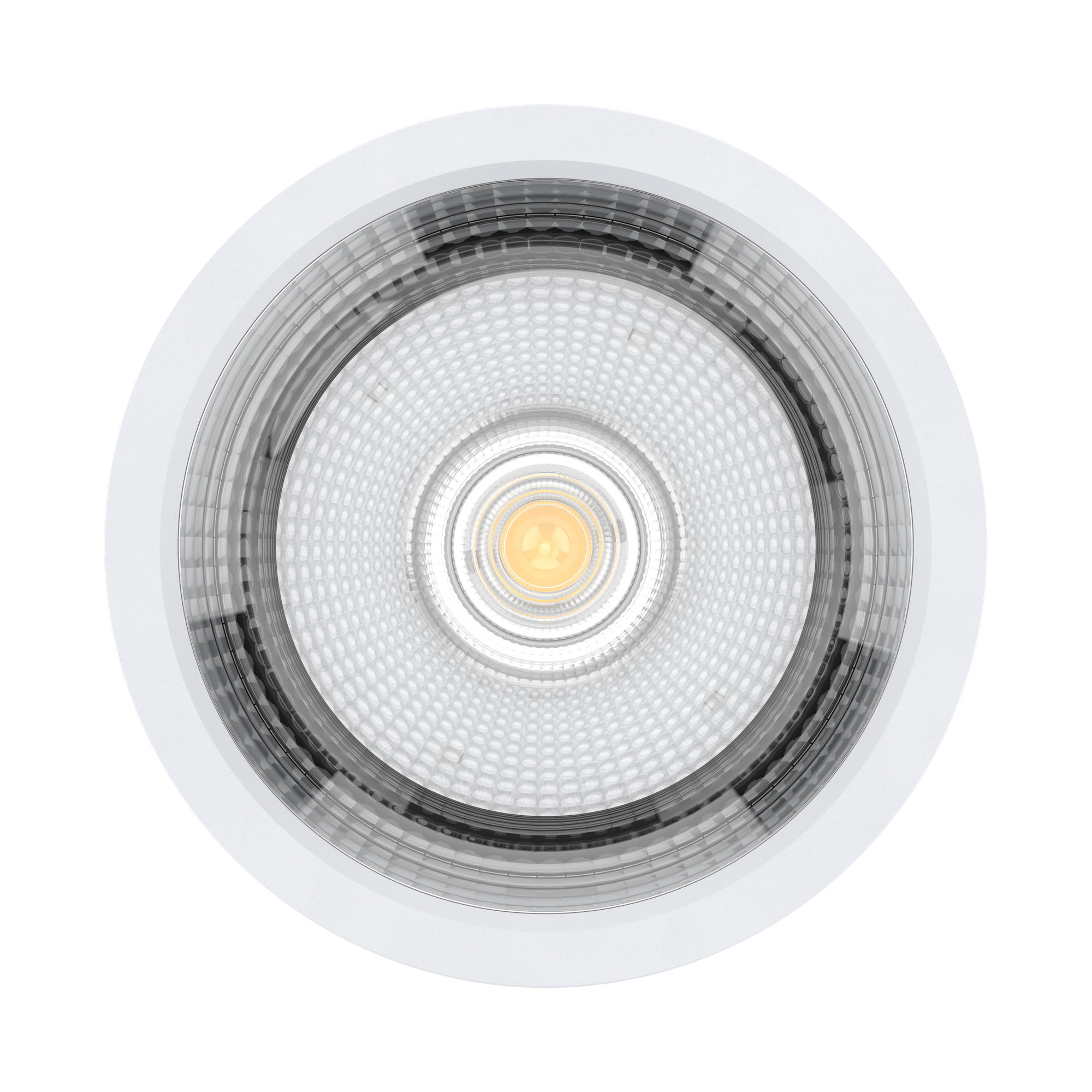

CMCW10-COB-40W-MCT-36D-D-WH White 40W IP65 Surface Mount LED Cylinder Downlight, 3CCT Selectable, 36° Beam
Technical Specs
- :: Wattage: 40W
- :: Lumens: 3,850lm
- :: Efficacy: 96lm/W
- :: CCT: 3000K/3500K/4000K, selectable via switches on back of fixture
- :: CRI ≥80
- :: Voltage: 120-277VAC, 50/60Hz
- :: PF >0.90 / THD: <20%
- :: Dimming: 0-10V dimming
- :: Beam Angle: 36° (24° and 60° optics optional)
- :: BUG: B3-U2-G0
- :: Lens: Tempered glass
- :: Housing: Aluminum, White finish
- :: Mounting: Suspension cable and canopy set or universal swivel with rod kit (accessories available)
- :: Dimensions: 9.81" (D) x 8.18" (W) x 4.93" (H)
- :: IP65, wet location
- :: Operating Temperature: -13°F to 113°F
- :: Rated Life: 70,000 hours
- :: 7-year warranty
Applications
- :: The Westgate CMCW10-COB-40W-MCT-36D-D-WH is a 40W specification-grade LED cylinder light that delivers 3,850lm of crisp, focused illumination through a controlled 36° beam, ideal for accenting large façades, tall columns, and high-ceiling commercial spaces. As the highest-output model in the CMCW-COB Series, it operates on 120-277VAC with 0-10V dimming. Factory-installed 24° and 60° optics let the beam be tightened or widened to suit the space. Its IP65 rating makes it suitable for wet and outdoor locations, and a tempered glass lens with an aluminum housing stands up to the elements. Selectable 3000K, 3500K, or 4000K color temperature lets one fixture match each space, and suspension cable and swivel rod kit accessories offer flexible mounting. This model features a White finish, and the same fixture is also available in Black.
Features
