SPEC SHEET

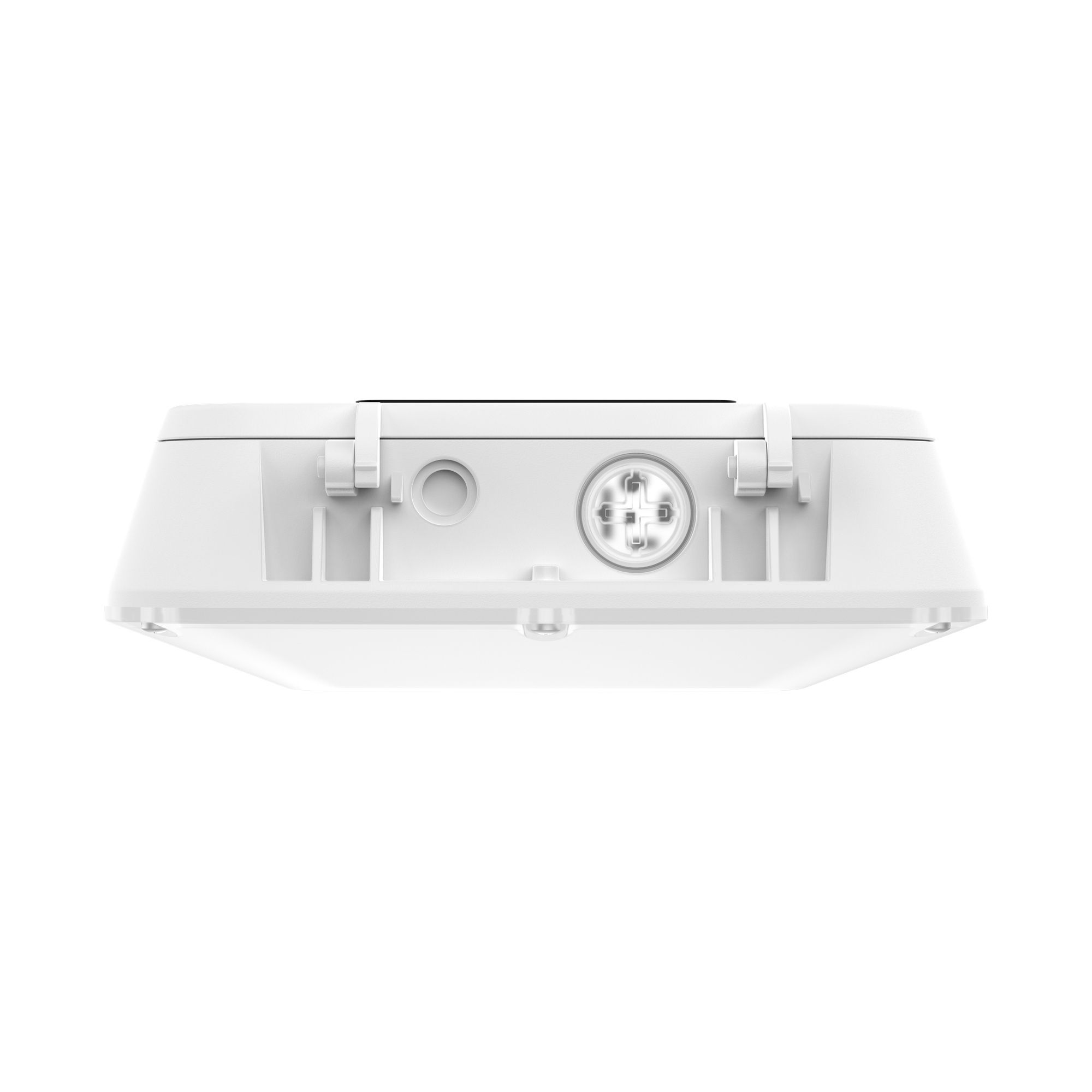

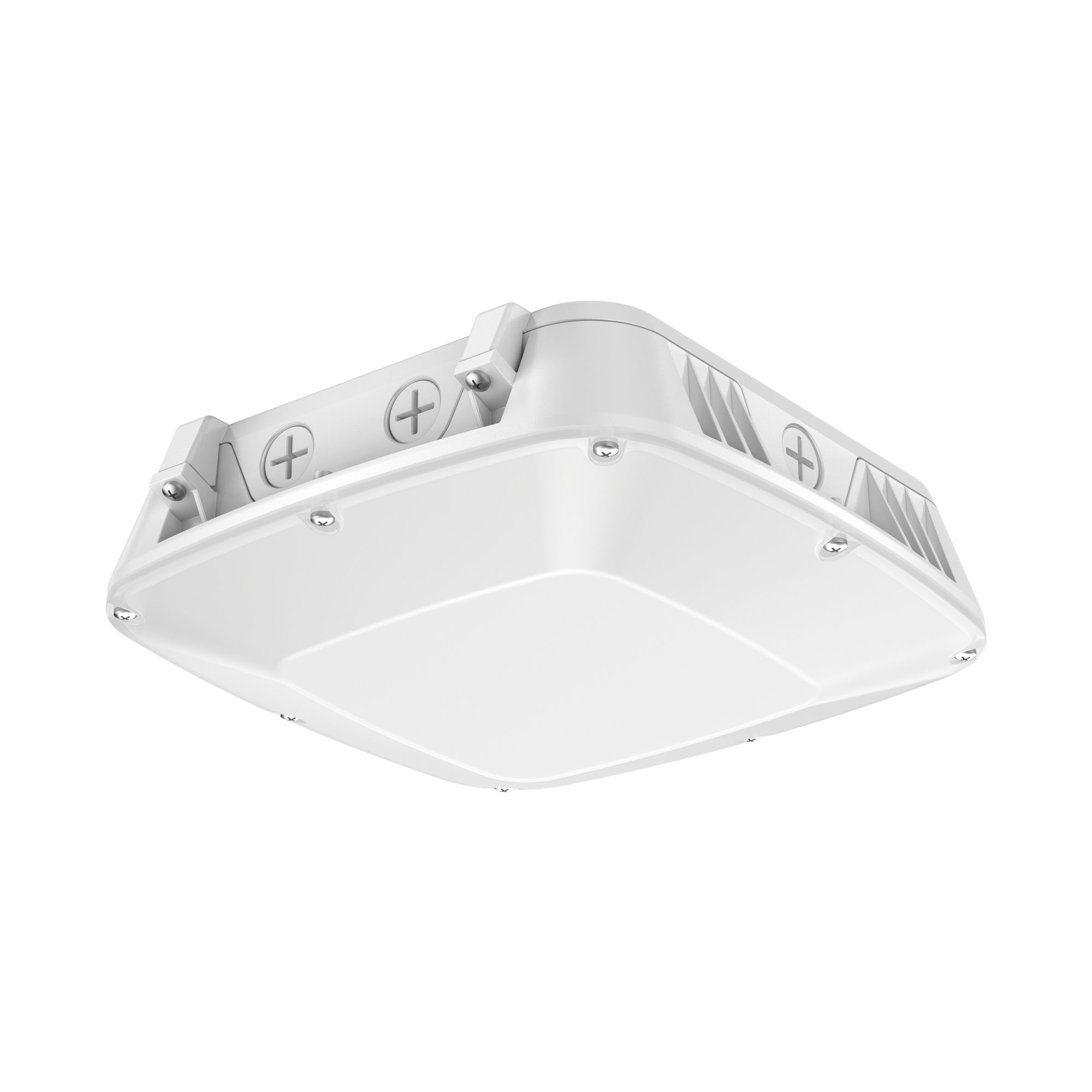

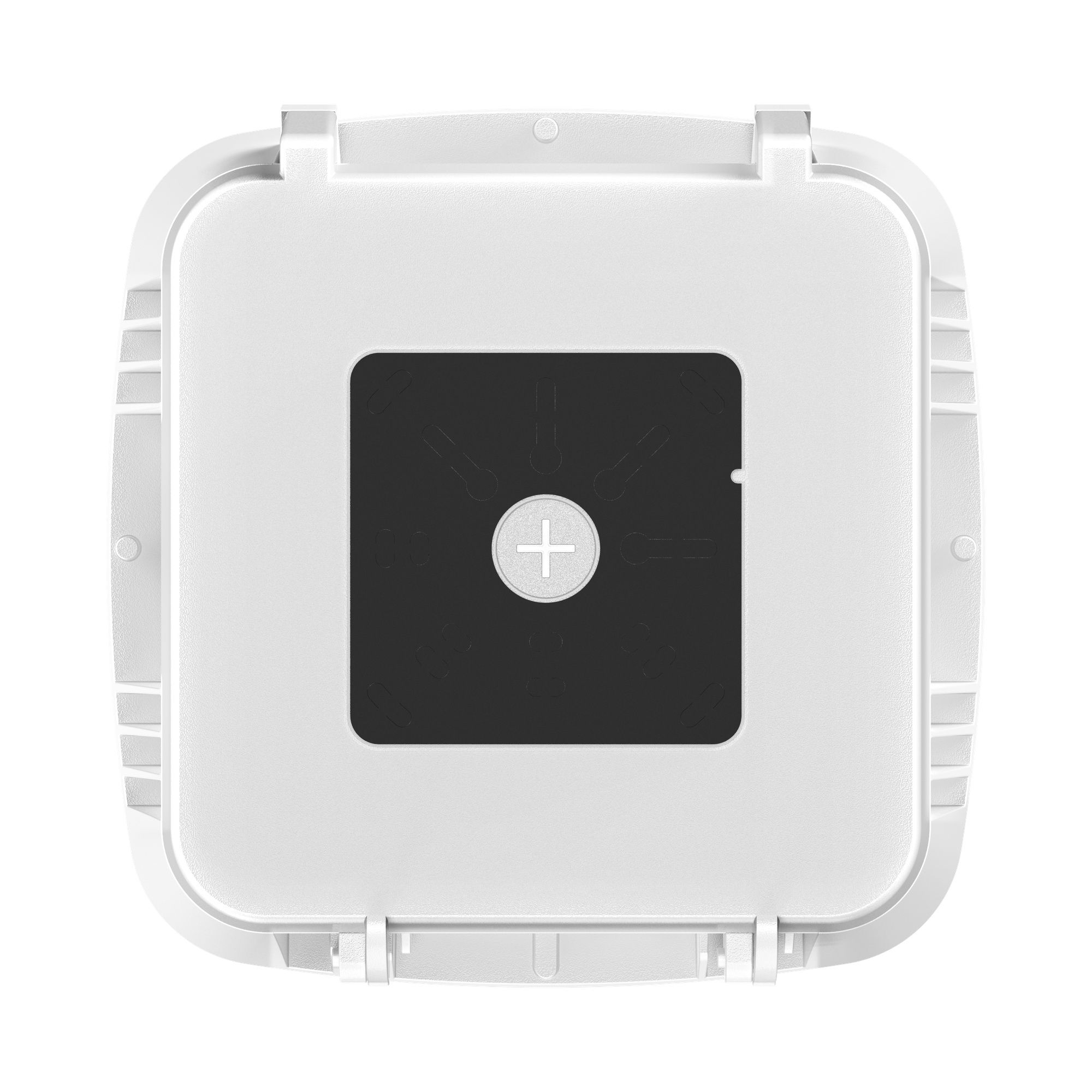

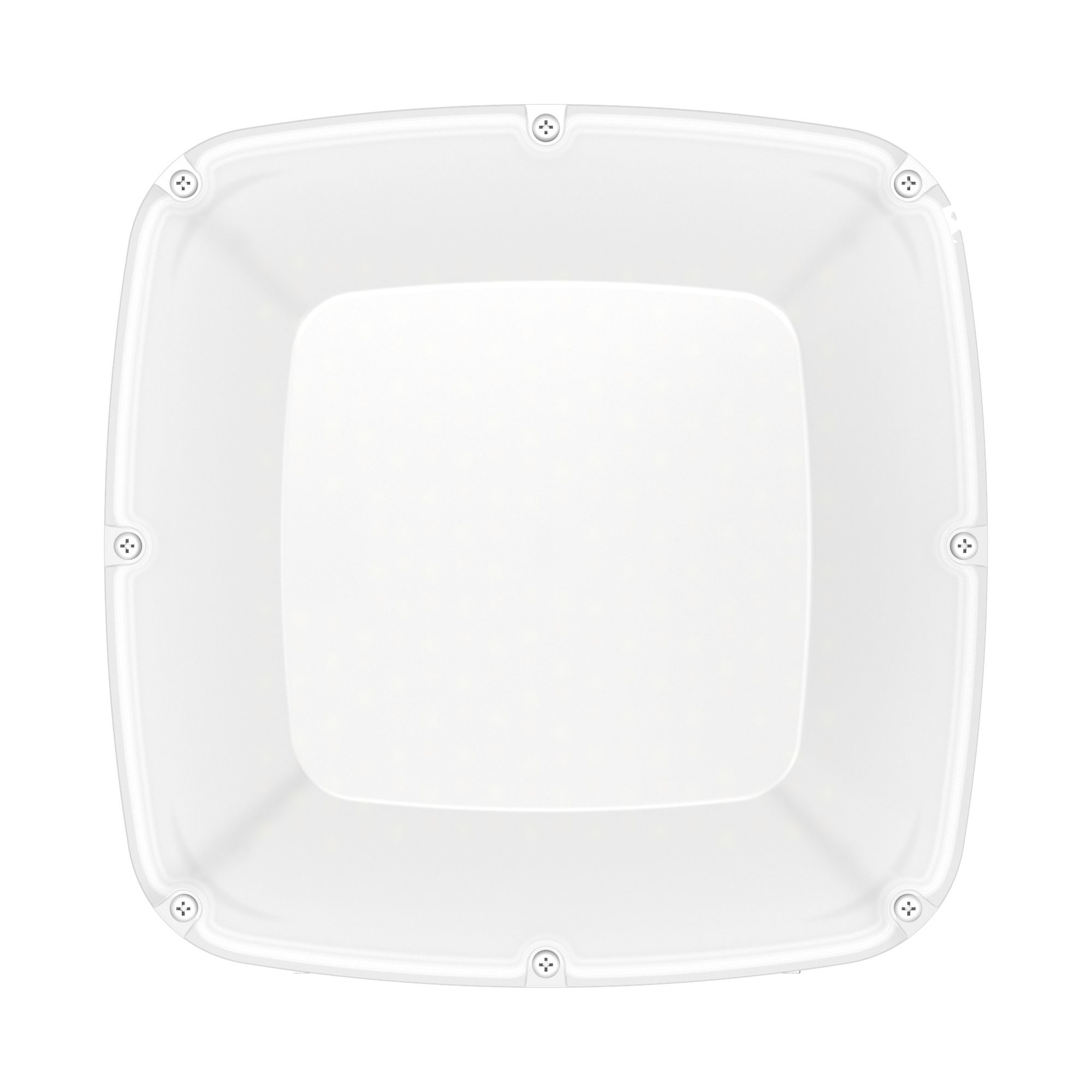

CPX-20-75W-MCT-PSR-WH White 20W-75W LED Canopy Light with Motion Sensor and Photocell

:: Input Voltage: 120-277VAC, 50/60Hz
:: Wattage: 20W / 40W / 55W / 65W / 75W, field selectable (default 75W)
:: Power Factor: ≥0.90
:: THD: <20%
:: Dimming: 0-10V
:: Surge Protection: 6kV L/N, 6kV L/N-PE
:: Lumens (5000K): 2,600 / 5,200 / 7,150 / 8,450 / 9,750 LM
:: Efficacy: 130 LPW
:: CCT: 3000K / 4000K / 5000K, field selectable (default 5000K)
:: CRI: >80
:: Beam Angle: 110°
:: BUG Rating: B3-U3-G3
:: Controls: Pre-installed photocell and microwave motion sensor, each with ON/OFF switch; 10% dim standby mode; 10-minute hold time; 13 ft max mounting height
:: Housing: Die-cast aluminum, White finish, flip-open hinged with safety rope
:: Lens: Full polycarbonate
:: Mounting: Surface or pendant, 3/4-inch NPT top entry
:: Dimensions: 10.01-inch L x 10.01-inch W x 3.21-inch H
:: Included: 4 self-tapping screws, 5 twist-on wire connectors
:: IP Rating: IP65
:: Operating Temp: -40°F to 113°F
:: Rated Life: 50,000 hours
:: Warranty: 5 years

:: The Westgate CPX canopy light in White is ideal for gas station canopies, covered parking areas, walkways, and entrances where dependable, energy-saving light is a must. Installers can set the light level and color temperature on site, while the built-in motion sensor and photocell keep the area lit from dusk to dawn and cut energy use when the space is empty. The flip-open hinged design speeds surface or pendant installation, making it a smart replacement for existing surface-mount fixtures. Its White finish blends cleanly into light-colored canopy ceilings and bright, modern structures, and the same fixture is also available in Bronze.
