:: Input Voltage: 120VAC
:: Wattage: 25W
:: Power Factor: PF >0.90
:: Dimming: TRIAC, standard LED dimmers
:: Lumens: 1,750lm
:: Efficacy: 70lm/W
:: CCT: 3000K / 4000K / 5000K, selectable (switch on LED board under lens)
:: CRI: ≥90
:: Lens: White translucent acrylic
:: Housing: Die-cast aluminum, powder coated, White; closed-cell neoprene foam gasket

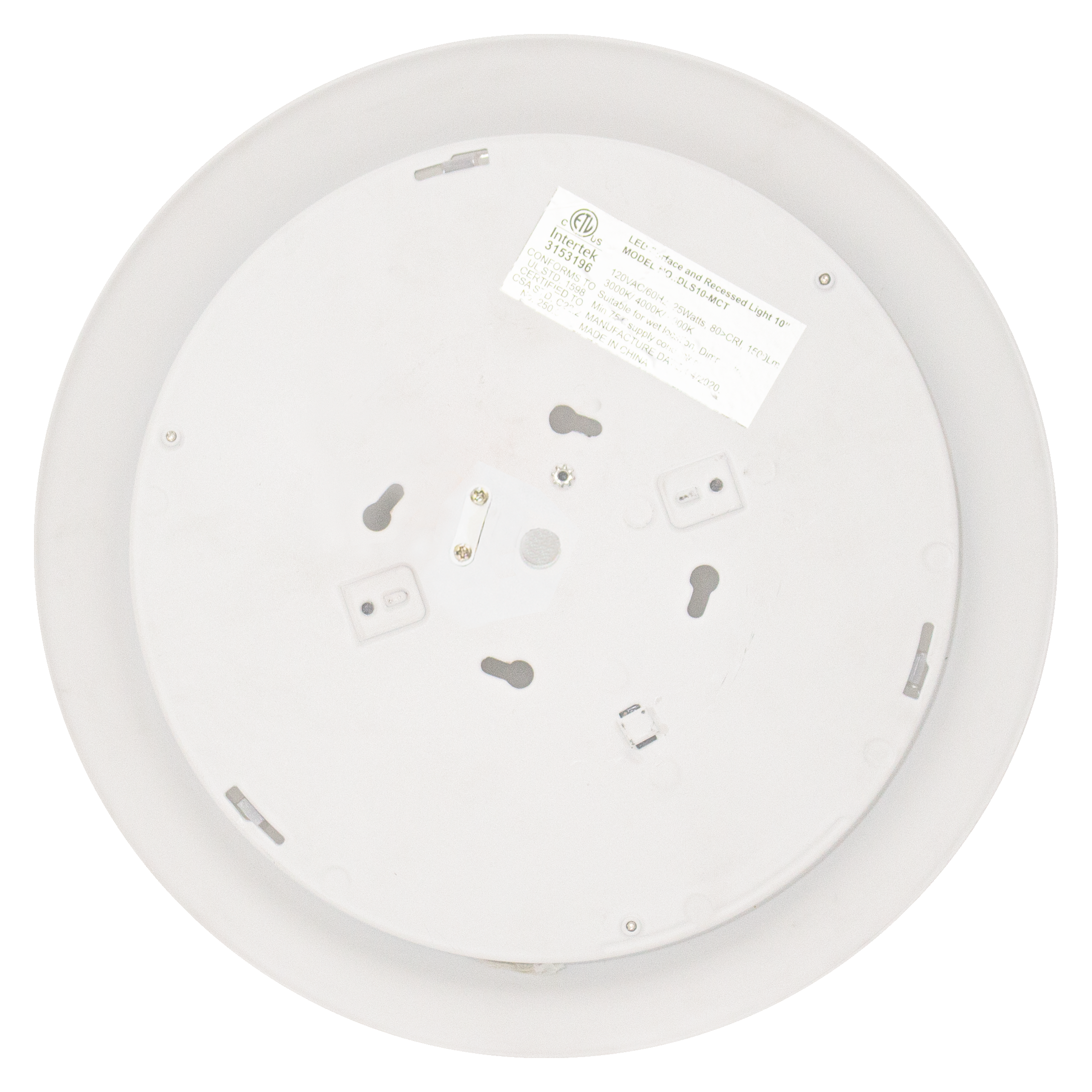

:: Mounting: Fits 3" or 4" octagonal electrical boxes; recessed mounting kit included
:: Dimensions: Ø11" x 2" (H)
:: Operating Temp: 104°F MAX. ambient
:: Rated Life: 50,000 hours
:: Warranty: 5-year warranty
:: Certifications: ETL Listed

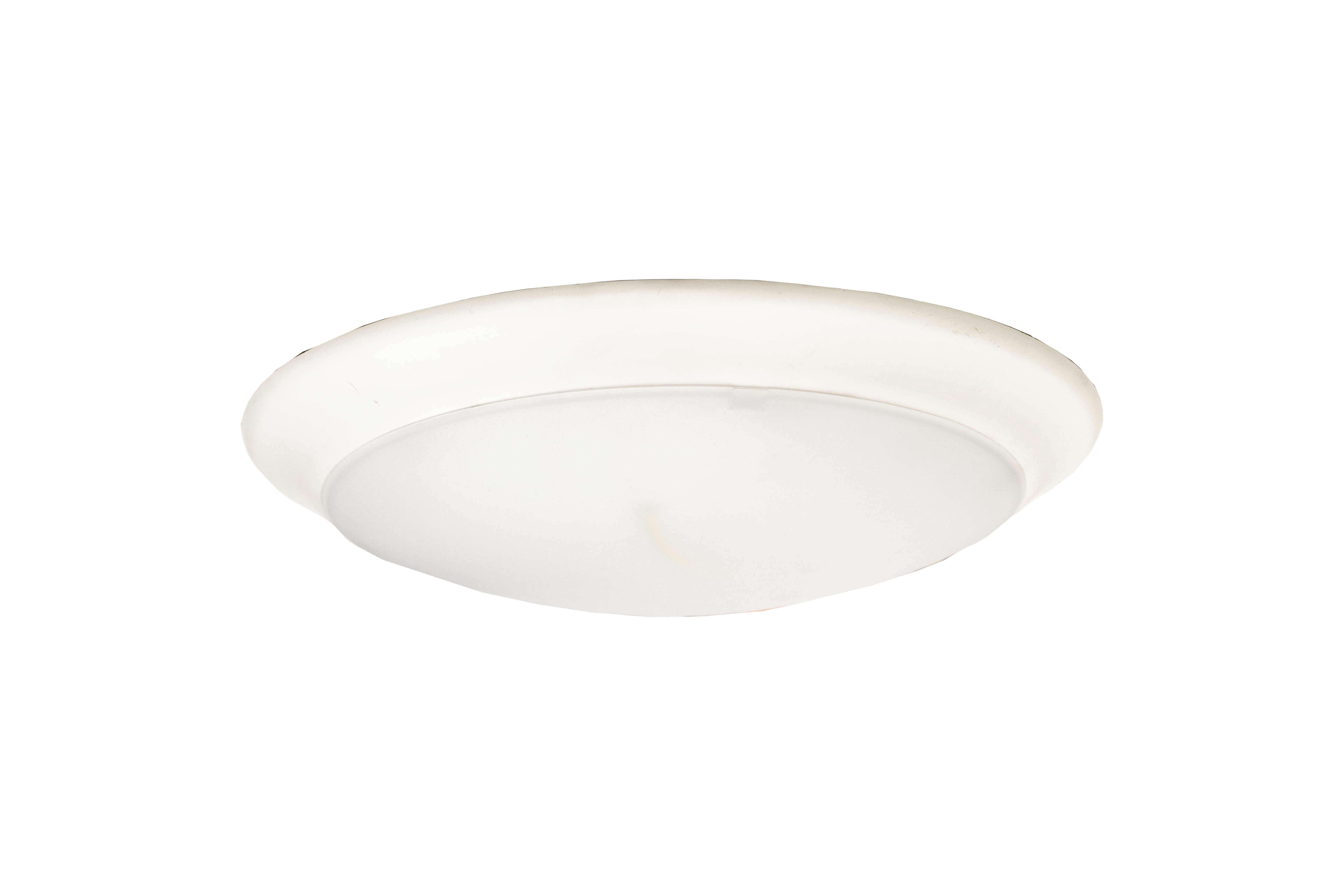

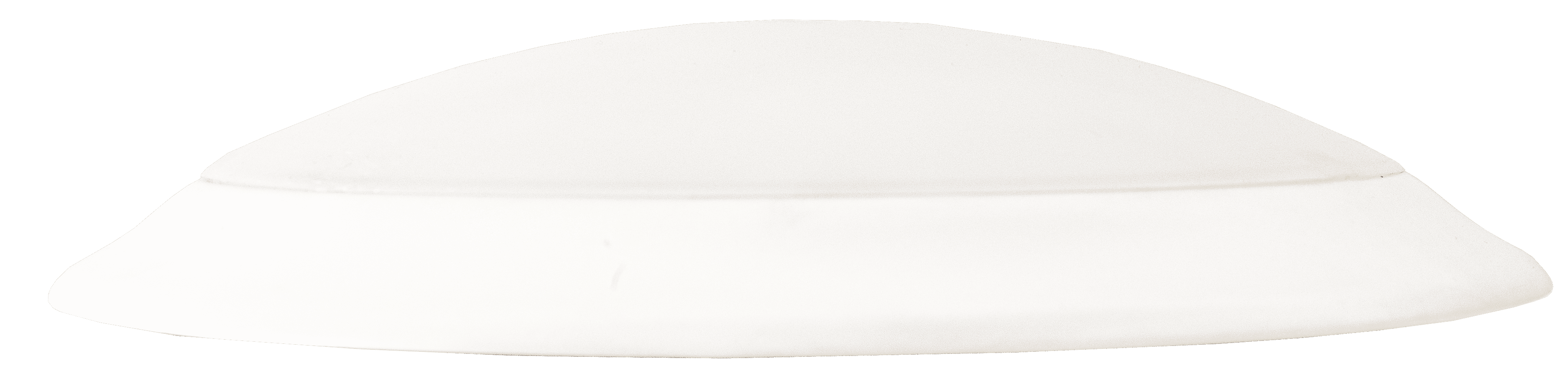

:: The Westgate DLS10-MCT is a slim 10" LED disk light that mounts directly to a 3" or 4" octagonal electrical box, or installs in an existing recessed housing with the included mounting kit. Its 10" size is ideal for garages, basements, utility rooms, kitchens, and commercial back-of-house areas. Three selectable color temperatures, 90 CRI, and TRIAC dimming let it suit any room, and a factory-installed emergency option is available. A version with a built-in PIR motion sensor, the DLS10-MCT-PIR, is also available.
