:: Input Voltage: 120VAC
:: Wattage: 15W
:: Power Factor: PF >0.90
:: Dimming: TRIAC, standard LED dimmers
:: Lumens: 1,000lm
:: Efficacy: 67lm/W
:: CCT: 3000K / 4000K / 5000K, selectable (switch on LED board under lens)
:: CRI: ≥90
:: Lens: White translucent acrylic
:: Housing: Die-cast aluminum, powder coated, White; closed-cell neoprene foam gasket

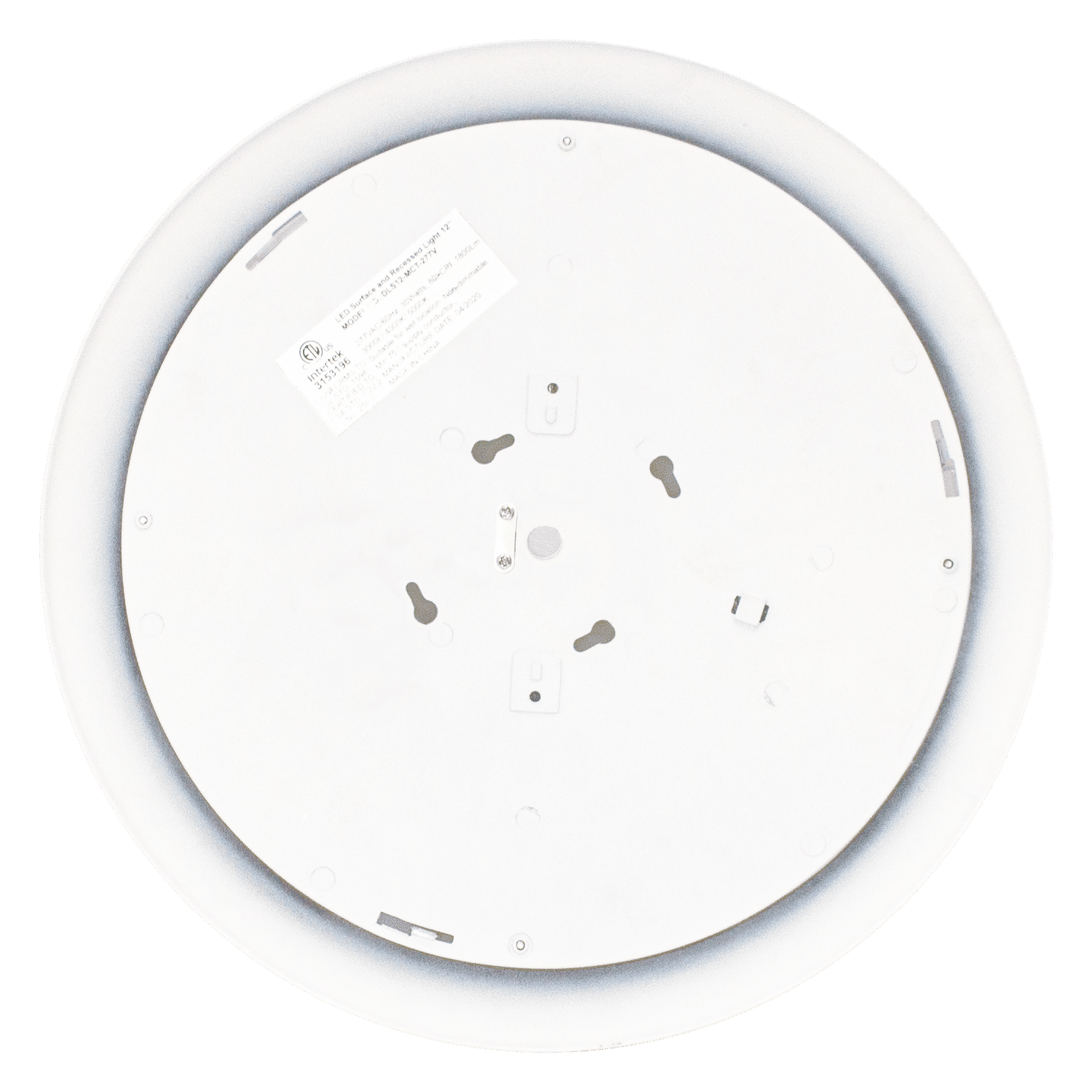

:: Mounting: Fits 3" or 4" octagonal electrical boxes; recessed mounting kit included
:: Dimensions: Ø7 1/4" x 1 1/4" (H)
:: Operating Temp: 104°F MAX. ambient
:: Rated Life: 50,000 hours
:: Warranty: 5-year warranty
:: Certifications: ETL Listed

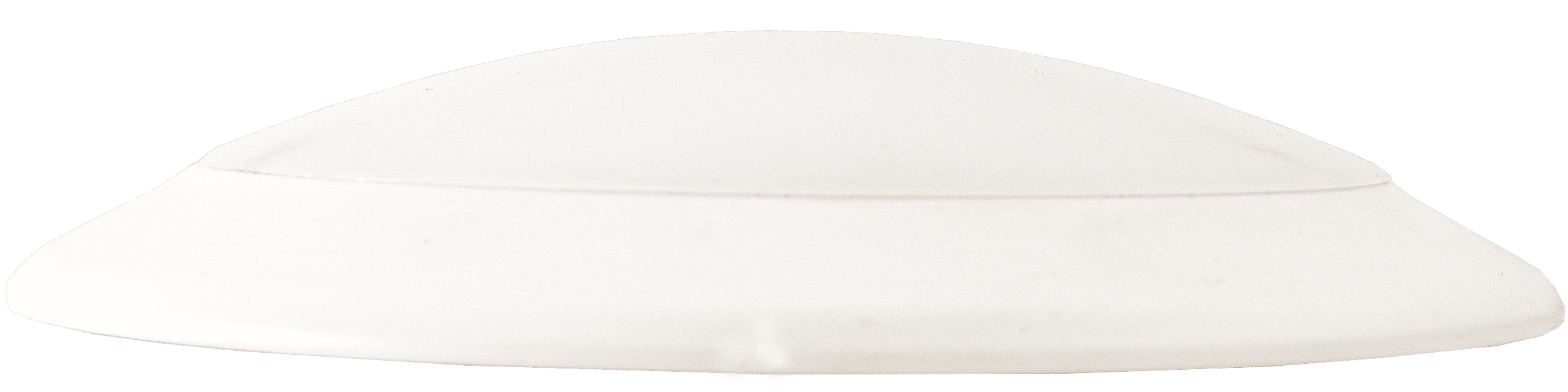

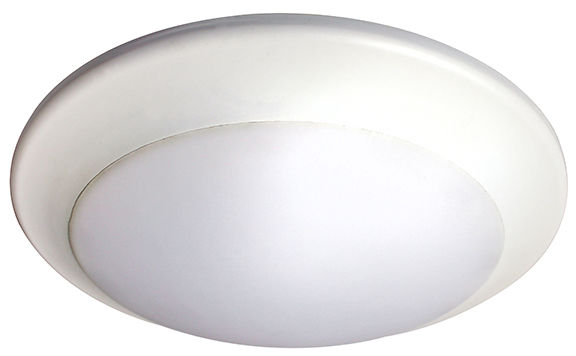

:: The Westgate DLS6-MCT is a slim 6" LED disk light that mounts directly to a 3" or 4" octagonal electrical box, or installs in an existing recessed housing with the included mounting kit. Its 6" size is ideal for walk-in closets, laundry rooms, hallways, and stairways. Three selectable color temperatures, 90 CRI, and TRIAC dimming let it suit any room, and a factory-installed emergency option is available. This model features a clean White finish, and the same fixture is also available in Bronze and Brushed Nickel, or with a built-in PIR motion sensor (DLS6-MCT-PIR).

No questions posted yet for this product!

OPTIONS

OPT-EM-DLS6
