:: Input Voltage: 120VAC
:: Wattage: 20W
:: Power Factor: PF >0.90
:: Dimming: TRIAC, standard LED dimmers
:: Lumens: 1,200lm
:: Efficacy: 60lm/W
:: CCT: 3000K / 4000K / 5000K, selectable (switch on LED board under lens)
:: CRI: ≥90
:: Lens: White translucent acrylic
:: Housing: Die-cast aluminum, powder coated, White; closed-cell neoprene foam gasket
:: Mounting: Fits 3" or 4" octagonal electrical boxes; recessed mounting kit included
:: Dimensions: Ø9" x 1 1/2" (H)
:: Operating Temp: 104°F MAX. ambient
:: Rated Life: 50,000 hours
:: Warranty: 5-year warranty
:: Certifications: ETL Listed

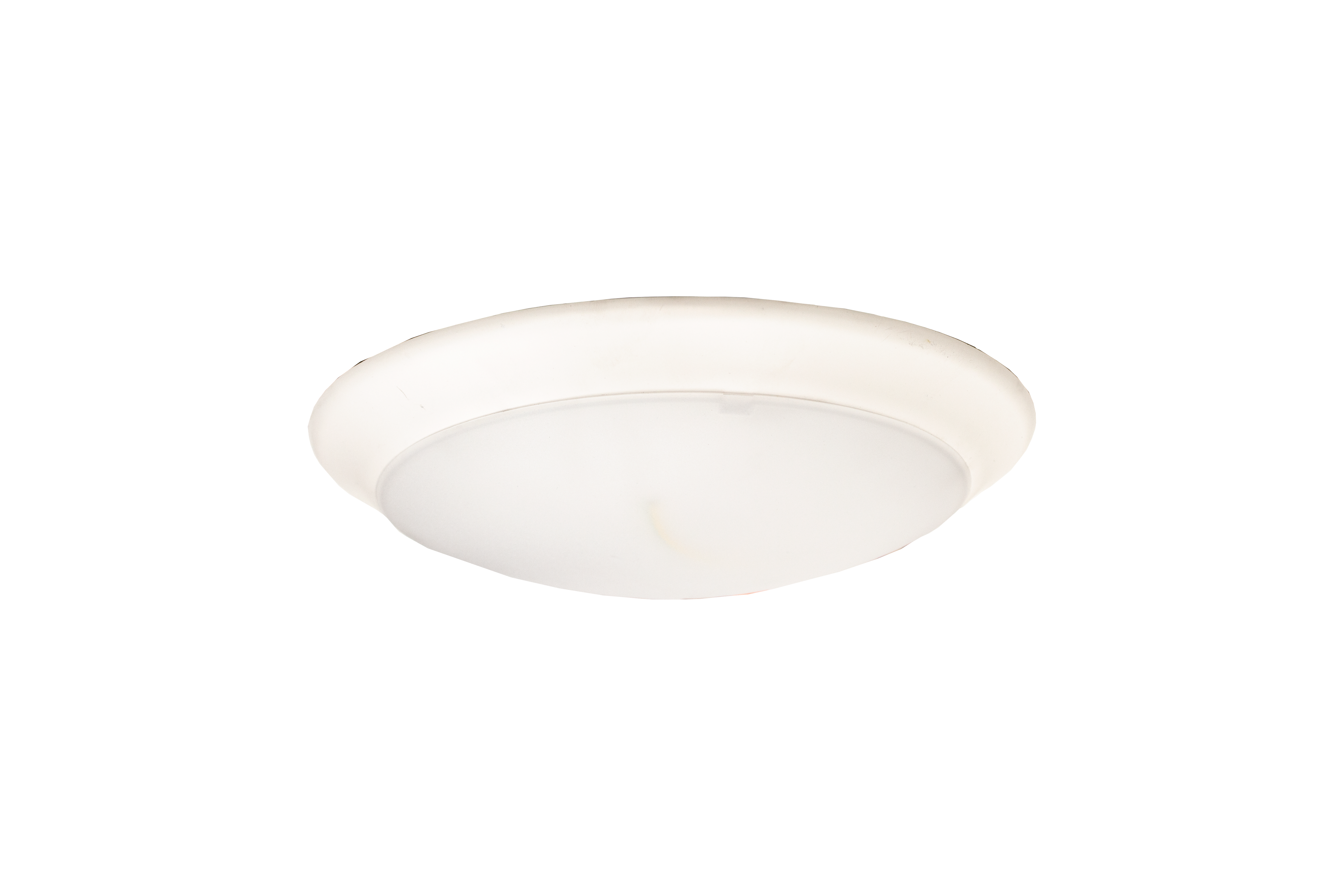

:: The Westgate DLS8-MCT is a slim 8" LED disk light that mounts directly to a 3" or 4" octagonal electrical box, or installs in an existing recessed housing with the included mounting kit. Its 8" size is ideal for garages, larger storage rooms, kitchens, and corridors. Three selectable color temperatures, 90 CRI, and TRIAC dimming let it suit any room, and a factory-installed emergency option is available. A version with a built-in PIR motion sensor, the DLS8-MCT-PIR, is also available.
