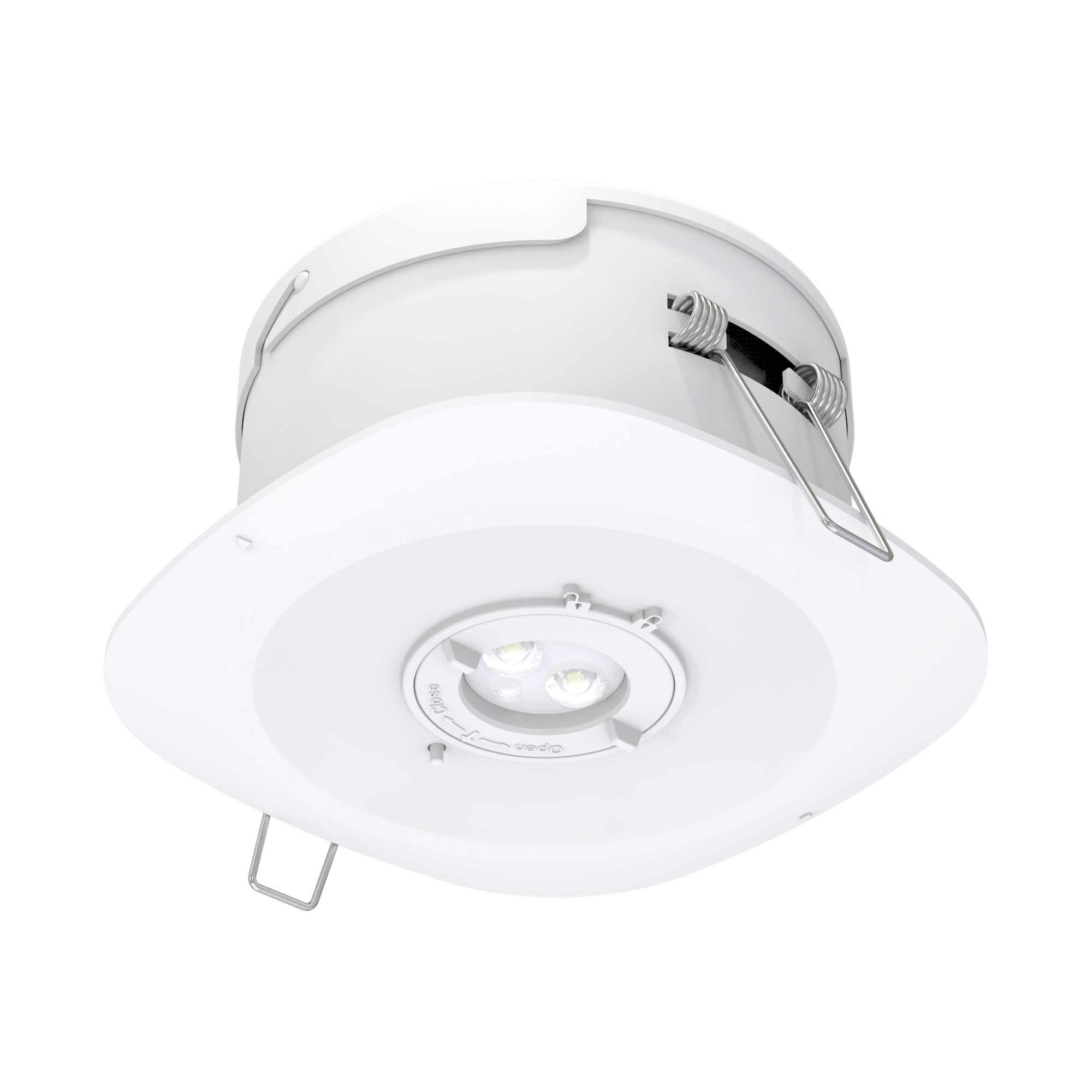

EL-OW-1L-XHO 700lm Old-Work Recessed LED Emergency Light, Self-Diagnostic, White
Technical Specs
- :: Type: Old-work recessed LED emergency light, 1-light, high output
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Emergency Power: 6W MAX.
- :: Lumens: 700lm
- :: Efficacy: 116lm/W
- :: CCT: 6000K
- :: UGR: 21.7
- :: Beam Angle: 140°, round optical lens
- :: Battery: LiFePO4, 90 minutes MIN., 24-hour charge
- :: Self-test: Monthly 3-minute and annual 90-minute; continuous fault monitoring
- :: LED status indicator and test button
- :: Mounting Height: 10'
- :: Recessed Cutout: Ø4.7" ± 0.2"
- :: Dimensions: Ø5.51" trim, Ø4.57" housing x 3.08" (H)
- :: Construction: PC/aluminum, White finish
- :: IP20, damp location
- :: Operating Temperature: 32°F to 122°F
- :: ETL listed
- :: 5-year warranty (electronics and housing)
- :: The emergency lighting system must be arranged to provide initial illumination of at least 1 foot-candle average and a 0.1 foot-candle minimum at any point measured along the path of egress at floor level.
Applications
- :: The Westgate EL-OW-1L-XHO is a high-output old-work recessed LED emergency light that installs cleanly into existing ceilings, making it ideal for remodel and retrofit projects in corridors, open areas, and other egress paths throughout commercial, industrial, and institutional spaces. Its compact flush-mount design drops into a small Ø4.7" cutout without new framing, and a single 6W LED delivers 700lm through a round optical lens with a wide 140° distribution suited to open areas at mounting heights up to 10'. An integrated LiFePO4 battery provides at least 90 minutes of emergency operation, and the self-diagnostic system runs automatic monthly and annual tests while continuously monitoring the battery, lamp, charger, and transfer, reducing manual inspections. The clean White trim blends discreetly into finished ceilings.
