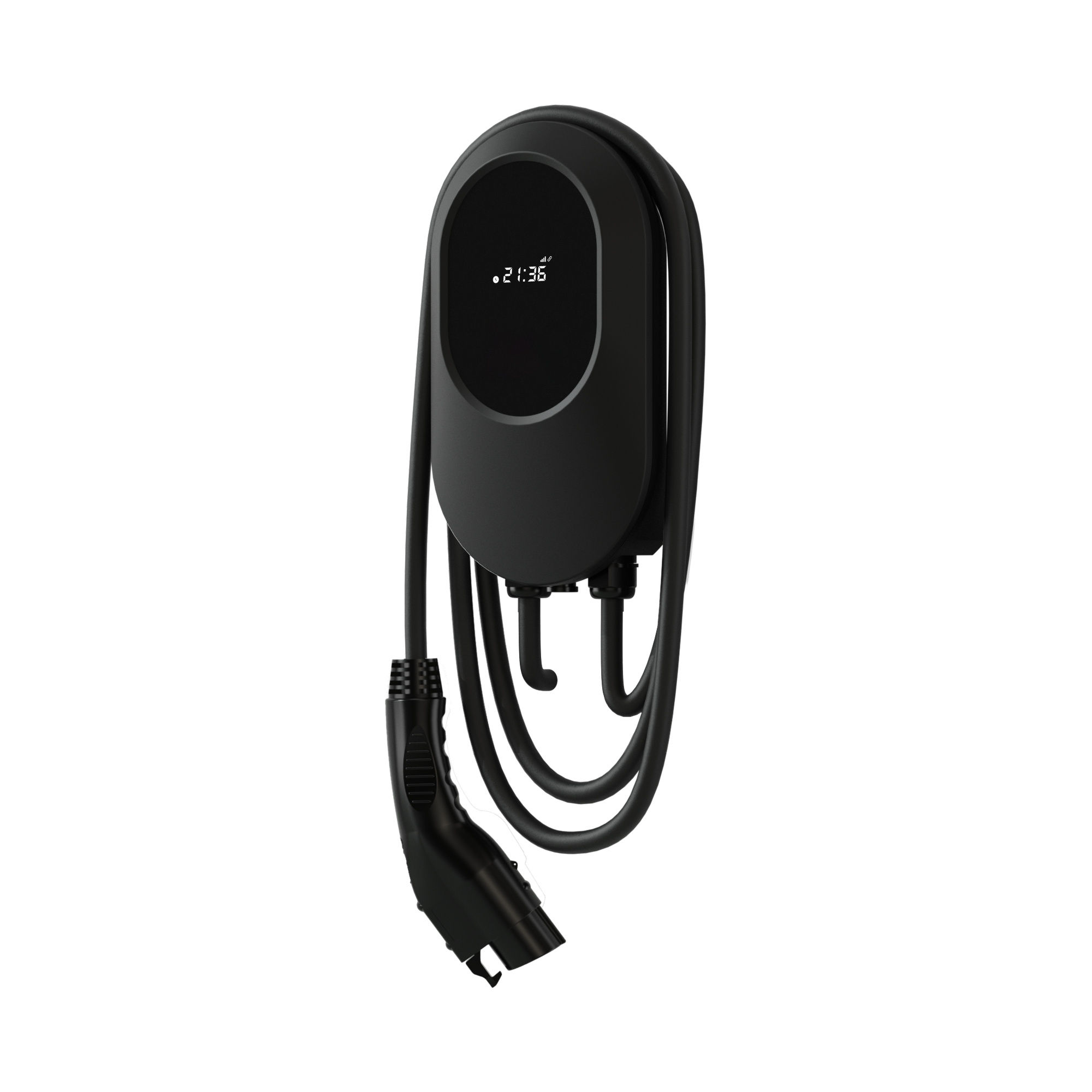

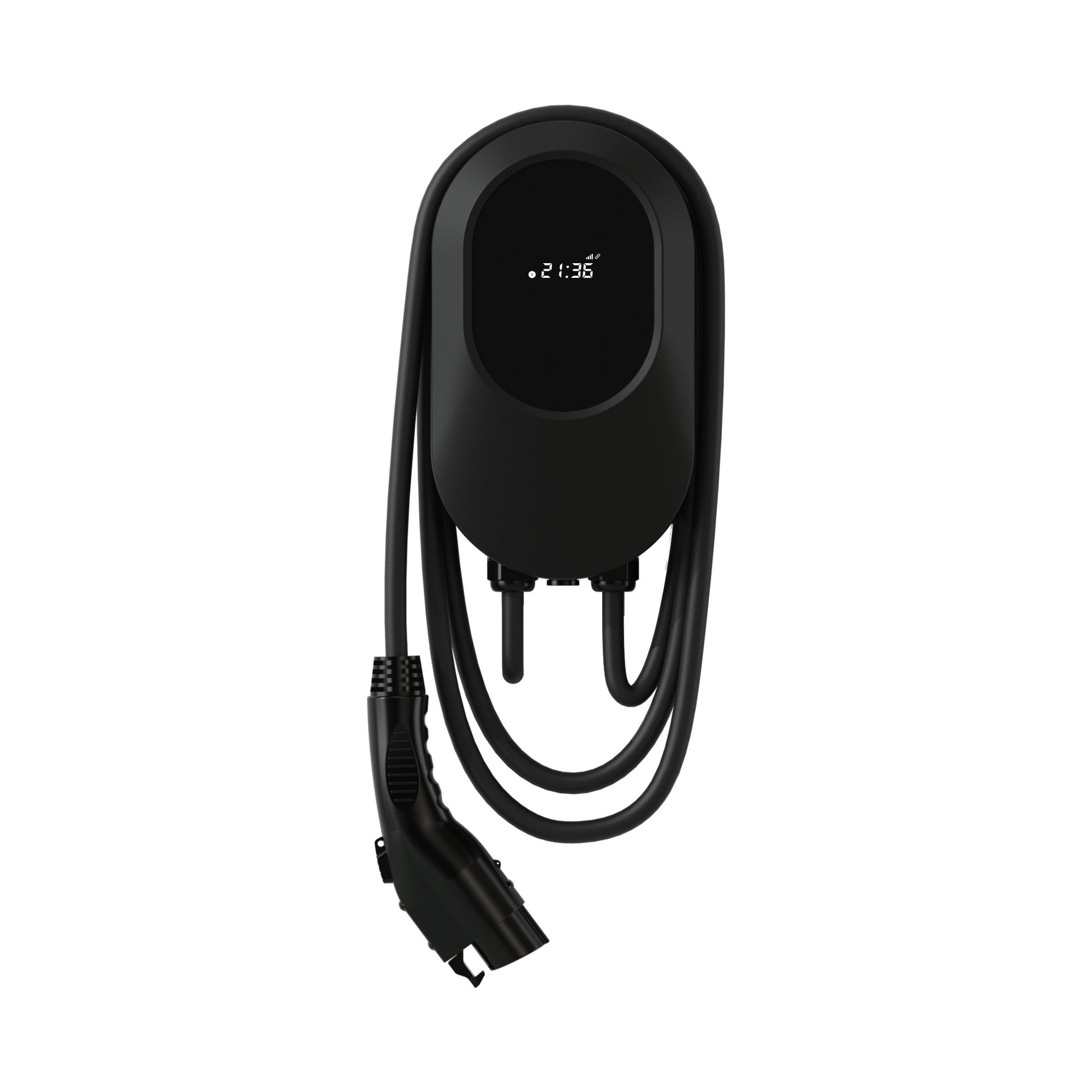

EVC-A-48A-MP-BT 48A 11.5KW Selectable Power Wall Mount EV Charger
Technical Specs
- :: Level 2 AC charging, 48A output
- :: Power output 11.5KW, selectable/adjustable power
- :: Input voltage 208-240Vac single phase (L1/L2/PE)
- :: Mains frequency 60Hz
- :: SAE J1772 (Type 1) connector
- :: 25-foot charging cable
- :: WiFi and Bluetooth connectivity, Westgate App control
- :: RFID card authorization (2 standard cards included)
- :: Natural air cooling
- :: PC housing with anti-UV treatment
- :: NEMA Type 3R enclosure, IK08 impact rating
- :: Wall-mounted (wall hanging) installation, indoor/outdoor rated
- :: Dimensions 190mm W x 330mm H x 87mm D (7.5-inch W x 13-inch H x 3.4-inch D)
- :: Operating temperature -25°C to 50°C (-13°F to 122°F)
- :: Built-in Type A RCD; CCID 20 leakage protection
- :: Protection: over-voltage (>264V), under-voltage (<204V), over-current (≥110% rated), over-temperature (>80°C), ground fault, lightning/surge, short circuit
- :: ETL listed; complies with UL 2594, UL 2231-1, UL 2231-2
- :: Energy Star certified; FCC; wet location rated
- :: 2-year warranty
Applications
- :: The Westgate EVC-A-48A-MP-BT is ready to charge at home or on the job, with weatherproof, impact-resistant construction rated for both indoor and outdoor mounting in garages, driveways, and commercial parking areas. As the selectable-power, app-enabled model in the EVC-A-BT-Series, it sets itself apart from the fixed-output wall-mount SKUs by letting you adjust the charging output and manage sessions over WiFi, Bluetooth, or an RFID card.
