FLD2-28WW-TR

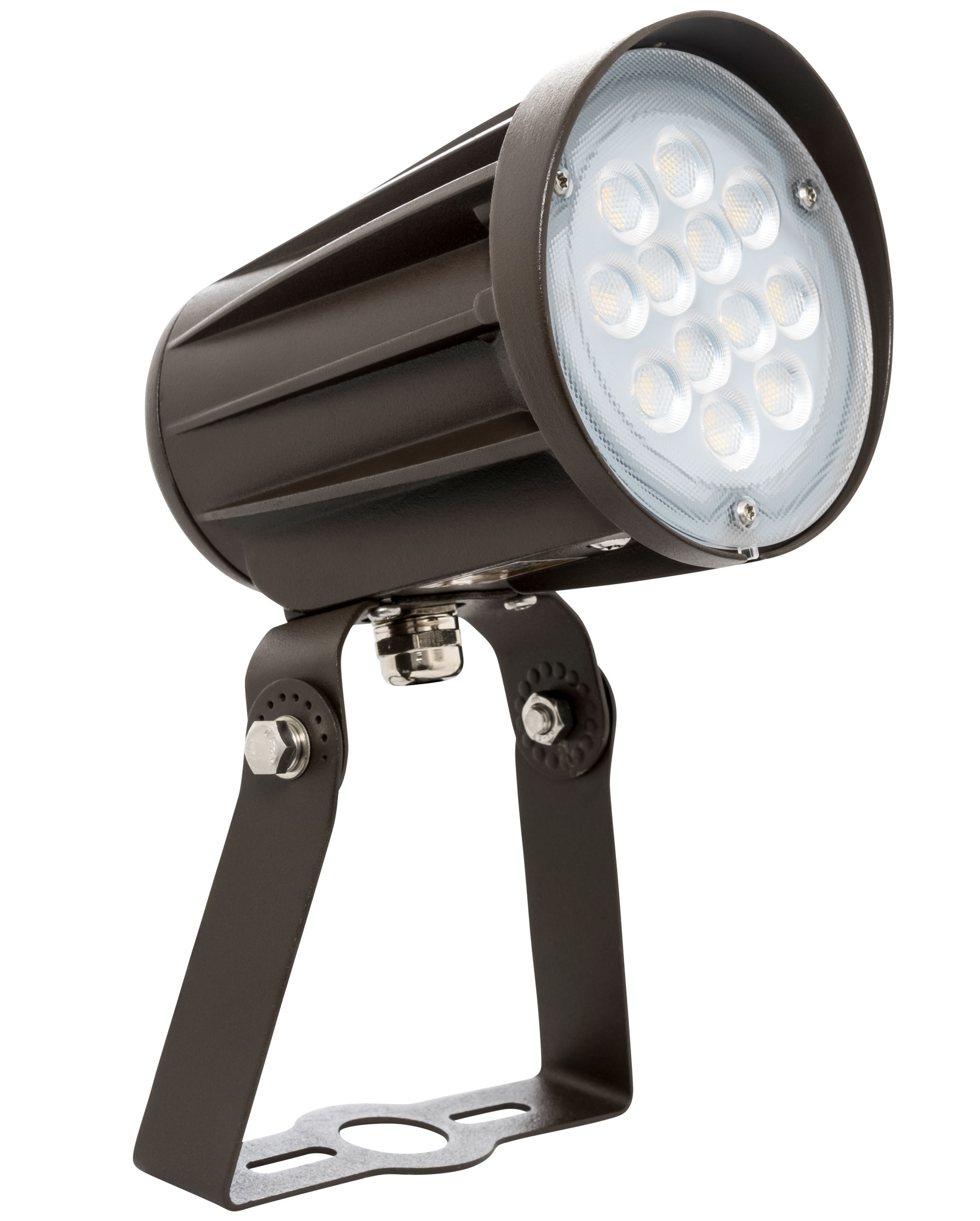

LED BULLET FLOOD LIGHTS WITH U BRACKET, 120-277V, 28W, 3000K
Technical Specs
- :: Westgate's powerful bullets
- :: LED: LUMILEDs
- :: Optical Lens: High transmiance PC, anti-UV and fire resistant
- :: 18" SJTW 18/3 AWG cable
- :: 60° beam angle
- :: Housing: Cast aluminum with powder coat finish (Bronze)
- :: Mounting: 1/2" hole on bracket for mounting with LF-THREAD (see accessories) or other strain-relief connectors
- :: Voltage: 120~277V AC, 50/60Hz
- :: Operating Temp: -4°F to 104°F
- :: CRI: >80
- :: Power Factor: >0.9
- :: Maintenance free
- :: 70,000 hour rated life
- :: 7-year warranty
- :: Suitable for Wet Locations, IP65
Applications
- :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- :: Replace existing HID flood lights/ wall packs
- :: Great for use with motion sensors or other instant on/off controls
