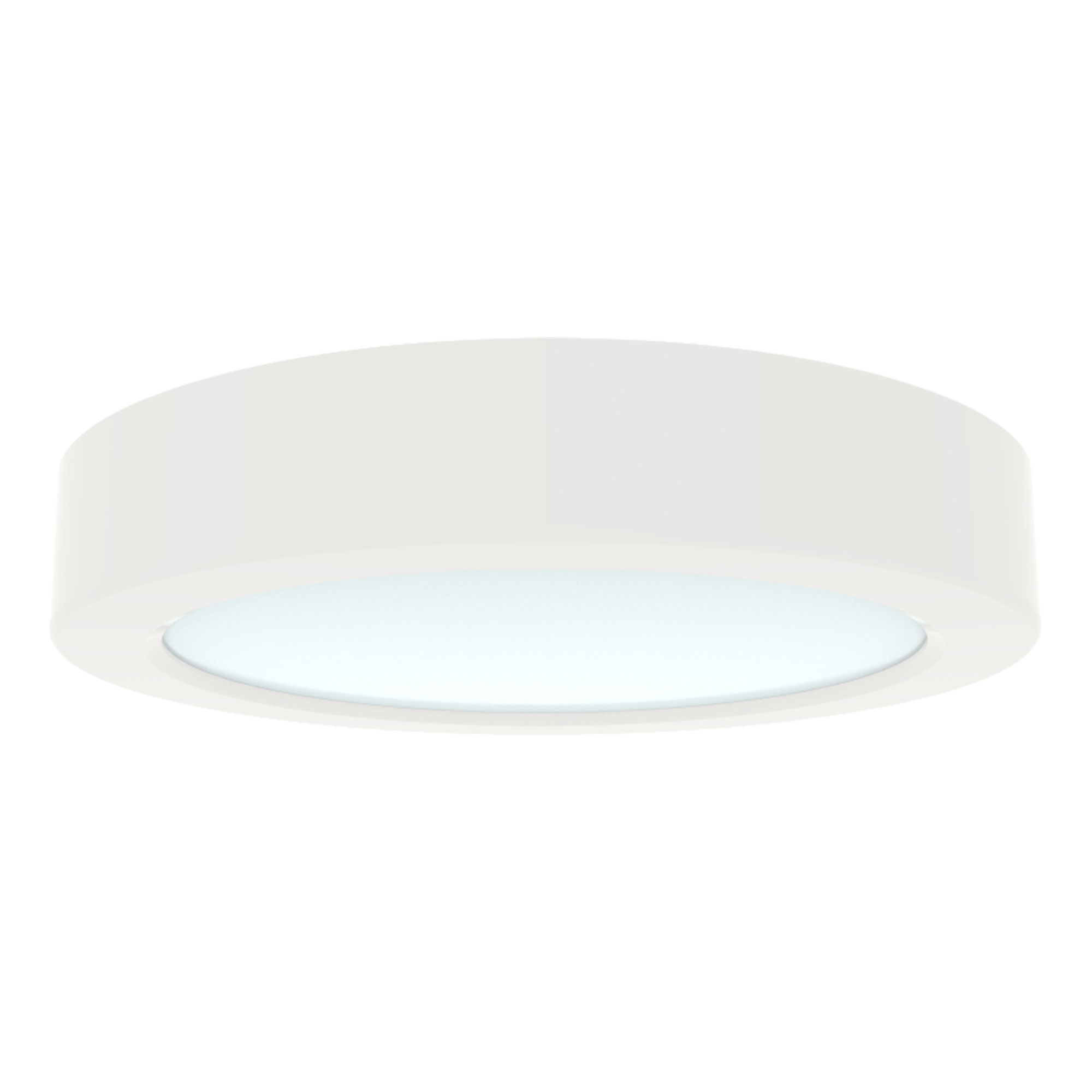

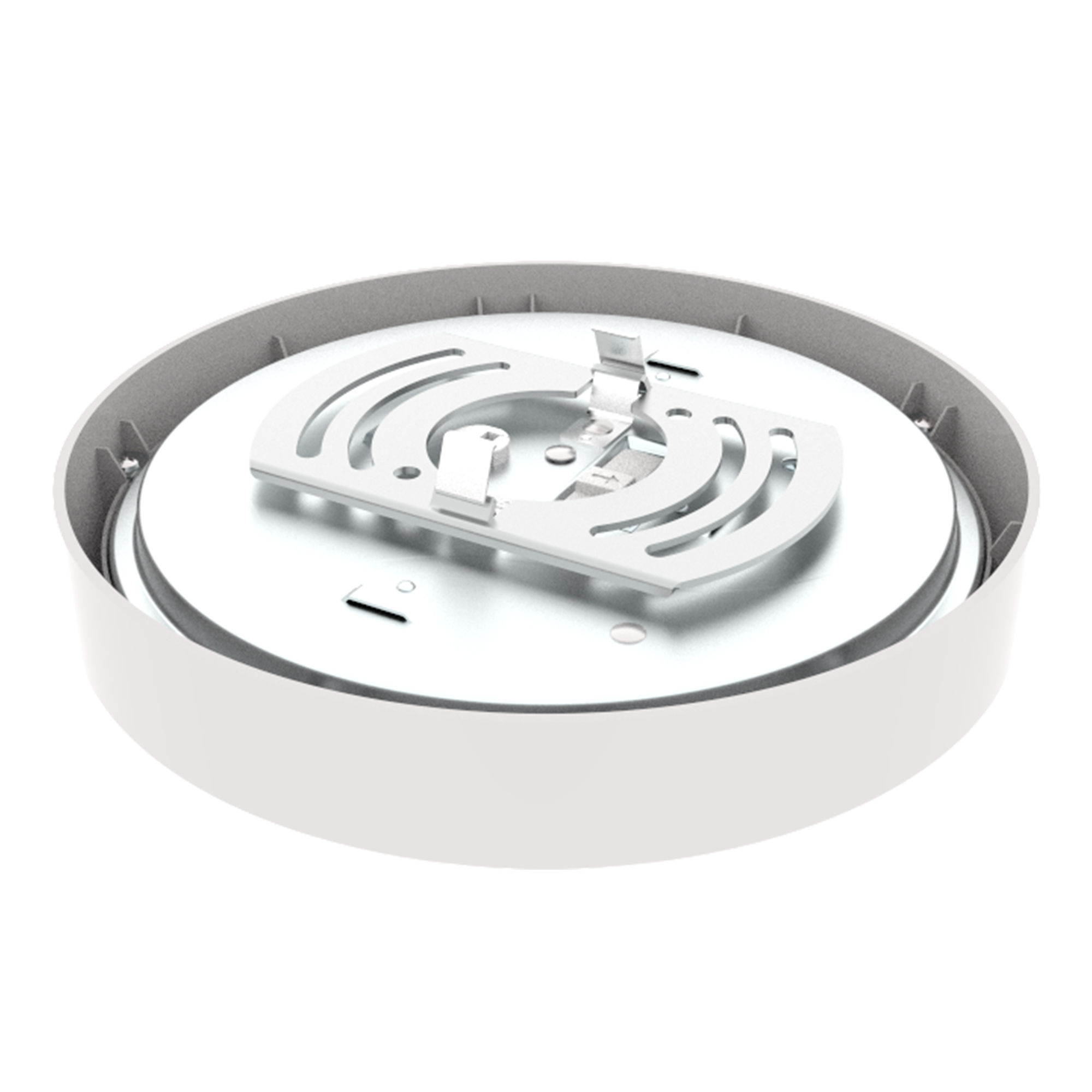

FMLS-R7-MCT5-DD 7" 14W LED Snap Flush-Mount Disk Light, 5CCT, Dual Dimming
Technical Specs
- :: Wattage: 14W
- :: Lumens: 1,000lm
- :: Efficacy: 71.5lm/W
- :: CCT: 2700K/3000K/3500K/4000K/5000K, selectable switch on driver
- :: CRI ≥90
- :: Voltage: 120-277VAC
- :: PF >0.90
- :: Dimming: Dual function, Triac at 120V and 0-10V at 120-277V
- :: Beam Angle: 120°
- :: Dimensions: Ø7" x 1 3/5" (H)
- :: Housing: Die-cast aluminum, powder-coated, White finish
- :: Wet location
- :: Operating Temperature: 32°F to 104°F
- :: Rated Life: 50,000 hours
- :: 5-year warranty
Applications
- :: The Westgate FMLS-R7-MCT5-DD is a 7" snap flush-mount LED disk light that delivers 1,000lm of soft, even ambient light for hallways, bathrooms, closets, and bedrooms, as well as storage areas, attics, and general residential and commercial lighting. As a mid-size option in the FMLS-MCT5 Series, it installs quickly with a low-profile design. This DD model runs on 120-277VAC with dual-function dimming, Triac at 120V or 0-10V at 120-277V, for both residential and commercial controls. Five selectable color temperatures (2700K to 5000K) are set with a switch on the driver, and CRI ≥90 renders colors accurately. A die-cast aluminum, powder-coated housing is wet location rated. This model features a White finish, with Black and Brushed Nickel accessory trims available.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 FMLS-R7-TRIM-BK SPEC | Black 7" Accessory Trim for FMLS-R7 Flush-Mount Disk Light | ||
 FMLS-R7-TRIM-BN SPEC | Brushed Nickel 7" Accessory Trim for FMLS-R7 Flush-Mount Disk Light |
