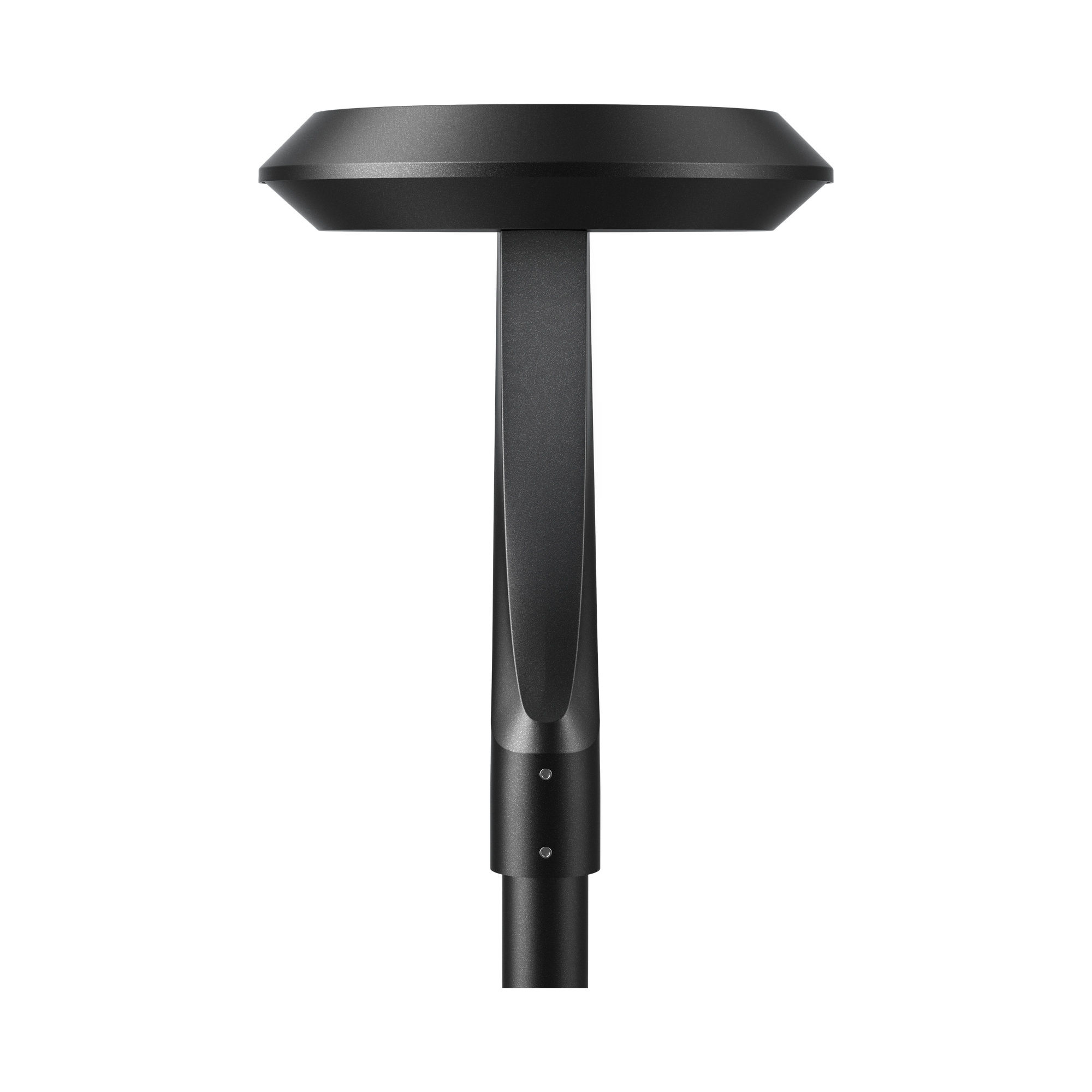

GPX-18-60W-MCTP-A1-BK Black Single Arm 18-60W Post Disk Area Light, MCTP Selectable
Technical Specs
- :: Voltage: 120-277V AC, 50/60Hz
- :: Wattage: 18W / 30W / 45W / 60W (Selectable)
- :: Power Factor: 0.95
- :: Efficacy: 150 LM/W
- :: Dimming: 0-10V Dimming
- :: LED: SMD 3030
- :: Total Lumens: 2,700 / 4,500 / 6,750 / 9,000 LM (Max 9,000 LM)
- :: CCT Selectable: 3000K / 4000K / 5000K
- :: Color Rendering Index: CRI >70
- :: Beam Angle: Type V (150-degree x 150-degree)
- :: BUG Rating: B1-U1-G0
- :: MCTP: Multi Color Temperature and Power, Selectable Switch Inside Fixture
- :: Housing: Aluminum, Outdoor Powder Coated
- :: Finish: Black

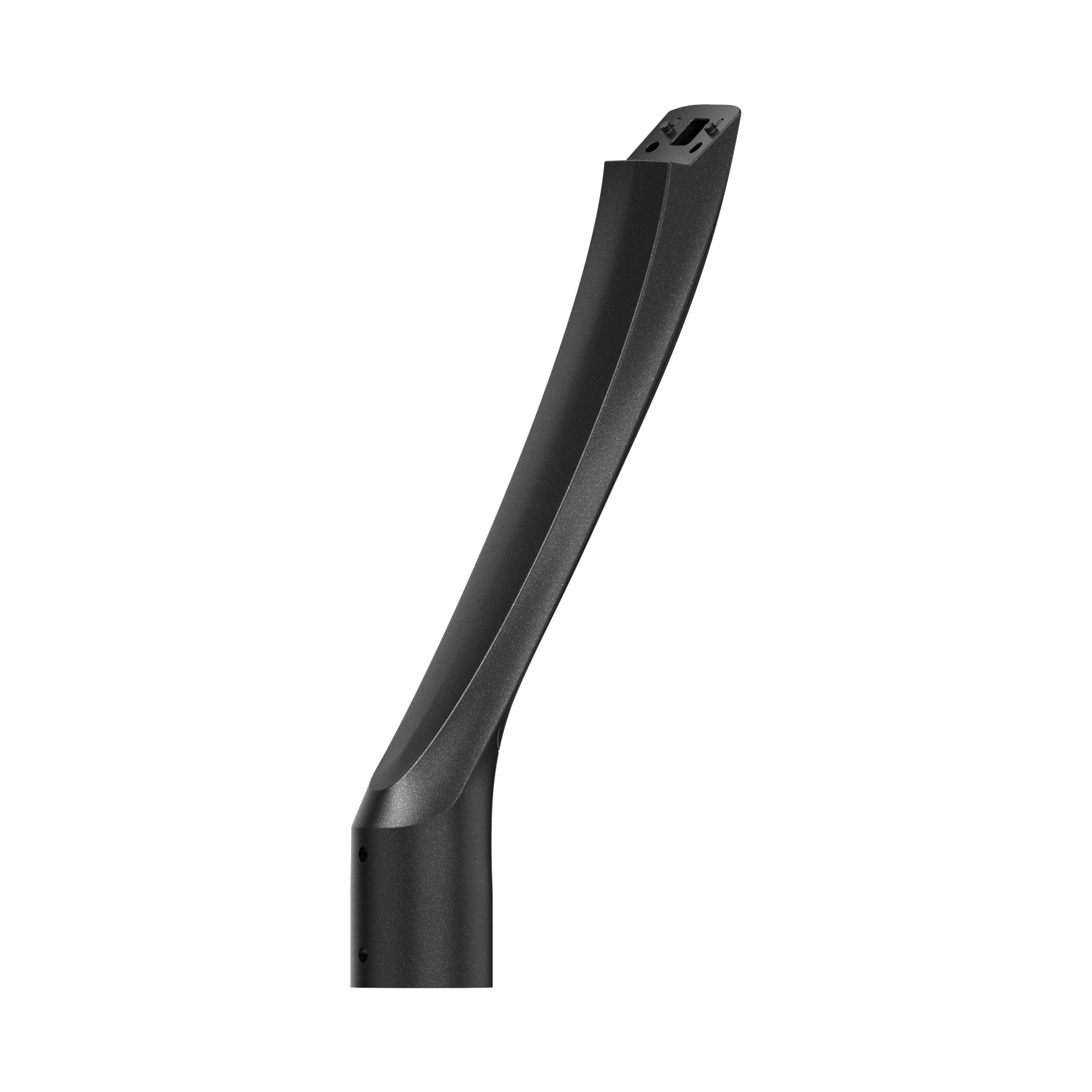

- :: Mount: Single Arm, Fits 2-3/4-inch Poles, For 2-3/8-inch OD Pole/Pipe
- :: Dimensions: 15-3/4-inch (W) x 21-inch (H)
- :: Arm Depth: 3-1/5-inch
- :: Pole Inside Diameter: 2-3/4-inch
- :: Operating Temperature: -86-degree F to 122-degree F
- :: IP Rating: IP66, Wet Locations
- :: Rated Life: 70,000 Hours
- :: Warranty: 7 Years
- :: Certifications: ETL Listed, Wet Location
Applications
- :: The GPX-18-60W-MCTP-A1-BK is the single-arm, black finish version of the GPX 18-60W post disk area light. Its single arm mounts one disk head to a pole, making it the choice for perimeter poles, single-sided walkway and roadway runs, and layouts where one fixture per pole provides the needed coverage. It shares the series decorative disk form, symmetrical Type V optic, three-CCT selection, and field-selectable wattage. What sets this SKU apart from the twin-arm (A2) version is its single-head configuration, and from the quad-arm (Q) version its simpler pole-side mounting.
