GPX-18-60W-MCTP-A2-BK Black Twin Arm 18-60W Post Disk Area Light, MCTP Selectable
Technical Specs
- :: Voltage: 120-277V AC, 50/60Hz
- :: Wattage: 18W / 30W / 45W / 60W (Selectable)
- :: Power Factor: 0.95
- :: Efficacy: 150 LM/W
- :: Dimming: 0-10V Dimming
- :: LED: SMD 3030
- :: Total Lumens: 2,700 / 4,500 / 6,750 / 9,000 LM (Max 9,000 LM)
- :: CCT Selectable: 3000K / 4000K / 5000K
- :: Color Rendering Index: CRI >70
- :: Beam Angle: Type V (150-degree x 150-degree)
- :: BUG Rating: B1-U1-G0
- :: MCTP: Multi Color Temperature and Power, Selectable Switch Inside Fixture
- :: Housing: Aluminum, Outdoor Powder Coated
- :: Finish: Black
- :: Mount: Twin (Double) Arm, Fits 2-3/4-inch Poles, For 2-3/8-inch OD Pole/Pipe
- :: Dimensions: 15-3/4-inch (W) x 21-1/5-inch (H) x 3-inch (D)
- :: Operating Temperature: -86-degree F to 122-degree F
- :: IP Rating: IP66, Wet Locations
- :: Rated Life: 70,000 Hours
- :: Warranty: 7 Years
- :: Certifications: ETL Listed, Wet Location
Applications

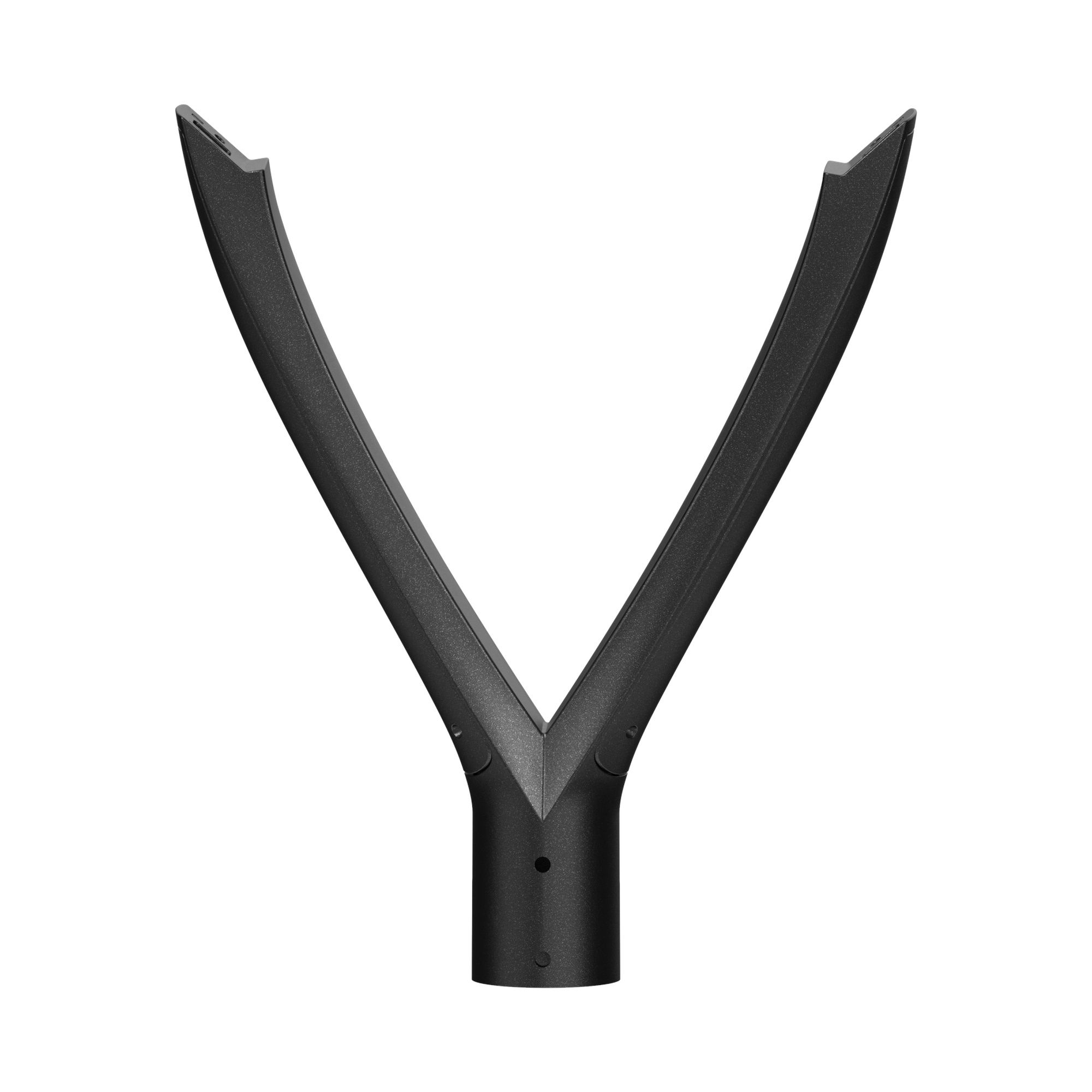

- :: The GPX-18-60W-MCTP-A2-BK is the twin-arm (double-arm), black finish version of the GPX 18-60W post disk area light. Its twin arm mounts a disk head on a Y-shaped bracket for a balanced, two-sided pole-top look, well suited to boulevards, medians, plazas, and prominent entry poles where a symmetrical fixture profile is desired. It shares the series decorative disk form, symmetrical Type V optic, three-CCT selection, and field-selectable wattage. What sets this SKU apart from the single-arm (A1) version is its twin/double-arm mounting bracket, and from the quad-arm (Q) version its two-spoke rather than four-spoke arm.
