GPX-90-150W-MCTP-CM Bronze 90W-150W LED Disk Light with Ceiling Mount Adapter, Type V, Power & CCT Selectable
Technical Specs
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Wattage: 90W / 120W / 150W, field selectable
- :: Power Factor: PF 0.95
- :: Dimming: 0-10V
- :: Lumens: 13,500 / 18,000 / 22,500lm
- :: Efficacy: 150lm/W
- :: CCT: 3000K / 4000K / 5000K, field selectable
- :: CRI: >70
- :: Distribution: Type V (150° x 150°); Type 2, Type 3, and frosted glass lenses available as factory options
- :: BUG: B3-U0-G3
- :: Housing: Aluminum, outdoor powder coat, Bronze

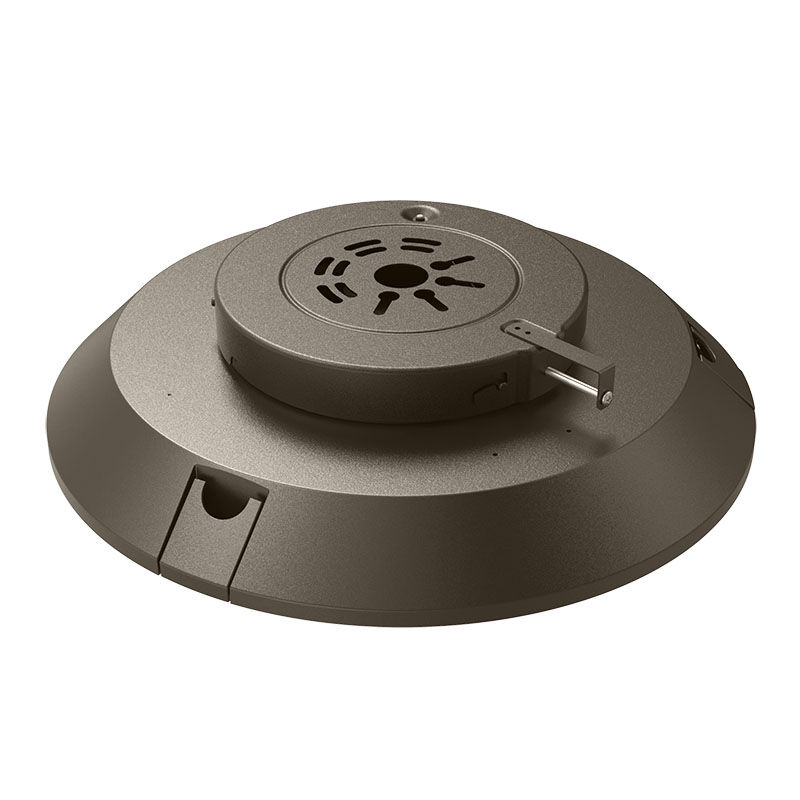

- :: Mounting: Ceiling mount adapter fits any 3" or 4" junction box with a 1/2" knockout in the center
- :: Dimensions: Ø15 3/4" x 5" (H)
- :: EPA: 1.23ft²
- :: IP Rating: IP66, Wet Location
- :: Rated Life: 70,000 hours
- :: Warranty: 7-year warranty
- :: Certifications: ETL Listed
Applications
- :: The Westgate GPX-90-150W-MCTP-CM is a low-profile LED disk light that mounts to a standard 3" or 4" junction box, delivering wide, uniform Type V light to large canopies, parking structures, loading areas, and building entrances. As the highest-output range in the series, up to 22,500lm, it suits taller mounting heights and the largest covered areas. Field-selectable power and color temperature let one fixture adapt to each site, and factory options include a bi-level microwave sensor, photocell, emergency battery, 480V operation, and alternate lenses. Its Bronze finish complements darker canopies and architectural exteriors, and the same fixture is also available in Black.
