:: Wattage: 22W / 34W / 50W (Selectable)
:: Input Voltage: 120~277VAC, 50/60Hz
:: Power Factor: >0.95
:: Efficacy: 85 LM/W
:: Dimming: 0-10V

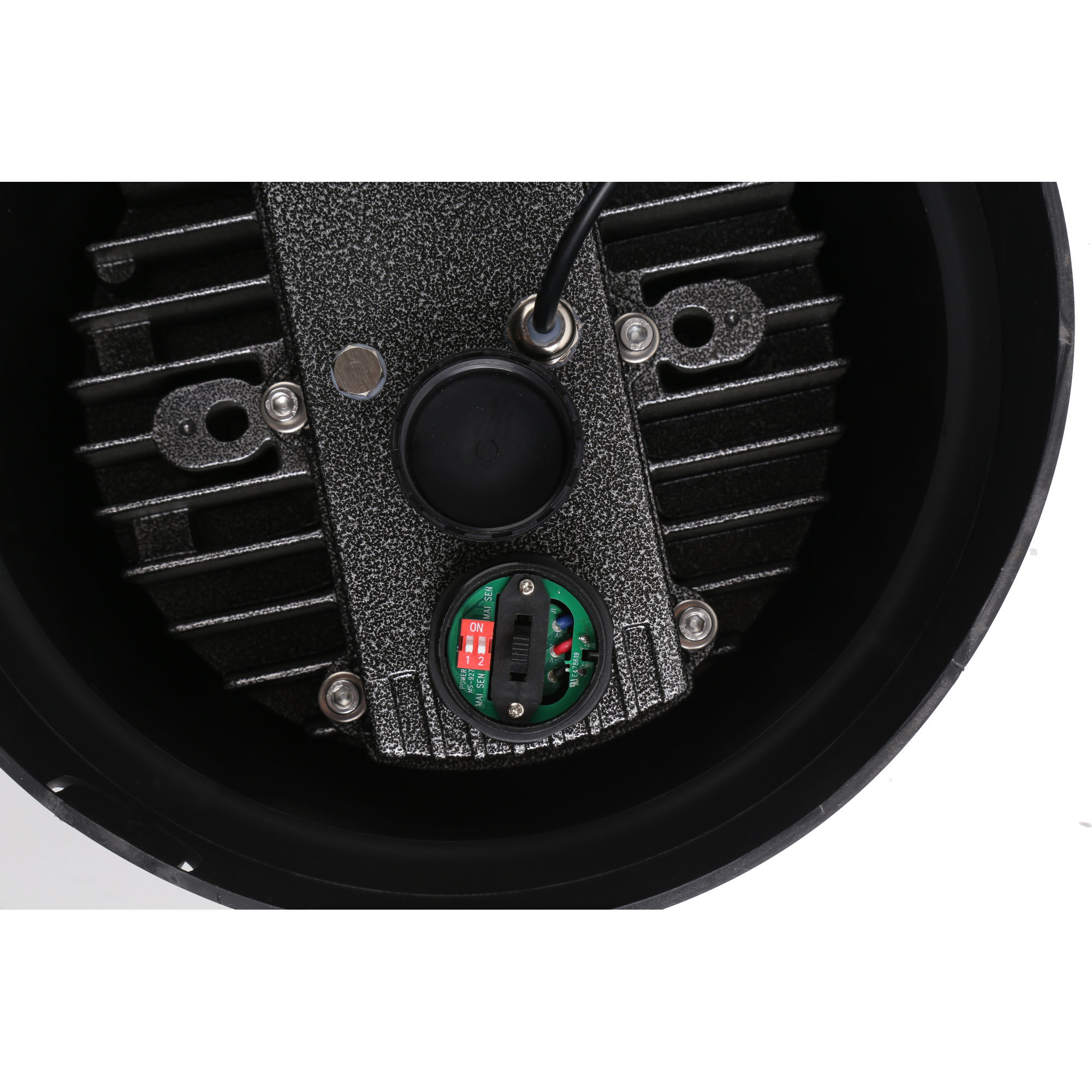

:: CCT Selectable: 3000K / 4000K / 5000K (MCTP — Wattage and CCT Selectable Switches Inside Fixture)
:: Total Lumens: 1,870 / 2,890 / 4,250 LM (Max 4,250 LM)
:: CRI: ≥80
:: Beam Angle: 60-degree
:: Lens: Prismatic
:: Housing: Die-Cast Aluminum with Powder Coat Finish
:: Face Ring: 11-inch Diameter, Stainless Steel Bronze
:: Traffic Rated: Designed to Withstand Heavy Vehicular Loads
:: Can Be Installed in Concrete
:: Recessed Wall Mount
:: IP Rating: IP65, Wet Location
:: Dimensions: 7.68-inch (H) x 11-inch (D)
:: Operating Temperature: -40-degree F to 10-degree F
:: Rated Life: 70,000 Hours
:: Warranty: 7 Years
:: Certifications: ETL Listed, Wet Location

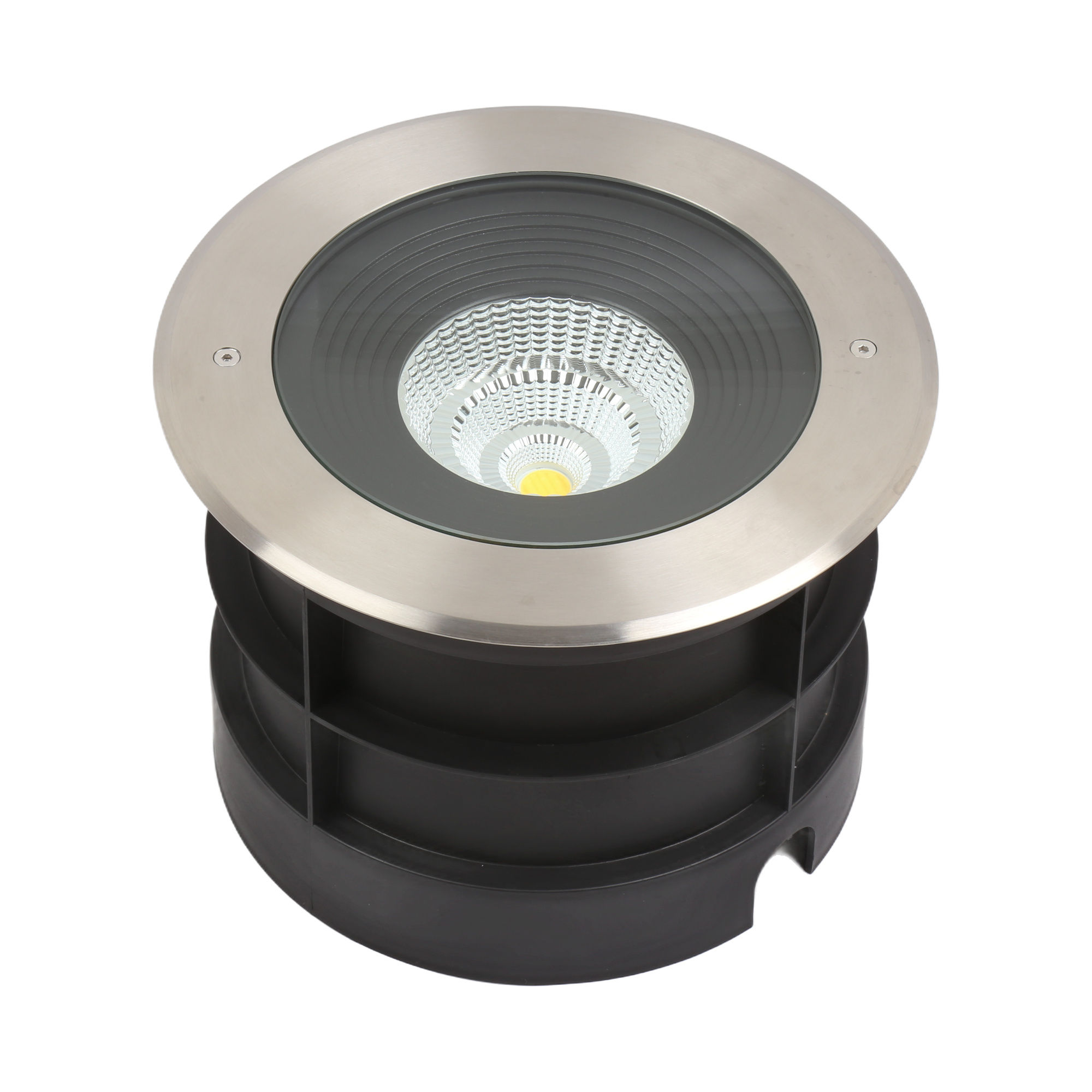

:: The IGLC-D11-50W-MCTP-60D-D is the largest diameter option in the IGLC series at 11 inches, delivering up to 4,250 lumens with a medium 60-degree beam for high-output commercial inground lighting. Selectable 22W, 34W, or 50W power and CCT are configurable on-site via internal MCTP switches. The wide stainless steel bronze face ring and die-cast aluminum housing withstand heavy vehicular traffic and corrosion in demanding paved environments including parking lots, driveways, alleys, doorways, loading docks, and pathways. The recessed concrete-mount design installs flush for a clean, low-profile appearance. 0-10V dimming supports integration with lighting control systems.
