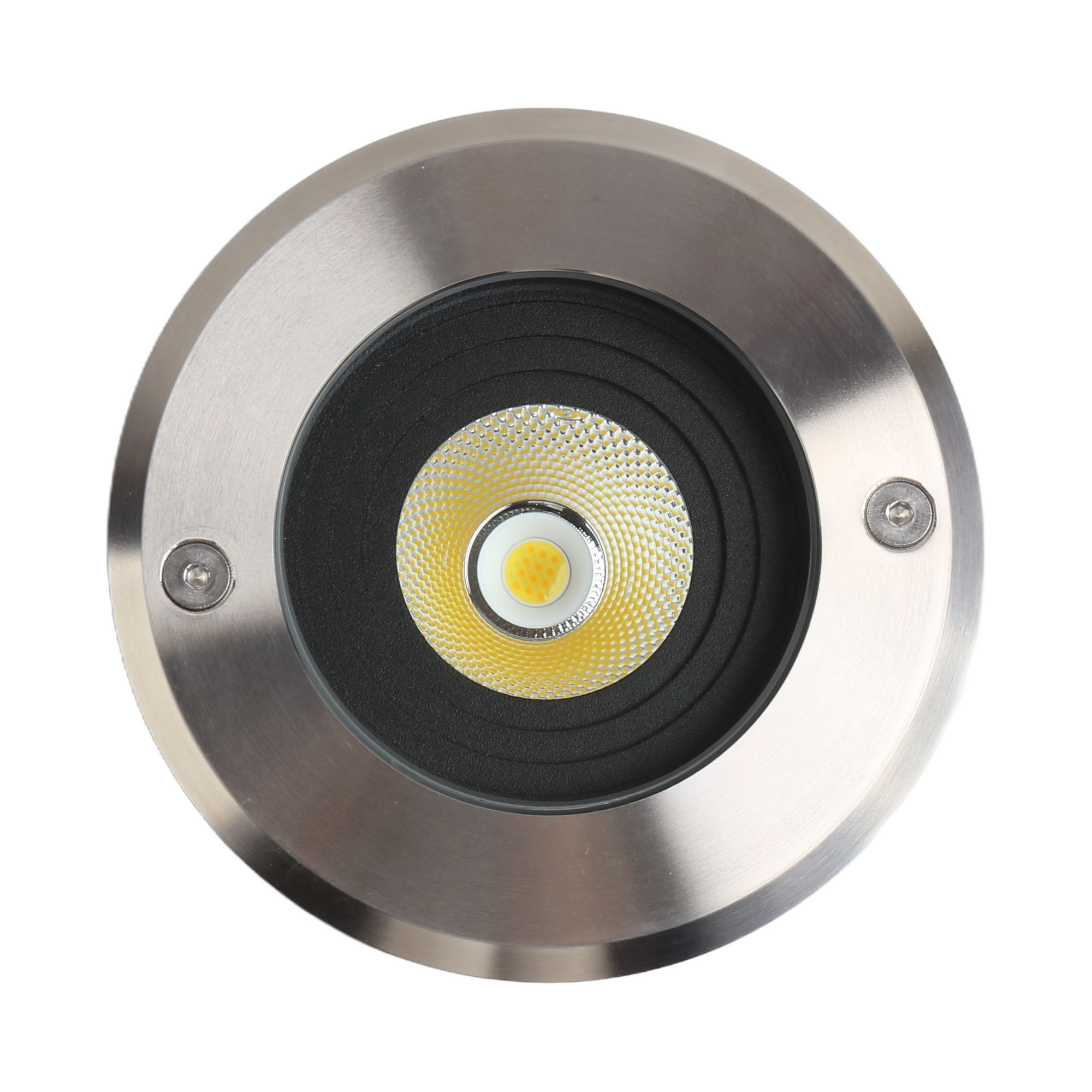

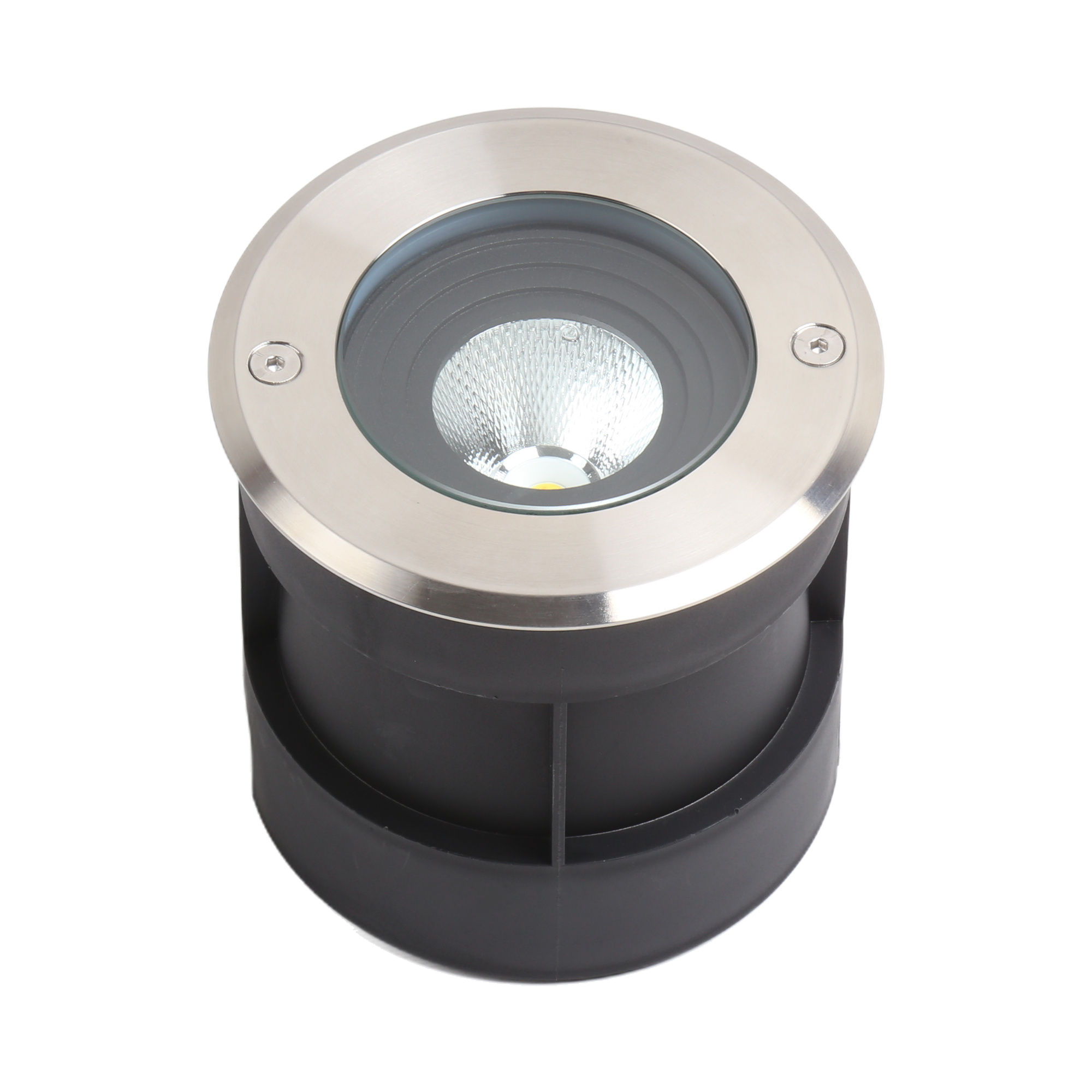

IGLC-D5-10W-MCT-24D 10W 5-inch 24-degree Stainless Steel Commercial Inground Light

:: Wattage: 10W
:: Input Voltage: 120~277VAC, 50/60Hz
:: Power Factor: >0.95
:: Efficacy: 85 LM/W
:: Dimming: Non-Dimmable
:: CCT Selectable: 3000K / 4000K / 5000K (MCT — CCT Selectable Switch Inside Fixture)
:: Total Lumens: 850 LM
:: CRI: ≥80
:: Beam Angle: 24-degree
:: Lens: Prismatic
:: Housing: Die-Cast Aluminum with Powder Coat Finish
:: Face Ring: 5-inch Diameter, Stainless Steel Bronze
:: Traffic Rated: Designed to Withstand Heavy Vehicular Loads
:: Can Be Installed in Concrete
:: Recessed Wall Mount
:: IP Rating: IP65, Wet Location
:: Dimensions: 4.92-inch (H) x 5-inch (D)
:: Operating Temperature: -40-degree F to 10-degree F
:: Rated Life: 70,000 Hours
:: Warranty: 7 Years
:: Certifications: ETL Listed, Wet Location

:: The IGLC-D5-10W-MCT-24D is the smallest diameter option in the IGLC inground light series — a 10W, 5-inch compact fixture with a tight 24-degree beam suited for focused accent and pathway lighting in alleys, doorways, loading docks, pathways, parking areas, and residential settings. Die-cast aluminum construction with a stainless steel bronze face ring withstands corrosion and heavy vehicular traffic, and the recessed design installs flush into concrete surfaces. CCT is selectable via internal switches. Note: this model does not include 0-10V dimming.
