:: Wattage: 15W
:: Input Voltage: 120~277VAC, 50/60Hz
:: Power Factor: >0.95
:: Efficacy: 85 LM/W
:: Dimming: 0-10V
:: CCT Selectable: 3000K / 4000K / 5000K (MCT — CCT Selectable Switch Inside Fixture)
:: Total Lumens: 1,250 LM
:: CRI: ≥80
:: Beam Angle: 24-degree
:: Lens: Prismatic
:: Housing: Die-Cast Aluminum with Powder Coat Finish
:: Face Ring: 6-inch Diameter, Stainless Steel Bronze
:: Traffic Rated: Designed to Withstand Heavy Vehicular Loads
:: Can Be Installed in Concrete
:: Recessed Wall Mount
:: IP Rating: IP65, Wet Location
:: Dimensions: 6-inch (H) x 6-inch (D)
:: Operating Temperature: -40-degree F to 10-degree F
:: Rated Life: 70,000 Hours
:: Warranty: 7 Years
:: Certifications: ETL Listed, Wet Location

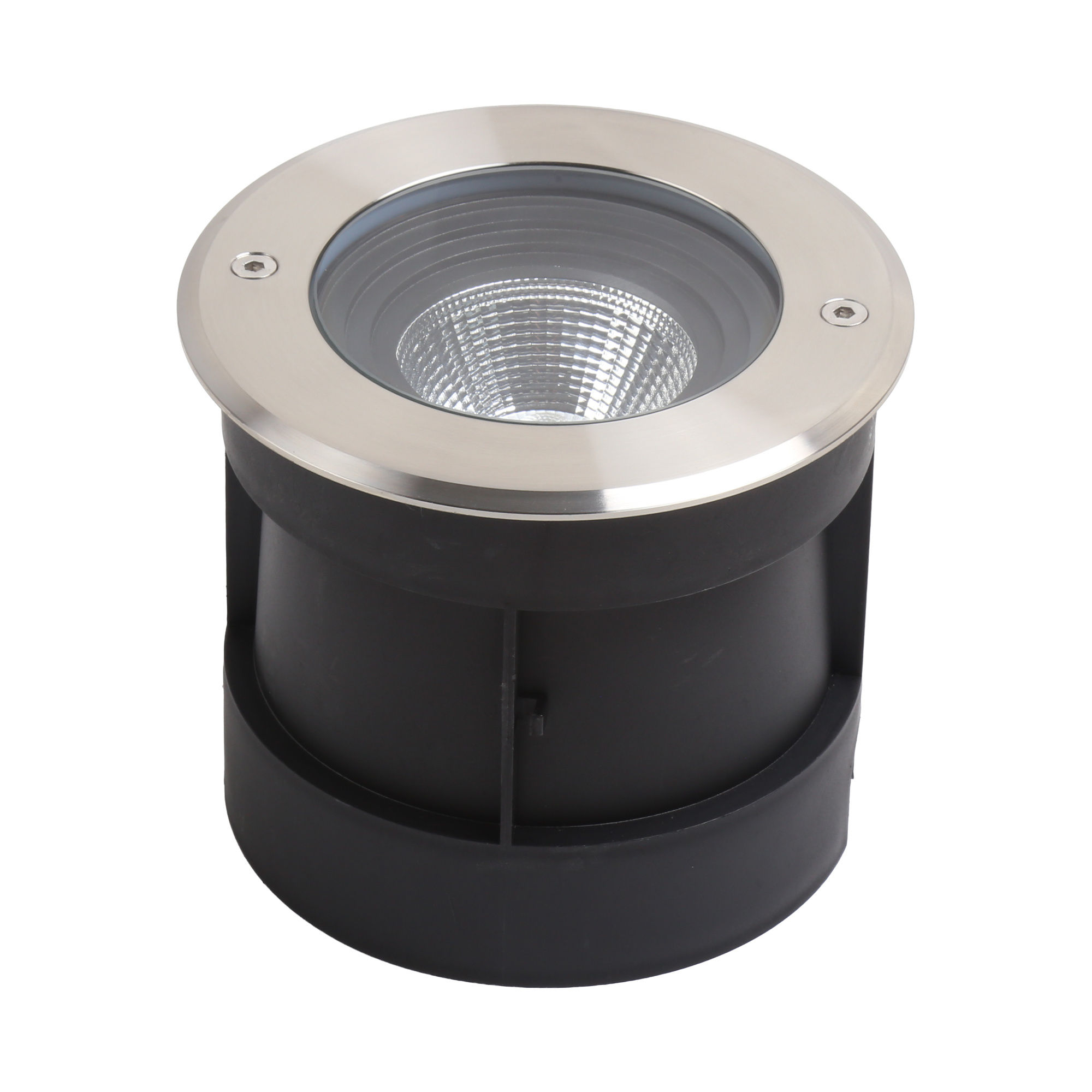

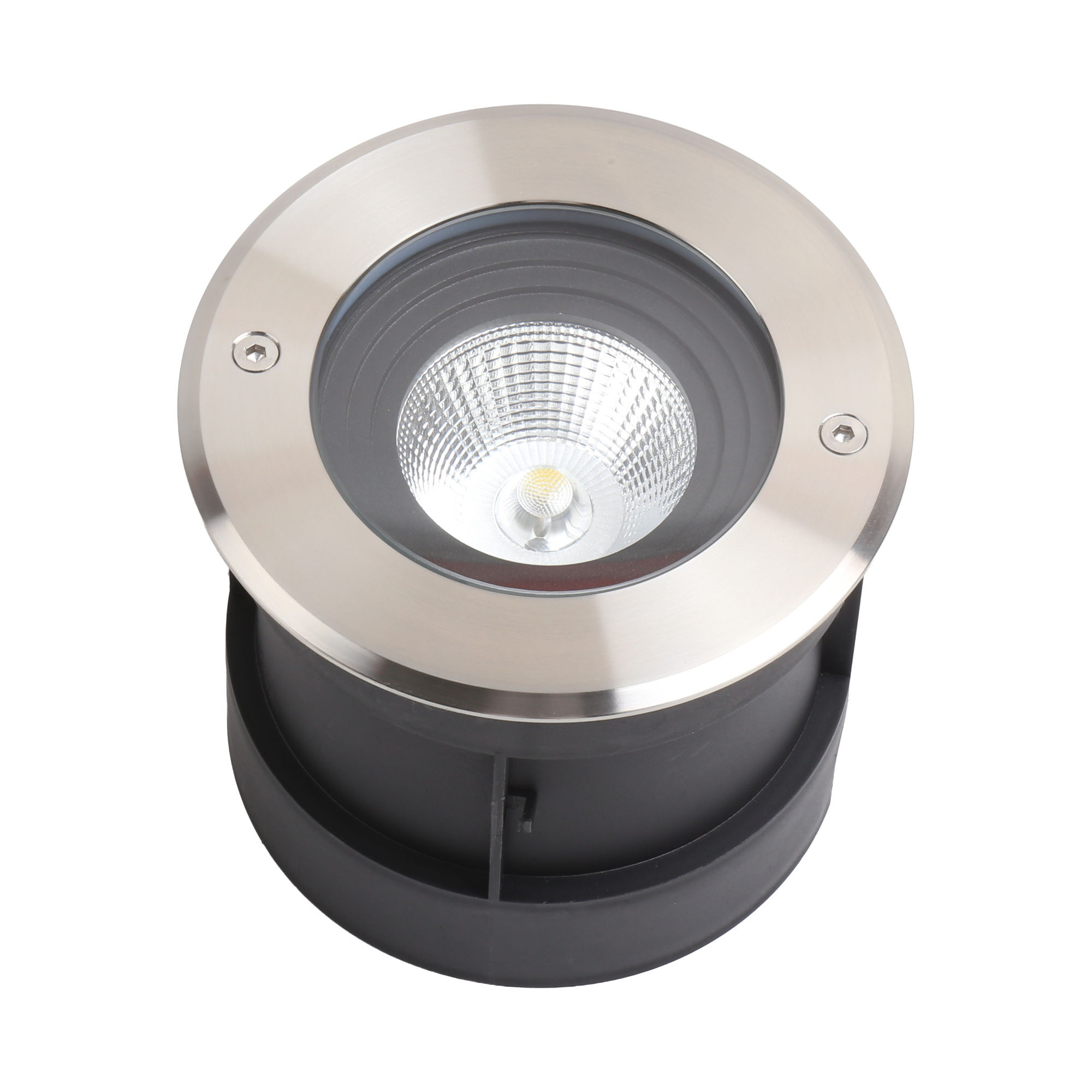

:: The IGLC-D6-15W-MCT-24D-D is a 15W, 6-inch inground light with a focused 24-degree beam, suited for accent and pathway lighting in alleys, doorways, loading docks, pathways, parking areas, and residential settings. Die-cast aluminum construction with a stainless steel bronze face ring withstands corrosion and heavy vehicular traffic, and the recessed design installs flush into concrete surfaces. CCT is selectable via internal switches, and 0-10V dimming supports compatibility with lighting control systems. Note: this model has fixed wattage — CCT only is selectable (MCT), not wattage.
