IGLC-D8-30W-MCTP-30D-D 12-30W 8-inch 30-degree Stainless Steel Commercial Inground Light

:: Wattage: 12W / 20W / 30W (Selectable)
:: Input Voltage: 120~277VAC, 50/60Hz
:: Power Factor: >0.95
:: Efficacy: 85 LM/W
:: Dimming: 0-10V

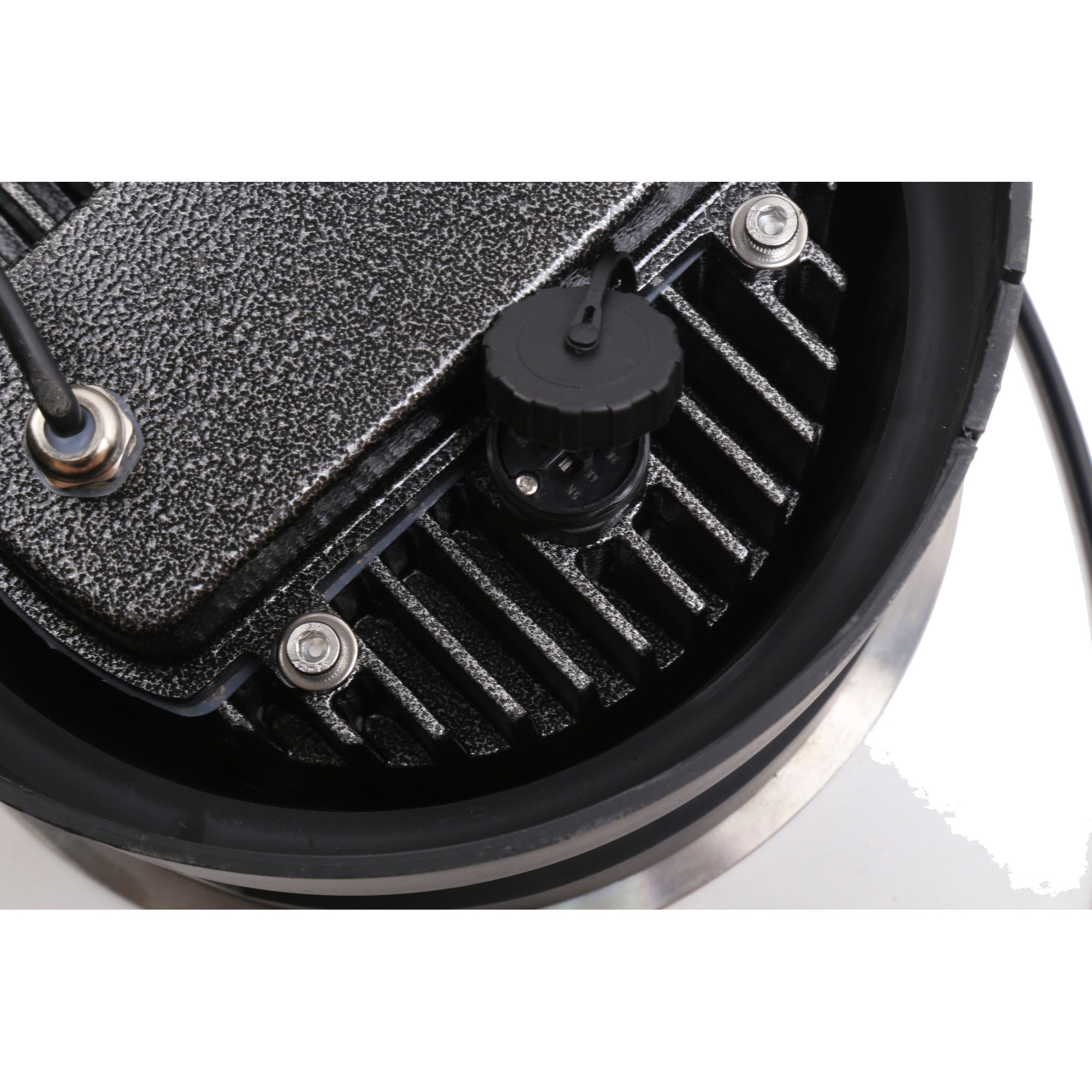

:: CCT Selectable: 3000K / 4000K / 5000K (MCTP — Wattage and CCT Selectable Switches Inside Fixture)
:: Total Lumens: 1,020 / 1,700 / 2,550 LM (Max 2,550 LM)
:: CRI: ≥80
:: Beam Angle: 30-degree
:: Lens: Prismatic
:: Housing: Die-Cast Aluminum with Powder Coat Finish
:: Face Ring: 8-inch Diameter, Stainless Steel Bronze
:: Traffic Rated: Designed to Withstand Heavy Vehicular Loads
:: Can Be Installed in Concrete
:: Recessed Wall Mount
:: IP Rating: IP65, Wet Location
:: Dimensions: 5-inch (H) x 8.27-inch (D)
:: Operating Temperature: -40-degree F to 10-degree F
:: Rated Life: 70,000 Hours
:: Warranty: 7 Years
:: Certifications: ETL Listed, Wet Location

:: The IGLC-D8-30W-MCTP-30D-D is an 8-inch inground light with selectable 12W, 20W, or 30W power and a focused 30-degree beam for accent and directional pathway lighting. Its MCTP design allows both wattage and CCT to be configured on-site via internal switches, making it adaptable across a wide range of project requirements. Die-cast aluminum construction with a stainless steel bronze face ring withstands corrosion and heavy vehicular traffic, and the recessed concrete-mount design installs flush in parking lots, driveways, alleys, doorways, loading docks, and pathways. 0-10V dimming supports integration with lighting control systems.
