LDS-MCT5-DT-SIL

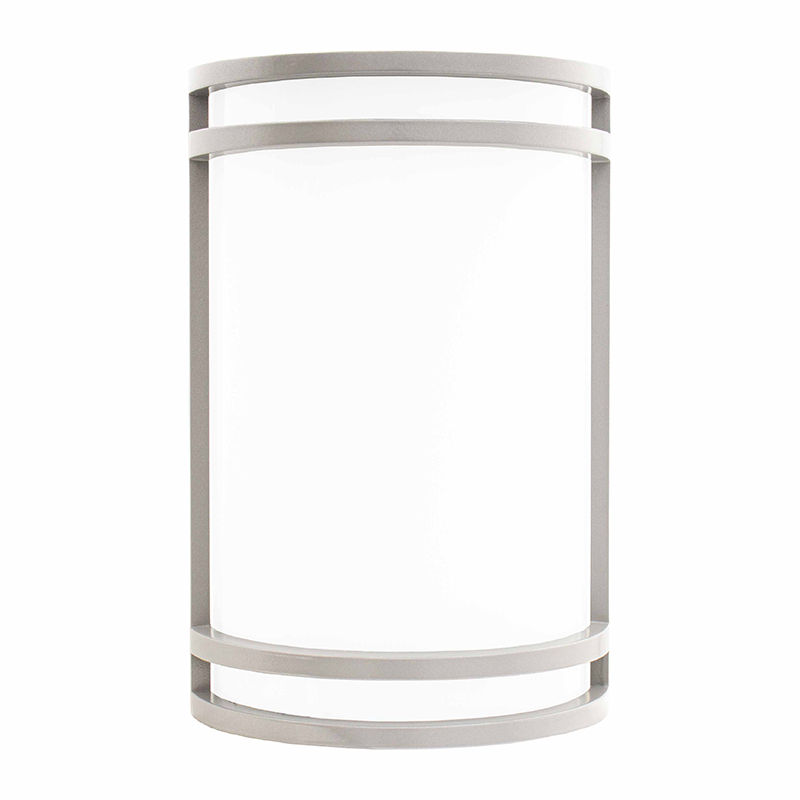

120V Series 10-Inch Outdoor/Indoor LED Decorative Wall Sconce, 15W, 2700K/3000K/3500K/4000K/5000K, Silver
Technical Specs
- :: Voltage: 120V AC 50/60Hz
- :: Output Voltage: 36VDC
- :: Power Factor: >0.90
- :: Wattage: 15W
- :: Efficacy: 65 LPW
- :: Total Harmonic Distortion: ≤15 %
- :: Silver Finish
- :: Housing: Steel base with Die-cast Rings
- :: High-Transmission Frosted Plastic Lens With Excellent Distribution and Uniformity
- :: Maximum Ambient Temperature: 50~113°F
- :: Rated life: 50,000 Hrs
- :: Wet Location
- :: Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
- :: Total Lumens: 980LM
- :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- :: Multi CCT (Selectable Switch on the LED Board )
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 120°
Applications
- :: Ideal for hallways, bedrooms, laundry rooms, bathrooms, alleys, loading docks, doorways and pathways.
Features
Q & A
ACCESSORIES
| Product Name | Description | |||
|---|---|---|---|---|
 WEC-8RC  SPEC | Remote Control For WEC-3MR-4 & WEC-3MR-3 |
OPTIONS
