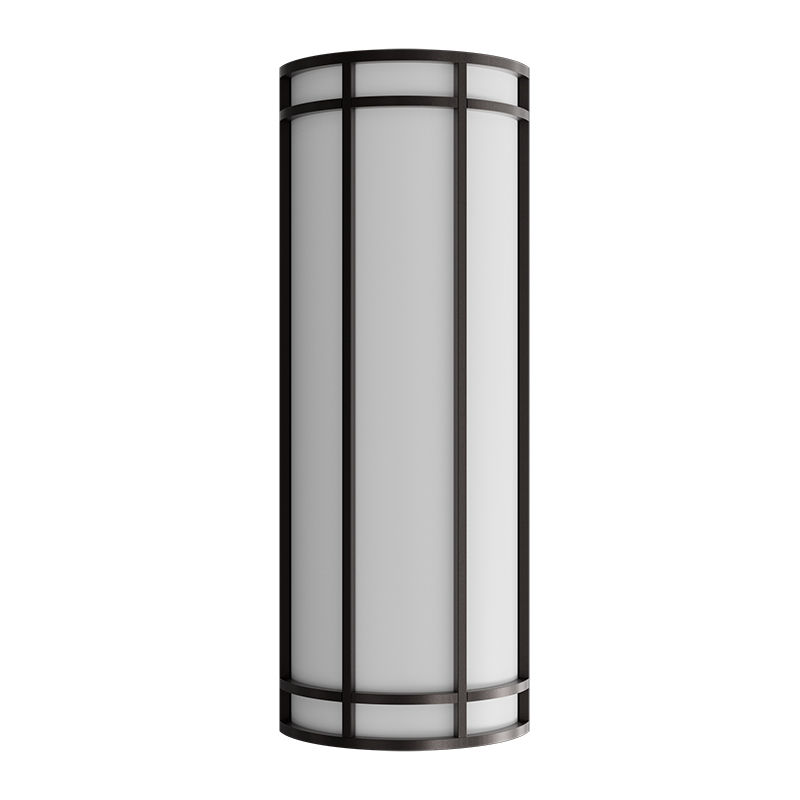

LDSC-24-MCTP-DD-ORB Westgate Lighting 24" Oil-Rubbed Bronze Outdoor/Indoor LED Decorative Wall Sconce, 20W/25W/30W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Wattage: 20W/25W/30W
- :: Power Factor: >0.9
- :: Efficacy: 80 LPW
- :: Die-Cast Aluminum Housing With Powder Coat Finish
- :: High-Transmission Frosted Plastic Lens With Excellent Distribution and Uniformity
- :: Direct Replacement For Fluorescent
- :: Full Distribution LED luminaries
- :: IP Rating: IP65
- :: Operating Temperature: -4°F to 113°F
- :: Suitable For Wet Locations
- :: Dimming: (Dual Function) Triac Dimmable at 120V
- :: & 0-10V Dimming at 120-277V
- :: Multi CCT: Selectable CCTs Switch Located On The LED Board
- :: Total Lumens: 2400LM
- :: Color Temperature: 3000K/4000K/5000K
- :: Color Rendering Index: ≥ 80
- :: Beam Angle: 120°
Applications
- :: Motel, Hotels, Hospitals, hallways, stairways, dining areas, foyers, and meeting rooms
