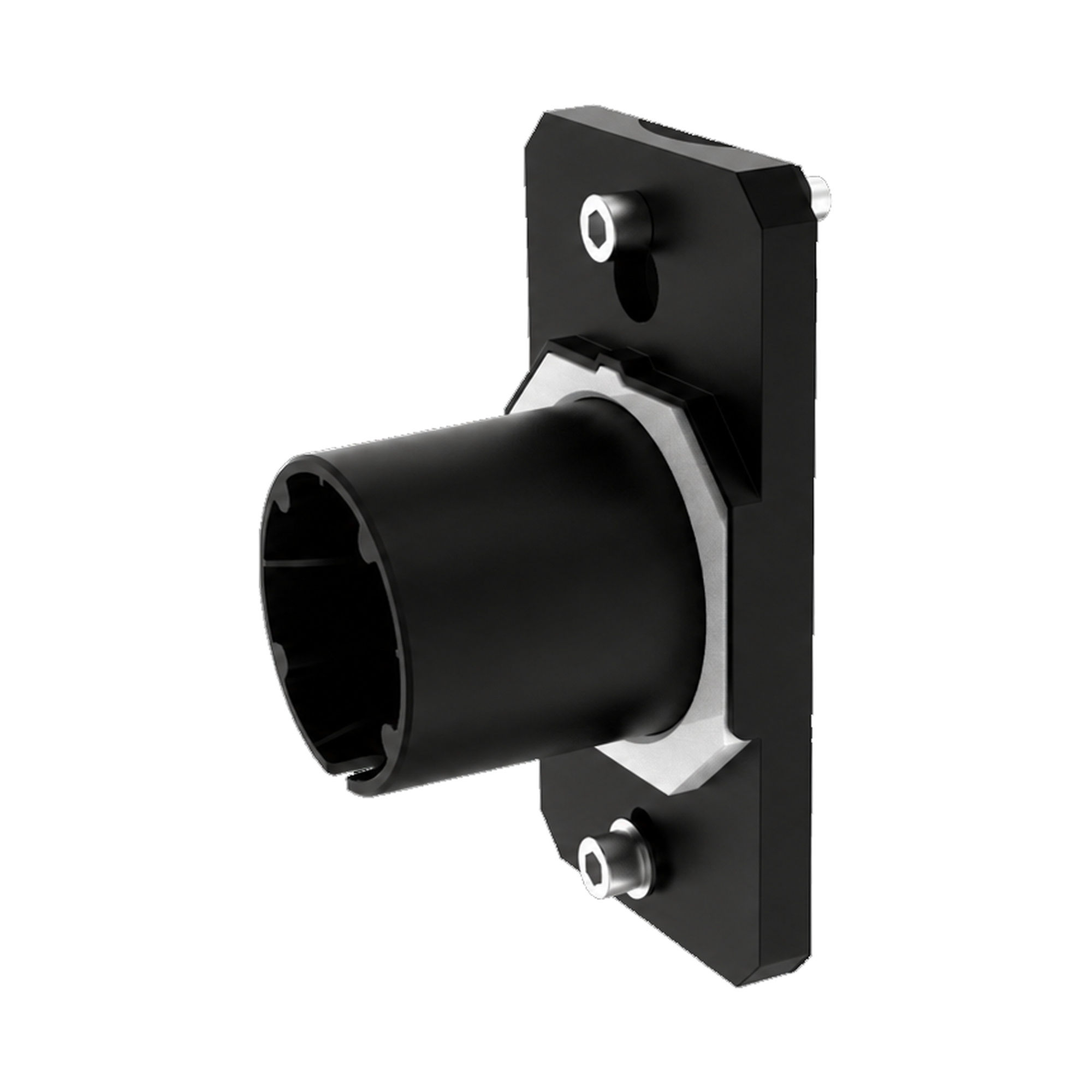

LFX-PASF-BK Black Pole Adapter for Slip-Fitter Mounted Flood Lights
Technical Specs
- :: Type: Wall-Mounted Pole Adapter for Slip-Fitter Installation
- :: Construction: Aluminum Housing
- :: Tenon: Integrated Horizontal Standard-Size Tenon
- :: Mounting: Slotted Mounting Holes for Installation Adjustment
- :: Overall Dimensions: 5-7/8-inch (H) x 3-1/4-inch (W) x 3-inch (D)
- :: Housing Finish: Black
- :: Electrical: None (Passive Mounting Accessory, No Electrical Connection Required)
- :: Optical: None (Mounting Accessory Only, No Light Source or Optical Components)
- :: Compatibility: Westgate LFX-SF Standard Slip Fitter; LFX, LFXPRO, LF4PRO, LFXE, and LFXMAX Series Flood Lights
- :: Note: LFX-SF Slip Fitter Sold Separately
Applications
- :: This is the black-finish version of the LFX-PASF pole adapter, matched to black flood lights and mounting hardware for a clean, consistent look on dark poles, walls, and building facades. It performs identically to the bronze and white versions, converting a flat surface into a horizontal slip-fitter tenon, and differs only in finish. Westgate builds it from aluminum with slotted mounting holes and pairs it with the LFX-SF slip fitter for adjustable aiming.
