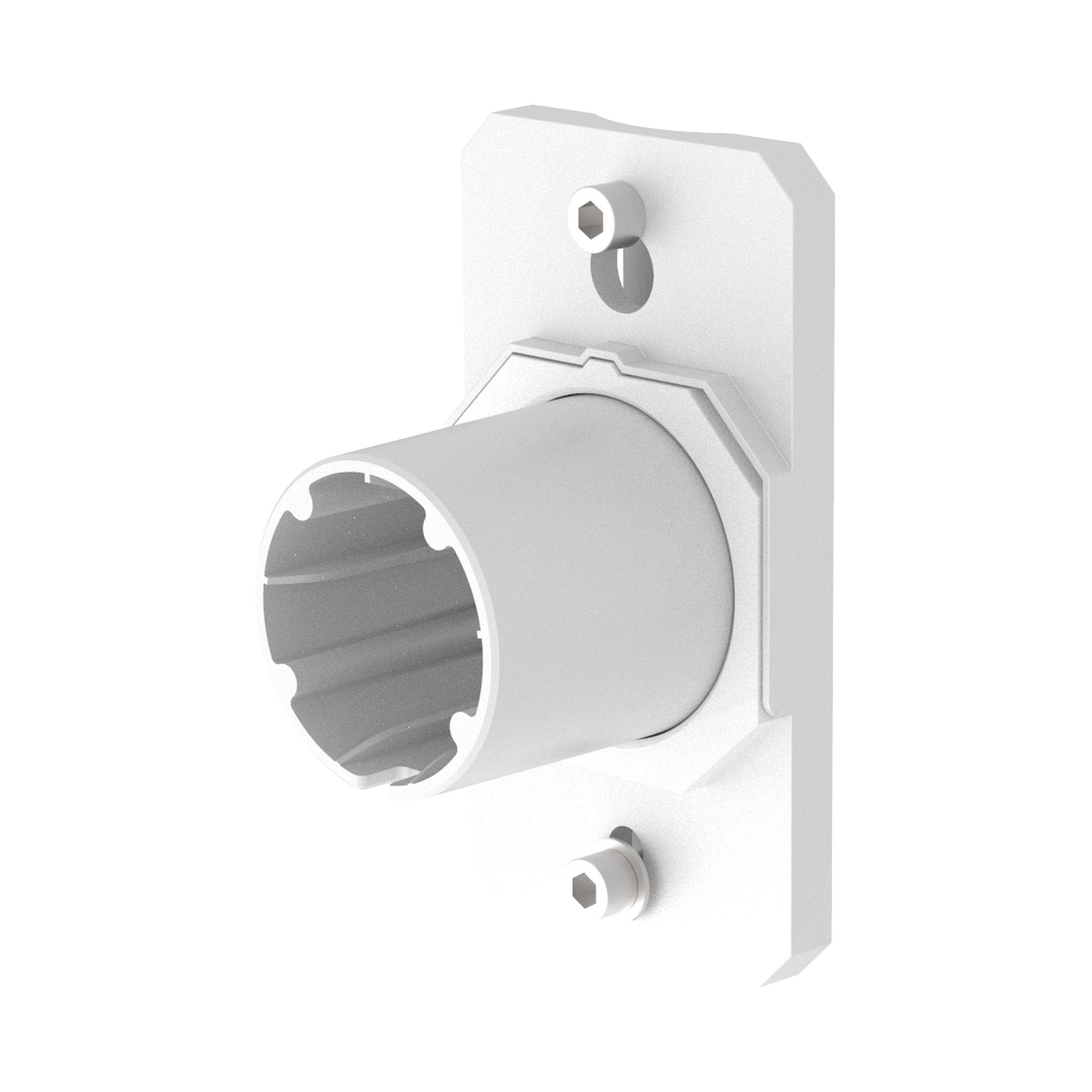

LFX-PASF-WH White Pole Adapter for Slip-Fitter Mounted Flood Lights
Technical Specs
- :: Type: Wall-Mounted Pole Adapter for Slip-Fitter Installation
- :: Construction: Aluminum Housing
- :: Tenon: Integrated Horizontal Standard-Size Tenon
- :: Mounting: Slotted Mounting Holes for Installation Adjustment
- :: Overall Dimensions: 5-7/8-inch (H) x 3-1/4-inch (W) x 3-inch (D)
- :: Housing Finish: White
- :: Electrical: None (Passive Mounting Accessory, No Electrical Connection Required)
- :: Optical: None (Mounting Accessory Only, No Light Source or Optical Components)
- :: Compatibility: Westgate LFX-SF Standard Slip Fitter; LFX, LFXPRO, LF4PRO, LFXE, and LFXMAX Series Flood Lights
- :: Note: LFX-SF Slip Fitter Sold Separately
Applications
- :: This is the white-finish version of the LFX-PASF pole adapter, finished to match white flood lights and light-colored surfaces so the mounting hardware stays visually discreet. It works exactly like the bronze and black versions, turning a wall or flat surface into a horizontal slip-fitter tenon, and differs only in finish. Westgate builds it from aluminum with slotted mounting holes and pairs it with the LFX-SF slip fitter for adjustable fixture aiming.
