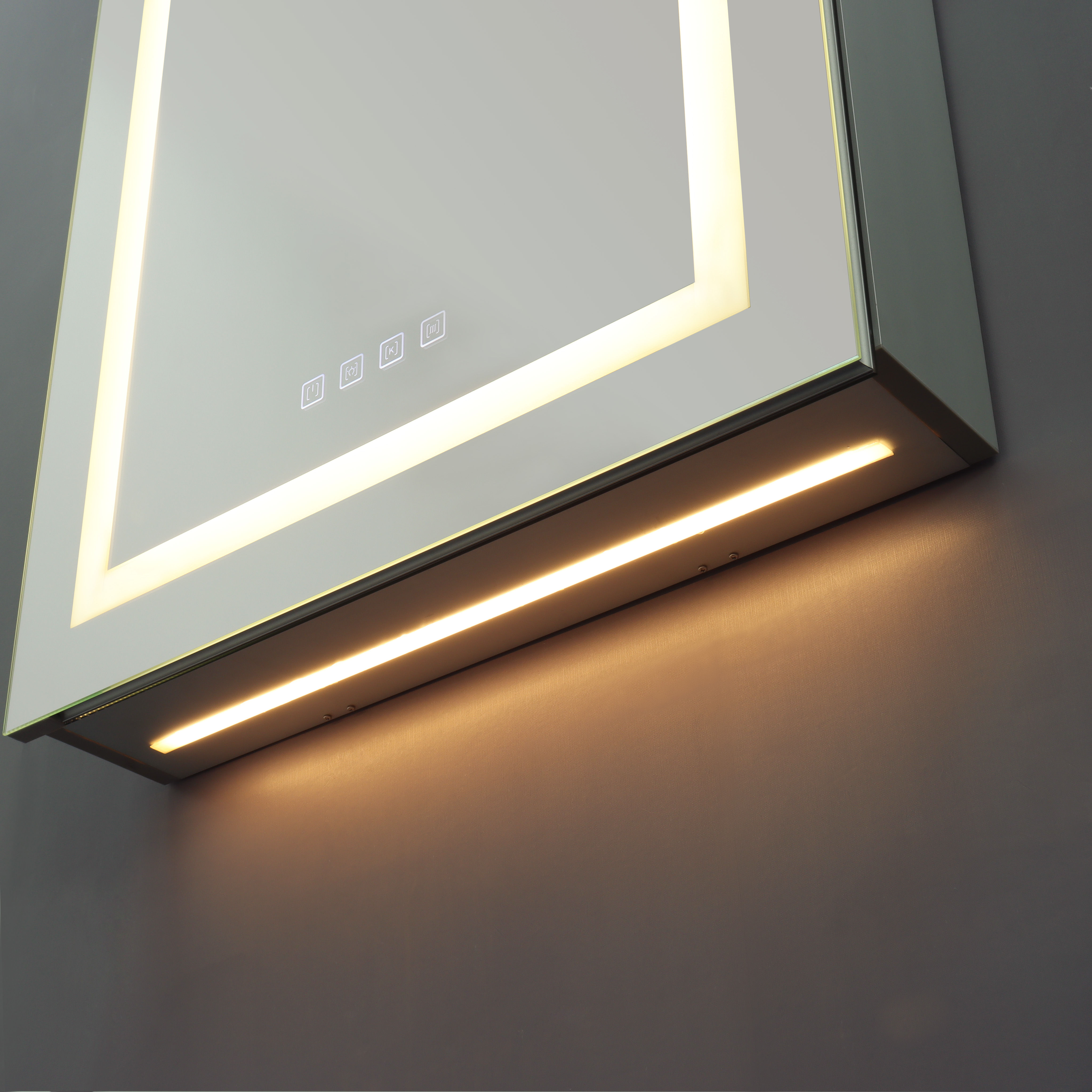

LMIR-MC18-2432-MCT-DF 24-inch x 32-inch Frontlit LED Medicine Cabinet with Defogger, 3CCT

:: Fixture Type: Frontlit LED mirrored medicine cabinet with defogger
:: Voltage: 120V AC, 60Hz
:: Wattage: 35W
:: Power Factor: >0.95
:: Total Harmonic Distortion: ≤ 20%
:: Color Temperature: 2700K-6500K (Multi CCT, on-mirror touch buttons)
:: Color Rendering Index: CRI ≥ 90
:: Control: Touch sensor; on-mirror brightness and CCT touch buttons; stepless dimming; CCT stored in memory
:: Mirror: 5mm copper-free silver mirror
:: Frame: Aluminum
:: Defogger: Demister pad
:: Rated Life: 50,000 hours
:: Dimensions: 24-inch (W) x 32-inch (H) x 5-inch (D)
:: Operating Temperature: -22°F to 104°F
:: Location Rating: IP44, indoor use only (damp environment)
:: Certifications: cETLus Listed
:: Warranty: 5-Year

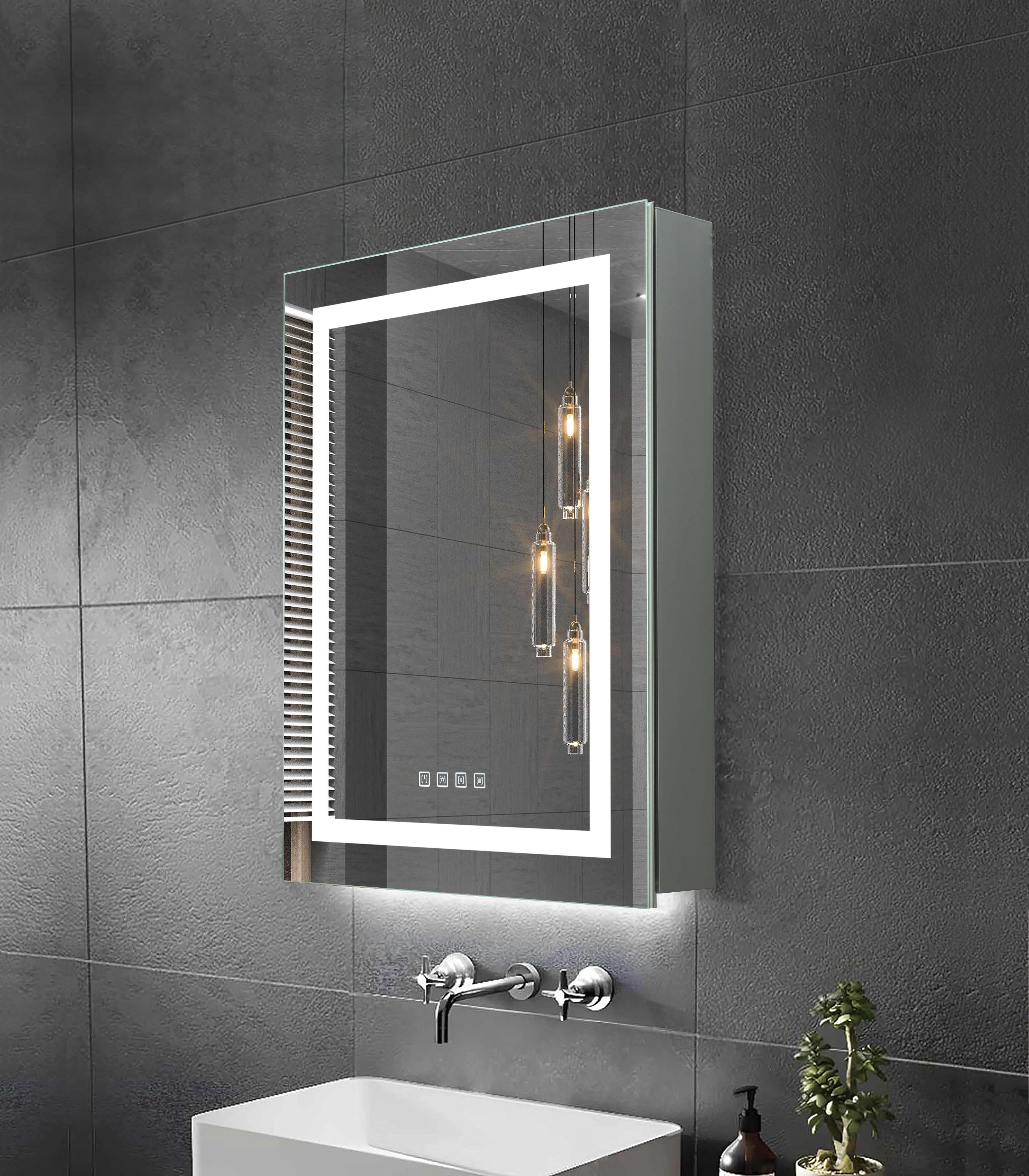

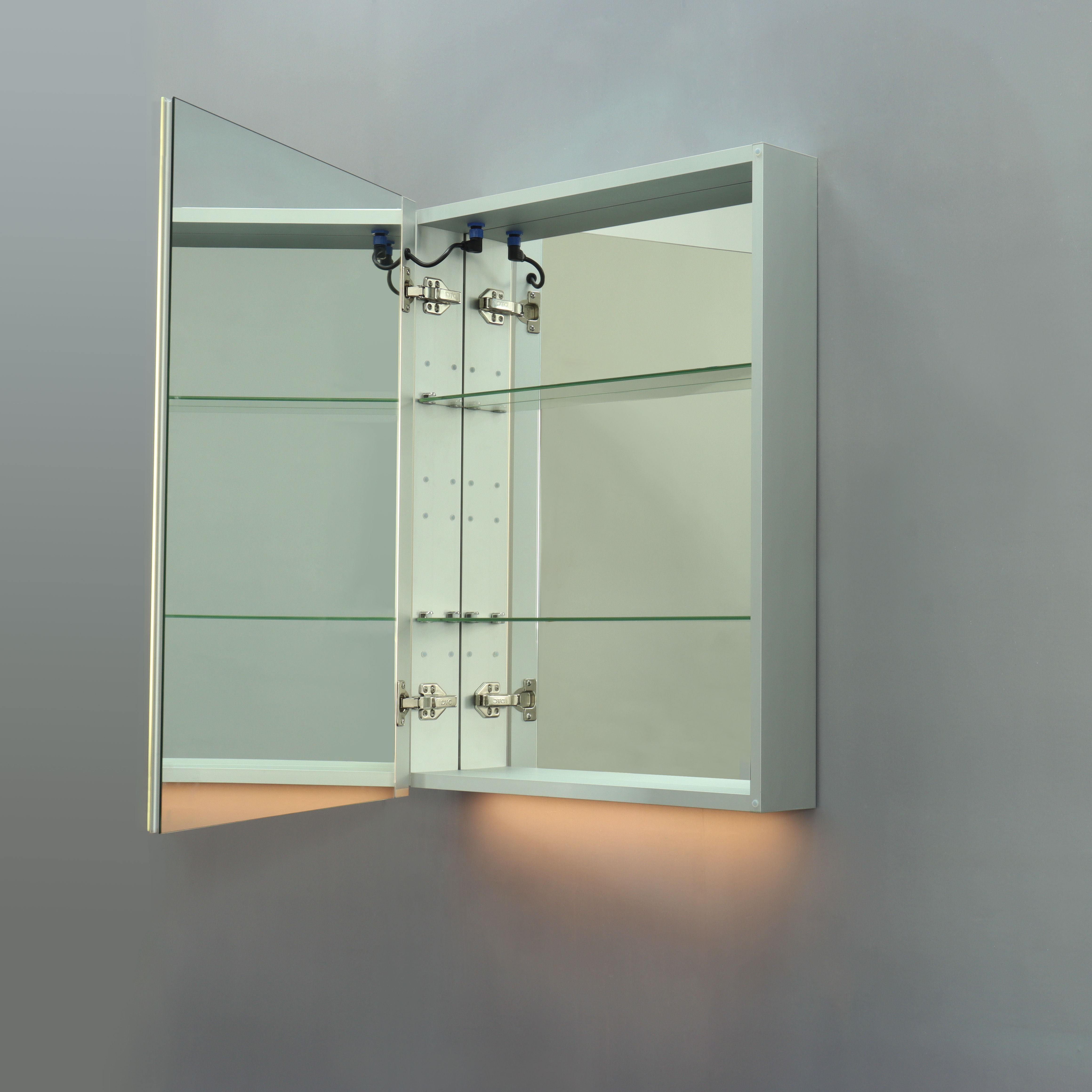

:: The Westgate LMIR-MC18-2432-MCT-DF is a frontlit LED mirrored medicine cabinet for offices, retail stores, showrooms, residential spaces, and other damp-rated indoor environments such as bathrooms and vanities. Unlike the flat mirrors in the line, this is a 5-inch-deep recessed-or-surface cabinet that adds enclosed storage behind the lit mirror door; on-mirror touch buttons set brightness and switch color temperature across a 2700K to 6500K range, and a built-in demister pad keeps the glass fog-free.
