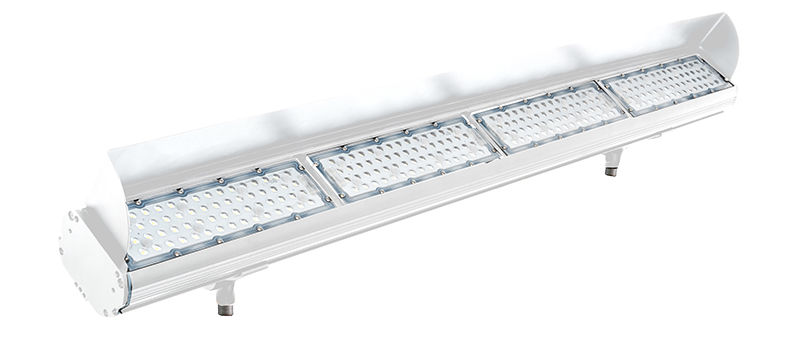

LOHB-4FT-120W-40K-WH
LOHB-4FT-120W-40K-WH
Technical Specs
- :: Voltage: 120~277V; 50/60Hz AC
- :: THD: <20%
- :: Power Factor: >0.9
- :: Wattage: 120W
- :: Efficacy: 125 LPW
- :: Die-cast Aluminum with White Powder Coat Finish
- :: Removable 1/2” NPT Threaded Knuckles Included
- :: Cord Type: 3.2 SJTW 18/3 AWG cable
- :: Removable Half Shroud Included
- :: Operating Temp: -40°F to 104°F
- :: Rated life: 50,000 hrs
- :: Wet Location
- :: IP Rating: IP65
- :: LED: Lumileds Luxeon 3030 High Flux LED
- :: Total Lumens: 15300LM/15500LM/15600LM
- :: Color Temperatures: 4000K
- :: Color Rendering Index: CRI ≥ 70
- :: Beam Angle: 90°
Applications
- :: Ideal for indoor or outdoor high bay lighting, small stadium and tracks, sign lighting. Great for use with motion sensors or other instant on/off controls (junction box "I" required)
Features
ACCESSORIES
| Product Name | Description | |||
|---|---|---|---|---|
 LOHB-C  CAT SPEC | Surface Mounting Brackets, Adjustable angle (set of 2), Die-cast Aluminum |
