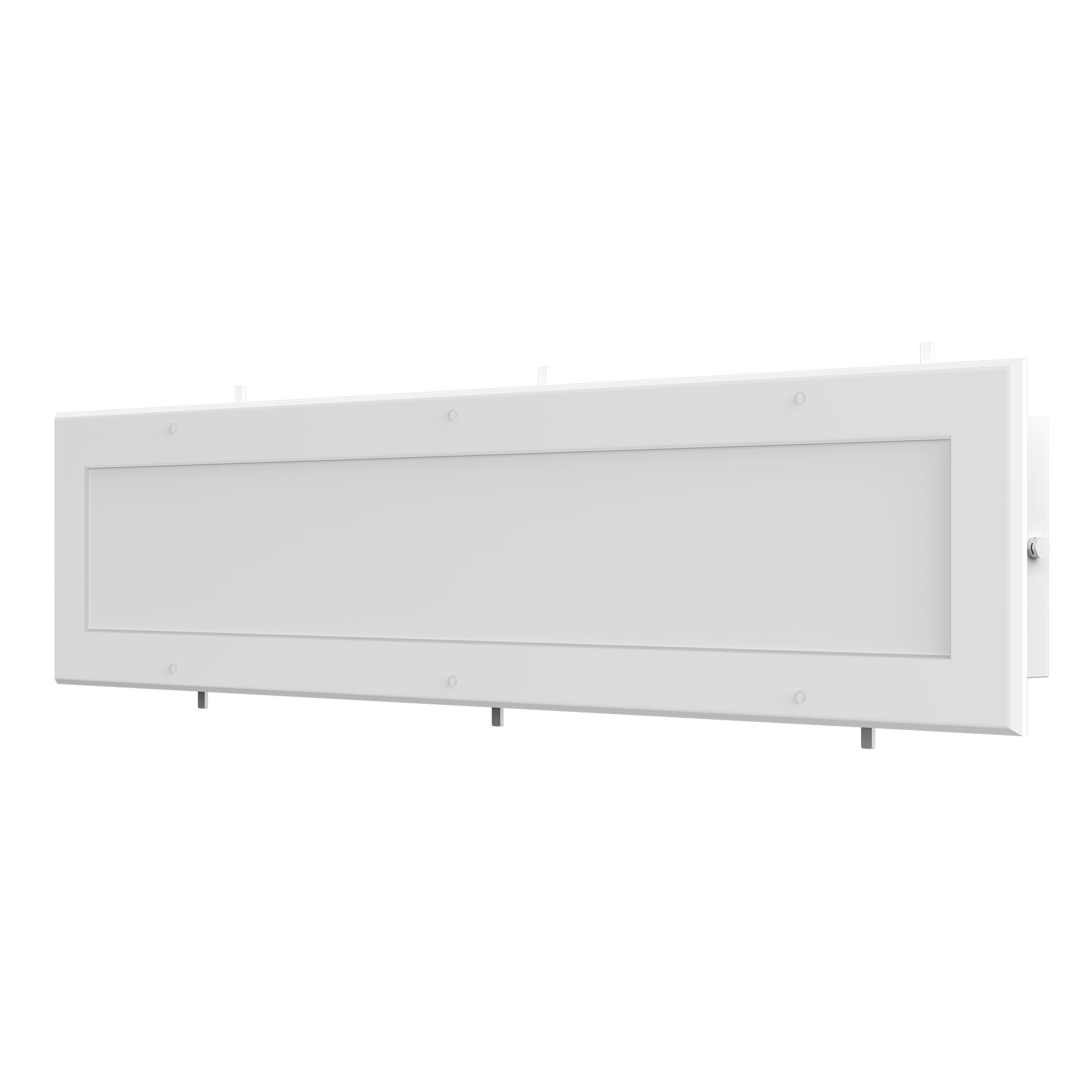

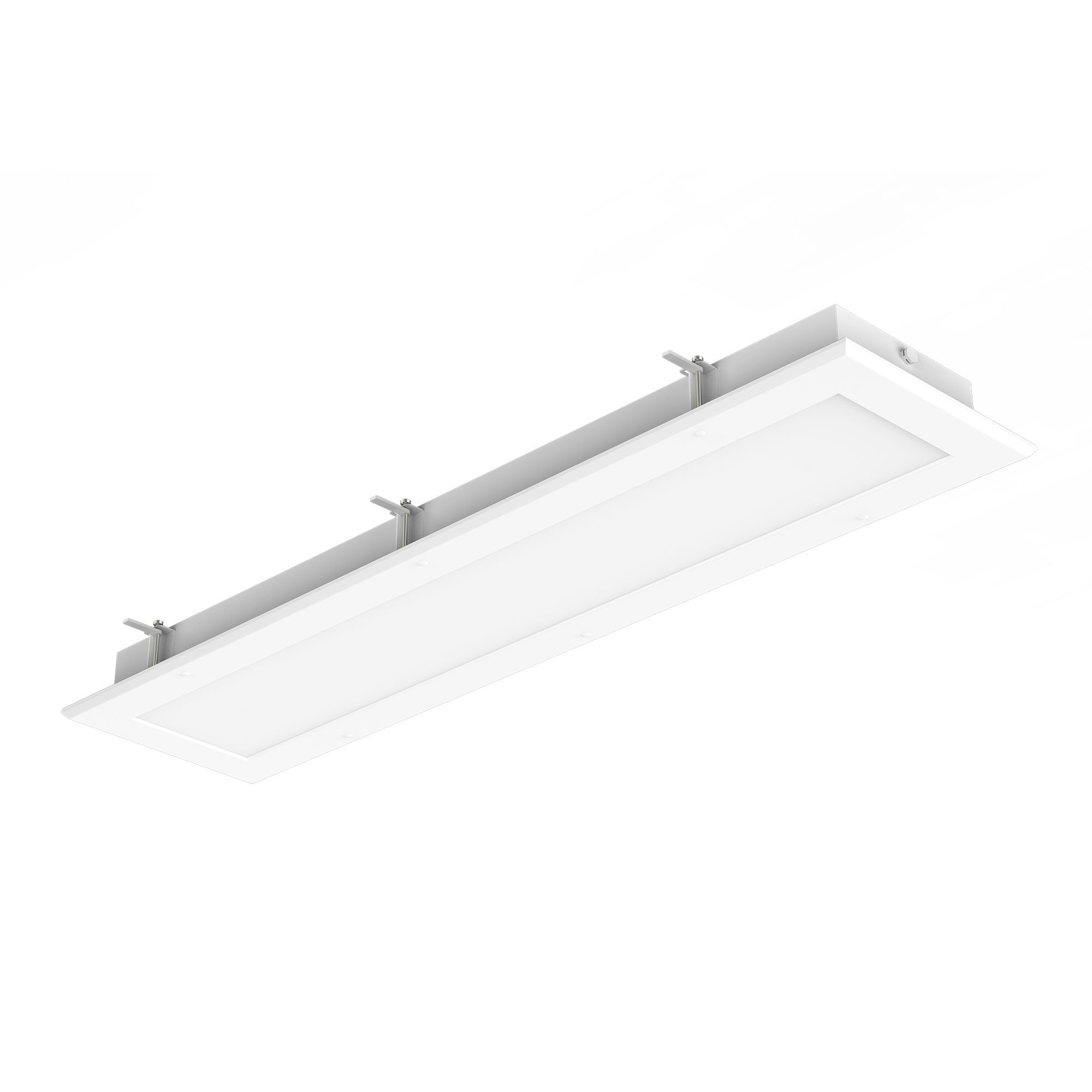

 | LPCR-1X4-MCTP | - :: Voltage: AC120V-277V 50/60Hz
- :: Power Factor: >0.90
- :: Wattage: 25W/30W/40W
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current (mA): 420/ 337/ 253mA
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 125 LPW
- :: White Finish
- :: ISO 146441-1 cleanrooms with class 1
- :: Earthquake Hooks and Suspension Hooks pre-installed
- :: External driver mounted on top
- :: Operating Temperature: -68ºF~104ºF
- :: IP Rating: IP20 (Indoor use only)
- :: Rated life: 50,000 hrs
- :: Multi CCT & Multi Power(Selectable Switch On Back of Fixture)
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 5000LM
- :: Color Temperatures: 3500K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: 5-Year Warranty
- :: Beam Angle: 110°
| | |
 | LPCR-2X2-MCTP | - :: Voltage: AC120V-277V 50/60Hz
- :: Power Factor: >0.90
- :: Wattage: 25W/30W/40W
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current (mA): 420/ 337/ 253mA
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 125 LPW
- :: White Finish
- :: ISO 146441-1 cleanrooms with class 1
- :: Earthquake Hooks and Suspension Hooks pre-installed
- :: External driver mounted on top
- :: Operating Temperature: -68ºF~104ºF
- :: IP Rating: IP20 (Indoor use only)
- :: Rated life: 50,000 hrs
- :: Multi CCT & Multi Power(Selectable Switch On Back of Fixture)
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 5000LM
- :: Color Temperatures: 3500K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: 5-Year Warranty
- :: Beam Angle: 110°
| | |
 | LPCR-2X4-MCTP | - :: Voltage: AC120V-277V 50/60Hz
- :: Power Factor: >0.90
- :: Wattage: 30W/40W/50W
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current (mA): 420/ 337/ 253mA
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 125 LPW
- :: White Finish
- :: ISO 146441-1 cleanrooms with class 1
- :: Earthquake Hooks and Suspension Hooks pre-installed
- :: External driver mounted on top
- :: Operating Temperature: -68ºF~104ºF
- :: IP Rating: IP65
- :: 5-Year Warranty
- :: Multi CCT & Multi Power(Selectable Switch On Back of Fixture)
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 6250LM
- :: Color Temperatures: 3500K/4000K/5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 110°
- :: Rated life: 50,000 Hrs
| | |
