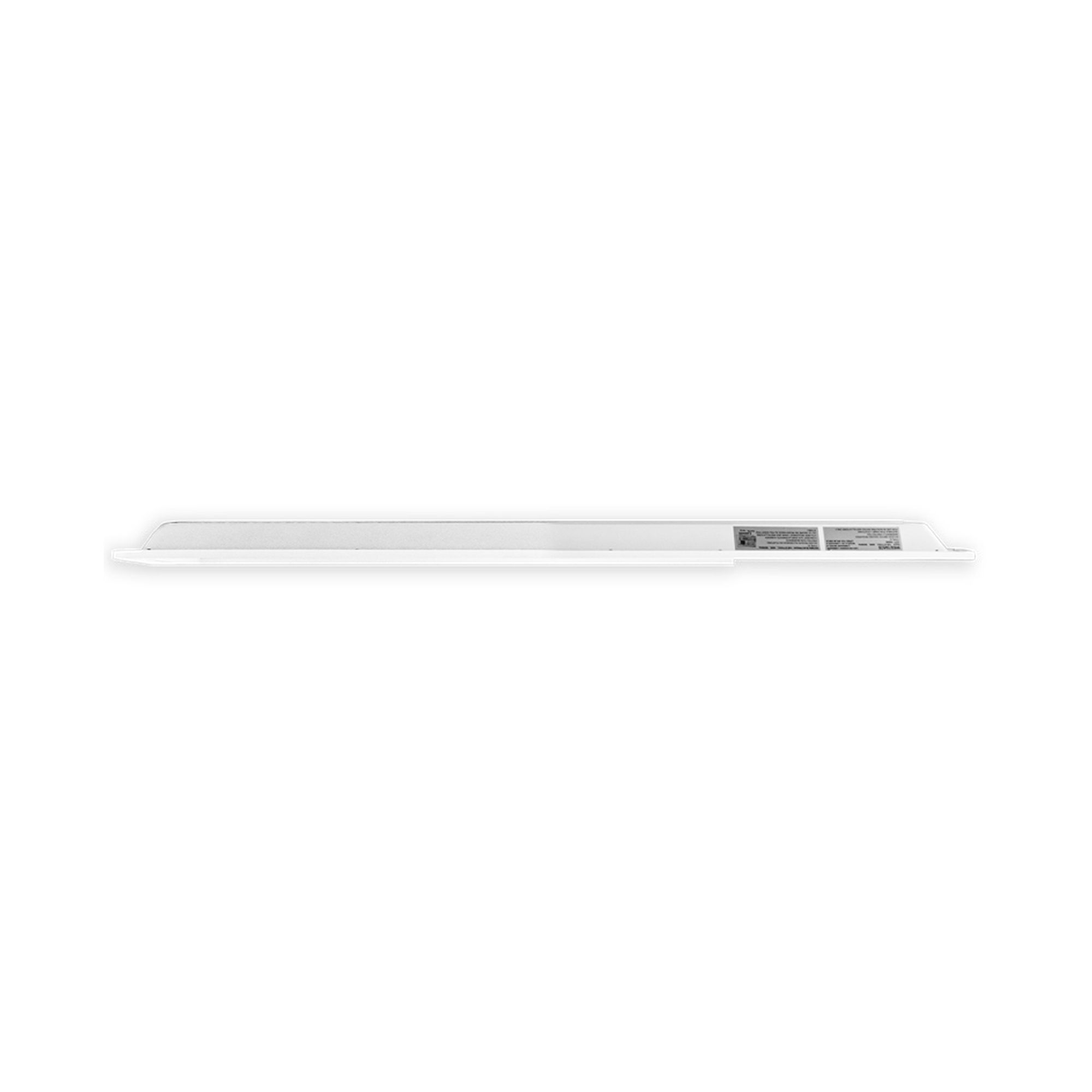

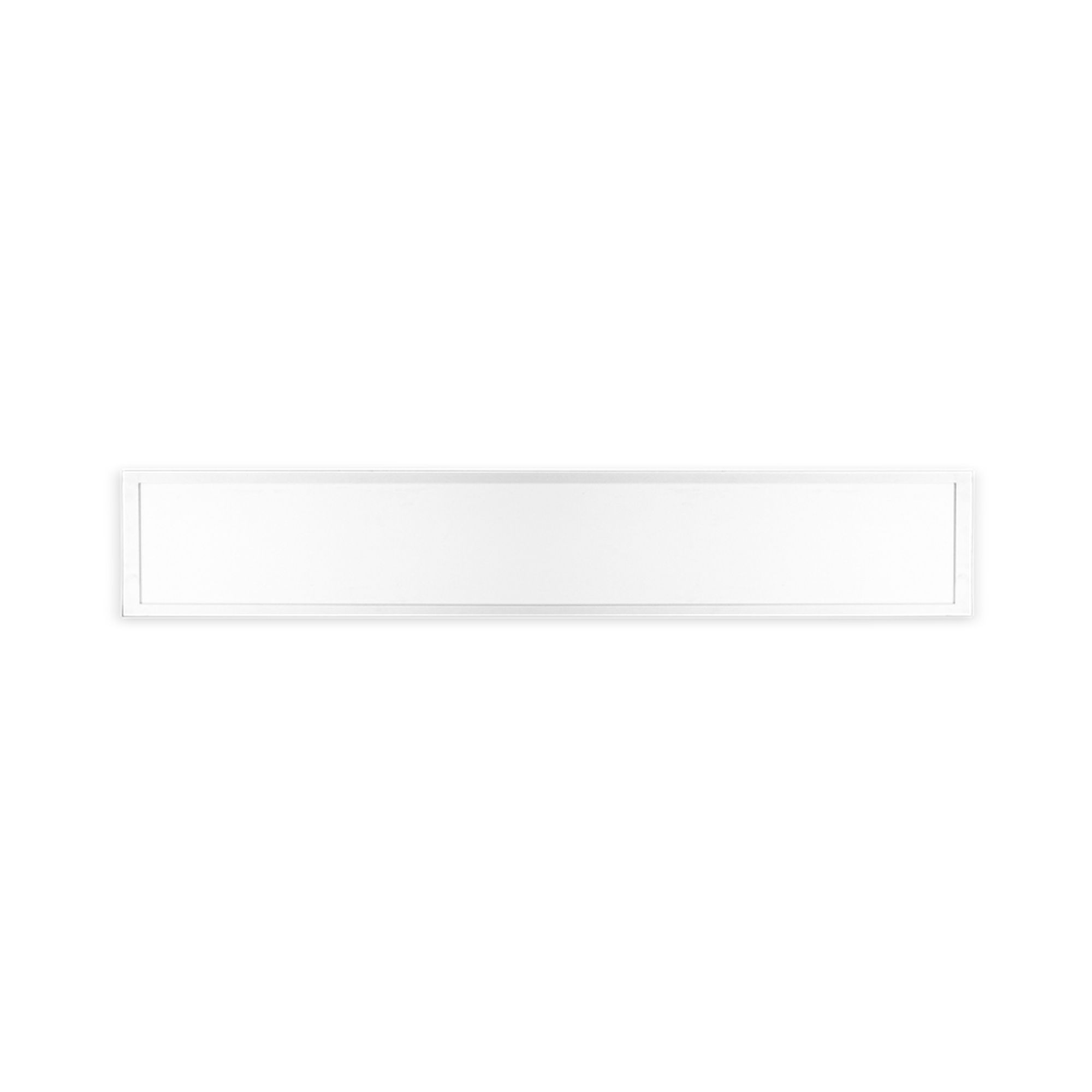

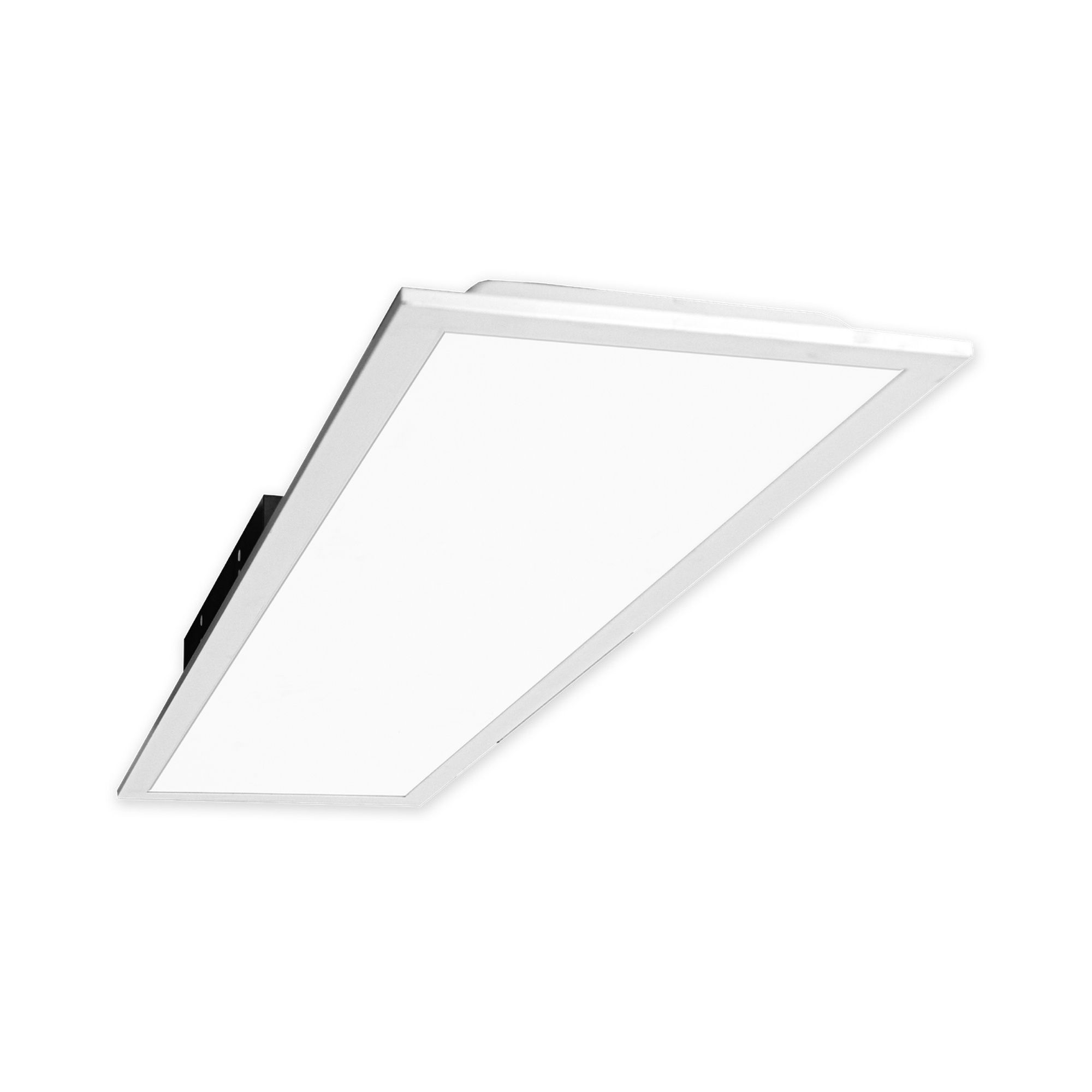

LPNP-1X4-MCTP5-SR 1x4 Sensor-Ready Multi-CCT Multi-Watt LED Backlit Flat Panel, Selectable
Technical Specs
- :: Format: 1x4, sensor-ready
- :: Wattage: 15W / 20W / 25W / 28W / 32W (selectable)
- :: Total Lumens: 2025 / 2700 / 3375 / 3780 / 4320 LM (by wattage step)
- :: Voltage: 120-277V 50/60Hz
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current: 337 / 253 / 168 mA
- :: Efficacy: 135 LPW
- :: Color Temperature: 3000K/3500K/4000K/5000K/6500K, selectable switch on back of fixture
- :: Dimming: 0-10V
- :: CRI: ≥ 80
- :: Beam Angle: 110°
- :: BUG Rating: B2-U2-G1
- :: Power Factor: >0.90
- :: THD: ≤ 20%
- :: Surge Protection: 1KV
- :: Dimensions: 47-4/5-inch (L) x 11-4/5-inch (W) x 1-3/4-inch (D)

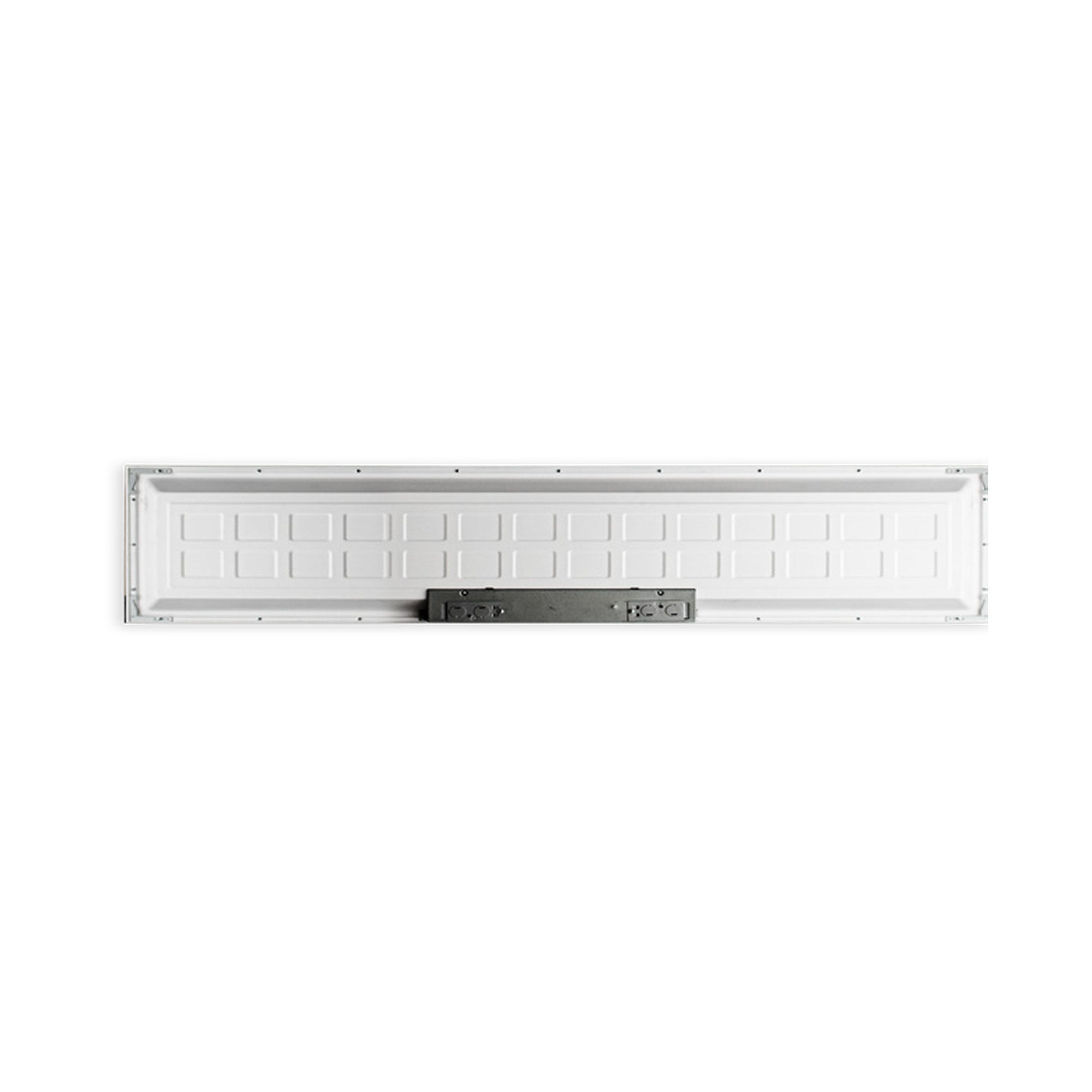

- :: Housing: White finish, external driver mounted on top, earthquake and suspension hooks pre-installed
- :: Operating Temperature: -68°F to 104°F
- :: Rated Life: 50,000 hours
- :: Warranty: 5-Year
- :: Certifications: UL Listed, DLC Premium
Applications
- :: The LPNP-1X4-MCTP5-SR is the sensor-ready 1x4 panel in the LPNP series, built for corridors, offices, retail aisles, and narrow indoor runs in hotels, restaurants, parking garages, storage rooms, conference rooms, and education facilities. It adds a pre-installed socket for a plug-in occupancy or daylight sensor, layering energy-code automation on top of selectable color and wattage. Choose this sensor-ready version where you want integrated controls; opt for the standard LPNP-1X4-MCTP5 where sensing isn't needed.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Total Height | Voltage | ||
|---|---|---|---|---|---|
 WEC-2CPDR-3 SPEC | Ceiling Sensor, IP20 PIR, DIP/Remote Control, Bi Level | 11.5' | 120~277V AC | ||
 WEC-3RC SPEC | Remote Control (Check Spec Sheet for Compatibility) | ||||
 LPNG-SRFC-1X4 INST SPEC | Surface Mounting Kit for LPNG-1X4 | ||||
 LPNG-RMK-1X4 SPEC INST | Recessed Mounting Flange Kit for LPNG-1X4 |
