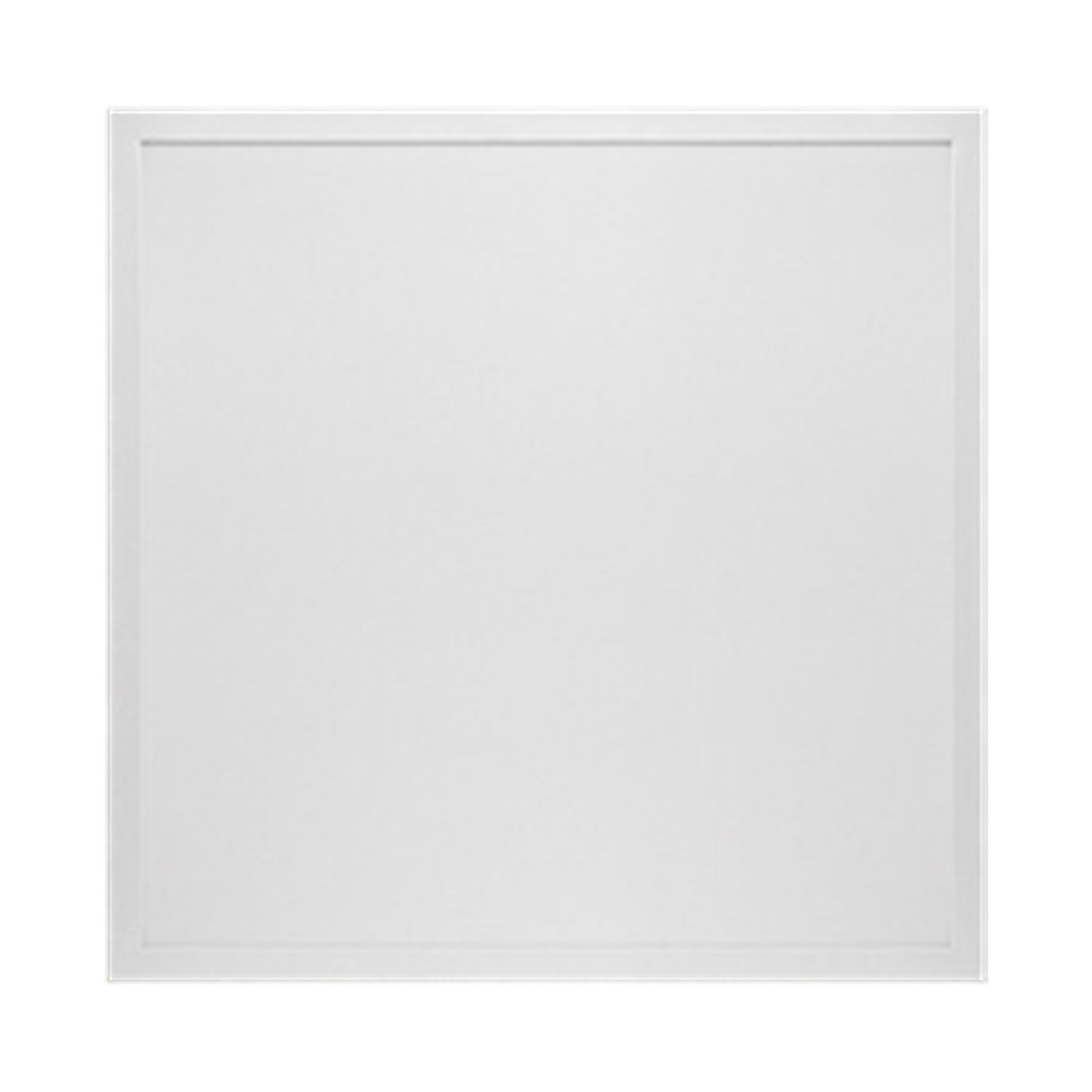

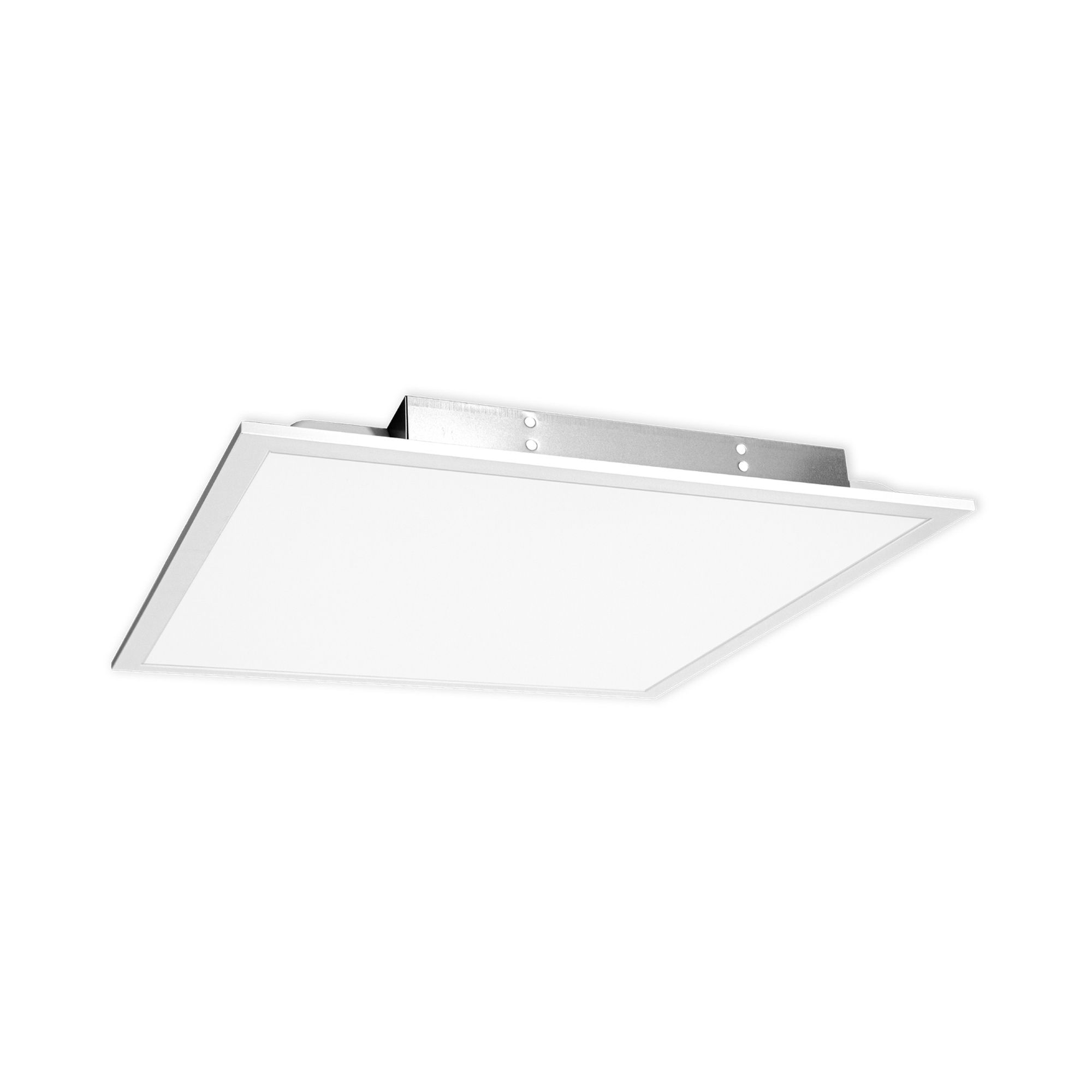

LPNP-2X2-MCTP5-SR 2x2 15W-32W Sensor-Ready Multi-CCT Premium Back-Lit LED Flat Panel, Power & CCT Selectable
Technical Specs
- :: Input Voltage: 120-277VAC, 50/60Hz
- :: Wattage: 15W / 20W / 25W / 28W / 32W, field selectable
- :: Power Factor: >0.90
- :: THD: ≤20%
- :: Dimming: 0-10V
- :: Lumens: 2,025 / 2,700 / 3,375 / 3,780 / 4,320 LM
- :: Efficacy: 135 LPW
- :: CCT: 3000K / 3500K / 4000K / 5000K / 6500K, field selectable
- :: CRI: ≥80
- :: Beam Angle: 110°
- :: BUG Rating: B2-U2-G1

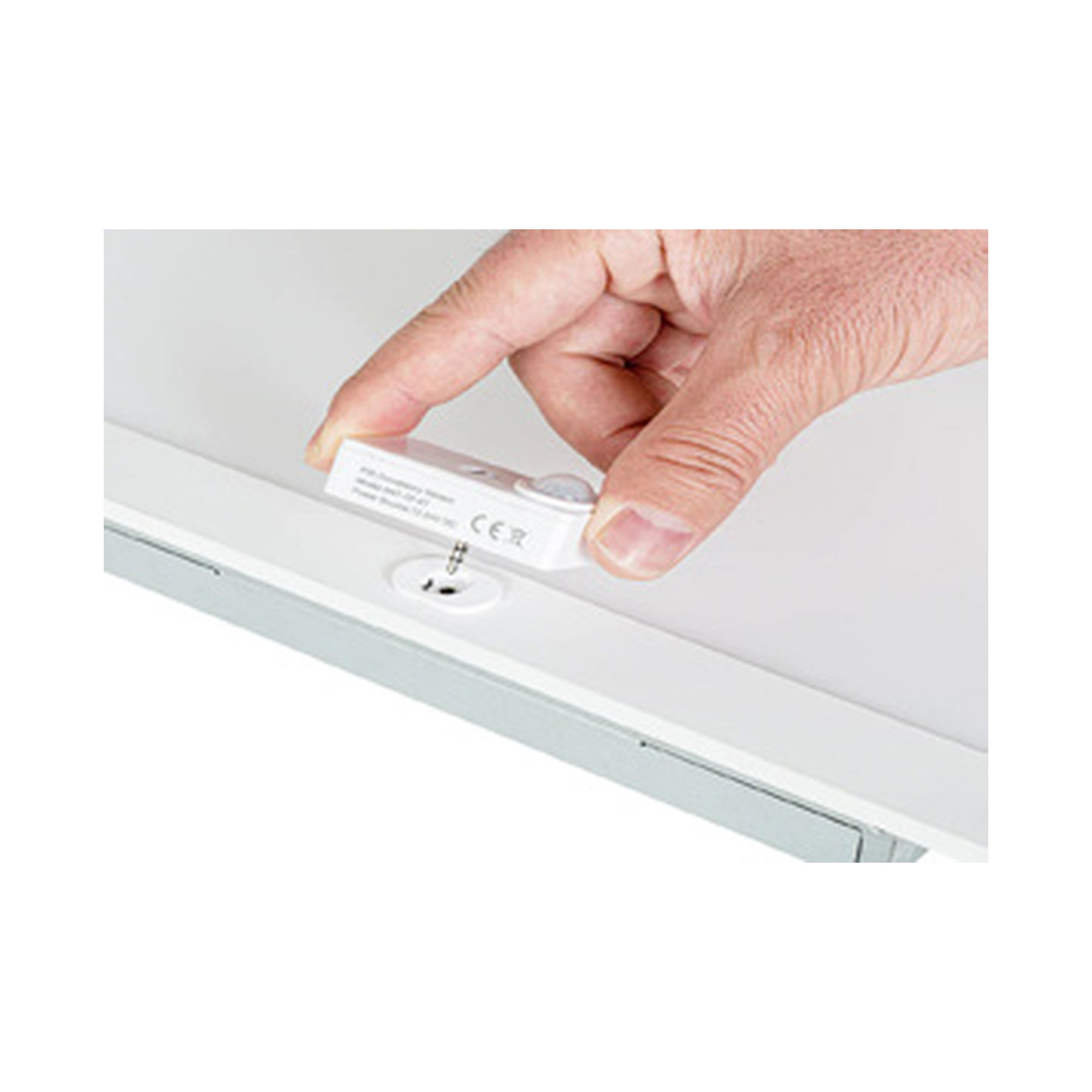

- :: Sensor Ready: Pre-installed audio-jack sensor socket on side of panel; sensor sold separately

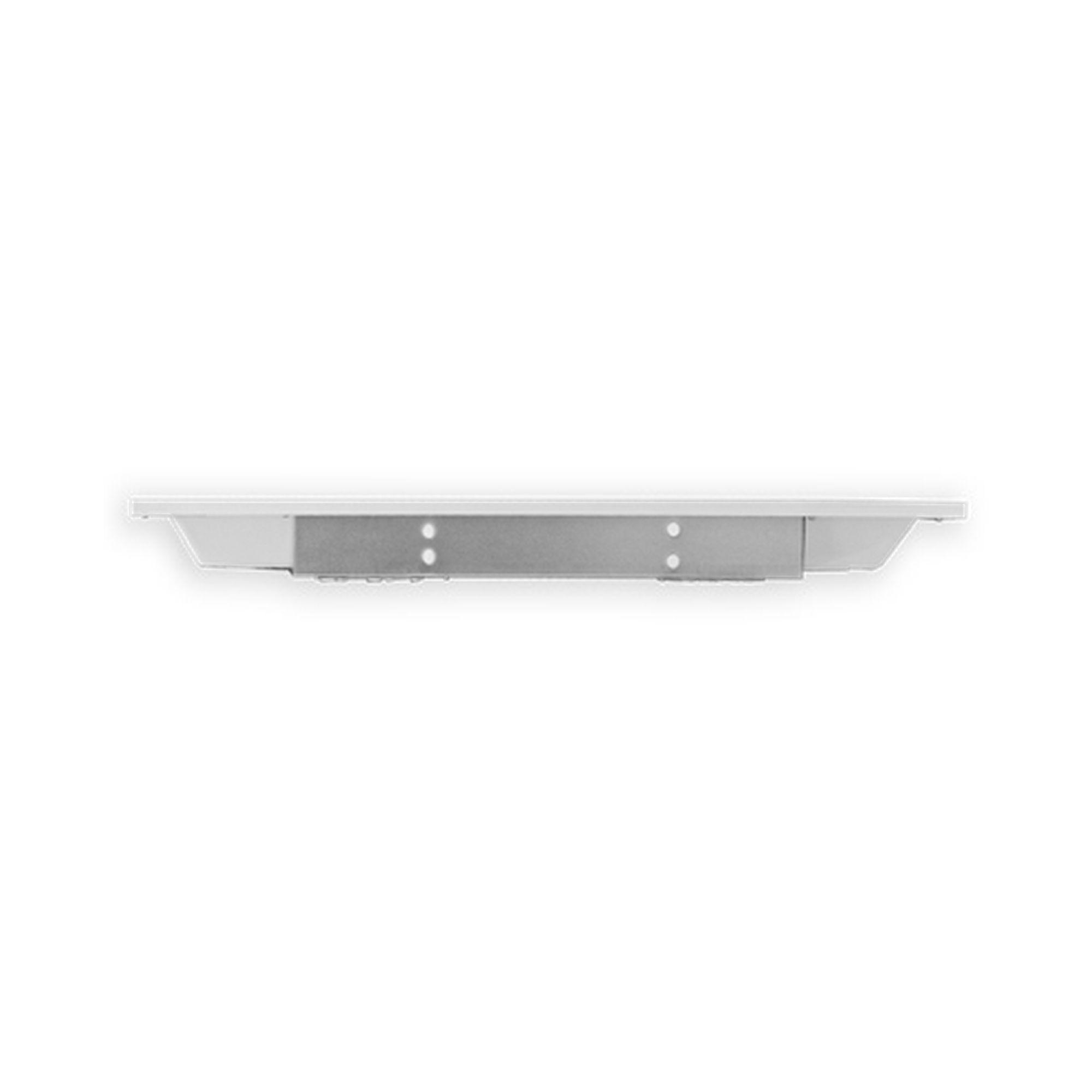

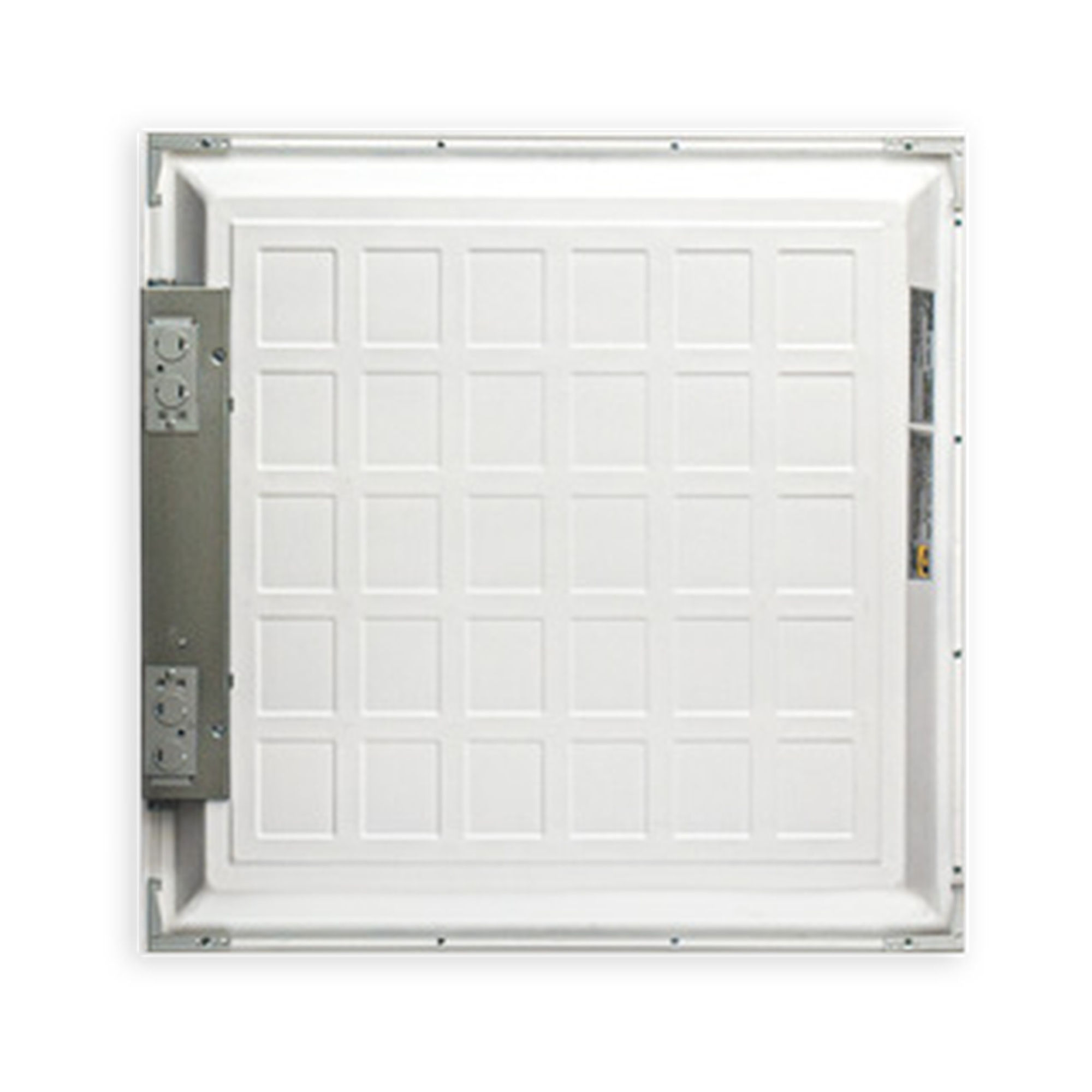

- :: Driver: External driver mounted on top, 36VDC output; 1kV surge protection
- :: Housing: White finish; earthquake and suspension hooks pre-installed
- :: Dimensions: 23.8-inch L x 23.8-inch W x 1.75-inch D
- :: Operating Temp: -68°F to 104°F
- :: Rated Life: 50,000 hours
- :: Warranty: 5 years
- :: Certifications: UL Listed, DLC Listed
Applications
- :: The Westgate LPNP-MCTP5-SR 2x2 flat panel delivers soft, wide, and even back-lit illumination for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more. A pre-installed sensor socket on the side of the panel lets a plug-in motion sensor be added in seconds for automatic occupancy control, and it delivers higher efficiency and more light than the standard 2x2 at every wattage setting. Five selectable wattages and five selectable color temperatures make it ideal for offices, conference rooms, reception areas, and replacing 2x2 fluorescent troffers. Pre-installed earthquake and suspension hooks speed installation, and optional kits allow recessed, surface, or skylight-frame mounting.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Total Height | Voltage | ||
|---|---|---|---|---|---|
 WEC-2CPDR-3 SPEC | Ceiling Sensor, IP20 PIR, DIP/Remote Control, Bi Level | 11.5' | 120~277V AC | ||
 WEC-2PR-28-AJ-WH SPEC | PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level & RC | ||||
 LP-SLF-2X2 SPEC | Sky Light Recessed Frame for Panel Lights 2-3/4" Deep | ||||
 WEC-3RC SPEC | Remote Control (Check Spec Sheet for Compatibility) | ||||
 LPNG-SRFC-2X2 INST SPEC | Surface Mounting Kit for LPNG-2X2 | ||||
 LPNG-RMK-2X2 SPEC INST | Recessed Mounting Flange Kit for LPNG-2X2 |
