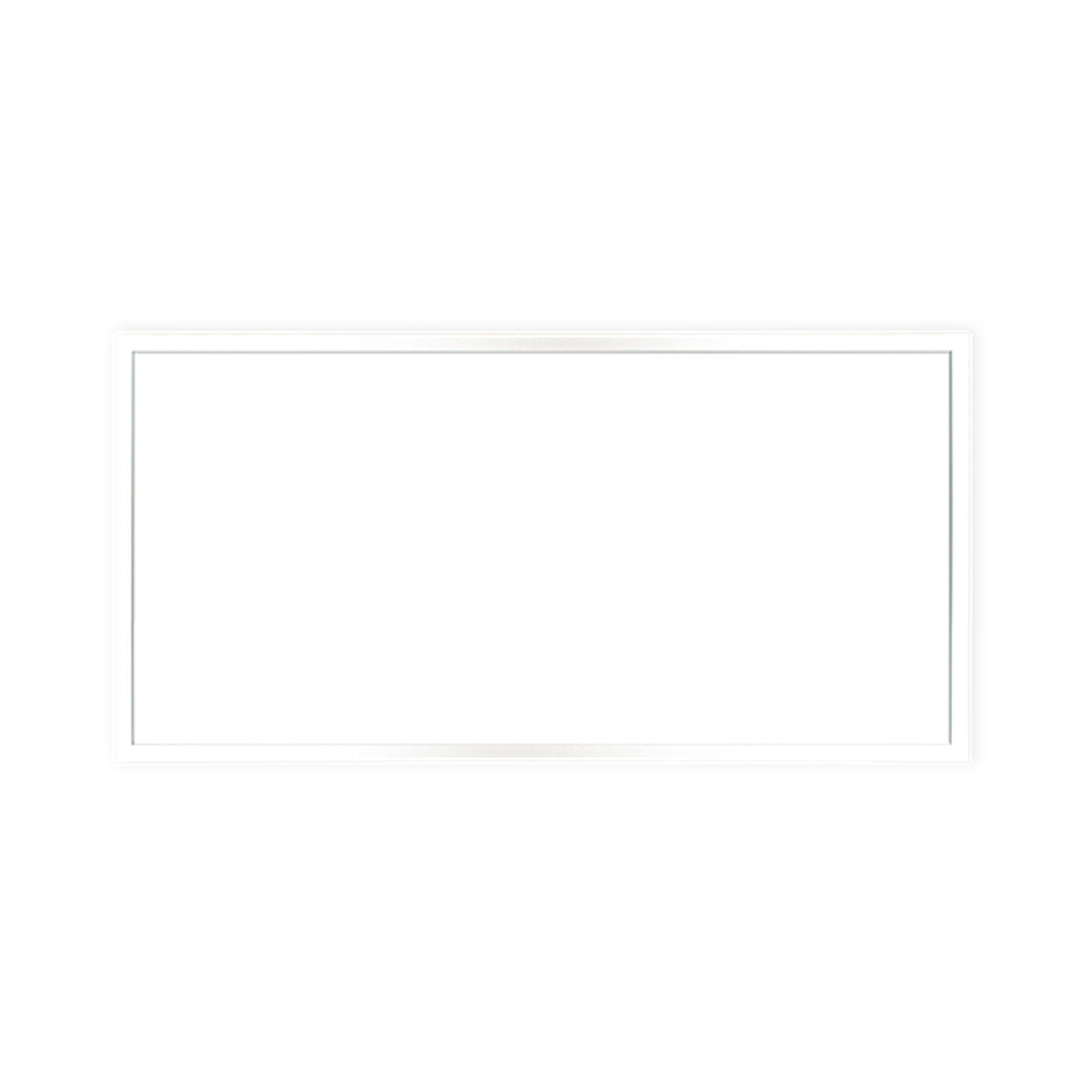

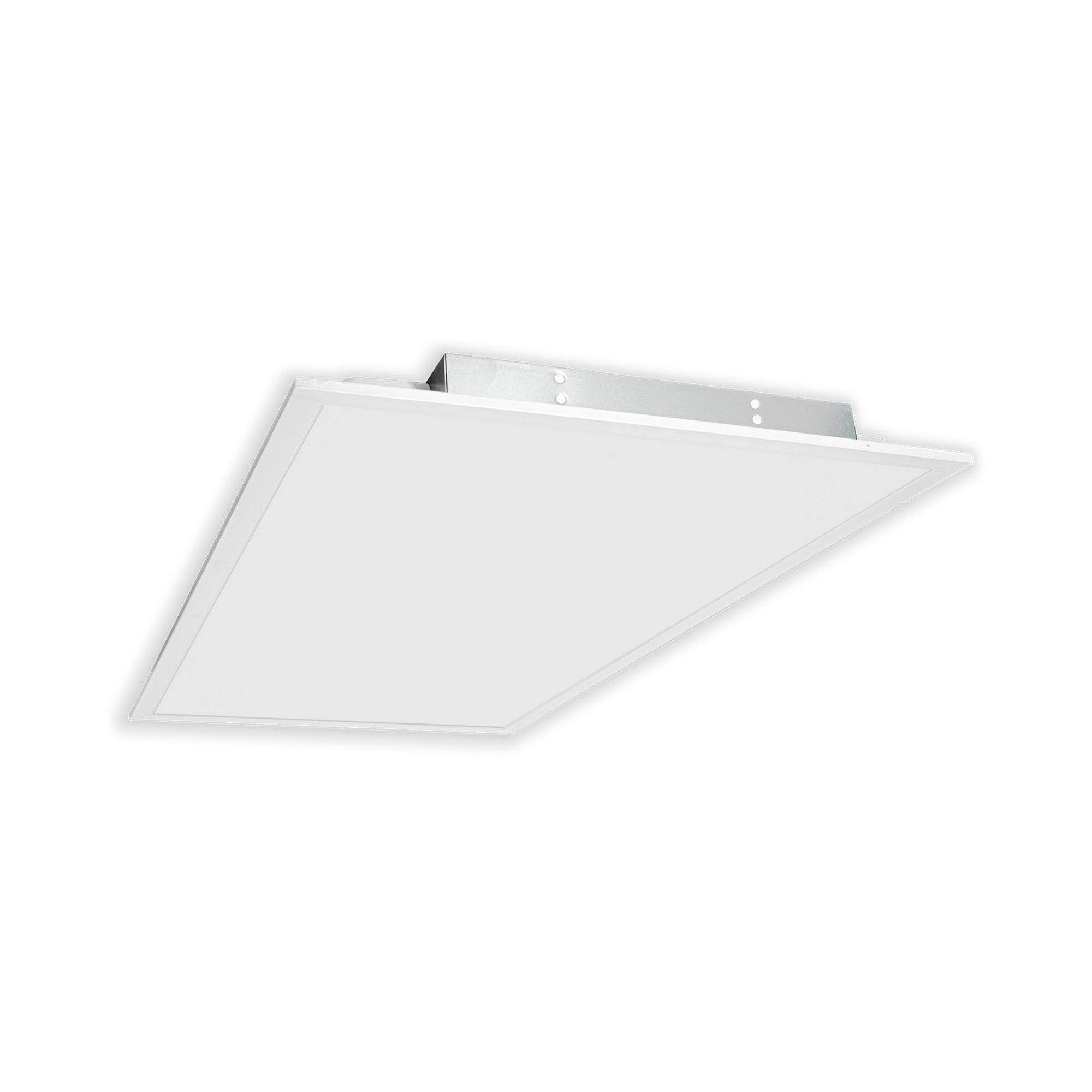

LPNP-2X4-HL-MCTP5-SR 2x4 High-Lumen Sensor-Ready Multi-CCT Multi-Watt LED Backlit Flat Panel, Selectable
Technical Specs
- :: Format: 2x4 High-Lumen, sensor-ready
- :: Wattage: 30W / 35W / 45W / 55W / 65W (selectable)
- :: Total Lumens: 4050 / 4725 / 6075 / 7425 / 8775 LM (by wattage step)
- :: Voltage: 120-277V 50/60Hz
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current: 1050 mA
- :: Efficacy: 135 LPW
- :: Color Temperature: 3000K/3500K/4000K/5000K/6500K, selectable switch on back of fixture
- :: Dimming: 0-10V
- :: CRI: ≥ 80
- :: BUG Rating: B2-U3-G2
- :: Power Factor: >0.90
- :: THD: ≤ 20%
- :: Surge Protection: 1KV

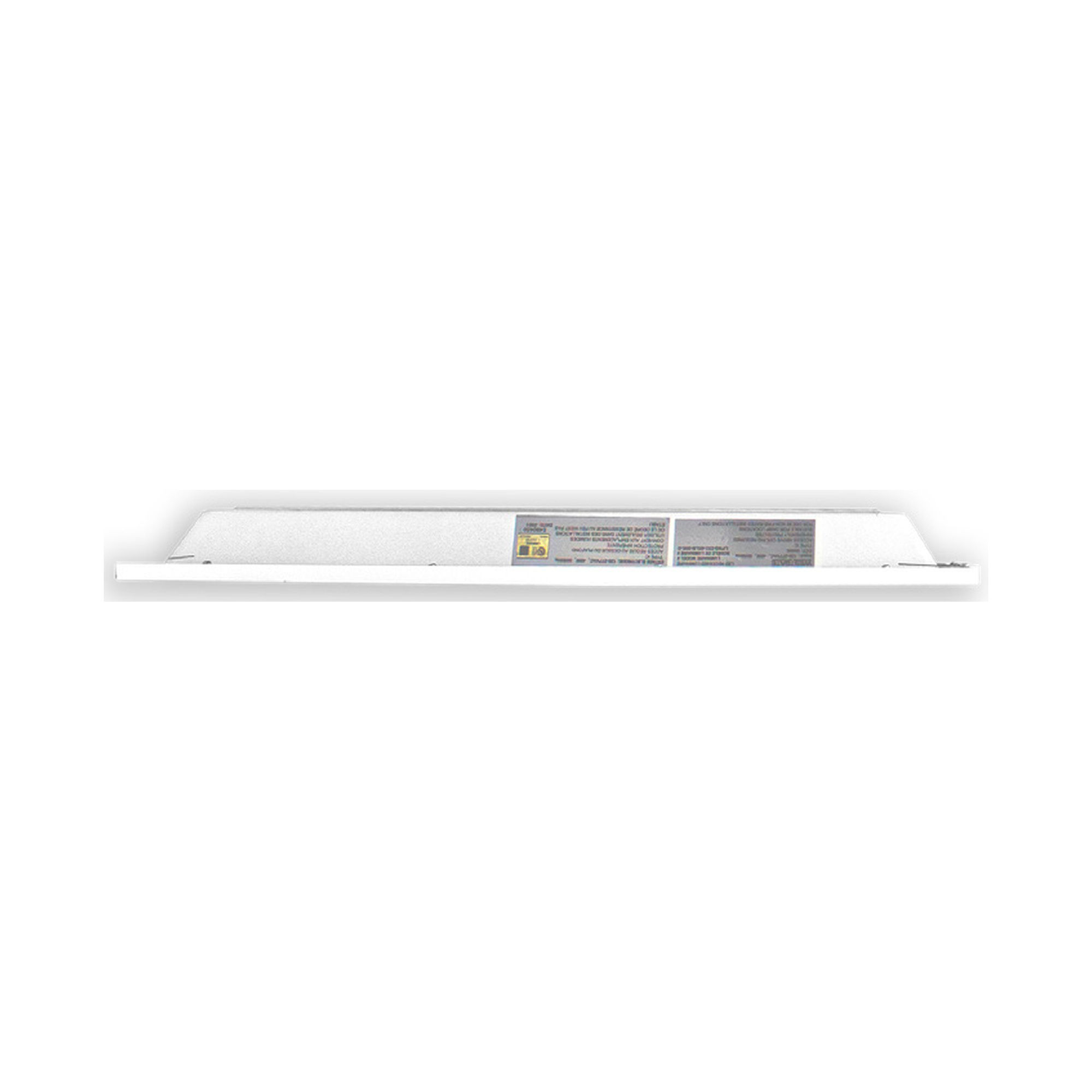

- :: Dimensions: 47-4/5-inch (L) x 23-4/5-inch (W) x 1-3/4-inch (D)

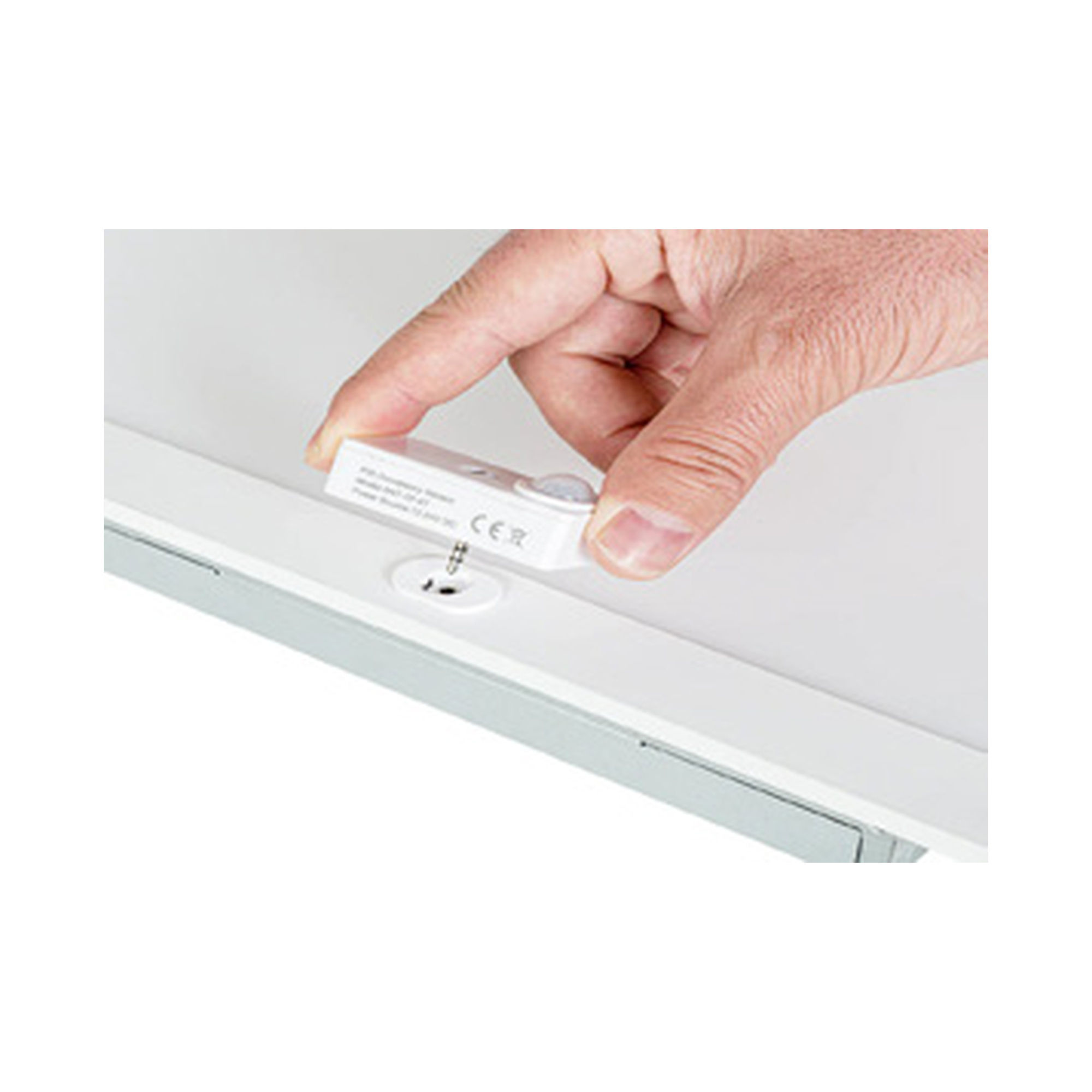

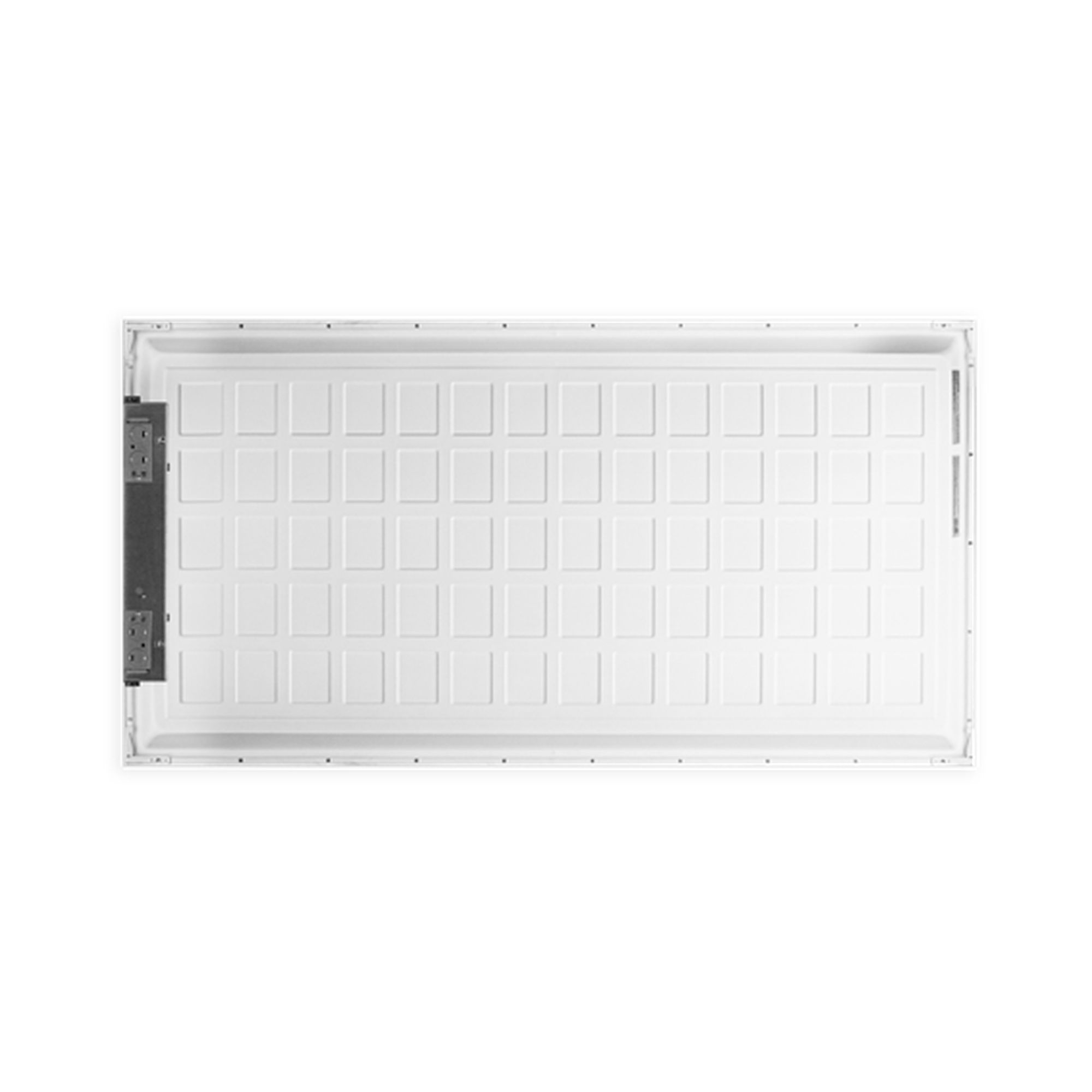

- :: Housing: White finish, external driver mounted on top, earthquake and suspension hooks pre-installed; audio-jack sensor socket pre-installed on side
- :: Operating Temperature: -68°F to 104°F
- :: Rated Life: 50,000 hours
- :: Warranty: 5-Year
- :: Certifications: UL Listed, DLC Premium
Applications
- :: The LPNP-2X4-HL-MCTP5-SR is the high-lumen, sensor-ready 2x4 panel in the LPNP series, built for spaces that need serious brightness such as parking garages, big-box retail, warehouses, gymnasiums, and other high-ceiling or high-ambient areas in commercial and education settings. It pairs a pre-installed sensor socket with the series' highest selectable output, so you get automation and punch in one fixture. Choose this high-lumen version where standard panels can't keep up; opt for the LPNP-2X4-MCTP5-SR for typical office and retail light levels.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Total Height | Voltage | ||
|---|---|---|---|---|---|
 WEC-2CPDR-3 SPEC | Ceiling Sensor, IP20 PIR, DIP/Remote Control, Bi Level | 11.5' | 120~277V AC | ||
 WEC-2DLH-22 SPEC | Daylight Harvesting Light Sensor | ||||
 WEC-2PR-28-AJ-WH SPEC | PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level & RC | ||||
 WEC-3RC SPEC | Remote Control (Check Spec Sheet for Compatibility) | ||||
 LPNG-SRFC-2X4 INST SPEC | Surface Mounting Kit for LPNG-2X4 | ||||
 LPNG-RMK-2X4 SPEC INST | Recessed Mounting Flange Kit for LPNG-2X4 |
