LPNP-2X4-MCTP5-SR 2x4 Sensor-Ready Multi-CCT Multi-Watt LED Backlit Flat Panel, Selectable
Technical Specs
- :: Format: 2x4, sensor-ready
- :: Wattage: 21W / 25W / 30W / 35W / 43W (selectable)
- :: Total Lumens: 2835 / 3375 / 4050 / 4725 / 5805 LM (by wattage step)
- :: Voltage: 120-277V 50/60Hz
- :: Fixture Operating Voltage: 36VDC
- :: Rated Input Current: 1050 mA
- :: Efficacy: 135 LPW
- :: Color Temperature: 3000K/3500K/4000K/5000K/6500K, selectable switch on back of fixture
- :: Dimming: 0-10V
- :: CRI: ≥ 80
- :: BUG Rating: B2-U3-G2
- :: Power Factor: >0.90
- :: THD: ≤ 20%
- :: Surge Protection: 1KV
- :: Dimensions: 47-4/5-inch (L) x 23-4/5-inch (W) x 1-3/4-inch (D)
- :: Housing: White finish, external driver mounted on top, earthquake and suspension hooks pre-installed; audio-jack sensor socket pre-installed on side
- :: Operating Temperature: -68°F to 104°F
- :: Rated Life: 50,000 hours
- :: Warranty: 5-Year
- :: Certifications: UL Listed, DLC Premium
Applications

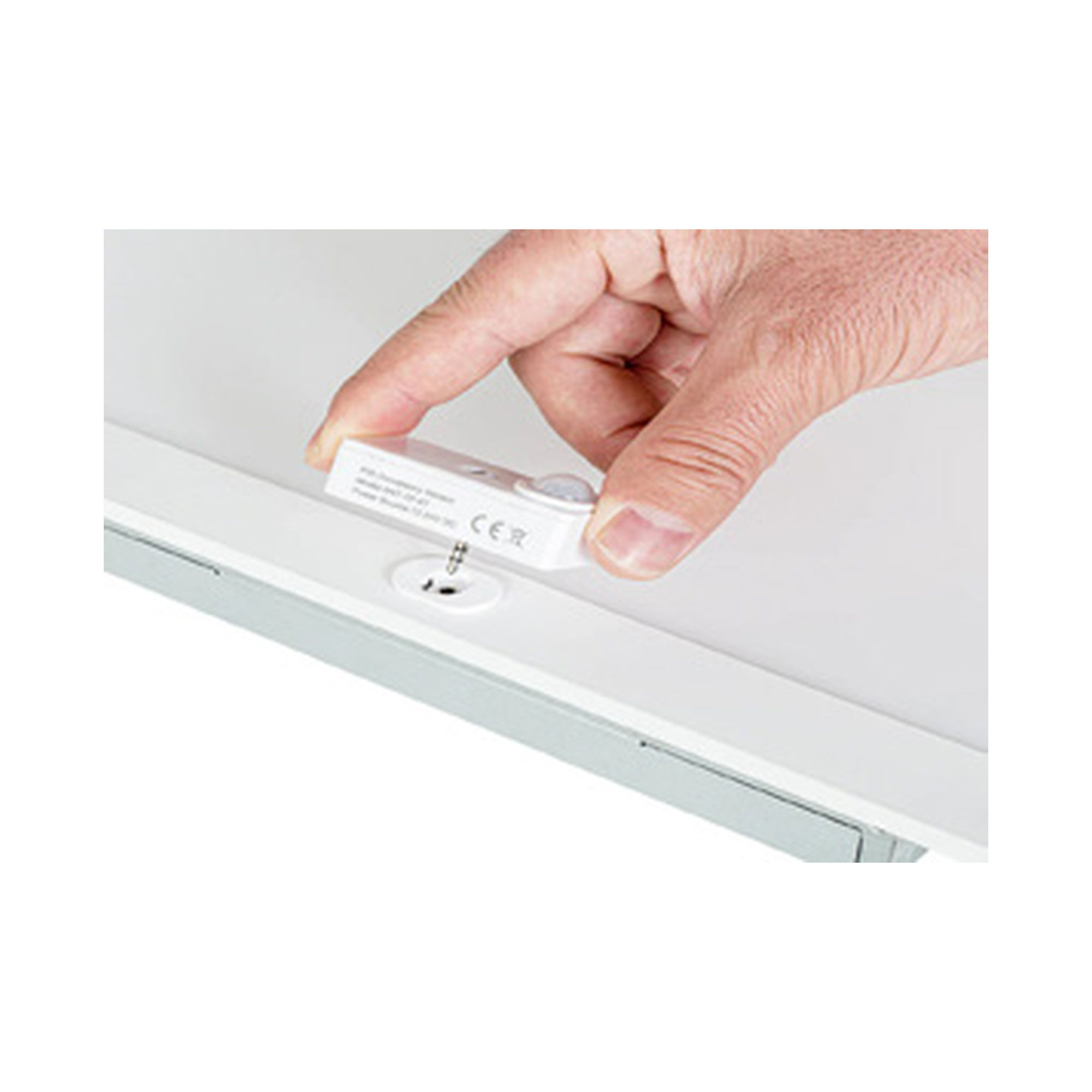

- :: The LPNP-2X4-MCTP5-SR is the sensor-ready 2x4 panel in the LPNP series, sized for larger open areas in offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, and education facilities. A pre-installed side socket accepts a plug-in occupancy or daylight sensor for energy-code automation, on top of selectable color and wattage. Choose this sensor-ready version for integrated controls; opt for the standard LPNP-2X4-MCTP5, or the LPNP-2X4-HL-MCTP5-SR for higher output.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | Total Height | Voltage | ||
|---|---|---|---|---|---|
 WEC-2CPDR-3 SPEC | Ceiling Sensor, IP20 PIR, DIP/Remote Control, Bi Level | 11.5' | 120~277V AC | ||
 WEC-3RC SPEC | Remote Control (Check Spec Sheet for Compatibility) | ||||
 LPNG-SRFC-2X4 INST SPEC | Surface Mounting Kit for LPNG-2X4 | ||||
 LPNG-RMK-2X4 SPEC INST | Recessed Mounting Flange Kit for LPNG-2X4 |
