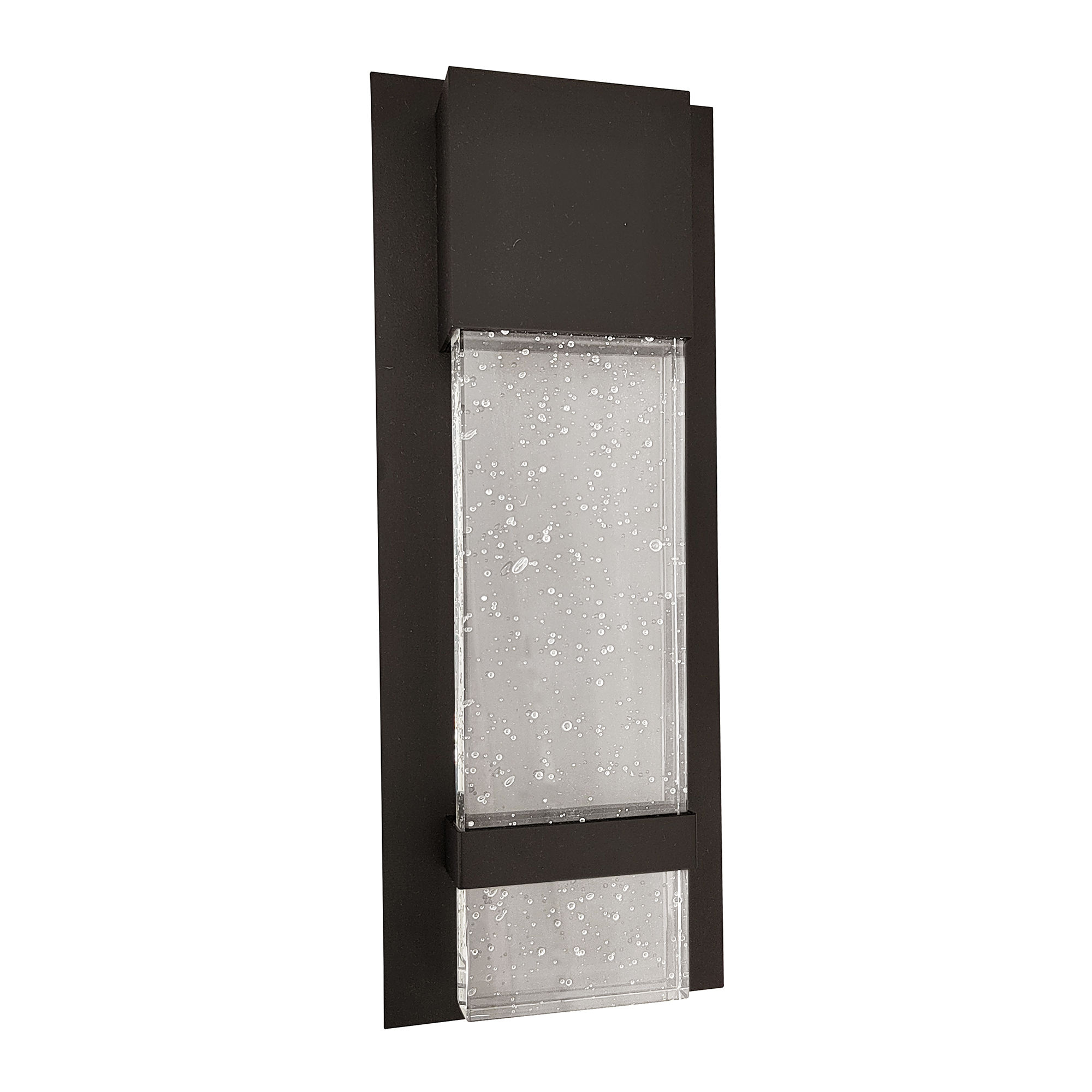

LRS-SG1-MCT-ORB Oil-Rubbed Bronze 12W Seeded Glass LED Wall Sconce, SG1

:: Fixture Type: LED outdoor wall sconce (seeded glass)
:: Voltage: 120V AC, 60Hz
:: Wattage: 12W
:: Power Factor: >0.90
:: Total Lumens: 1200LM
:: Efficacy: 100 LPW
:: Color Temperature: 3000K/4000K/5000K (Multi CCT, switch inside fixture)
:: Color Rendering Index: CRI ≥ 80
:: Beam Angle: 90° x 110°
:: BUG Rating: B0-U3-G1
:: Rated Life: 70,000 hours
:: Housing: Aluminum housing with steel back plate, Oil-Rubbed Bronze finish
:: Lens: Seeded glass
:: Dimensions: 6-inch x 14-inch (W x H)
:: Operating Temperature: -4°F to 104°F
:: Location Rating: Wet Location; IP42, suitable for outdoor use
:: Certifications: cETLus Listed
:: Warranty: 7-Year

:: The Westgate LRS-SG1-MCT-ORB is a seeded-glass LED wall sconce for general site lighting, residential buildings, doorways, pathways, and parking areas. This is the SG1 housing style in oil-rubbed bronze, the compact 6-inch-wide sconce in the line, with a Multi CCT switch inside the fixture for 3000K, 4000K, or 5000K. It shares its bronze finish and specs with the larger SG2 and the alternate-style SG3; choose the dual-dimming SG1-DD version if the install needs TRIAC or 0-10V control.
