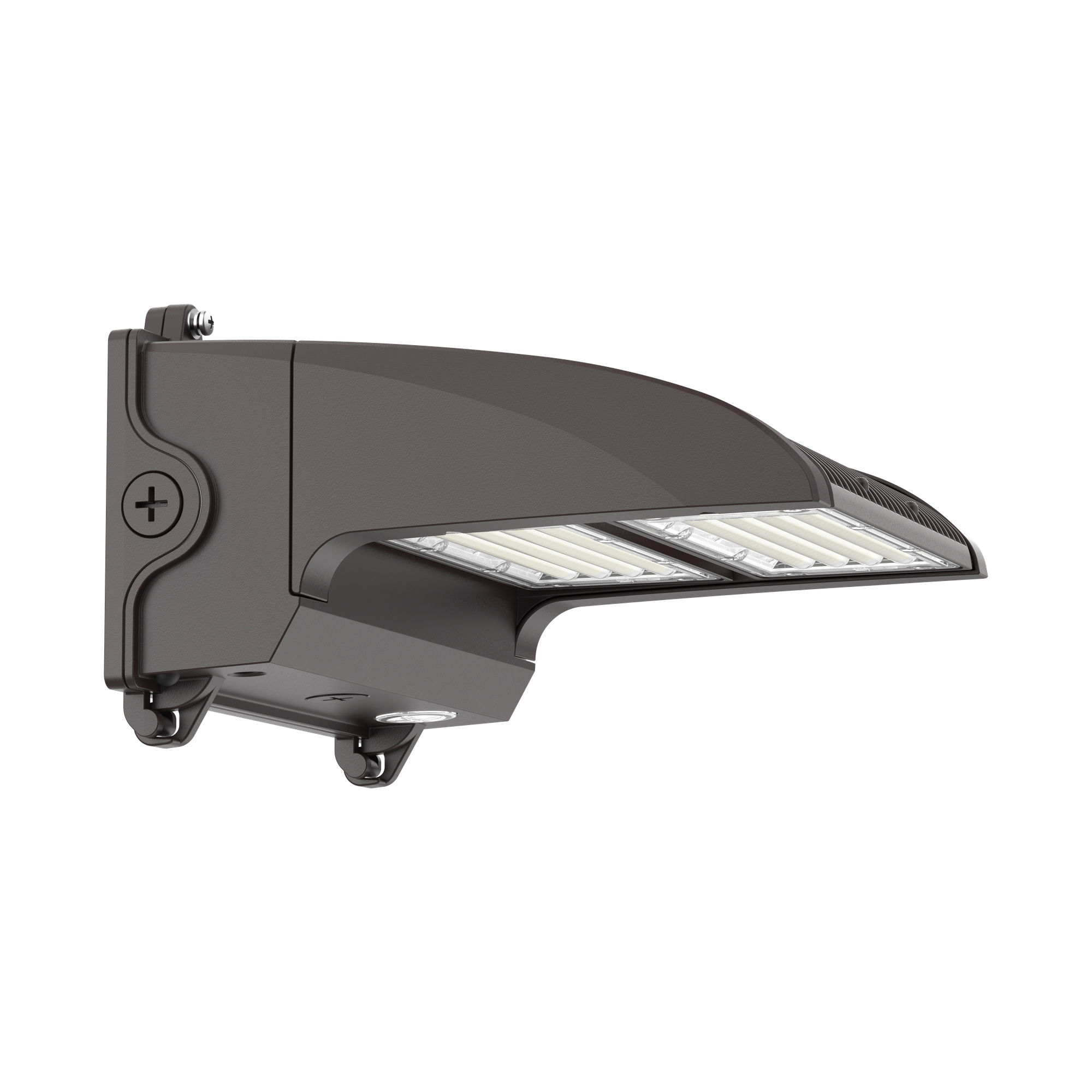

LW360-60-120W-MCTP-PSR 60-120W Bronze High-Output Rotatable LED Wall Pack Photocell Sensor-Ready 3CCT
Technical Specs
- :: Fixture type: adjustable-head LED wall pack, photocell and sensor ready
- :: Body: LW360-60 (high output, dual-lens)
- :: Input voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: field-selectable 60W / 80W / 100W / 120W
- :: Dimming: 0-10V
- :: Power factor: >=0.90
- :: THD: <20%
- :: Lumen output: 9,000LM / 12,000LM / 15,000LM / 18,000LM
- :: Efficacy: up to 150 LM/W
- :: Color temperature: 3CCT selectable, 3000K / 4000K / 5000K
- :: CRI: 80
- :: LED: SMD2835
- :: Optic: Type III; adjustable optical assembly for directional illumination
- :: Lens: polycarbonate, dual-lens design
- :: Photocell: integrated dusk-to-dawn with ON/OFF selector; factory default photocell ON, max wattage, 5000K
- :: Surge protection: 6kV line-to-neutral / 6kV line-to-ground
- :: Auxiliary output: Class 2 for compatible sensor controls
- :: Housing: die-cast aluminum, silicone-gasketed, with bottom drain openings
- :: Mounting: wall mount only; toolless adjustable head; adjustable head range -15-degree to 210-degree; four 1/2-inch knockouts
Applications
- :: The LW360-60-120W-MCTP-PSR is the high-output, dual-lens member of the LW360 family from Westgate in the default bronze finish, built for large facades, parking areas, and commercial perimeters that demand serious lumen output and wide coverage. Its toolless adjustable head aims up to 18,000 lumens where it is needed, while field-selectable wattage and color temperature, an integrated dusk-to-dawn photocell, and sensor-ready wiring keep it flexible. The bronze finish suits most commercial exteriors. Choose this high-output body for demanding jobs; Westgate offers the compact LW360-15 body for lower output, and black, silver, and white finishes.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 WEC-3PR-78-AJ-WH SPEC | PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level & RC (Optional RC WEC-3RC) | ||
| PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level Bluetooth App Ready |
