SPEC SHEET

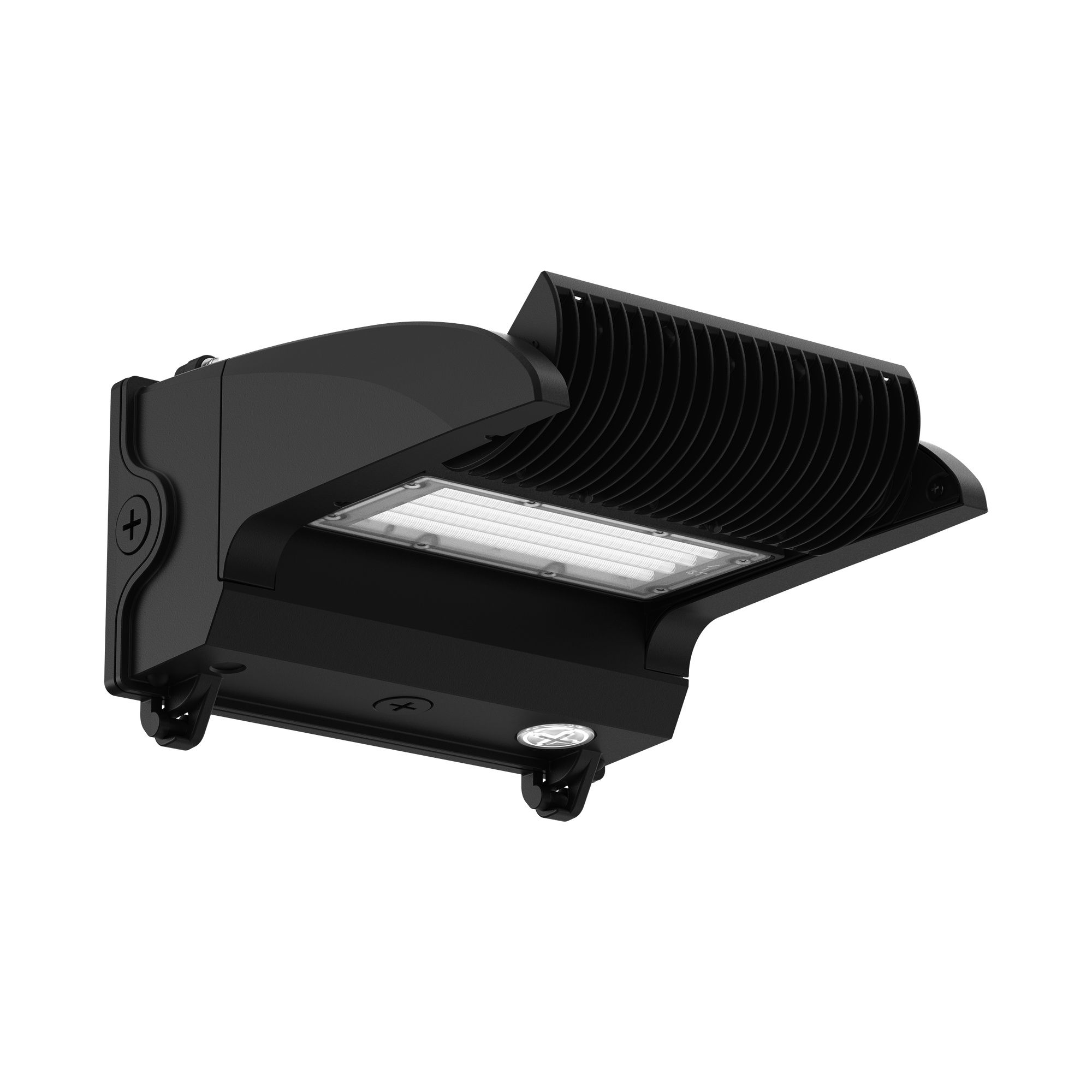

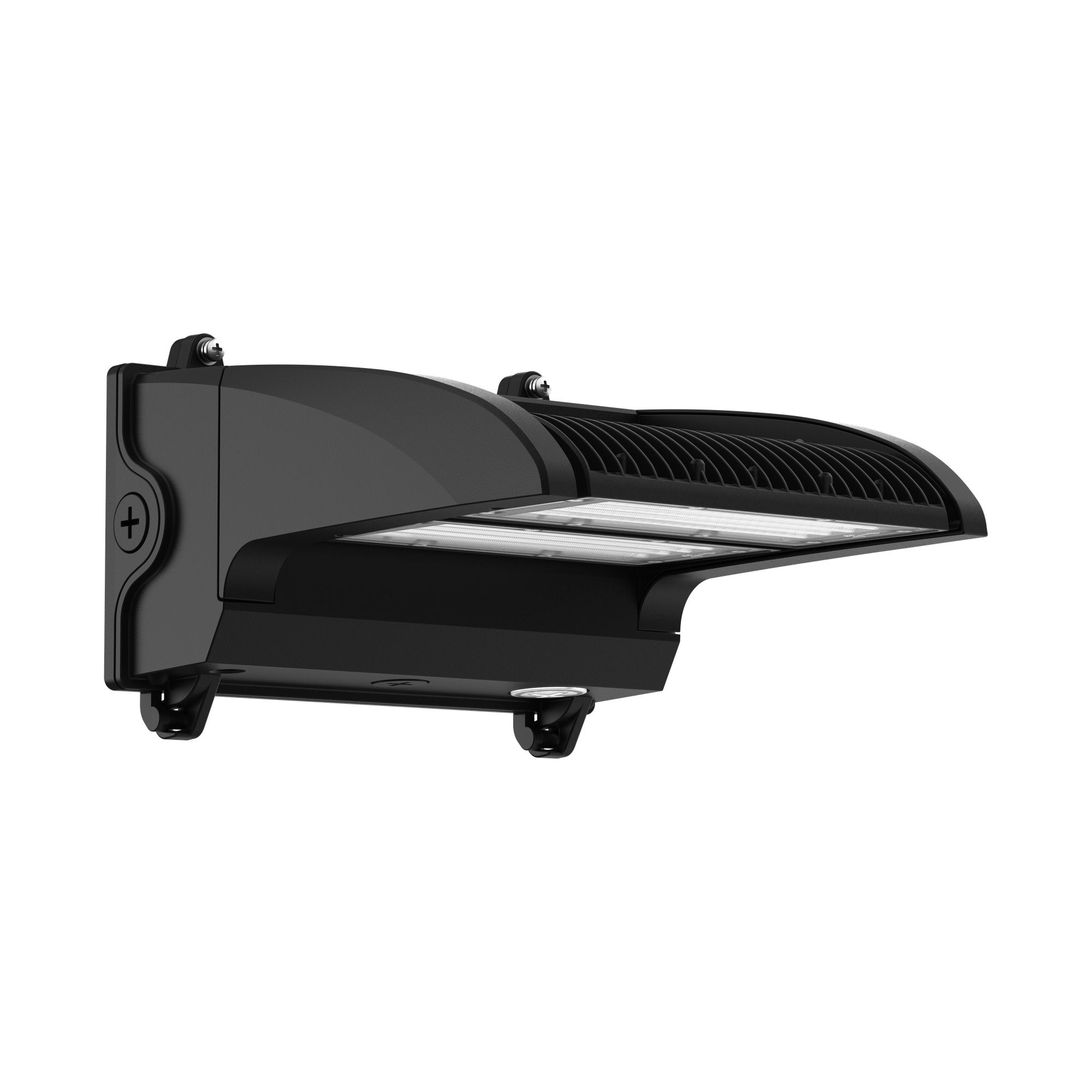

LW360-60-120W-MCTP-PSR-BK 60-120W Black High-Output Rotatable LED Wall Pack Photocell Sensor-Ready 3CCT
Technical Specs
- :: Fixture type: adjustable-head LED wall pack, photocell and sensor ready
- :: Body: LW360-60 (high output, dual-lens)
- :: Input voltage: 120-277 VAC, 50/60 Hz
- :: Wattage: field-selectable 60W / 80W / 100W / 120W
- :: Dimming: 0-10V
- :: Power factor: >=0.90
- :: THD: <20%
- :: Lumen output: 9,000LM / 12,000LM / 15,000LM / 18,000LM
- :: Efficacy: up to 150 LM/W
- :: Color temperature: 3CCT selectable, 3000K / 4000K / 5000K
- :: CRI: 80
- :: LED: SMD2835
- :: Optic: Type III; adjustable optical assembly for directional illumination
- :: Lens: polycarbonate, dual-lens design
- :: Photocell: integrated dusk-to-dawn with ON/OFF selector; factory default photocell ON, max wattage, 5000K
- :: Surge protection: 6kV line-to-neutral / 6kV line-to-ground
- :: Auxiliary output: Class 2 for compatible sensor controls
- :: Housing: die-cast aluminum, silicone-gasketed, with bottom drain openings
- :: Mounting: wall mount only; toolless adjustable head; adjustable head range -15-degree to 210-degree; four 1/2-inch knockouts
Applications
- :: The LW360-60-120W-MCTP-PSR-BK is the high-output, dual-lens member of the LW360 family from Westgate in a black finish, made for large modern facades and dark-clad structures that need high output with a crisp look. Its toolless adjustable head aims up to 18,000 lumens where needed, while field-selectable wattage and color temperature, an integrated dusk-to-dawn photocell, and sensor-ready wiring keep it flexible. Choose black on the high-output body for demanding modern installations; Westgate offers the compact LW360-15 body for lower output, and bronze, silver, and white finishes.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 WEC-3PR-78-AJ-WH SPEC | PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level & RC (Optional RC WEC-3RC) | ||
| PIR Sensor 1-Pin Audio Jack Contact 600W 40Ft 120-277V 0-10V Bi-Level Bluetooth App Ready |
