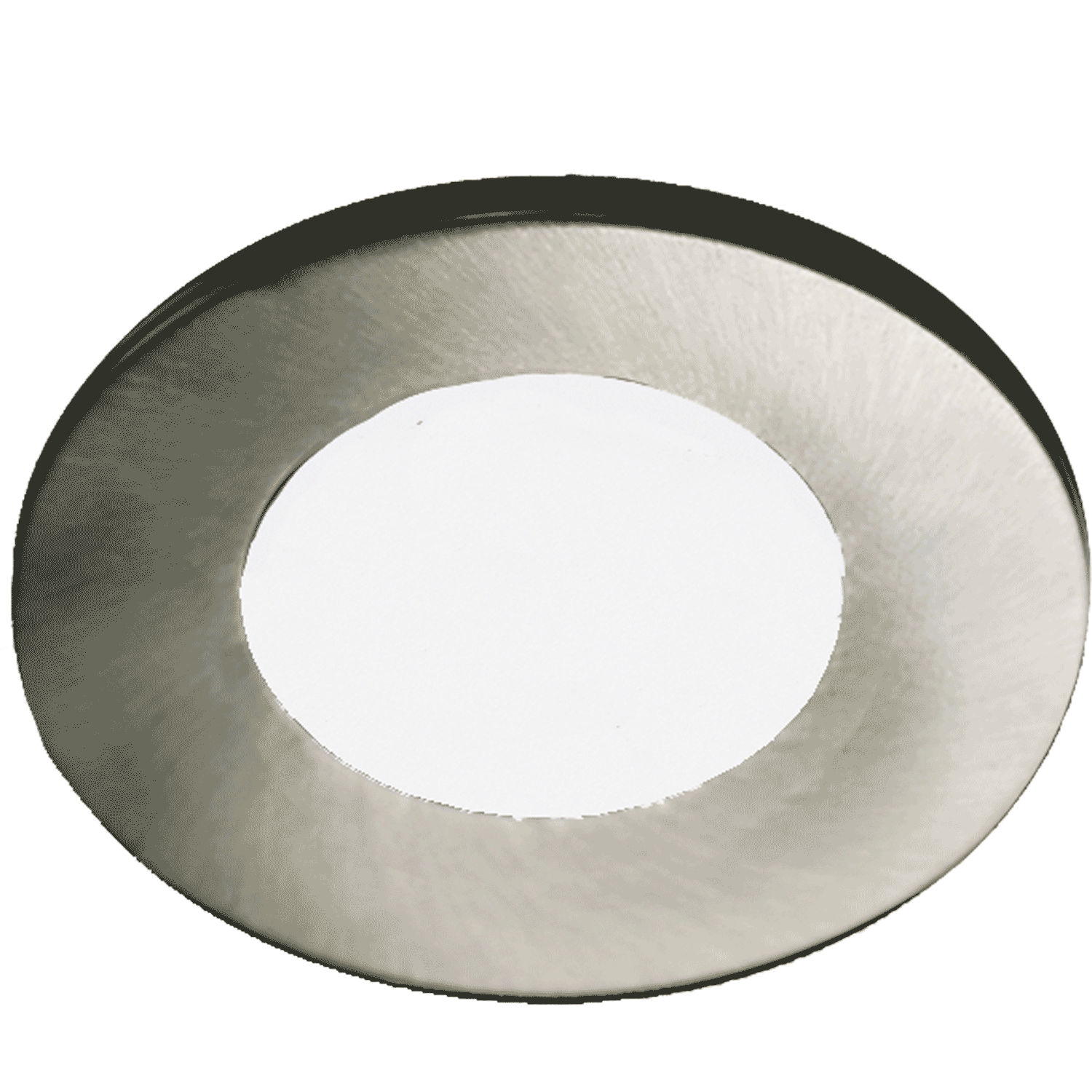

PL12-30K-BN Brushed Nickel 3000K 3-inch Round Slim Puck Light
Technical Specs
- :: Voltage: 12V DC
- :: Wattage: 2W
- :: Efficacy: 60LM/W
- :: Lumens: 120LM
- :: Color Temperature: 3000K
- :: Beam Angle: 120-degree
- :: Housing: PC housing, brushed nickel finish
- :: Cord: 3.3-foot cord with male socket
- :: Mounting: Recessed, screwless trim
- :: Dimensions: 2.95-inch diameter
- :: Warranty: 3 years
Applications
- :: This brushed nickel-finish puck light offers warm 3000K light along with a metallic trim ring that stands out against cabinetry, glass shelving, or display case surfaces where a more decorative finish is preferred over the white or black options. Westgate designed it to connect directly into the PL12 splitter and driver accessory system for multi-light runs.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
| In-line dimming control | |||
| 6-Hole mini splitter with female socket & 40” cord | |||
| 10-Hole mini splitter with female socket & 40” cord | |||
 PL12-HWDR-25W-D SPEC | 25W Dimmable driver with switch, 120-240V | ||
| 3-Hole mini splitter with female socket & 40” cord | |||
| 6” Power feed cord | |||
| 24W Plug-in driver with switch | |||
| 12W Plug-in driver with switch |
