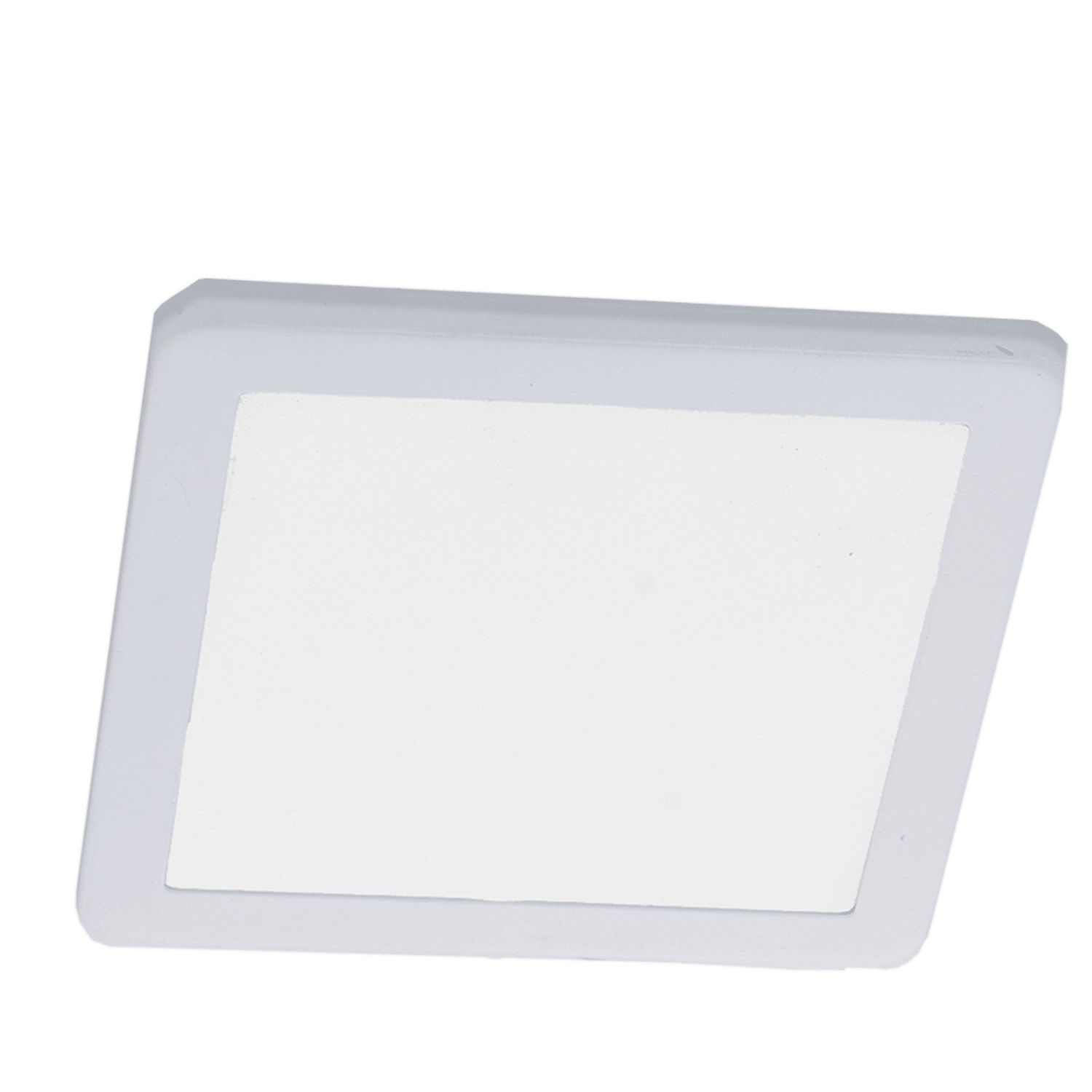

PL12S-30K-WH 3000K White Square 4-inch Slim LED Puck Light
Technical Specs
- :: Wattage: 3.5W
- :: Working voltage: 12V DC
- :: Lumens: 230LM
- :: Efficacy: 65 LM/W
- :: Color temperature: 3000K
- :: Beam angle: 120-degree
- :: Housing: PC housing with white finish
- :: Cord: 3.3 ft cord with male socket
- :: Mounting: recessed
- :: Trim: screwless trim
- :: Profile: square
- :: Dimensions: 4-inch nominal square (exact footprint pending PL12S spec sheet)
- :: Warranty: 3-year
Applications
- :: The PL12S-30K-WH is the warm-white square member of the PL12 puck line from Westgate, pairing a soft 3000K glow with a clean angular profile that suits square cutouts and contemporary millwork. Like every puck in the series it runs on 12V DC, installs recessed with a screwless trim, and plugs into the PL12 accessory system of splitters, power feeds, and drivers. Choose the square shape when the cabinetry or ceiling detail calls for straight edges, and 3000K when warmth is the priority. Westgate offers the same square fixture in 4000K and 5000K, and a round PL12R profile for circular cutouts.
