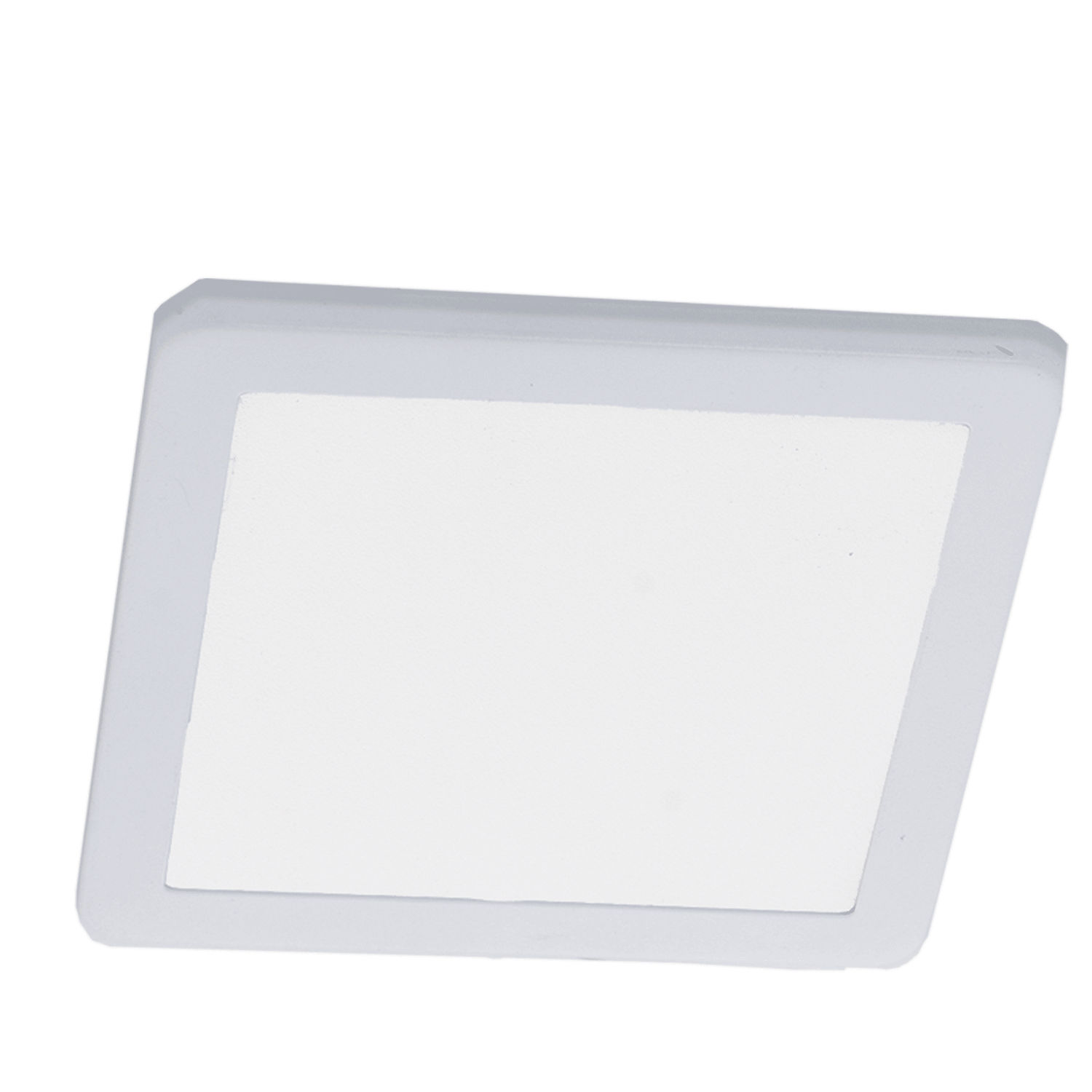

PL12S-50K-WH 5000K White Square 4-inch Slim LED Puck Light
Technical Specs
- :: Wattage: 3.5W
- :: Working voltage: 12V DC
- :: Lumens: 230LM
- :: Efficacy: 65 LM/W
- :: Color temperature: 5000K
- :: Beam angle: 120-degree
- :: Housing: PC housing with white finish
- :: Cord: 3.3 ft cord with male socket
- :: Mounting: recessed
- :: Trim: screwless trim
- :: Profile: square
- :: Dimensions: 4-inch nominal square (exact footprint pending PL12S spec sheet)
- :: Warranty: 3-year
Applications
- :: The PL12S-50K-WH is the daylight-white square member of the PL12 puck line from Westgate, pairing a bright, crisp 5000K light with a clean angular profile for square cutouts in task areas, workshops, and display cases where clarity is paramount. Like every puck in the series it runs on 12V DC, installs recessed with a screwless trim, and plugs into the PL12 accessory system. Choose the square shape for straight-edged detailing and 5000K for the coolest tone in the line. Westgate offers the same square fixture in 4000K and warmer 3000K, and a round PL12R profile for circular cutouts.
